931038 - Ariens Grand Sierra Garden Tractor, 22hp Kohler, Hydro (SN: 000101 & Above) Lift System Rock Shafts Parts Diagram

Grand Sierra Garden Tractor, 22hp Kohler, Hydro

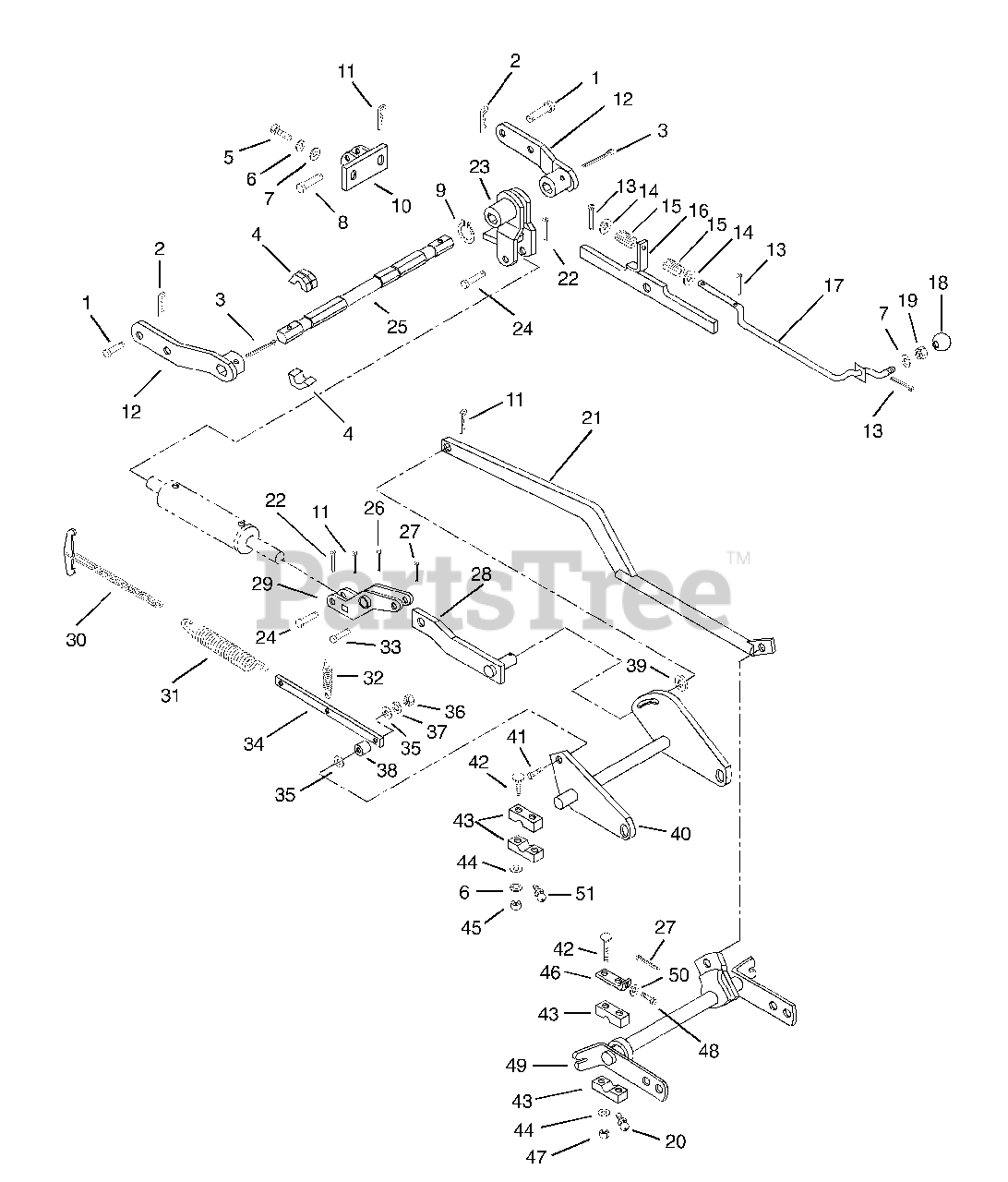

Lift System Rock Shafts Parts Diagram

  • Title

1

Ariens 06805500

PIN-CLEV .50X1.25 RH ST PL

$

$

Not available

2

Ariens 06713600

@PIN-CTR .18X2.00 YWZC

$

$

Not available

3

Ariens 06702500

PIN-COTR .18X2.0 ZCC
(Superseded to 06713600)

$

$

Not available

4

Ariens 05508500

BSHG-FLG 1.000X1.750X1.000

$30.99

$

Usually ships in 4-12 days

0

5

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 03100800

PIN-CLEV .619X2.0 YWZC

$

$

Not available

9

Ariens 05701400

RG-RTNG-EXT 1.125X.050

$

$

Not available

10

Ariens 03100700

PLATE

$

$

Not available

11

Ariens 06713700

PIN-HAIR-INT .09X.188X2.00YWZC
(Superseded to 06712900)

$5.99

$

In Stock, Qty 11

0

12

Ariens 03153400

ARM

$

$

Not available

13

Ariens 06707300

@PIN-CTR .12X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 5

0

14

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 08310500

SG-COMP .65X.56X1.50

$

$

Not available

16

Ariens 03149800

LATCH

$11.99

$

Usually ships in 4-12 days

0

17

Ariens 03017500

LATCH ROD

$86.99

$

Usually ships in 4-12 days

0

18

Ariens 07505200

KNOB-STEERING LOCK

$20.99

$

In Stock, only 1 left!

0

19

Ariens 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

21

Ariens 03090700

LINK - CONNECTOR

$

$

Not available

22

Ariens 06707100

@PIN-CTR .12X1.00 EXTPRSQCT YZ

$0.99

$

In Stock, Qty 10

0

23

Ariens 03056200

ARM

$

$

Not available

24

Ariens 03105100

PIN-CLEV .494X1.94 YWZC

$

$

Not available

25

Ariens 03056100

SHAFT

$

$

Not available

26

Ariens 06712700

@PIN-CTR .18X1.25 EXTPRSQCT YZ

$1.99

$

In Stock, only 3 left!

0

27

Ariens 06712000

@PIN-CTR .18X1.00 EXTPRSQCT YZ

$1.99

$

Usually ships in 4-12 days

0

28

Ariens 03150000

LINK

$

$

Not available

29

Ariens 03106300

BELLCRANK

$

$

Not available

30

Ariens 03101700

CHAIN

$22.99

$

Usually ships in 4-12 days

0

31

Ariens 08310700

SG-TENS .156X1.062X8.68 WLD ??

$39.99

$

Usually ships in 4-12 days

0

32

Ariens 08314900

SG-TENS .035X.45X2.75 WLD 3.5

$13.99

$

In Stock, only 1 left!

0

33

Ariens 03079300

PIN-CLEV .619X1.43 YWZC

$

$

Not available

34

Ariens 03118100

LINK

$

$

Not available

35

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

36

Ariens 06533200

@NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

37

Ariens 06308000

WSHR-LK .250X.077 HVY YWZC

$

$

Not available

38

Ariens 03102100

SPACER .269X.375X.343

$5.99

$

Usually ships in 4-12 days

0

39

Ariens 06439000

@WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

40

Ariens 03105000

CENTER ROCKSHAFT

$

$

Not available

41

Ariens 05947700

@BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

42

Ariens 06213400

@BLT-RDHDSQNK .38-16X2.25 G5YZ
(Superseded to 06200301)

$3.99

$

In Stock, only 2 left!

0

43

Ariens 02901100

BLOCK

$

$

Not available

44

Ariens 06444600

WSHR-FL-STL .406X.750X.005 YWZ

$

$

Not available

45

Ariens 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

46

Ariens 03101400

BRACE

$

$

Not available

47

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

48

Ariens 05947500

@BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.49

$

In Stock, Qty 12

0

49

Ariens 03101600

ROCK SHAFT-FRONT
(Superseded to 53100500)

$

$

Not available

50

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

51

UNKNOWN

$

$

Not available
