931038 - Ariens Grand Sierra Garden Tractor, 22hp Kohler, Hydro (SN: 000101 & Above) Frame & Fuel Parts Diagram

Grand Sierra Garden Tractor, 22hp Kohler, Hydro

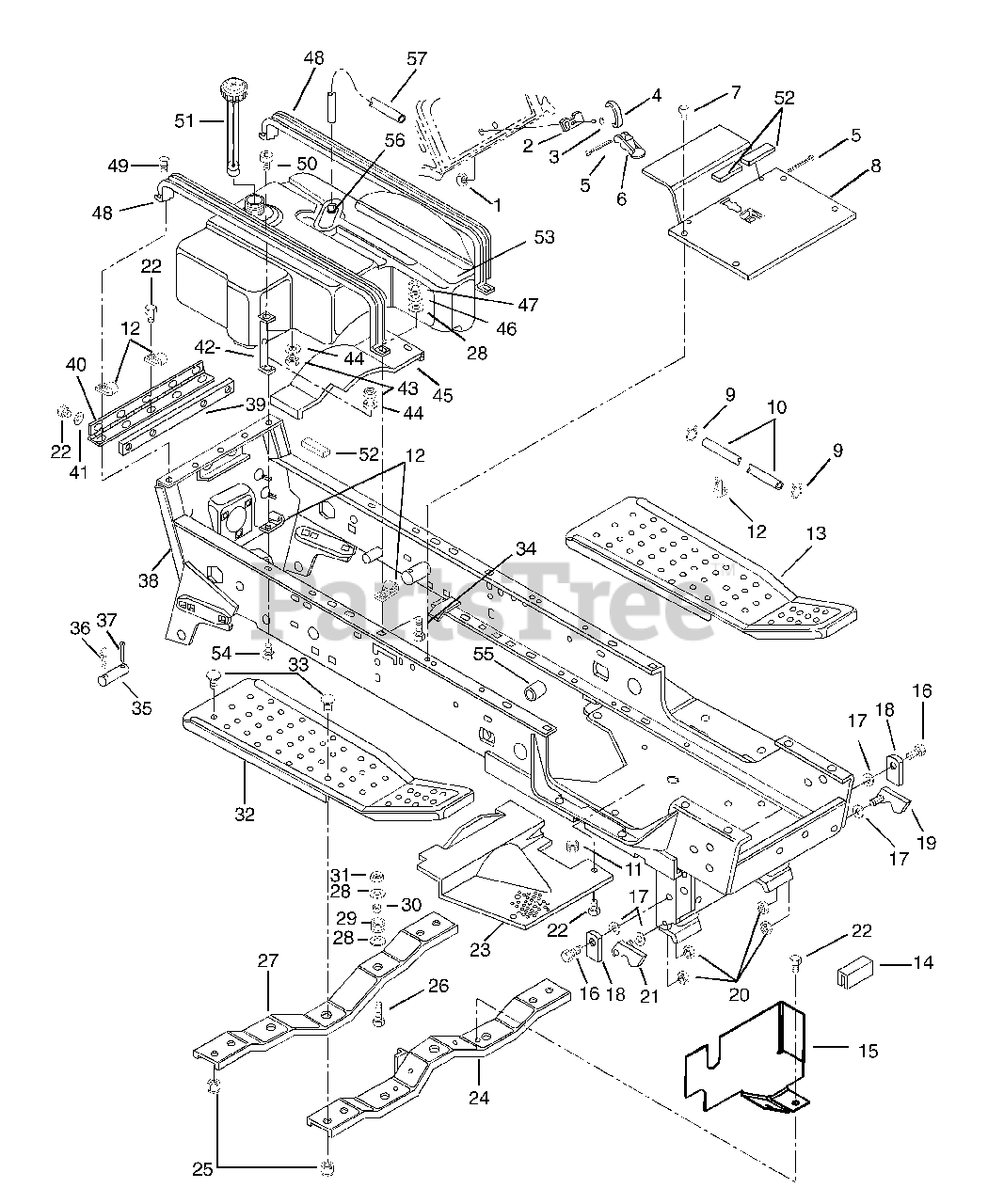

Frame & Fuel Parts Diagram

  • Title

1

Ariens 06530600

NUT-LK-DUAL FACE 10-24 YWZC

$0.99

$

In Stock, Qty 8

0

2

Ariens 03030700

CATCH

$

$

Not available

3

Ariens 06117600

SCR-MCH 10-24X.50 SLRH YWZC

$2.99

$

Usually ships in 4-12 days

0

4

Ariens 03030900

SPRING - DECK LATCH

$

$

Not available

5

Ariens 06712600

@PIN-CTR .12X1.25 EXTPRSQCT YZ
(Superseded to 06700212)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 03030800

LEVER - DECK LATCH

$5.99

$

Usually ships in 4-12 days

0

7

Ariens 07411600

@SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 03090900

PLATE - FLOOR

$

$

Not available

9

Ariens 02917200

CLAMP-HOSE WIR.490/.510X.092#8
(Superseded to 06939100)

$3.99

$

In Stock, Qty 10

0

10

Ariens 03072500

FUEL LINE 1/4 X 67"

$

$

Not available

11

Ariens 07528400

HOLE PLUG 1.375

$3.49

$

Usually ships in 4-12 days

0

12

Ariens 06909400

J-CLAMP

$3.49

$

In Stock, Qty 8

0

13

Ariens 03012500

L.H. RUNNING BOARD

$

$

Not available

14

Ariens 03093100

TRIM

$

$

Not available

15

Ariens 03092800

SCREEN

$9.49

$

Usually ships in 4-12 days

0

16

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 02902400

SPRING WASHER

$18.99

$

Usually ships in 4-12 days

0

18

Ariens 02901300

LOCK STOP

$

$

Not available

19

Ariens 03055500

LATCH LH

$62.99

$

Usually ships in 4-12 days

0

20

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 03055400

LATCH RH

$

$

Not available

22

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 03075000

SCREEN

$

$

Not available

24

Ariens 03012800

FRONT CHANNEL

$

$

Not available

25

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 05947500

@BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.49

$

In Stock, Qty 12

0

27

Ariens 03012700

REAR CHANNEL

$11.99

$

Usually ships in 4-12 days

0

28

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 07506600

GROMMET .438ID X .688 OD

$3.99

$

Usually ships in 4-12 days

0

30

Ariens 03101900

SPACER .318X.430X.375

$

$

Not available

31

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

32

Ariens 03012600

R.H. RUNNING BOARD

$34.99

$

Usually ships in 4-12 days

0

33

Ariens 06206700

BLT-RDHDSQNK .31-18X.75 PL BL
(Superseded to 06215700)

$2.49

$

In Stock, Qty 20+

0

34

Ariens 06214100

BLT-RDHDSQSHK.31-18X.75 GR2 YW
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

35

Ariens 03101200

PIN

$23.99

$

Usually ships in 4-12 days

0

36

Ariens 06713200

PIN-HAIR-INT .15X.43X2.75 YWZC
(Superseded to 06714000)

$2.99

$

In Stock, Qty 6

0

37

Ariens 06707100

@PIN-CTR .12X1.00 EXTPRSQCT YZ

$0.99

$

In Stock, Qty 10

0

38

Ariens 03096800

FRAME, MAIN

$

$

Not available

39

Ariens 03457400

STRAP

$5.99

$

Usually ships in 4-12 days

0

40

Ariens 03102800

HINGE-2" X 12.88 YWZC

$

$

Not available

41

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

42

Ariens 03105500

SUPPORT

$

$

Not available

43

Ariens 06533200

@NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

44

Ariens 06308000

WSHR-LK .250X.077 HVY YWZC

$

$

Not available

45

Ariens 03016100

GUARD

$

$

Not available

46

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

47

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

48

Ariens 03151700

CHANNEL

$

$

Not available

49

Ariens 07414400

@SCR-TAP .31-18X.75 HWH TR YWZ
(Superseded to 07400127)

$1.49

$

In Stock, Qty 11

0

50

Ariens 05938200

SCR-SKH .25-20X.75 TSPH PL
(Superseded to 05967300)

$

$

Not available

51

Ariens 03181900

GAS GAUGE & CAP

$35.99

$

In Stock, Qty 5

0

52

Ariens 03076600

FOAM TAPE

$

$

Not available

53

Ariens 03064400

GAS TANK ASSEMBLY

$

$

Not available

54

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

55

Ariens 05505700

BSHG-SLV .750X.814X .750 BRZ

$17.99

$

In Stock, only 1 left!

0

56

Ariens 03018700

FITTING - GAS TANK

$

$

Not available

57

Ariens 03026900

GAS TANK FUEL LINE

$

$

Not available
