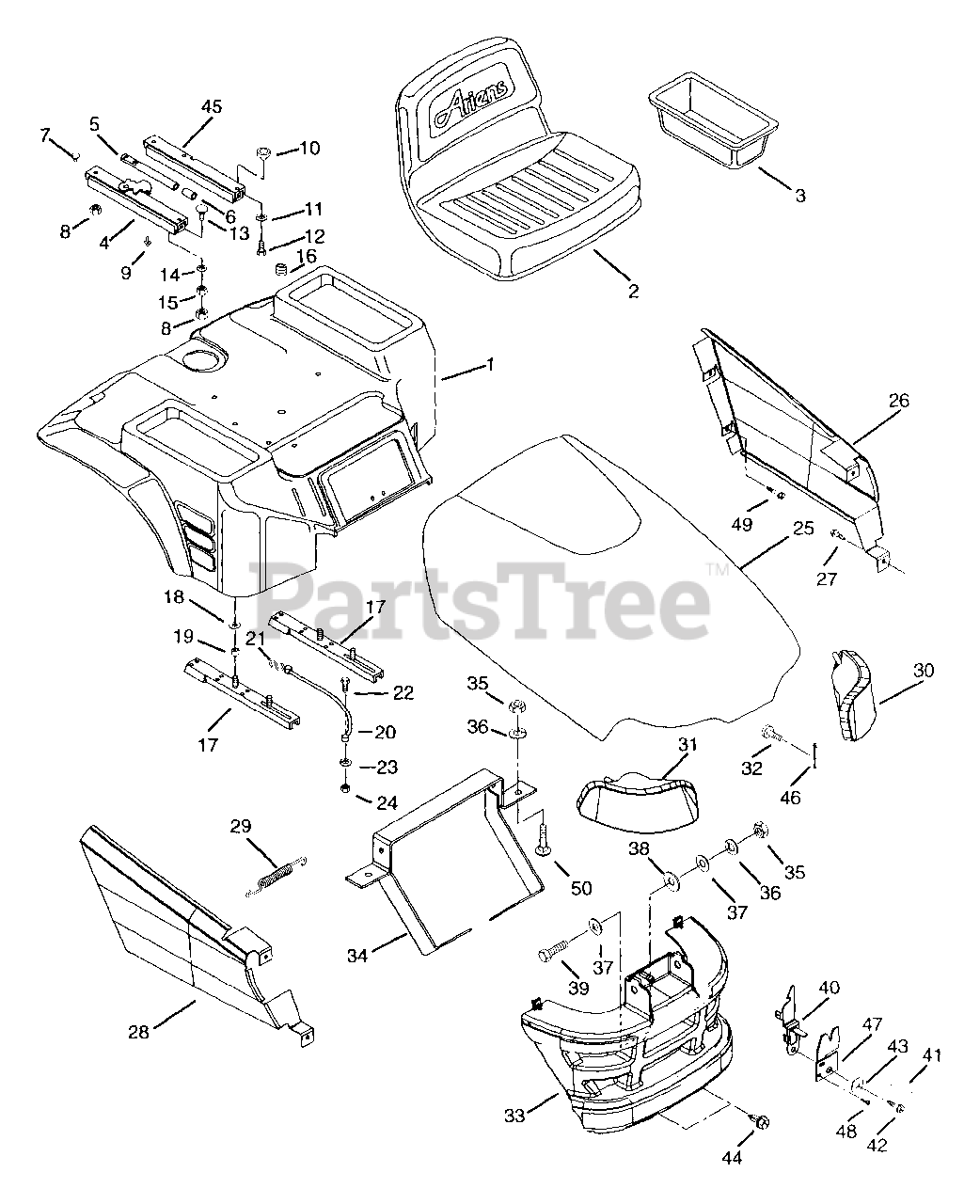

931037 - Ariens Grand Sierra Garden Tractor, 22hp Kohler, Hydro (SN: 000468 & Above) Hood & Rear Deck Parts Diagram

Grand Sierra Garden Tractor, 22hp Kohler, Hydro

Hood & Rear Deck Parts Diagram

  • Title

1

Ariens 03074000

REAR DECK
(Superseded to 03074059)

$

$

Not available

2

Ariens 03091400

SEAT V-580
(Superseded to 53407000)

$

$

Not available

3

Ariens 03009300

TRAY

$

$

Not available

4

Ariens 03416600

SEAT SLIDE R H

$

$

Not available

5

Ariens 03416500

SEAT SLIDE HANDLE

$

$

Not available

6

Ariens 07512000

GRIP

$

$

Not available

7

Ariens 07008100

SCR-CAP BTHD.31-18X.50 GR5 YZ

$

$

Not available

8

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06506500

NUT-LK 10-24 NY PL
(Superseded to 06536000)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 03418300

SEAT SLIDE SPACER

$4.49

$

Usually ships in 4-12 days

0

11

Ariens 06303200

WSHR-LK-EXT .313X.030 PL

$2.49

$

Usually ships in 4-12 days

0

12

Ariens 06106300

SCR-MCH .31-18X1.00 CRRH PL
(Superseded to 06117700)

$

$

Not available

13

Ariens 07008600

SCR-CAP BTHD.31-18X.875 GR5 PK

$

$

Not available

14

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

16

Ariens 07504400

GROMMET

$

$

Not available

17

Ariens 03009100

SEAT SUPPORT

$5.99

$

Usually ships in 4-12 days

0

18

Ariens 06414500

WSHR-FL-STL .390X.750X.125 PL
(Superseded to 06444300)

$7.99

$

In Stock, Qty 8

0

19

Ariens 03009200

SPACER .380X.503X.281

$3.99

$

Usually ships in 4-12 days

0

20

Ariens 06910200

CABLE

$37.99

$

Usually ships in 4-12 days

0

21

Ariens 03029300

S HOOK

$

$

Not available

22

Ariens 07008900

SCR .25-20X.75 TS PH PL
(Superseded to 05967300)

$

$

Not available

23

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$

$

Not available

24

Ariens 06503200

NUT-HEX .250-20 PL
(Superseded to 06533200)

$0.99

$

In Stock, Qty 13

0

25

Ariens 53605800

HOOD WITH DECALS
(Superseded to 53606500)

$

$

Not available

26

Ariens 03655200

SIDE PANEL- LH
(Superseded to 03673451)

$62.99

$

Usually ships in 4-12 days

0

27

Ariens 07412500

SCR-TAP 12-16X.500 HI-LOTPHBL

$

$

Not available

28

Ariens 03655100

SIDE PANEL- RH
(Superseded to 03673351)

$56.99

$

Usually ships in 4-12 days

0

29

Ariens 08314900

SG-TENS .035X.45X2.75 WLD 3.5

$13.99

$

In Stock, only 1 left!

0

30

Ariens 03647300

HEADLIGHT- LH

$

$

Not available

31

Ariens 03647200

HEADLIGHT- RH

$

$

Not available

32

Ariens 00283500

PIN, CLEVIS .243/.248X1.50 YWZ

$3.49

$

Usually ships in 4-12 days

0

33

Ariens 03095100

GRILLE
(Superseded to 03679200)

$

$

Not available

34

Ariens 03090300

MOUNT - GRILLE

$

$

Not available

35

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

36

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

37

Ariens 06421400

WSHR-FL-STL .328X1.0X.094 PL
(Superseded to 06437500)

$3.99

$

In Stock, only 3 left!

0

38

Ariens 06435500

WSHR-FL-NYL .390X1.000X.062

$2.49

$

Usually ships in 4-12 days

0

39

Ariens 05918100

BLT-HEX .31-18X1.00 PL GR5
(Superseded to 05946900)

$1.49

$

In Stock, Qty 20+

0

40

Ariens 03655000

HOOD LATCH

$

$

Not available

41

Ariens 07526700

GRIP .062 X .375 X 1.000 RE

$

$

Not available

42

Ariens 07413300

SCR-TAP 12-24X.50 HWH TR BLACK
(Superseded to 07411900)

$2.49

$

In Stock, Qty 11

0

43

Ariens 06440600

WSHR-FL-STL .281X1.250X.048 BL
(Superseded to 06403700)

$

$

Not available

44

Ariens 07413400

SCR-TAP .312-18X.50 HWH TR BL

$

$

Not available

45

Ariens 03416700

SEAT SLIDE L H

$

$

Not available

46

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

47

Ariens 03659200

LOCATOR, HOOD

$

$

Not available

48

Ariens 07406400

SCR-TAP 10-12X.50 CRPH PL A BL

$3.49

$

Usually ships in 4-12 days

0

49

Ariens 07411200

SCR-TAP 10-12X.62 CRPH PL A

$

$

Not available

50

Ariens 06201300

BLT-RDHDSQSHNK .38-16X1.00 PL
(Superseded to 06212000)

$1.49

$

In Stock, Qty 20+

0
