931036 (7173-H) - Gravely Lawn Tractor, 17hp Kohler, Hydro Drive (SN: 000101 & Above) SPEED SELECTOR AND PARK LOCK Parts Diagram

Lawn Tractor, 17hp Kohler, Hydro Drive

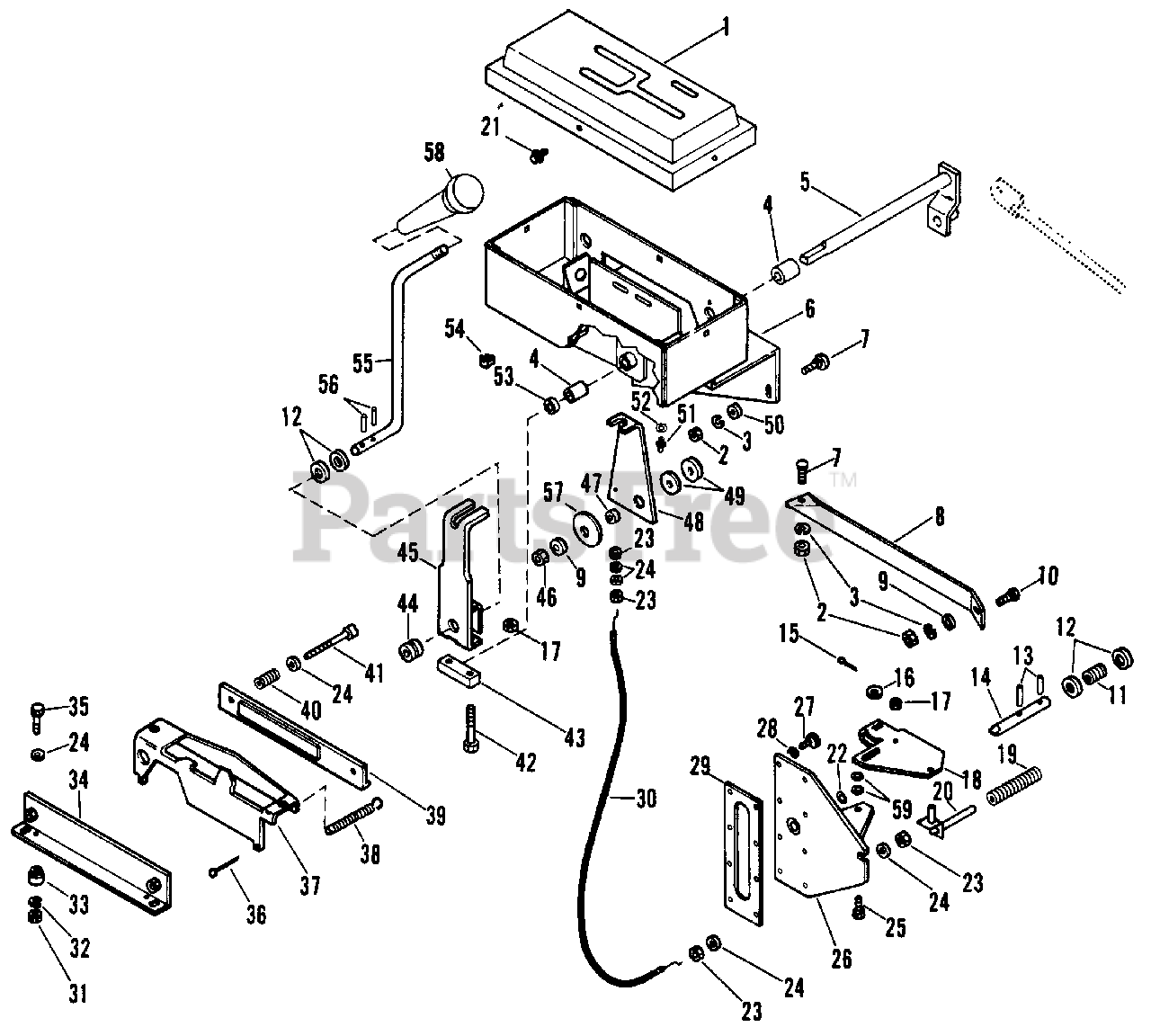

SPEED SELECTOR AND PARK LOCK Parts Diagram

  • Title

1

Gravely 039120

Control Console
(Superseded to 03182500)

$

$

Not available

2

Gravely 120377

Nut, Hex 3/8-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 120382

Washer, Lock 3/8 Reg.
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 039121

Bushing, Sleeve .625 x .75 x 1.00
(Superseded to 05502400)

$

$

Not available

5

Gravely 039122

Shift Shaft
(Superseded to 03039100)

$

$

Not available

6

Gravely 039123

Control Box
(Superseded to 03037300)

$

$

Not available

7

Gravely 120915

Bolt, 3/8-16 x 1.00 Rd Hd Sq Nk

$

$

Not available

8

Gravely 039124

Brace
(Superseded to 03102400)

$

$

Not available

9

Gravely 120394

Washer, Flat .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 180120

Bolt, Hex 3/8-16 x .75
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 039125

Spring, Comp. 3/4 Free Length
(Superseded to 08312000)

$

$

Not available

12

Gravely 120389

Washer, Flat .500 x 1.250 x .083
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

13

Gravely 454668

Pin, Spring .187 x 1.250
(Superseded to 21072600)

$

$

Not available

14

Gravely 039126

Lock Pin
(Superseded to 03109700)

$25.99

$

Usually ships in 4-12 days

0

15

Gravely 177923

Pin, Cotter .125 x .75
(Superseded to 06707300)

$0.99

$

In Stock, Qty 5

0

16

Gravely 039127

Washer, .339/.359 x 1.375 x 14 Ga.
(Superseded to 06401105)

$2.49

$

In Stock, only 2 left!

0

17

Gravely 413447

Nut, Lock 5/16-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 044869

Lock Pivot Plate
(Superseded to 03080600)

$

$

Not available

19

Gravely 039129

Spring, Comp. 3-1/8 Free Length
(Superseded to 08312100)

$11.99

$

In Stock, Qty 6

0

20

Gravely 039130

Pivot Pin
(Superseded to 03109800)

$

$

Not available

21

Gravely 144811

Screw, Tapping 10-12 x .50 PHD
(Superseded to 07410300)

$

$

Not available

22

Gravely 039131

O-Ring, 1/2 Nom. I.D.
(Superseded to 05607500)

$3.99

$

Usually ships in 4-12 days

0

23

Gravely 124920

Nut, Jam 5/16-24
(Superseded to 06500923)

$0.99

$

In Stock, Qty 13

0

24

Gravely 120386

Washer, Flat .312 x .734 x .065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 180077

Bolt, Hex 5/16-18 x .75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 039132

Lock Pin Guide
(Superseded to 03110000)

$

$

Not available

27

Gravely 039133

Taptite, M5 x 0.8 x 16 HFLPL
(Superseded to 07415100)

$3.49

$

Usually ships in 4-12 days

0

28

Gravely 036458

Washer, Lock Ext. #12 I.D.
(Superseded to 06302400)

$

$

Not available

29

Gravely 039134

Gasket
(Superseded to 03116700)

$14.99

$

Usually ships in 4-12 days

0

30

Gravely 039135

Cable
(Superseded to 06910000)

$68.99

$

Usually ships in 4-12 days

0

31

Gravely 120376

Nut, Hex 5/16-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

32

Gravely 120379

Washer, Lock 5/16 SP
(Superseded to 06304800)

$

$

Not available

33

Gravely 039136

Spacer
(Superseded to 03039500)

$5.99

$

Usually ships in 4-12 days

0

34

Gravely 039137

R.H. Friction Brake
(Superseded to 03039300)

$77.99

$

Usually ships in 4-12 days

0

35

Gravely 180081

Bolt, Hex 5/16-18 x 1.25
(Superseded to 05901803)

$2.49

$

In Stock, Qty 12

0

36

Gravely 121222

Pin, Cotter .09 x .75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

37

Gravely 039138

Shift Lock
(Superseded to 03172400)

$

$

Not available

38

Gravely 039139

Spring, Ext. 2-3/4 Free Length
(Superseded to 08314900)

$13.99

$

In Stock, only 1 left!

0

39

Gravely 039140

L.H. Friction Brake
(Superseded to 03156600)

$77.99

$

Usually ships in 4-12 days

0

40

Gravely 039141

Spring, Comp. 1-1/2 Free Length
(Superseded to 08312500)

$14.99

$

Usually ships in 4-12 days

0

41

Gravely 039142

Screw, Mach. 5/16-18 x 2.75 Rd
(Superseded to 06117400)

$3.99

$

Usually ships in 4-12 days

0

42

Gravely 180083

Bolt, Hex 5/16-18 x 1.50
(Superseded to 05901710)

$1.49

$

In Stock, Qty 13

0

43

Gravely 039143

Strap
(Superseded to 03039400)

$

$

Not available

44

Gravely 039048

Grommet
(Superseded to 07506600)

$3.99

$

Usually ships in 4-12 days

0

45

Gravely 039144

Lever
(Superseded to 03039200)

$

$

Not available

46

Gravely 413534

Nut, Lock 3/8-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

47

Gravely 039145

Bushing, Sleeve .375 x .625 x .250
(Superseded to 05508900)

$9.49

$

In Stock, only 1 left!

0

48

Gravely 039146

Arm
(Superseded to 03125800)

$

$

Not available

49

Gravely 039147

Washer, .438 x 1.125 x .188
(Superseded to 06402800)

$

$

Not available

50

Gravely 120388

Washer, Flat .438 x 1.000 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

51

Gravely 411027

Fitting, Lube 1/4-28
(Superseded to 07012600)

$

$

Not available

52

Gravely 039148

Washer, Lock Ext. 1/4 I.D. Hi-Collar
(Superseded to 06307000)

$2.49

$

Usually ships in 4-12 days

0

53

Gravely 038821

Washer, Flat .640 x 1.005 x .062
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

54

Gravely 039149

Plastic Grommet
(Superseded to 07507600)

$0.99

$

In Stock, Qty 10

0

55

Gravely 041160

Rod, Shift
(Superseded to 03086700)

$100.99

$

Usually ships in 4-12 days

0

56

Gravely 456652

Pin, Spring .187 x .875
(Superseded to 05809000)

$

$

Not available

57

Gravely 039151

Belleville Washer
(Superseded to 03116200)

$

$

Not available

58

Gravely 041161

Knob
(Superseded to 07514500)

$23.99

$

Usually ships in 4-12 days

0

59

Gravely 446548

Washer, Flat .375 x .734 x .065
(Superseded to 06431100)

$

$

Not available
