931036 (7173-H) - Gravely Lawn Tractor, 17hp Kohler, Hydro Drive (SN: 000101 & Above) POWER TAKE OFF (PTO) - FRONT Parts Diagram

Lawn Tractor, 17hp Kohler, Hydro Drive

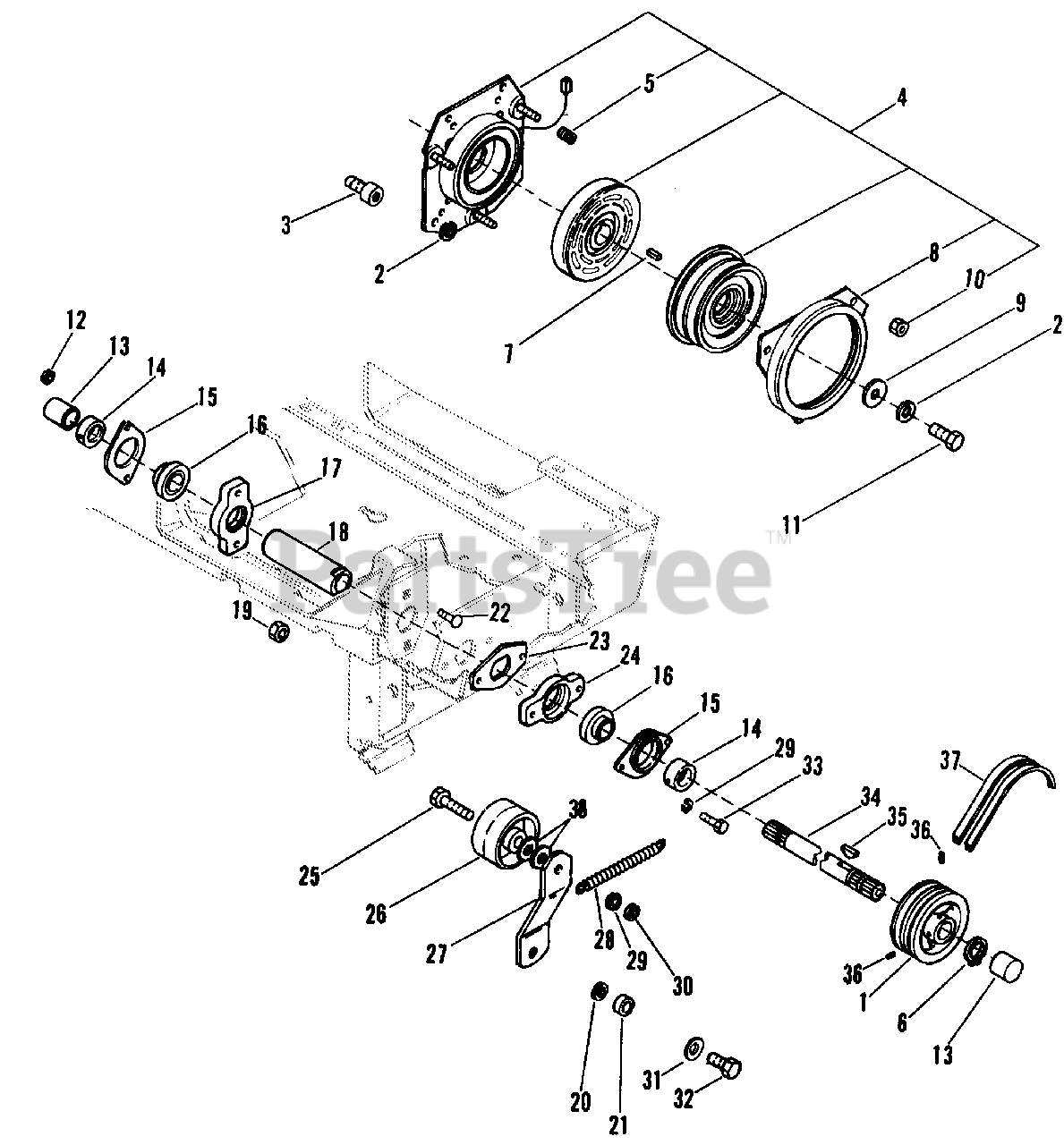

POWER TAKE OFF (PTO) - FRONT Parts Diagram

  • Title

1

Gravely 039180

Sheave
(Superseded to 03040400)

$

$

Not available

2

Gravely 131100

Washer, Lock 7/16 SP Heavy
(Superseded to 06310700)

$2.99

$

Usually ships in 4-12 days

0

3

Gravely 039157

Screw, Cap 7/16-14 x .75 Hex
(Superseded to 05902500)

$

$

Not available

4

Gravely 039158

Clutch Assembly 1.12 Bore
(Superseded to 53114100)

$

$

Not available

5

Gravely 039159

Spring, Comp.
(Superseded to 08314800)

$

$

Not available

6

Gravely 011292

Ring, Retaining
(Superseded to 05706200)

$2.49

$

In Stock, only 1 left!

0

7

Gravely 039160

Key, Straight .25 x .625 x .25
(Superseded to 06602700)

$3.99

$

In Stock, only 3 left!

0

8

Gravely 039161

Brake Drum
(Superseded to 03030300)

$

$

Not available

9

Gravely 039162

Washer, .510/.530 x 1.625 x .250
(Superseded to 06419800)

$

$

Not available

10

Gravely 192481

Nut, Lock 3/8-24
(Superseded to 06538800)

$1.99

$

In Stock, only 4 left!

0

11

Gravely 181670

Bolt, Hex 7/16-20 x 1.50
(Superseded to 05902004)

$5.99

$

In Stock, Qty 5

0

12

Gravely 413534

Nut, Lock 3/8-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 039163

Shaft Cover
(Superseded to 07506000)

$4.49

$

In Stock, only 2 left!

0

14

Gravely 039164

Bearing Collar
(Superseded to 05426200)

$45.99

$

Usually ships in 4-12 days

0

15

Gravely 039165

Flange
(Superseded to 03008200)

$17.99

$

In Stock, only 2 left!

0

16

Gravely 039166

Bearing, Ball 1" I.D. x 2-3/64 O.D.
(Superseded to 05426200)

$45.99

$

Usually ships in 4-12 days

0

17

Gravely 039167

Bearing Mounting Flange
(Superseded to 03040600)

$85.99

$

In Stock, only 1 left!

0

18

Gravely 039168

PTO Tube
(Superseded to 03040800)

$86.99

$

Usually ships in 4-12 days

0

19

Gravely 414074

Nut, Lock 1/2-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

20

Gravely 039169

Shim Spacer
(Superseded to 03115800)

$9.99

$

In Stock, only 1 left!

0

21

Gravely 039170

Spacer
(Superseded to 03115700)

$26.99

$

In Stock, only 1 left!

0

22

Gravely 126411

Bolt, 3/8-16 x 1.50 Rd Hd Sq Nk
(Superseded to 06200416)

$3.99

$

In Stock, only 2 left!

0

23

Gravely 039171

Anti Pivot Plate
(Superseded to 03040900)

$20.99

$

Usually ships in 4-12 days

0

24

Gravely 039172

Bearing Mounting Flange
(Superseded to 03040700)

$

$

Not available

25

Gravely 180130

Bolt, Hex 3/8-16 x 2.00
(Superseded to 05901718)

$2.99

$

In Stock, Qty 6

0

26

Gravely 039173

Idler
(Superseded to 07308800)

$39.99

$

In Stock, Qty 8

0

27

Gravely 039174

Idler Arm
(Superseded to 03063100)

$129.99

$

Usually ships in 4-12 days

0

28

Gravely 039175

Spring, Extension 6" Free Length
(Superseded to 08320300)

$17.99

$

In Stock, Qty 20+

0

29

Gravely 120382

Washer, Lock 3/8 Reg.
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 120377

Nut, Hex 3/8-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 039176

Washer, .513/.523 x 2.000 x .105
(Superseded to 06401127)

$3.99

$

Usually ships in 4-12 days

0

32

Gravely 180175

Bolt, Hex 1/2-13 x 1.25
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

33

Gravely 180126

Bolt, Hex 3/8-16 x 1.50
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

34

Gravely 039177

Front PTO Shaft
(Superseded to 03040500)

$224.99

$

Usually ships in 4-12 days

0

35

Gravely 039178

Key, Feather .25 x 1.25 x .25
(Superseded to 06604500)

$5.99

$

In Stock, Qty 7

0

36

Gravely 036357

Setscrew, 5/16-18 x .38 SKHCUPNL
(Superseded to 06005500)

$2.99

$

In Stock, Qty 13

0

37

Gravely 039179

V-Belt(2) 4L-RMA
(Superseded to 07211100)

Note: (2) 4L-RMA

$40.99

$

In Stock, Qty 7

0

38

Gravely 120394

Washer, Flat .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0
