931036 (7173-H) - Gravely Lawn Tractor, 17hp Kohler, Hydro Drive (SN: 000101 & Above) NEUTRALIZER AND BRAKE LINKAGE Parts Diagram

Lawn Tractor, 17hp Kohler, Hydro Drive

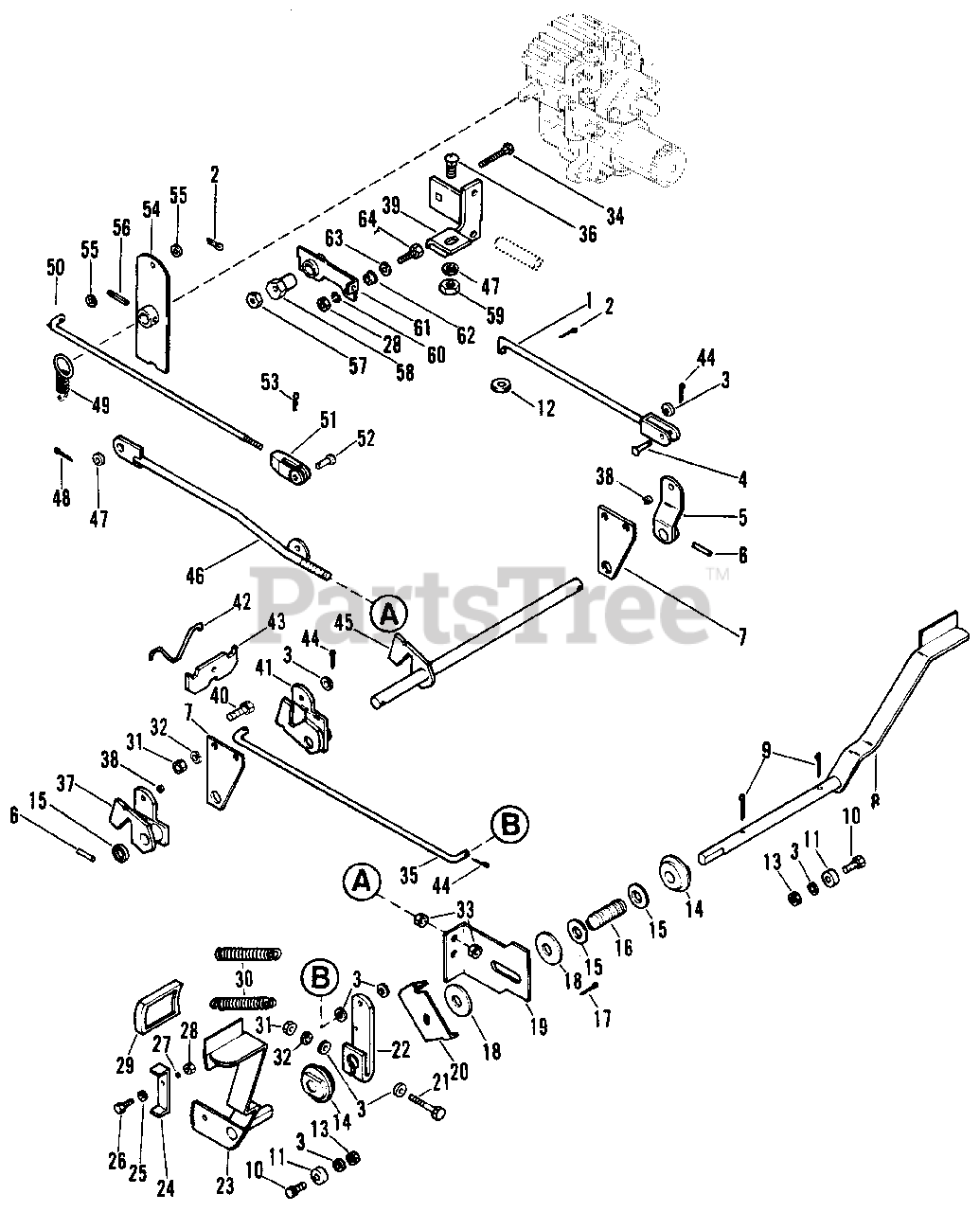

NEUTRALIZER AND BRAKE LINKAGE Parts Diagram

  • Title
1

Gravely 039377

Brake Rod
(Superseded to 03193500)

$66.99

$

In Stock, only 1 left!

0

2

Gravely 121222

Pin, Cotter .09 x .75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

3

Gravely 120394

Washer, Flat .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 039378

Clevis Pin
(Superseded to 01330300)

$

$

Not available

5

Gravely 039379

Brake Arm
(Superseded to 03193800)

$

$

Not available

6

Gravely 036038

Pin, Groove
(Superseded to 05804000)

$

$

Not available

7

Gravely 039380

Plate
(Superseded to 03150900)

$

$

Not available

8

Gravely 039381

L.H. Lever
(Superseded to 03013300)

$

$

Not available

9

Gravely 187988

Pin, Cotter .187 x 1.25
(Superseded to 06712700)

$1.99

$

In Stock, only 3 left!

0

10

Gravely 180078

Bolt, Hex 5/16-18 x .875
(Superseded to 05901801)

$2.49

$

In Stock, only 2 left!

0

11

Gravely 039382

Spacer
(Superseded to 02513500)

$

$

Not available

12

Gravely 036366

Washer, .380/.385 x .812 x 24 Ga.
(Superseded to 06436500)

$2.49

$

In Stock, only 2 left!

0

13

Gravely 413447

Nut, Lock 5/16-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 039383

Bushing, Flange .75 x 1.75 x .75
(Superseded to 05509500)

$3.49

$

Usually ships in 4-12 days

0

15

Gravely 423315

Washer, Flat .813 x 1.37 x .100
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 039384

Spring, Comp. 2-17/32 Free Length
(Superseded to 08305500)

$

$

Not available

17

Gravely 121224

Pin, Cotter .09 x 1.00

$0.99

$

Usually ships in 4-12 days

0

18

Gravely 039385

Washer, .751/.757 x 2.000 x .125
(Superseded to 06444800)

$4.99

$

Usually ships in 4-12 days

0

19

Gravely 039386

Neutralizer Plate
(Superseded to 03150200)

$

$

Not available

20

Gravely 039387

Neutralizer Arm
(Superseded to 03150300)

$

$

Not available

21

Gravely 180132

Bolt, Hex 3/8-16 x 2.25
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

22

Gravely 039388

Arm, Brake
(Superseded to 03150500)

$5.99

$

Usually ships in 4-12 days

0

23

Gravely 039389

R.H. Lever
(Superseded to 03013200)

$

$

Not available

24

Gravely 039390

Brake Latch
(Superseded to 03087000)

$

$

Not available

25

Gravely 422845

Washer, Flat .281 x .625 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 180021

Bolt, Hex 1/4-20 x .875
(Superseded to 05934000)

$1.99

$

Usually ships in 4-12 days

0

27

Gravely 039391

Spacer Bushing
(Superseded to 01109100)

$

$

Not available

28

Gravely 424215

Nut, Lock 1/4-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 039392

Pedal Pad
(Superseded to 07505100)

$25.99

$

In Stock, only 4 left!

0

30

Gravely 036850

Spring, Extension 3-1/2 Free Length
(Superseded to 08312200)

$34.99

$

In Stock, only 1 left!

0

31

Gravely 120377

Nut, Hex 3/8-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 120382

Washer, Lock 3/8 Reg.
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 414074

Nut, Lock 1/2-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

34

Gravely 039412

Bolt, Carriage 5/16-18 x 2.25
(Superseded to 06208200)

$3.99

$

Usually ships in 4-12 days

0

35

Gravely 039393

Brake Rod
(Superseded to 03096500)

$20.99

$

Usually ships in 4-12 days

0

36

Gravely 126485

Bolt, Carriage 1/2-13 x 1.25
(Superseded to 06200325)

$5.99

$

Usually ships in 4-12 days

0

37

Gravely 039394

Brake Arm
(Superseded to 03193900)

$6.99

$

Usually ships in 4-12 days

0

38

Gravely 039395

Grommet
(Superseded to 07505500)

$3.49

$

Usually ships in 4-12 days

0

39

Gravely 039411

Mount Weldment
(Superseded to 03039600)

$

$

Not available

40

Gravely 120915

Bolt, 3/8-16 x 1.00 Rd Hd Sq Nk

$

$

Not available

41

Gravely 039396

Arm
(Superseded to 03194000)

$

$

Not available

42

Gravely 039397

Clip
(Superseded to 03193700)

$

$

Not available

43

Gravely 039398

Balance Link
(Superseded to 03193600)

$5.99

$

Usually ships in 4-12 days

0

44

Gravely 177923

Pin, Cotter .125 x .75
(Superseded to 06707300)

$0.99

$

In Stock, Qty 5

0

45

Gravely 039399

Brake Shaft
(Superseded to 03194100)

$

$

Not available

46

Gravely 039400

Neutralizer Rod
(Superseded to 03040000)

$

$

Not available

47

Gravely 120389

Washer, Flat .500 x 1.250 x .083
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

48

Gravely 137185

Pin, Cotter .125 x 1.00
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

49

Gravely 039401

Spring, Ext. 2-13/16 Free Length
(Superseded to 08319600)

$45.99

$

Usually ships in 4-12 days

0

50

Gravely 039402

Shift Rod
(Superseded to 03040100)

$116.99

$

Usually ships in 4-12 days

0

51

Gravely 039403

Yoke
(Superseded to 07014700)

$14.99

$

In Stock, only 1 left!

0

52

Gravely 039404

Clevis Pin
(Superseded to 06814000)

$3.99

$

In Stock, only 1 left!

0

53

Gravely 036185

Hairpin, Internal 3/32 x 1-3/16
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

54

Gravely 039405

Shift Arm
(Superseded to 03039900)

$129.99

$

Usually ships in 4-12 days

0

55

Gravely 120386

Washer, Flat .312 x .734 x .065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

56

Gravely 039406

Pin, Roll 1/4 x 1-3/8
(Superseded to 05803800)

$2.49

$

Usually ships in 4-12 days

0

57

Gravely 419455

Nut, Lock 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

58

Gravely 039407

Eccentric
(Superseded to 03039700)

$

$

Not available

59

Gravely 416464

Nut, Lock 1/2-13
(Superseded to 06528200)

$3.99

$

In Stock, only 3 left!

0

60

Gravely 039148

Washer, Lock Ext. 1/4 I.D. Hi-Collar
(Superseded to 06307000)

$2.49

$

Usually ships in 4-12 days

0

61

Gravely 039408

Detent Arm
(Superseded to 03039800)

$

$

Not available

62

Gravely 039409

Ball Bearing, 1/4 I.D.
(Superseded to 05418000)

$45.99

$

Usually ships in 4-12 days

0

63

Gravely 039410

Washer, .281 x 1.25 x .062
(Superseded to 06403700)

$

$

Not available

64

Gravely 180022

Bolt, Hex 1/4-20 x 1.00
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0
