931036 (7173-H) - Gravely Lawn Tractor, 17hp Kohler, Hydro Drive (SN: 000101 & Above) HYDROSTATIC DRIVE AND BRAKES Parts Diagram

Lawn Tractor, 17hp Kohler, Hydro Drive

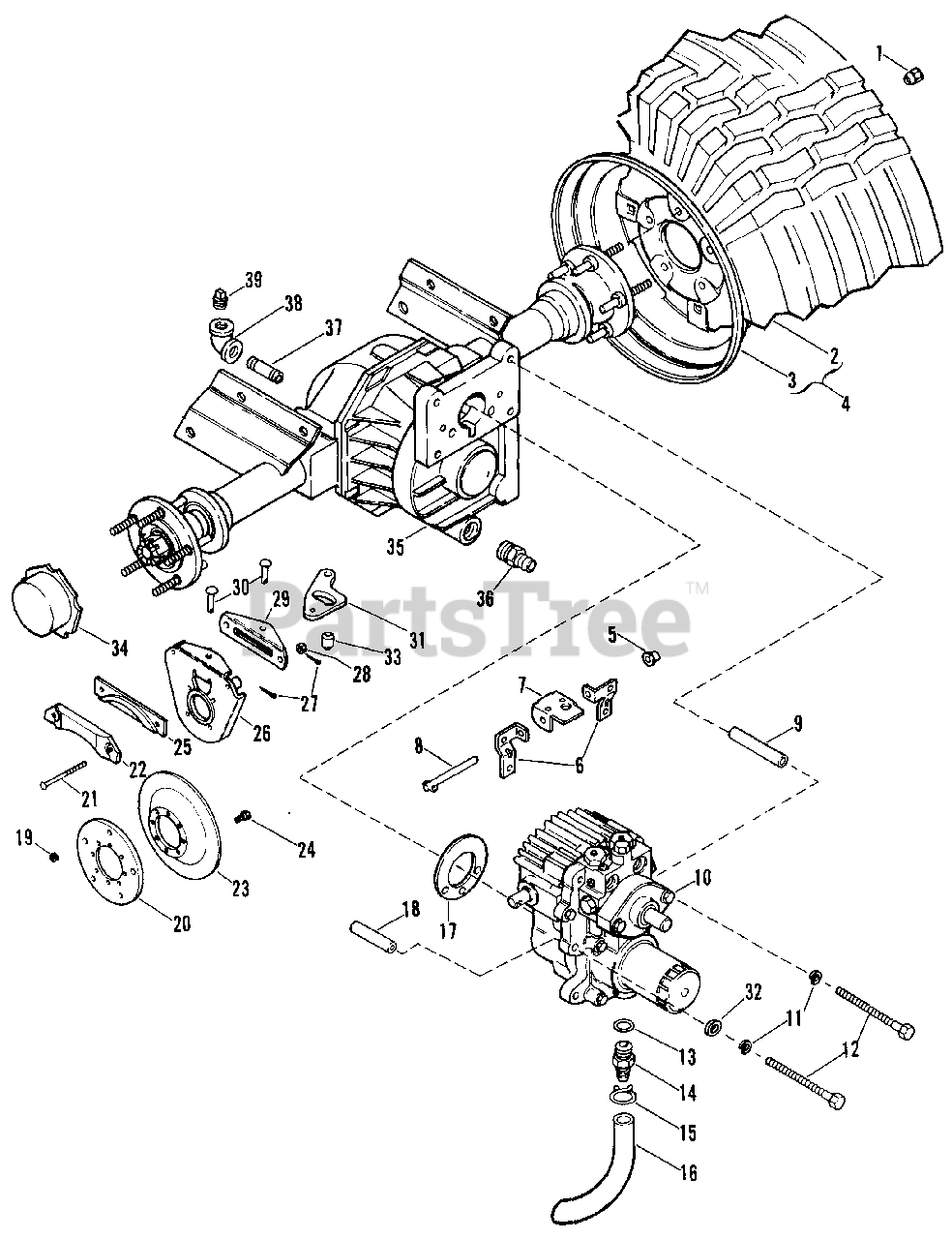

HYDROSTATIC DRIVE AND BRAKES Parts Diagram

  • Title

1

Gravely 039687

Nut, Lug 7/16-20
(Superseded to 06511400)

$3.99

$

Usually ships in 4-12 days

0

2

Gravely 039688

Tire
(Superseded to 07111900)

$

$

Not available

3

Gravely 039689

Rim
(Superseded to 07110600)

$

$

Not available

4

Gravely 039690

10.50 x 23 Rear Tire Assembly
(Superseded to 07115400)

$

$

Not available

5

Gravely 039502

Nut
(Superseded to 03157300)

$

$

Not available

6

Gravely 039691

Support
(Superseded to 03157000)

$

$

Not available

7

Gravely 039503

Cam
(Superseded to 03157700)

$

$

Not available

8

Gravely 039501

Pivot Rod

$

$

Not available

9

Gravely 039692

Spacer
(Superseded to 03148700)

$5.99

$

Usually ships in 4-12 days

0

10

Gravely 039489

Transmission Assembly
(Superseded to 03083500)

$

$

Not available

11

Gravely 120384

Washer, Lock 3/8 Reg.
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

12

Gravely 035801

Cap Screw, 3/8-16 x 5"
(Superseded to 05957700)

$2.99

$

Usually ships in 4-12 days

0

13

Gravely 039693

O-Ring, 3/4 Nom. I.D.
(Superseded to 05604700)

$2.49

$

In Stock, Qty 7

0

14

Gravely 039461

Connector
(Superseded to 07020300)

$6.99

$

Usually ships in 4-12 days

0

15

Gravely 039462

Clamp, Hose
(Superseded to 03006500)

$

$

Not available

16

Gravely 039478

Hose
(Superseded to 03006400)

$27.99

$

Usually ships in 4-12 days

0

17

Gravely 039499

Gasket
(Superseded to 03148000)

$3.99

$

Usually ships in 4-12 days

0

18

Gravely 039694

Spacer
(Superseded to 03041400)

$

$

Not available

19

Gravely 039395

Grommet
(Superseded to 07505500)

$3.49

$

Usually ships in 4-12 days

0

20

Gravely 039465

Carrier
(Superseded to 03007000)

$

$

Not available

21

Gravely 126715

Bolt, 3/8-16 x 3.50 Rd Hd Sq Nk
(Superseded to 06218400)

$

$

Not available

22

Gravely 039464

Caliper Plate
(Superseded to 03006900)

$

$

Not available

23

Gravely 039466

Disc
(Superseded to 03007100)

$

$

Not available

24

Gravely 039075

Screw, Taptite 1/4-20 x .375
(Superseded to 07400125)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 039463

Friction Plate
(Superseded to 03006800)

$

$

Not available

26

Gravely 039695

Caliper Mounting Plate
(Superseded to 03006700)

$25.99

$

Usually ships in 4-12 days

0

27

Gravely 121222

Pin, Cotter .09 x .75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

28

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

29

Gravely 039468

Pressure Plate
(Superseded to 03007500)

$5.99

$

Usually ships in 4-12 days

0

30

Gravely 039696

Pin
(Superseded to 03007400)

$

$

Not available

31

Gravely 039467

Brake Arm
(Superseded to 03007200)

$

$

Not available

32

Gravely 039056

Washer, Flat .38 x .75 x .125
(Superseded to 06444300)

$7.99

$

In Stock, Qty 8

0

33

Gravely 039697

Roller
(Superseded to 03007300)

$

$

Not available

34

Gravely 039515

Rear Hub Cap
(Superseded to 07508800)

$15.99

$

Usually ships in 4-12 days

0

35

Gravely 039698

Rear Axle and Supports
(Superseded to 03078400)

$

$

Not available

36

Gravely 039460

Connector 3/4
(Superseded to 03006200)

$

$

Not available

37

Gravely 039699

Pipe Nipple 1/2 x 2
(Superseded to 03003700)

$

$

Not available

38

Gravely 039700

Elbow 1/2 x 90
(Superseded to 03003800)

$

$

Not available

39

Gravely 039701

Pipe Plug
(Superseded to 00113700)

$

$

Not available

NS

Gravely 039702

Transmission Decal
(Superseded to 07859700)

$16.77

$

Usually ships in 4-12 days

0
