931036 (7173-H) - Gravely Lawn Tractor, 17hp Kohler, Hydro Drive (SN: 000101 & Above) FRAME AND FUEL Parts Diagram

Lawn Tractor, 17hp Kohler, Hydro Drive

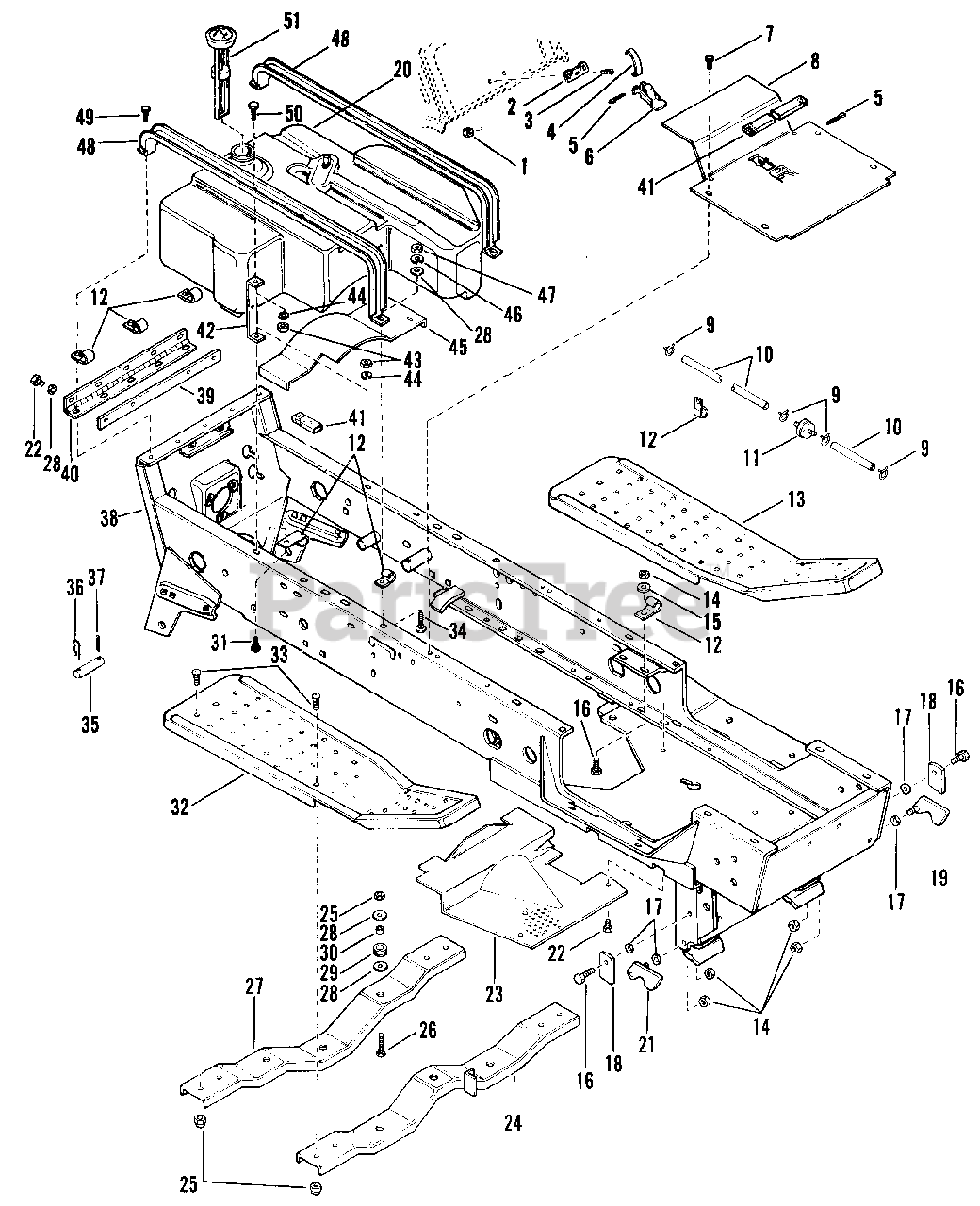

FRAME AND FUEL Parts Diagram

  • Title

1

Gravely 036886

Nut, Lock 10-24 Twin Whiz
(Superseded to 06530600)

$0.99

$

In Stock, Qty 8

0

2

Gravely 039072

Catch
(Superseded to 03030700)

$

$

Not available

3

Gravely 159920

Screw, Mach. 10-24 x .50 PHD
(Superseded to 06113000)

$1.99

$

In Stock, Qty 5

0

4

Gravely 039073

Spring, Deck Latch
(Superseded to 03030900)

$

$

Not available

5

Gravely 120123

Pin, Cotter .125 x 1.25
(Superseded to 06700212)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 039074

Lever, Deck Latch
(Superseded to 03030800)

$5.99

$

Usually ships in 4-12 days

0

7

Gravely 039075

Taptite, 1/4-20 x .375 HWH
(Superseded to 07400125)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 039076

Floor Plate
(Superseded to 53119000)

$

$

Not available

9

Gravely 036312

Hose Clamp
(Superseded to 06939100)

$3.99

$

In Stock, Qty 15

0

10

Gravely 021134

Line, Fuel
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 036310

Fuel Filter
(Superseded to 02910800)

$7.49

$

Usually ships in 4-12 days

0

12

Gravely 036518

J-Clamp
(Superseded to 06909400)

$3.49

$

In Stock, Qty 8

0

13

Gravely 039077

L.H. Running Board
(Superseded to 03012500)

$

$

Not available

14

Gravely 413534

Nut, Lock 3/8-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 120388

Washer, Flat .438 x 1.000 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 180122

Bolt, Hex 3/8-16 x 1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 039078

Spring Washer
(Superseded to 02902400)

$18.99

$

Usually ships in 4-12 days

0

18

Gravely 039079

Lock Stop
(Superseded to 02901300)

$

$

Not available

19

Gravely 039080

Latch, L.H.
(Superseded to 03055500)

$62.99

$

Usually ships in 4-12 days

0

20

Gravely 039096

Gas Tank Assembly
(Superseded to 03064400)

$

$

Not available

21

Gravely 039081

Latch, R.H.
(Superseded to 03055400)

$

$

Not available

22

Gravely 180073

Bolt, Hex 5/16-18 x .50
(Superseded to 05901904)

$1.49

$

In Stock, Qty 13

0

23

Gravely 039082

Screen
(Superseded to 03075000)

$

$

Not available

24

Gravely 039083

Front Channel
(Superseded to 03012800)

$

$

Not available

25

Gravely 413447

Nut, Lock 5/16-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 180081

Bolt, Hex 5/16-18 x 1.25
(Superseded to 05901803)

$2.49

$

In Stock, Qty 12

0

27

Gravely 039084

Rear Channel
(Superseded to 03012700)

$11.99

$

Usually ships in 4-12 days

0

28

Gravely 120394

Washer, Flat .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 039048

Grommet
(Superseded to 07506600)

$3.99

$

Usually ships in 4-12 days

0

30

Gravely 039085

Spacer
(Superseded to 03101900)

$

$

Not available

31

Gravely 120518

Bolt, 1/4-20 x .75 Rd Hd Sq Nk
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 039086

R.H. Running Board
(Superseded to 03012600)

$34.99

$

Usually ships in 4-12 days

0

33

Gravely 126211

Bolt, 5/16-18 x .625 Rd Hd Sq Nk
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

34

Gravely 126216

Bolt, Carriage 5/16-18 x .75

$

$

Not available

35

Gravely 039087

Pin
(Superseded to 03101200)

$23.99

$

Usually ships in 4-12 days

0

36

Gravely 010405

Pin, Hair
(Superseded to 06714000)

$2.99

$

In Stock, Qty 6

0

37

Gravely 137185

Pin, Cotter .125 x 1.00
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

38

Gravely 039088

Main Frame, Twin
(Superseded to 03080800)

$

$

Not available

39

Gravely 039089

Deck Mounting Strap
(Superseded to 21083400)

$

$

Not available

40

Gravely 039090

Hinge
(Superseded to 03102800)

$

$

Not available

41

Gravely 036515

Foam Tape
(Superseded to 03076600)

$

$

Not available

42

Gravely 039091

Support
(Superseded to 03105500)

$

$

Not available

43

Gravely 120375

Nut, Hex 1/4-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

44

Gravely 120380

Washer, Lock 1/4 Reg.
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

45

Gravely 039092

Guard
(Superseded to 03016100)

$

$

Not available

46

Gravely 131099

Washer, Lock 3/8 Sp Heavy
(Superseded to 06300120)

$3.49

$

In Stock, only 1 left!

0

47

Gravely 120376

Nut, Hex 5/16-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

48

Gravely 039093

Channel
(Superseded to 03151700)

$

$

Not available

49

Gravely 039094

Taptite, 5/16-18 x .75 HWH
(Superseded to 07400127)

$1.49

$

In Stock, Qty 12

0

50

Gravely 153782

Screw, Mach. 1/4-20 x .75 FHD
(Superseded to 21056400)

$

$

Not available

51

Gravely 039095

Gas Gauge and Cap
(Superseded to 03181900)

$35.99

$

In Stock, Qty 5

0

NS

Gravely 039660

Floor Plate Decal
(Superseded to 07881100)

$

$

Not available

NS

Gravely 039661

Fan Decal
(Superseded to 07768500)

$

$

Not available

NS

Gravely 039656

Lift Selector Decal
(Superseded to 07768600)

$

$

Not available

NS

Gravely 039657

Chain Warning Decal
(Superseded to 07768700)

$

$

Not available

NS

Gravely 039658

Brake Decal
(Superseded to 07849600)

$

$

Not available

NS

Gravely 038056

Decal, America
(Superseded to 20644900)

$

$

Not available
