931034 - Ariens Grand Sierra Garden Tractor, 20hp Kohler, Hydro (SN: 004534 & Above) Steering Parts Diagram

Grand Sierra Garden Tractor, 20hp Kohler, Hydro

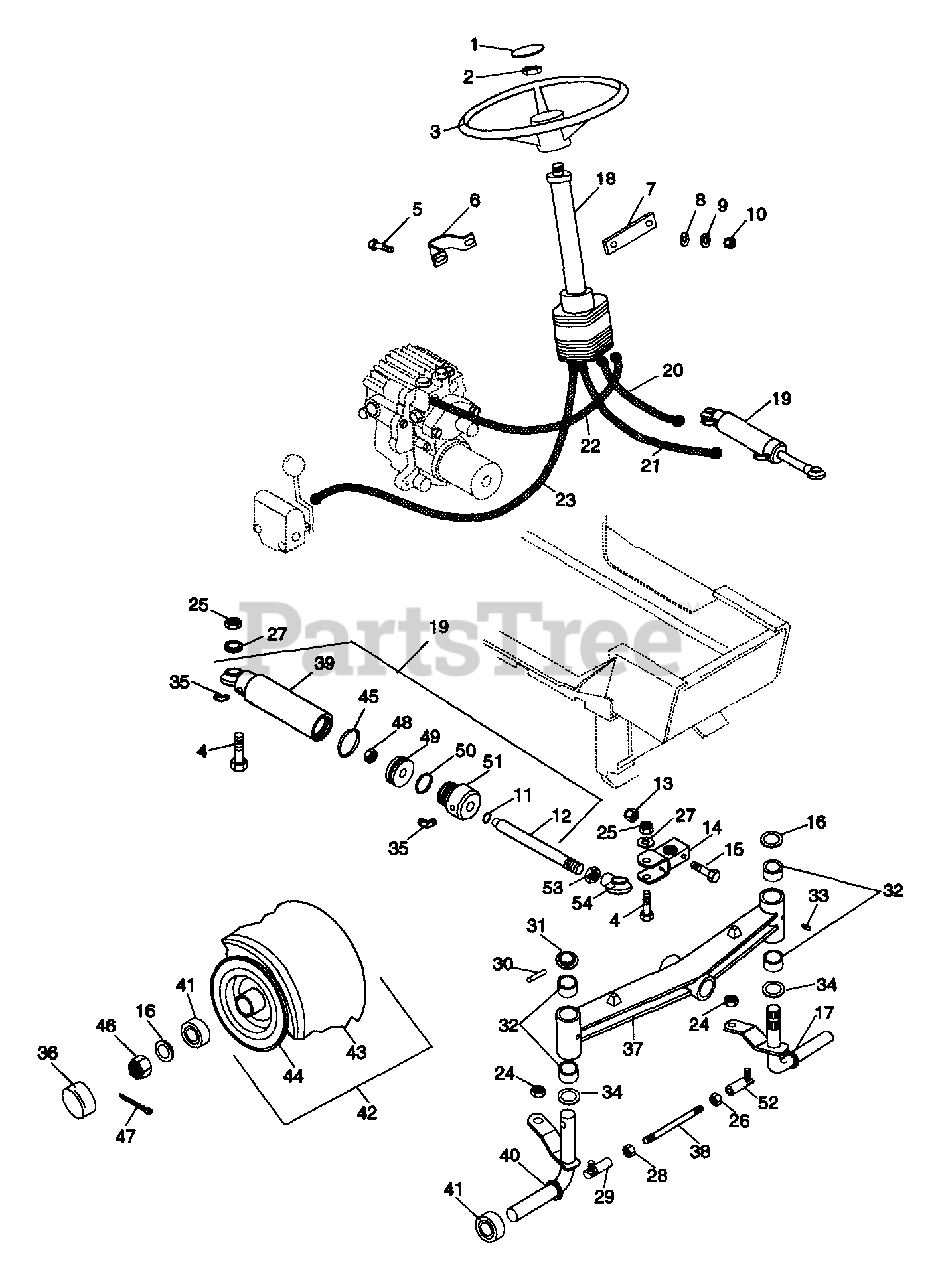

Steering Parts Diagram

  • Title
1

Ariens 03049500

DOME PLUG

$3.99

$

Usually ships in 4-12 days

0

2

Ariens 06511700

NUT-LK-JAM .625-18 YWZC
(Superseded to 06530300)

$3.99

$

In Stock, only 2 left!

0

3

Ariens 03054500

STEERING WHEEL
(Superseded to 03048900)

$197.99

$

In Stock, only 1 left!

0

4

Ariens 05916500

BLT-HEX .62-18X2.00 GR5
(Superseded to 05967200)

$

$

Not available

5

Ariens 06203100

BLT-RDHDSQNK .31-18X1.0 SHT PL
(Superseded to 06200237)

$2.49

$

In Stock, only 3 left!

0

6

Ariens 03103800

STEERING COLUMN CLAMP

$

$

Not available

$

$

Not available

8

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

11

Ariens 05612300

O-RING .609X.609X.139

$3.99

$

Usually ships in 4-12 days

0

12

Ariens 03041200

ROD
(Superseded to 03094400)

$

$

Not available

13

Ariens 06512700

NUT-LK-CROWN .50-13 GR C PL
(Superseded to 06528200)

$3.99

$

In Stock, only 3 left!

0

14

Ariens 03058400

STEERING ARM

$

$

Not available

15

Ariens 03058500

LOCK BOLT

$

$

Not available

16

Ariens 06418500

WSHR-FL-STL 1.015X1.500X.125
(Superseded to 06400025)

$5.99

$

Usually ships in 4-12 days

0

17

Ariens 03083100

SPINDLE LH

$265.99

$

In Stock, only 1 left!

0

18

Ariens 03064700

STEERING UNIT

$

$

Not available

19

Ariens 53110100

CYLINDER ASSEMBLY (SHORT)
(Superseded to 03094400)

Note: (Short)

$

$

Not available

20

Ariens 03057300

HYDRAULIC HOSE

$56.99

$

In Stock, only 1 left!

0

21

Ariens 03057400

HYDRAULIC HOSE

$56.99

$

In Stock, only 1 left!

0

22

Ariens 03057200

HYDRAULIC HOSE

$91.99

$

Usually ships in 4-12 days

0

23

Ariens 03057100

HYDRAULIC HOSE

$154.99

$

Usually ships in 4-12 days

0

24

Ariens 06512100

NUT-LK .50-20 PL
(Superseded to 06544000)

$5.99

$

Usually ships in 4-12 days

0

25

Ariens 06511700

NUT-LK-JAM .625-18 YWZC
(Superseded to 06530300)

$3.99

$

In Stock, only 2 left!

0

26

Ariens 06510200

NUT-JAM-SL 1.0-14

$

$

Not available

27

Ariens 06403900

WSHR-FL-STL .630X1.005X.062 PL
(Superseded to 06436100)

$0.99

$

In Stock, Qty 20+

0

28

Ariens 06504400

NUT-JAM .50-20 PL
(Superseded to 06539500)

$2.49

$

Usually ships in 4-12 days

0

29

Ariens 03112900

BALL JOINT R.H.

$32.99

$

Usually ships in 4-12 days

0

30

Ariens 05803700

PIN-ROLL .250X1.75

$0.99

$

In Stock, Qty 20+

0

31

Ariens 03008800

SPINDLE CAP

$

$

Not available

32

Ariens 05509100

BSHG-SLV 1.000X1.125X.875

$13.99

$

In Stock, only 2 left!

0

33

Ariens 02209300

SPIN DRIVE ZERK FITTING
(Superseded to 07012600)

$

$

Not available

34

Ariens 07506700

PLASTIC WASHER

$

$

Not available

35

Ariens 03106800

ADAPTER 45 9/16 TO 1/4

$

$

Not available

36

Ariens 07508900

FRONT HUB CAP

$18.99

$

Usually ships in 4-12 days

0

37

Ariens 53123200

FRONT AXLE ASSY

$

$

Not available

38

Ariens 03116900

TIE ROD

$75.99

$

Usually ships in 4-12 days

0

39

Ariens 03041100

CYLINDER
(Superseded to 03094400)

$

$

Not available

40

Ariens 03083000

SPINDLE RH

$

$

Not available

41

Ariens 05412100

BRG-BALL 1.0X2.0X.55

$

$

Not available

42

Ariens 07115300

T/WHL ASSY

$

$

Not available

43

Ariens 07102100

TIRE 16X6.50-8 2 PLY

$79.99

$

Usually ships in 4-12 days

0

$

$

Not available

45

Ariens 05610200

O-RING 1.625X2.000
(Superseded to 53112500)

$19.99

$

Usually ships in 4-12 days

0

46

Ariens 06513100

NUT-SL 1.0-14

$5.99

$

Usually ships in 4-12 days

0

47

Ariens 06700600

PIN-COTR .18X1.25 PL
(Superseded to 06712700)

$1.99

$

In Stock, only 3 left!

0

48

Ariens 06512300

NUT-LK .375-24 PL

$3.99

$

Usually ships in 4-12 days

0

49

Ariens 03077700

PISTON
(Superseded to 03094400)

$

$

Not available

50

Ariens 05610100

O-RING 1.937X2.125
(Superseded to 53112500)

$19.99

$

Usually ships in 4-12 days

0

51

Ariens 03077900

ROD CAP
(Superseded to 03094400)

$

$

Not available

52

Ariens 03113000

BALL JOINT L.H.

$59.99

$

Usually ships in 4-12 days

0

53

Ariens 06514100

NUT-JAM .625-11 PL
(Superseded to 06539300)

$

$

Not available

54

Ariens 03047700

BALL END

$142.99

$

Usually ships in 4-12 days

0
