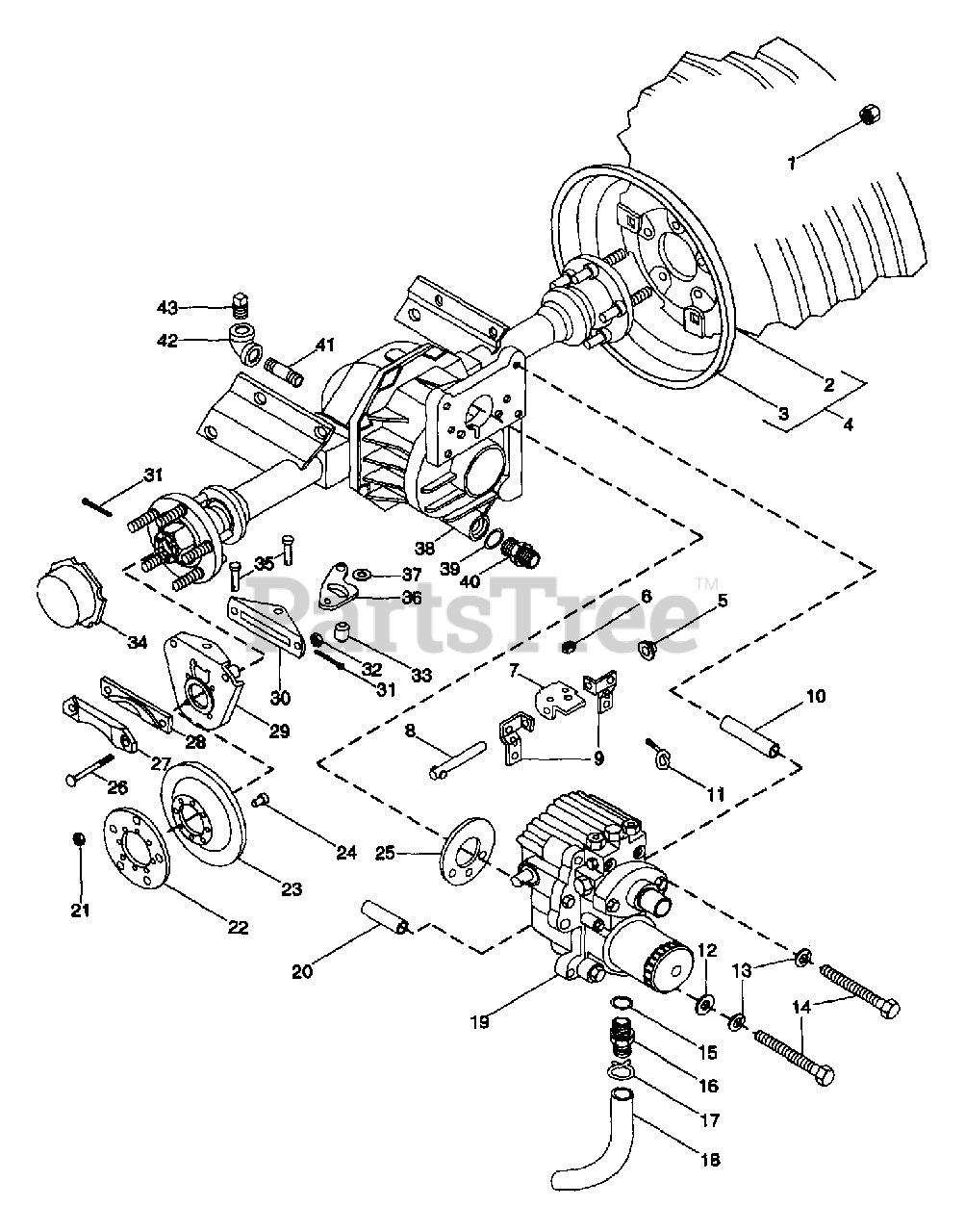

931034 - Ariens Grand Sierra Garden Tractor, 20hp Kohler, Hydro (SN: 004534 & Above) Hydrostatic Drive And Brakes Parts Diagram

Grand Sierra Garden Tractor, 20hp Kohler, Hydro

Hydrostatic Drive And Brakes Parts Diagram

  • Title

1

Ariens 06511400

NUT-LUG .437-20 YWZC

$3.99

$

Usually ships in 4-12 days

0

2

Ariens 07111900

TIRE

$

$

Not available

3

Ariens 07110600

WHL

$

$

Not available

4

Ariens 07115400

T/WHL ASSY 10.50X23

$

$

Not available

5

Ariens 03157300

PUSH NUT, .312

$

$

Not available

6

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 03157700

CAM

$

$

Not available

8

Ariens 03157200

PIVOT ROD

$

$

Not available

9

Ariens 03157000

SUPPORT

$

$

Not available

10

Ariens 03148700

SPACER .379X.625X3.480

$5.99

$

Usually ships in 4-12 days

0

11

Ariens 03007900

CABLE SUPPORT

$

$

Not available

12

Ariens 06414500

WSHR-FL-STL .390X.750X.125 PL
(Superseded to 06444300)

$7.99

$

In Stock, Qty 8

0

13

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 05917500

BLT-HEX .38-16X5.00 PL GR2
(Superseded to 05957700)

$2.99

$

Usually ships in 4-12 days

0

15

Ariens 05604700

O-RING .250X.943X.103

$2.49

$

In Stock, Qty 7

0

16

Ariens 03006300

CONNECTOR
(Superseded to 07020300)

$6.99

$

Usually ships in 4-12 days

0

17

Ariens 03006500

HOSE CLAMP #15 .906/.968

$

$

Not available

Ariens 03084200

HOSE CLAMP

$

$

Not available

18

Ariens 03006400

HOSE .62X.91X8.00

$27.99

$

Usually ships in 4-12 days

0

19

Ariens 03083500

TRANSMISSION ASS'Y

$

$

Not available

20

Ariens 03041400

SPACER .379X.625X3.220

$

$

Not available

21

Ariens 07505500

GROMMET

$3.49

$

Usually ships in 4-12 days

0

22

Ariens 03007000

CARRIER

$

$

Not available

23

Ariens 03007100

DISC

$

$

Not available

24

Ariens 07401500

SCR-TAP .250-20X.37 HWH PL TR
(Superseded to 07411600)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 03148000

GASKET

$3.99

$

Usually ships in 4-12 days

0

26

Ariens 06205900

BLT-RDHDSQNK .38-16X3.50 GR5PL
(Superseded to 06200238)

$3.99

$

In Stock, Qty 20+

0

27

Ariens 03006900

CALIPER PLATE

$

$

Not available

28

Ariens 03006800

FRICTION PLATE

$

$

Not available

29

Ariens 03006700

PLATE, CALIPER MOUNTING

$25.99

$

Usually ships in 4-12 days

0

30

Ariens 03007500

PRESSURE PLATE

$5.99

$

Usually ships in 4-12 days

0

31

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

32

Ariens 06513500

NUT-LK-NYL .375-16 PL
(Superseded to 06535800)

$2.49

$

In Stock, only 3 left!

0

33

Ariens 03007300

ROLLER

$

$

Not available

34

Ariens 07508800

REAR HUB CAP

$15.99

$

Usually ships in 4-12 days

0

35

Ariens 03007400

PIN-CLEV .371X1.62 YWZC

$

$

Not available

36

Ariens 03007200

BRAKE ARM

$

$

Not available

37

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.49

$

In Stock, only 2 left!

0

38

Ariens 03078400

REAR AXLE & SUPPORTS

$

$

Not available

39

Ariens 05612200

O-RING .924X1.156X.116

$

$

Not available

40

Ariens 03076100

CONNECTOR

$

$

Not available

41

Ariens 03087300

PIPE NIPPLE

$3.49

$

Usually ships in 4-12 days

0

42

Ariens 03003800

ELBOW 1/2 X 90

$

$

Not available

43

Ariens 00113700

PIPE PLUG

$

$

Not available
