931034 - Ariens Grand Sierra Garden Tractor, 20hp Kohler, Hydro (SN: 004001 - 004533) Hydraulic Lift System Parts Diagram

Grand Sierra Garden Tractor, 20hp Kohler, Hydro

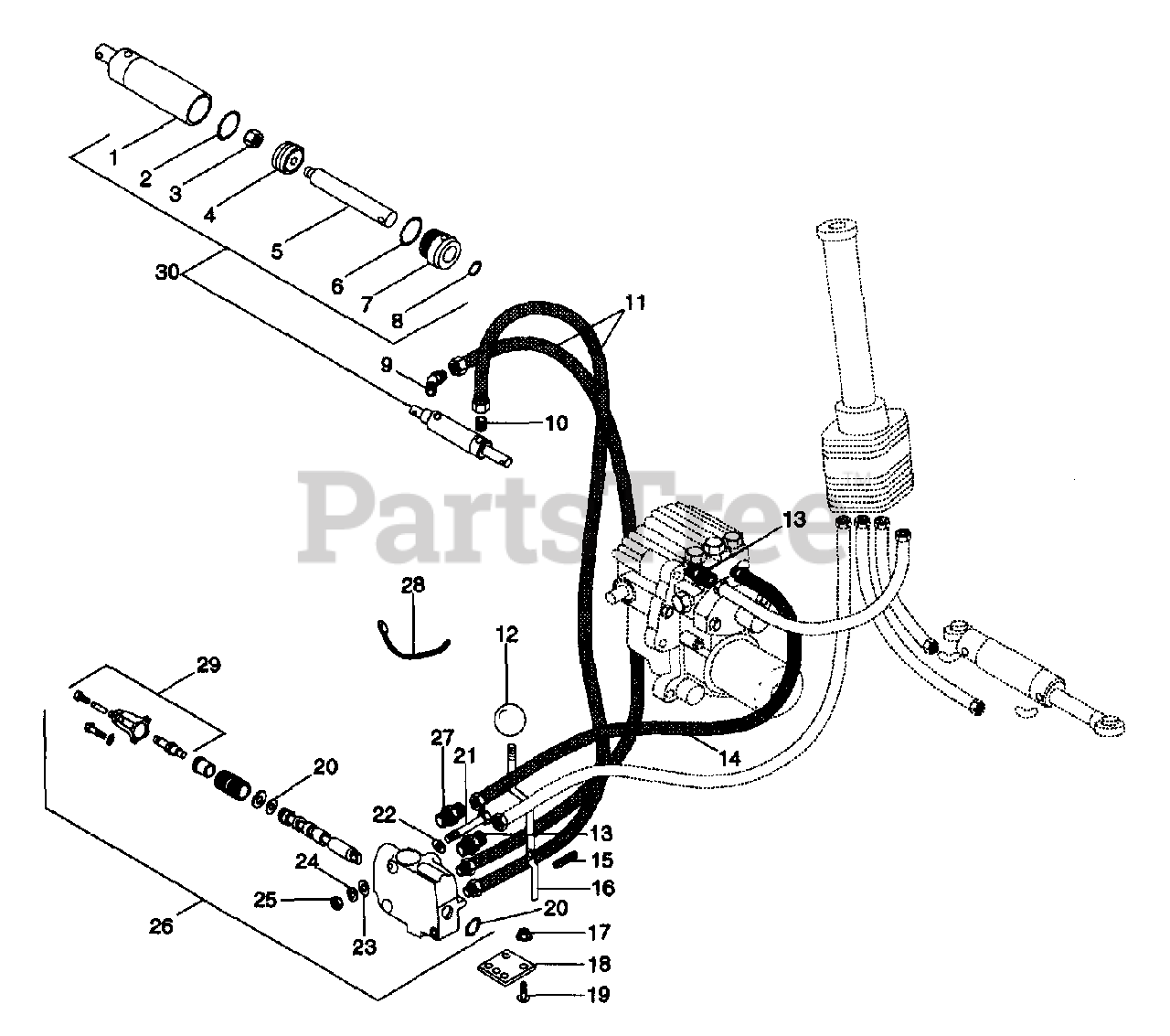

Hydraulic Lift System Parts Diagram

  • Title
1

Ariens 03077500

CYLINDER

$

$

Not available

2

Ariens 05610200

O-RING 1.625X2.000
(Superseded to 53112500)

$19.99

$

Usually ships in 4-12 days

0

3

Ariens 06512300

NUT-LK .375-24 PL

$3.99

$

Usually ships in 4-12 days

0

4

$

$

Not available

$

$

Not available

6

Ariens 05610100

O-RING 1.937X2.125
(Superseded to 53112500)

$19.99

$

Usually ships in 4-12 days

0

7

Ariens 03077400

ROD CAP

$

$

Not available

8

Ariens 05610000

O-RING 1.000X1.250X

$3.99

$

Usually ships in 4-12 days

0

9

Ariens 03106800

ADAPTER 45 9/16 TO 1/4

$

$

Not available

10

Ariens 03163400

ADAPTER

$

$

Not available

11

Ariens 03086000

HYDRAULIC HOSE

$74.99

$

In Stock, only 1 left!

0

12

Ariens 07505200

KNOB-STEERING LOCK

$20.99

$

In Stock, only 1 left!

0

13

Ariens 03149500

CONNECTOR
(Superseded to 07017500)

$11.99

$

In Stock, only 2 left!

0

14

Ariens 03008700

HYDRAULIC HOSE

$68.99

$

Usually ships in 4-12 days

0

15

Ariens 05805300

PIN-GRV .250X.75 TP B PL

$1.99

$

Usually ships in 4-12 days

0

16

Ariens 03118900

CONTROL ROD

$153.99

$

Usually ships in 4-12 days

0

17

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 03040300

PIVOT BRACKET

$

$

Not available

19

Ariens 06200900

BLT-RDHDSQSHNK .31-18X.50 YZ
(Superseded to 06222000)

$2.99

$

In Stock, Qty 20+

0

20

Ariens 53122500

SEAL KIT

$

$

Not available

21

Ariens 05904600

BLT-HEX .25-20X2.25 GR2
(Superseded to 05956700)

$2.49

$

Usually ships in 4-12 days

0

22

Ariens 06409100

WSHR-FL-STL .250X.562X.125 PL
(Superseded to 06439500)

$1.49

$

Usually ships in 4-12 days

0

23

Ariens 06412700

WSHR-FL-STL.281X.62X.065 PL
(Superseded to 06437300)

$0.99

$

In Stock, Qty 20+

0

24

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$

$

Not available

25

Ariens 06503200

NUT-HEX .250-20 PL
(Superseded to 06533200)

$0.99

$

In Stock, Qty 13

0

26

Ariens 03031000

HYDRAULIC CONTROL VALVE
(Superseded to 53118600)

$

$

Not available

27

Ariens 03085900

CONNECTOR - EXTENDED

$

$

Not available

28

Ariens 06913200

CABLE TIE LG 7-3/4

$

$

Not available

29

Ariens 53122600

DETENT CAP REPAIR KIT

$

$

Not available

30

Ariens 53122200

CYLINDER ASSEMBLY (LIFT)
(Superseded to 03077100)

Note: (Lift)

$

$

Not available
