931034 - Ariens Grand Sierra Garden Tractor, 20hp Kohler, Hydro (SN: 000101 - 004000) Speed Selector And Park Lock Parts Diagram

Grand Sierra Garden Tractor, 20hp Kohler, Hydro

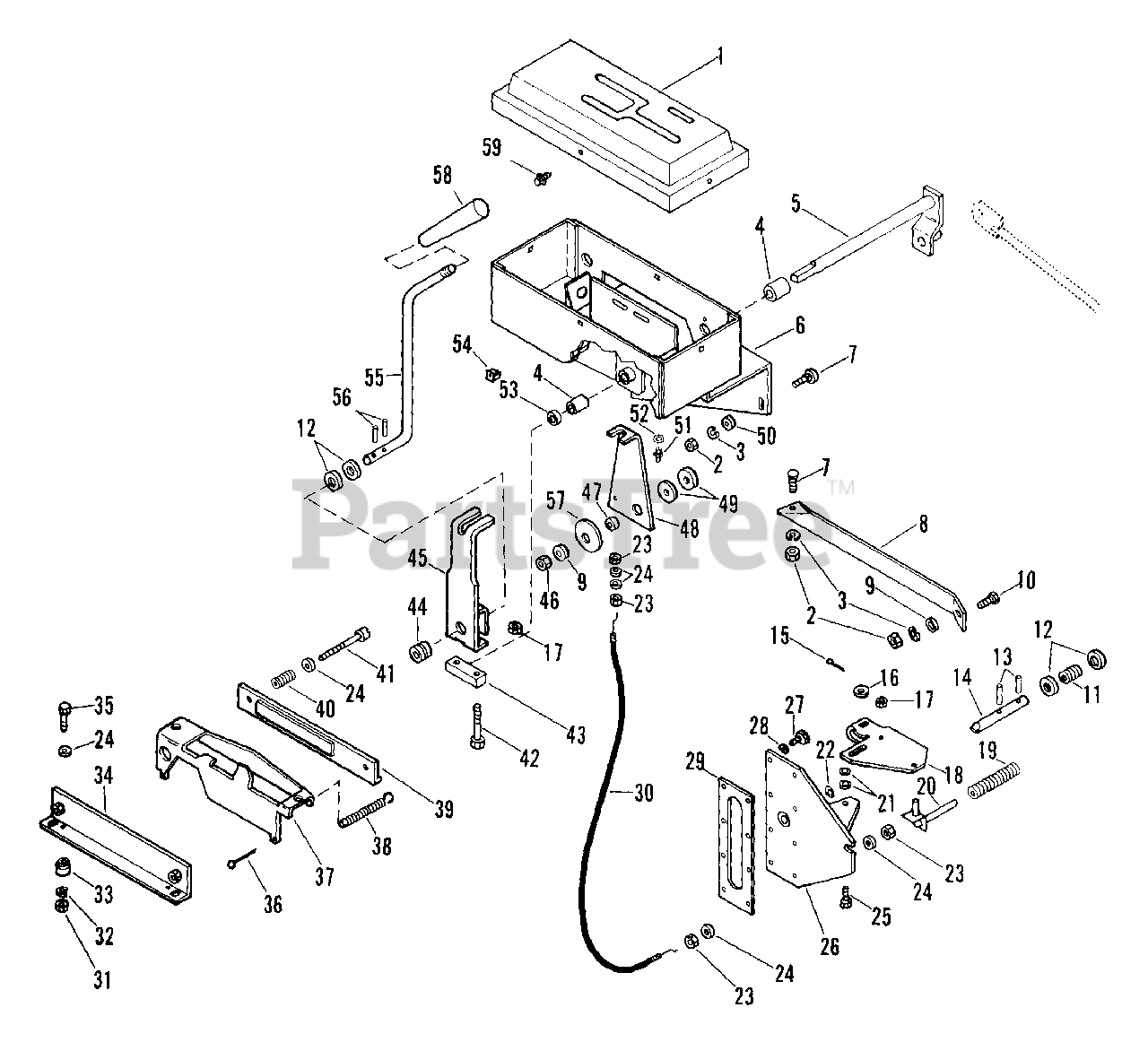

Speed Selector And Park Lock Parts Diagram

  • Title

1

Ariens 03182500

CONTROL CONSOLE

$

$

Not available

2

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

3

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$0.99

$

In Stock, Qty 20+

0

4

Ariens 05502400

BSHG-SLV .625X.750X1.000

$

$

Not available

5

Ariens 03039100

SHIFT SHAFT

$

$

Not available

6

Ariens 03037300

CONTROL BOX

$

$

Not available

7

Ariens 06201300

BLT-RDHDSQSHNK .38-16X1.00 PL
(Superseded to 06212000)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 03102400

BRACE

$

$

Not available

9

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 05902300

BLT-HEX .38-16X.75 PL GR2
(Superseded to 05959400)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 08312000

SG-COMP .072X.687X.75

$

$

Not available

12

Ariens 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 05800300

PIN-ROLL .188X1.25

$0.99

$

In Stock, Qty 20+

0

14

Ariens 03109700

LOCK PIN

$25.99

$

Usually ships in 4-12 days

0

15

Ariens 06702400

PIN-COTR .12X.75 PL
(Superseded to 06707300)

$0.99

$

In Stock, Qty 5

0

16

Ariens 06412800

WSHR-FL-STL .344X1.375X.075 PL
(Superseded to 06446900)

$2.49

$

In Stock, only 2 left!

0

17

Ariens 06512400

NUT-LK-TOP .312-18 GR C PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 03080600

LOCK PIVOT PLATE

$

$

Not available

19

Ariens 08312100

SG-COMP .092X.77X3.13 WLD 36

$11.99

$

In Stock, Qty 6

0

20

Ariens 03109800

PIVOT PIN

$

$

Not available

21

Ariens 06412300

WSHR-FL-STL.344X.688X.065PL
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 05607500

O-RING .500X.629X.070

$3.99

$

Usually ships in 4-12 days

0

23

Ariens 06510000

NUT-JAM .312-24 PL
(Superseded to 06536700)

$0.99

$

In Stock, Qty 13

0

24

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.49

$

In Stock, only 2 left!

0

25

Ariens 05913500

BLT-HEX .31-18X.75 PL GR5
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 03110000

LOCK PIN GUIDE

$

$

Not available

27

Ariens 07407500

TAPTITE M5-0.8X16MM H-FL-PL
(Superseded to 07415100)

$3.49

$

Usually ships in 4-12 days

0

28

Ariens 06302400

WSHR-LK-EXT 12X.025 PL

$

$

Not available

29

Ariens 03116700

GASKET

Note: (Use Permatex)

$14.99

$

Usually ships in 4-12 days

0

30

Ariens 06910000

CABLE

$68.99

$

Usually ships in 4-12 days

0

31

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

32

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

33

Ariens 03039500

SPACER .344X.750X.625X.500

$5.99

$

Usually ships in 4-12 days

0

34

Ariens 03039300

R.H. FRICTION BRAKE

$77.99

$

Usually ships in 4-12 days

0

35

Ariens 05906900

BLT-HEX .31-18X1.25 PL GR2
(Superseded to 05947500)

$2.49

$

In Stock, Qty 12

0

36

Ariens 06703400

PIN COTR .09X.50 PL
(Superseded to 06707400)

$0.99

$

Usually ships in 4-12 days

0

37

Ariens 03172400

SHIFT LOCK

$

$

Not available

38

Ariens 08314900

SG-TENS .035X.45X2.75 WLD 3.5

$13.99

$

In Stock, only 1 left!

0

39

Ariens 03156600

L. H. FRICTION BRAKE

$77.99

$

Usually ships in 4-12 days

0

40

Ariens 08312500

SG-COMP .093X.59X1.50

$14.99

$

Usually ships in 4-12 days

0

41

Ariens 06106400

SCR-MCH .31-18X2.75 SLRH PL
(Superseded to 06117400)

$3.99

$

Usually ships in 4-12 days

0

42

Ariens 05914000

BLT-HEX .31-18X1.50 PL GR5
(Superseded to 05952400)

$1.49

$

In Stock, Qty 13

0

43

Ariens 03039400

STRAP

$

$

Not available

44

Ariens 07506600

GROMMET .438ID X .688 OD

$3.99

$

Usually ships in 4-12 days

0

45

Ariens 03039200

LEVER

$

$

Not available

46

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

47

Ariens 05508900

BSHG-SLV .377X.624X.235

$9.49

$

In Stock, only 1 left!

0

48

Ariens 03125800

ARM

$

$

Not available

49

Ariens 06402800

WSHR-FL-STL .438X1.125X.19

$

$

Not available

50

Ariens 06400800

WSHR-FL-STL .438X1.0X.083 PL
(Superseded to 06435900)

$1.49

$

In Stock, Qty 20+

0

51

Ariens 02209300

SPIN DRIVE ZERK FITTING
(Superseded to 07012600)

$

$

Not available

52

Ariens 06302500

WSHR-LK .250X.047 LT PL
(Superseded to 06307000)

$2.49

$

Usually ships in 4-12 days

0

53

Ariens 06403900

WSHR-FL-STL .630X1.005X.062 PL
(Superseded to 06436100)

$0.99

$

In Stock, Qty 20+

0

54

Ariens 07507600

PLASTIC GROMMET

$0.99

$

In Stock, Qty 10

0

55

Ariens 03074400

SHIFT ROD
(Superseded to 03086700)

$100.99

$

Usually ships in 4-12 days

0

56

Ariens 05800500

PIN-ROLL .188X.88

$1.99

$

In Stock, only 3 left!

0

57

Ariens 03116200

BELLEVILLE WASHER

$

$

Not available

58

Ariens 07514500

KNOB

$23.99

$

Usually ships in 4-12 days

0

59

Ariens 07400100

SCR-TAP 10-12X.50 CRPH PL A

$

$

Not available
