931034 - Ariens Grand Sierra Garden Tractor, 20hp Kohler, Hydro (SN: 000101 - 004000) Rear Power Take Off (PTO) Parts Diagram

Grand Sierra Garden Tractor, 20hp Kohler, Hydro

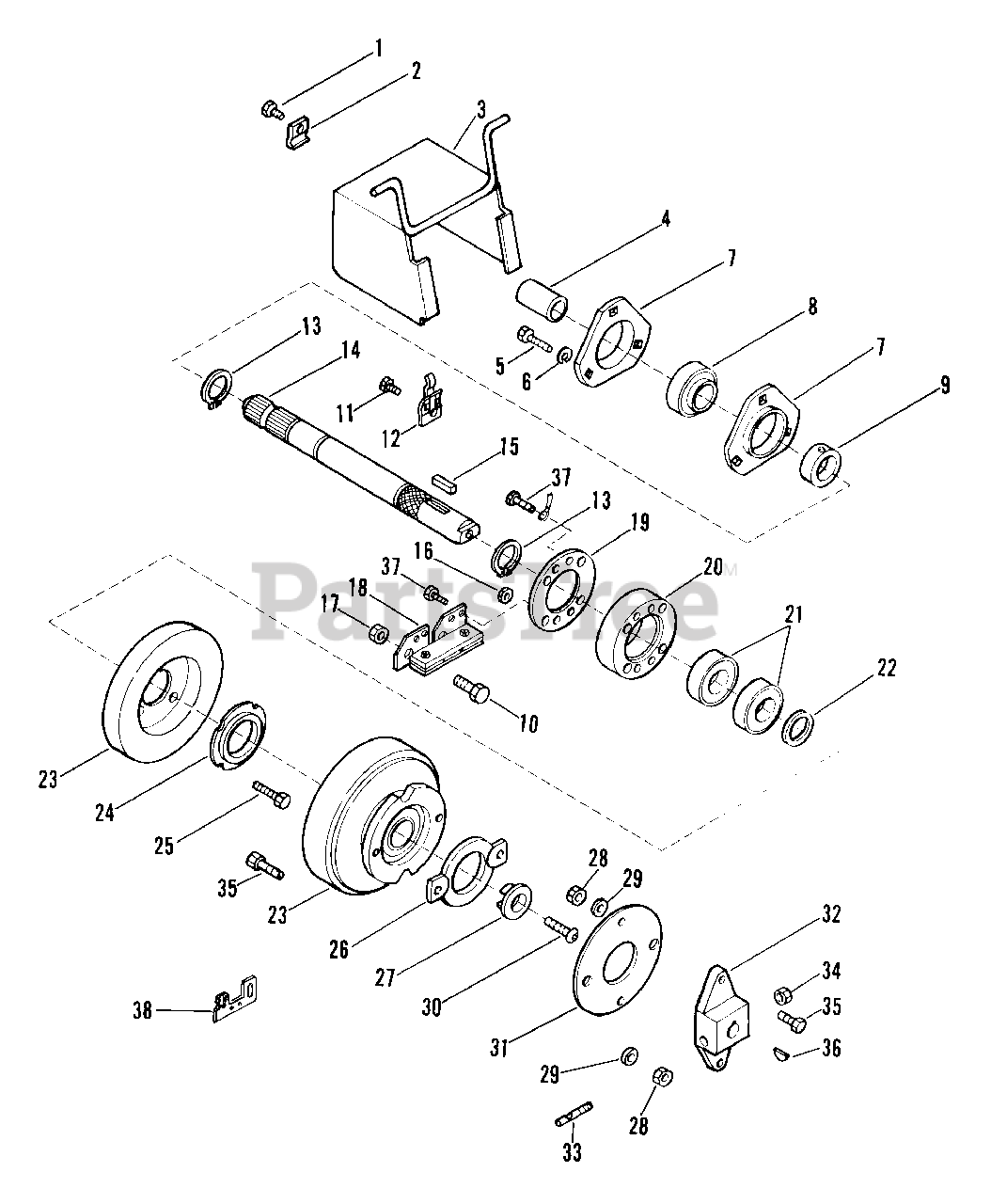

Rear Power Take Off (PTO) Parts Diagram

  • Title

1

Ariens 07405200

SCR-TAP .250-20X.50 HXSLHDPL
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

2

Ariens 03016400

CLIP

$16.99

$

Usually ships in 4-12 days

0

3

Ariens 03016300

PTO SHIELD

$

$

Not available

4

Ariens 07506000

SHAFT COVER

$4.49

$

In Stock, only 2 left!

0

5

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 03102000

BEARING FLANGE

$21.99

$

Usually ships in 4-12 days

0

8

Ariens 05411000

BRG/W COLLAR 1.0 X 2.047 X.844
(Superseded to 05426200)

$45.99

$

Usually ships in 4-12 days

0

9

Ariens 03131500

BEARING COLLAR
(Superseded to 05426200)

$45.99

$

Usually ships in 4-12 days

0

10

Ariens 05914000

BLT-HEX .31-18X1.50 PL GR5
(Superseded to 05952400)

$1.49

$

In Stock, Qty 13

0

11

Ariens 07405400

SCR-TAP 10-24X.375 HWH PL TR
(Superseded to 07412100)

$0.99

$

Usually ships in 4-12 days

0

12

Ariens 03130500

SNAP FASTENER

$

$

Not available

13

Ariens 05707300

RG-RTNG-EXT 1.00X.078

$2.99

$

In Stock, Qty 9

0

14

Ariens 03036700

SHAFT

$410.99

$

Usually ships in 4-12 days

0

15

Ariens 06602200

KEY-SQ .25X1.0X.25 SAE 8630

$3.99

$

In Stock, only 2 left!

0

16

Ariens 06504100

NUT-LK TOP 10-24 PL

$1.99

$

Usually ships in 4-12 days

0

17

Ariens 06504300

NUT-LK-CTR .312-24 PL
(Superseded to 06537000)

$

$

Not available

18

Ariens 53121700

TORQUE BRACKET ASSEMBLY

$206.99

$

Usually ships in 4-12 days

0

19

Ariens 03036500

RING

$

$

Not available

20

Ariens 03036400

BEARING MOUNT

$

$

Not available

21

Ariens 05405200

BRG-BALL 1.0X2.0X.56
(Superseded to 05416000)

$14.99

$

In Stock, Qty 7

0

22

Ariens 06419900

WSHR-FL-STL 1.031X1.375X.055
(Superseded to 06444900)

$

$

Not available

23

Ariens 03199000

ELECTRIC CLUTCH

$

$

Not available

24

Ariens 03036600

BEARING FLANGE

$

$

Not available

25

Ariens 06106000

SCR-MCH 10-24X1.25 SLPAN PL
(Superseded to 06117500)

$

$

Not available

26

Ariens 03015800

PILOT PLATE

$

$

Not available

27

Ariens 03015700

RETAINER

$

$

Not available

28

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 06412300

WSHR-FL-STL.344X.688X.065PL
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

30

Ariens 07006300

BLT-BTHD .38-16X1.25 GR5

$2.99

$

Usually ships in 4-12 days

0

31

Ariens 03199300

SPACER COUPLING

$41.99

$

Usually ships in 4-12 days

0

32

Ariens 03198800

COUPLING

$

$

Not available

33

Ariens 03013900

LOCK STUD

$

$

Not available

34

Ariens 06512200

NUT-LK TOP .375-16 GR C YWZC

$2.49

$

Usually ships in 4-12 days

0

35

Ariens 05903400

BLT-HEX .31-18X.88 PL GR2
(Superseded to 05947800)

$2.49

$

In Stock, only 2 left!

0

36

Ariens 06600300

KEY-WDRF .188X.75X.313 SAE 9

$1.49

$

In Stock, Qty 12

0

37

Ariens 07402700

SCR-TAP 10-24X.75 HWH PL TR
(Superseded to 07413000)

$3.99

$

In Stock, Qty 8

0

38

Ariens 03076900

CONNECTOR MOUNTING CLIP
(Superseded to 53121900)

$

$

Not available
