931033 - Ariens Grand Sierra Garden Tractor, 18hp Kohler, Hydro (SN: 004346 & Above) Hydrostatic Transmission Parts Diagram

Grand Sierra Garden Tractor, 18hp Kohler, Hydro

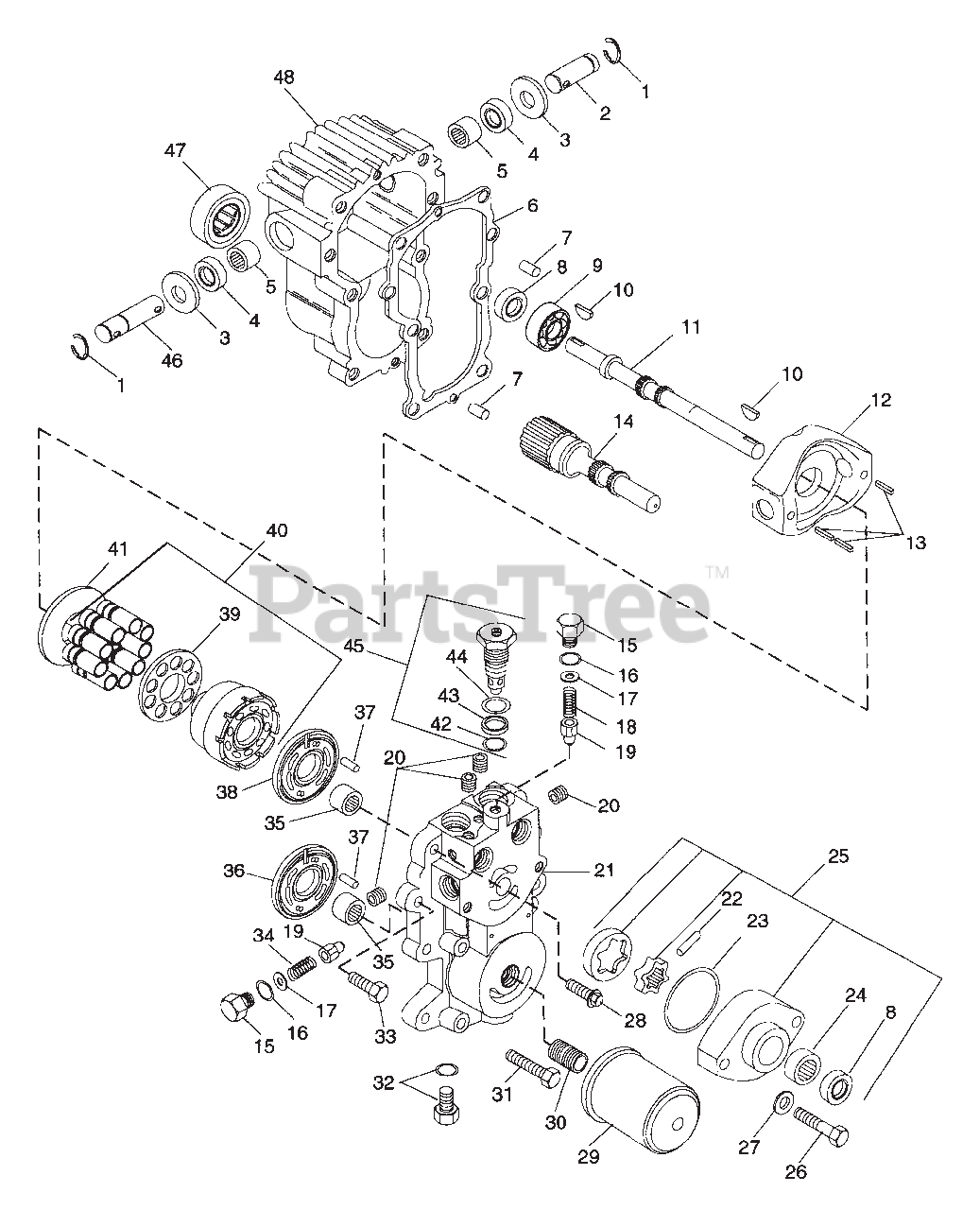

Hydrostatic Transmission Parts Diagram

  • Title

1

Ariens 05706900

RG-RTNG-EXT .688X.042

$

$

Not available

2

Ariens 03161400

TRUNNION SHAFT

$61.99

$

Usually ships in 4-12 days

0

3

Ariens 06415100

WSHR-FL-STL .699X1.375X.059

$

$

Not available

4

Ariens 05608900

SEAL .625X1.187X.187

$25.99

$

In Stock, only 1 left!

0

5

Ariens 05412600

BRG-NEEDLE .688X.876X.63

$

$

Not available

6

Ariens 03162900

GASKET

$

$

Not available

7

Ariens 03163200

DOWEL PIN

$3.49

$

Usually ships in 4-12 days

0

8

Ariens 05609100

SEAL .625X1.128X.250

$21.99

$

Usually ships in 4-12 days

0

9

Ariens 05407100

BRG-BALL 17MMX40MMX12MM
(Superseded to 05418800)

$9.49

$

In Stock, Qty 20+

0

10

Ariens 06600300

KEY-WDRF .188X.75X.313 SAE 9

$1.49

$

In Stock, Qty 12

0

11

Ariens 03013800

PUMP SHAFT

$

$

Not available

12

Ariens 03054400

SWASHPLATE VARIABLE

$

$

Not available

13

Ariens 05806200

PIN-ROLL .188X.63

$5.99

$

Usually ships in 4-12 days

0

14

Ariens 03162300

MOTOR SHAFT

$239.99

$

Usually ships in 4-12 days

0

15

Ariens 03161100

PLUG-HEX HEAD

$

$

Not available

16

Ariens 05608800

O-RING .414X.562X.072

$

$

Not available

17

Ariens 03161300

SHIM PACKAGE

$81.99

$

Usually ships in 4-12 days

0

18

Ariens 08322200

SG-COMP ??X??X?? SUNSTRAND

$

$

Not available

19

Ariens 03160900

RELIEF VALVE CONE

$34.99

$

Usually ships in 4-12 days

0

20

Ariens 03163000

PIPE PLUG

$

$

Not available

21

Ariens 03074800

CENTER SECTION

$

$

Not available

22

Ariens 03074900

PIN

$

$

Not available

23

Ariens 05609200

O-RING 2.364X2.504X.072

$

$

Not available

24

Ariens 05405400

BRG-NEEDLE .625X.875X.50

$25.99

$

Usually ships in 4-12 days

0

25

Ariens 53119200

CHARGE PUMP ASSEMBLY

$

$

Not available

26

Ariens 05912600

BLT-HEX .44-14X2.00 GR5

$

$

Not available

27

Ariens 06415300

WSHR-FL-STL .469X.719X.108

$

$

Not available

28

Ariens 05917900

SCR-12PNT .38-16X1.25 GR5

$

$

Not available

29

Ariens 03192800

OIL FILTER

$27.99

$

In Stock, only 1 left!

0

30

Ariens 03161800

UNION

$

$

Not available

31

Ariens 05914700

BLT-HEX .38-16X2.00 PL GR5
(Superseded to 05963300)

$2.99

$

In Stock, only 1 left!

0

32

Ariens 03160800

THREADED PLUG

$

$

Not available

33

Ariens 05915100

BLT-HEX .38-16X1.50 PL GR5
(Superseded to 05957900)

$1.49

$

In Stock, Qty 14

0

34

Ariens 08315700

SG-COMP ??X??X?? SUNSTRAND

$

$

Not available

35

Ariens 05412700

BRG-NEEDLE 17MMX.938X.62

$

$

Not available

36

Ariens 03162100

MOTOR VALVE PLATE

$

$

Not available

37

Ariens 03163300

DOWEL PIN

$

$

Not available

38

Ariens 03083600

VALVE PLATE

$

$

Not available

39

Ariens 03020500

SLIPPER RETAINER

$52.99

$

Usually ships in 4-12 days

0

40

Ariens 53103500

CYLINDER BLOCK KIT

$

$

Not available

41

Ariens 03054200

THRUST PLATE

$51.99

$

Usually ships in 4-12 days

0

42

Ariens 05609700

O-RING .614X.750X.070

$

$

Not available

43

Ariens 05609800

O-RING .614X.750X.046

$21.99

$

Usually ships in 4-12 days

0

44

Ariens 05609600

O-RING .770X.968X.097

$5.99

$

Usually ships in 4-12 days

0

45

Ariens 53107600

CHECK VALVE ASSEMBLY
(Superseded to 58901300)

$

$

Not available

46

Ariens 03161500

TRUNNION SHAFT

$92.99

$

Usually ships in 4-12 days

0

47

Ariens 05412800

BRG-ROLLER 1.27X2.05X15MM

$

$

Not available

48

Ariens 53123500

HOUSING W/SEALS AND BEARINGS

$

$

Not available
