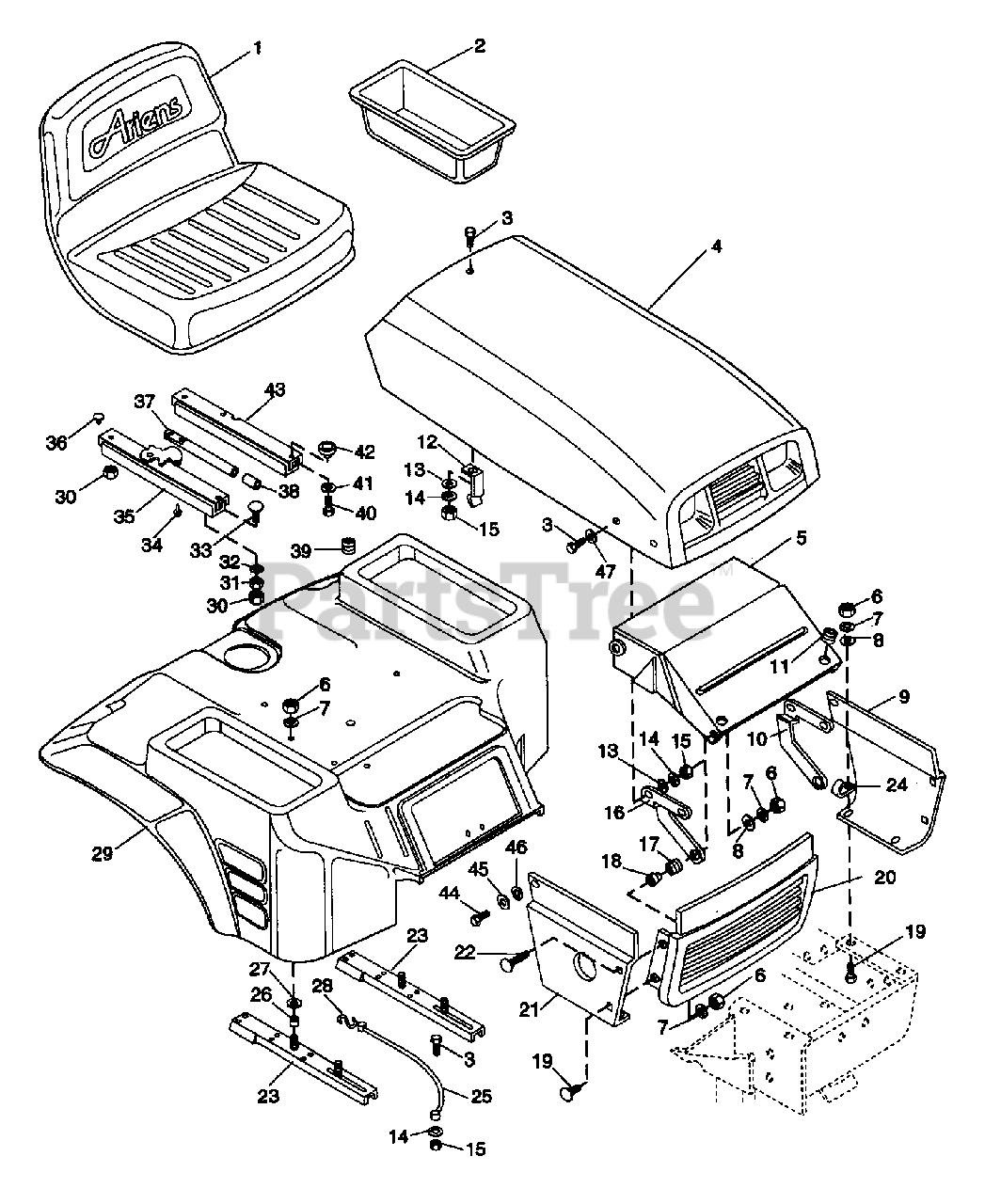

931033 - Ariens Grand Sierra Garden Tractor, 18hp Kohler, Hydro (SN: 004346 & Above) Hood And Rear Deck Parts Diagram

Grand Sierra Garden Tractor, 18hp Kohler, Hydro

Hood And Rear Deck Parts Diagram

  • Title

1

Ariens 03416800

SEAT
(Superseded to 53407000)

$

$

Not available

2

Ariens 03009300

TRAY

$

$

Not available

3

Ariens 07008900

SCR .25-20X.75 TS PH PL
(Superseded to 05967300)

$

$

Not available

4

Ariens 03117400

HOOD & GRILL

$

$

Not available

5

Ariens 03053000

MUFFLER SHIELD

$

$

Not available

6

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 06400800

WSHR-FL-STL .438X1.0X.083 PL
(Superseded to 06435900)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 03113800

SIDE SHEET L.H.

$

$

Not available

10

Ariens 03118600

L.H. HOOD HINGE

$

$

Not available

11

Ariens 07506600

GROMMET .438ID X .688 OD

$3.99

$

Usually ships in 4-12 days

0

12

Ariens 03109300

HOOD STOP

$

$

Not available

13

Ariens 06412700

WSHR-FL-STL.281X.62X.065 PL
(Superseded to 06437300)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$

$

Not available

15

Ariens 06503200

NUT-HEX .250-20 PL
(Superseded to 06533200)

$0.99

$

In Stock, Qty 13

0

16

Ariens 03118500

R.H. HOOD HINGE

$5.99

$

Usually ships in 4-12 days

0

17

Ariens 07506400

GROMMET .50IDX.812OD

$5.99

$

Usually ships in 4-12 days

0

18

Ariens 03114500

SPACER -FLANGED .390X.500X.781

$9.99

$

In Stock, only 1 left!

0

19

Ariens 06201300

BLT-RDHDSQSHNK .38-16X1.00 PL
(Superseded to 06212000)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 03104600

GRILL

$

$

Not available

21

Ariens 03012900

SIDE SHEET R. H.

$

$

Not available

22

Ariens 06203200

BLT-RDHDSQNK .38-16X2.00 SHTYW
(Superseded to 06200323)

$2.99

$

In Stock, Qty 20+

0

23

Ariens 03009100

SEAT SUPPORT

$5.99

$

Usually ships in 4-12 days

0

24

Ariens 06909400

J-CLAMP

$3.49

$

In Stock, Qty 8

0

25

Ariens 06910200

CABLE

$37.99

$

Usually ships in 4-12 days

0

26

Ariens 03009200

SPACER .380X.503X.281

$3.99

$

Usually ships in 4-12 days

0

27

Ariens 06414500

WSHR-FL-STL .390X.750X.125 PL
(Superseded to 06444300)

$7.99

$

In Stock, Qty 8

0

28

Ariens 03029300

S HOOK

$

$

Not available

29

Ariens 03074000

REAR DECK
(Superseded to 03074059)

$

$

Not available

30

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

31

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

32

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

33

Ariens 07008600

SCR-CAP BTHD.31-18X.875 GR5 PK

$

$

Not available

34

Ariens 06806500

RVT-POP.187X.562 DOME ST

$

$

Not available

35

Ariens 03416600

SEAT SLIDE R H

$

$

Not available

36

Ariens 07008100

SCR-CAP BTHD.31-18X.50 GR5 YZ

$

$

Not available

37

Ariens 03416500

SEAT SLIDE HANDLE

$

$

Not available

38

Ariens 07512000

GRIP

$

$

Not available

39

Ariens 07504400

GROMMET

$

$

Not available

40

Ariens 06106300

SCR-MCH .31-18X1.00 CRRH PL
(Superseded to 06117700)

$

$

Not available

41

Ariens 06303200

WSHR-LK-EXT .313X.030 PL

$2.49

$

Usually ships in 4-12 days

0

42

Ariens 03418300

SEAT SLIDE SPACER

$4.49

$

Usually ships in 4-12 days

0

43

Ariens 03416700

SEAT SLIDE L H

$

$

Not available

44

Ariens 06104200

SCR-MCH .31-18X.75 TSKBHD PL
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

45

Ariens 06412300

WSHR-FL-STL.344X.688X.065PL
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

46

Ariens 06301800

WSHR-LK-INT .313X.030 PL
(Superseded to 06310500)

$0.99

$

In Stock, only 3 left!

0

47

Ariens 06400100

WSHR-FL-STL .250X.562X.049 PL
(Superseded to 06442300)

$1.99

$

Usually ships in 4-12 days

0
