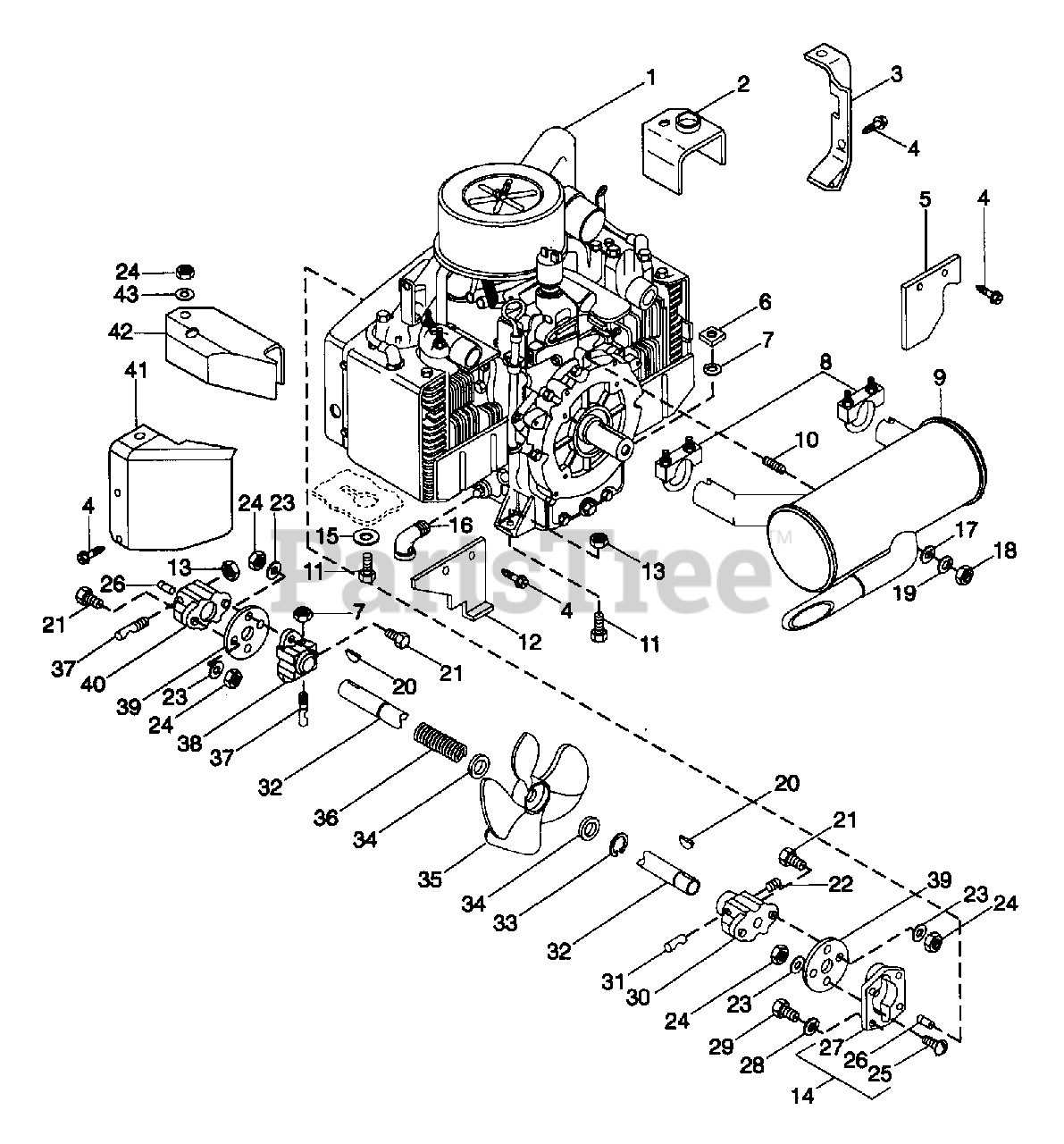

931033 - Ariens Grand Sierra Garden Tractor, 18hp Kohler, Hydro (SN: 004346 & Above) Engine And Drive Shaft Parts Diagram

Grand Sierra Garden Tractor, 18hp Kohler, Hydro

Engine And Drive Shaft Parts Diagram

  • Title

1

Ariens 08224000

KOHLER M18S #24513

Note: (33)Kohler M18S A-Brown #24513

$

$

Not available

1

Ariens 08224100

KOHLER M20S #49533

Note: (34)Kohler M20S A-Brown #49533

$

$

Not available

2

Ariens 03052800

LEFT EXHAUST SHIELD

$

$

Not available

3

Ariens 03056000

LH CYLINDER BAFFLE

Note: (34)

$

$

Not available

4

Ariens 07405500

SCR-TAP 12-14X.62 HWH PL B

$

$

Not available

5

Ariens 03031500

L.H. BAFFLE

Note: (34)

$

$

Not available

6

Ariens 07007800

NUT-SPECIAL-HDND .38-16 GR5 PL

$

$

Not available

7

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, only 3 left!

0

8

Ariens 03198500

EXHAUST CLAMP - 1 1/2

$

$

Not available

9

Ariens 03013500

MUFFLER-TWIN EXHAUST
(Superseded to 03089000)

$

$

Not available

10

Ariens 03020400

ENGINE STUD

$

$

Not available

11

Ariens 05913300

BLT-HEX .38-16X1.25 PL GR5
(Superseded to 05958000)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 03031600

R.H. BAFFLE

Note: (34)

$

$

Not available

13

Ariens 06512200

NUT-LK TOP .375-16 GR C YWZC

$2.49

$

Usually ships in 4-12 days

0

14

Ariens 03026300

ENGINE COUPLING ASSEMBLY - TWI

$

$

Not available

15

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 03018500

STREET ELBOW

$

$

Not available

17

Ariens 06400100

WSHR-FL-STL .250X.562X.049 PL
(Superseded to 06442300)

$1.99

$

Usually ships in 4-12 days

0

18

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$

$

Not available

19

Ariens 06503200

NUT-HEX .250-20 PL
(Superseded to 06533200)

$0.99

$

In Stock, Qty 13

0

20

Ariens 06600300

KEY-WDRF .188X.75X.313 SAE 9

$1.49

$

In Stock, Qty 11

0

21

Ariens 05903400

BLT-HEX .31-18X.88 PL GR2
(Superseded to 05947800)

$2.49

$

In Stock, only 2 left!

0

22

Ariens 06000100

SCR-SET .38-16X.50 SKHCUP OH

$

$

Not available

23

Ariens 06412300

WSHR-FL-STL.344X.688X.065PL
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

24

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 07006000

BLT-SERRDHD SL .31-18X.87 PL
(Superseded to 07028700)

$5.99

$

In Stock, Qty 13

0

26

Ariens 05806600

PIN-GRV .313X.75 TP D

$3.99

$

Usually ships in 4-12 days

0

27

Ariens 03015400

DRIVE HUB - FLYWHEEL TWIN

$

$

Not available

28

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$0.99

$

In Stock, Qty 20+

0

29

Ariens 05904800

@BLT-HEX .38-16X.88 PL GR2

$2.99

$

Usually ships in 4-12 days

0

30

Ariens 03082300

DRIVE HUB- TWIN SHAFT

$

$

Not available

31

Ariens 03014100

LOCK STUD

$73.99

$

Usually ships in 4-12 days

0

32

Ariens 03052700

DRIVE SHAFT

$142.99

$

Usually ships in 4-12 days

0

33

Ariens 05701200

RG-RTNG-EXT .750X.042
(Superseded to 05700135)

$2.49

$

In Stock, only 4 left!

0

34

Ariens 06413400

WSHR-HDND-THRST .758X1.23X.031

$3.49

$

In Stock, only 2 left!

0

35

Ariens 03199500

FAN

$36.99

$

In Stock, only 4 left!

0

36

Ariens 08321400

SG-COMP .120X.75X2.50 WLD48

$

$

Not available

37

Ariens 03013900

LOCK STUD

$

$

Not available

38

Ariens 03014900

DRIVE HUB

$

$

Not available

39

Ariens 03014000

SPACER COUPLING

$

$

Not available

40

Ariens 03014800

DRIVE HUB - HYDRO
(Superseded to 03089100)

$168.99

$

Usually ships in 4-12 days

0

41

Ariens 03080200

R H CYLINDER BAFFLE

$

$

Not available

42

Ariens 03052900

RIGHT EXHAUST SHIELD

$

$

Not available

43

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.49

$

In Stock, only 2 left!

0
