931033 - Ariens Grand Sierra Garden Tractor, 18hp Kohler, Hydro (SN: 004001 - 004345) Rear Axle Parts Diagram

Grand Sierra Garden Tractor, 18hp Kohler, Hydro

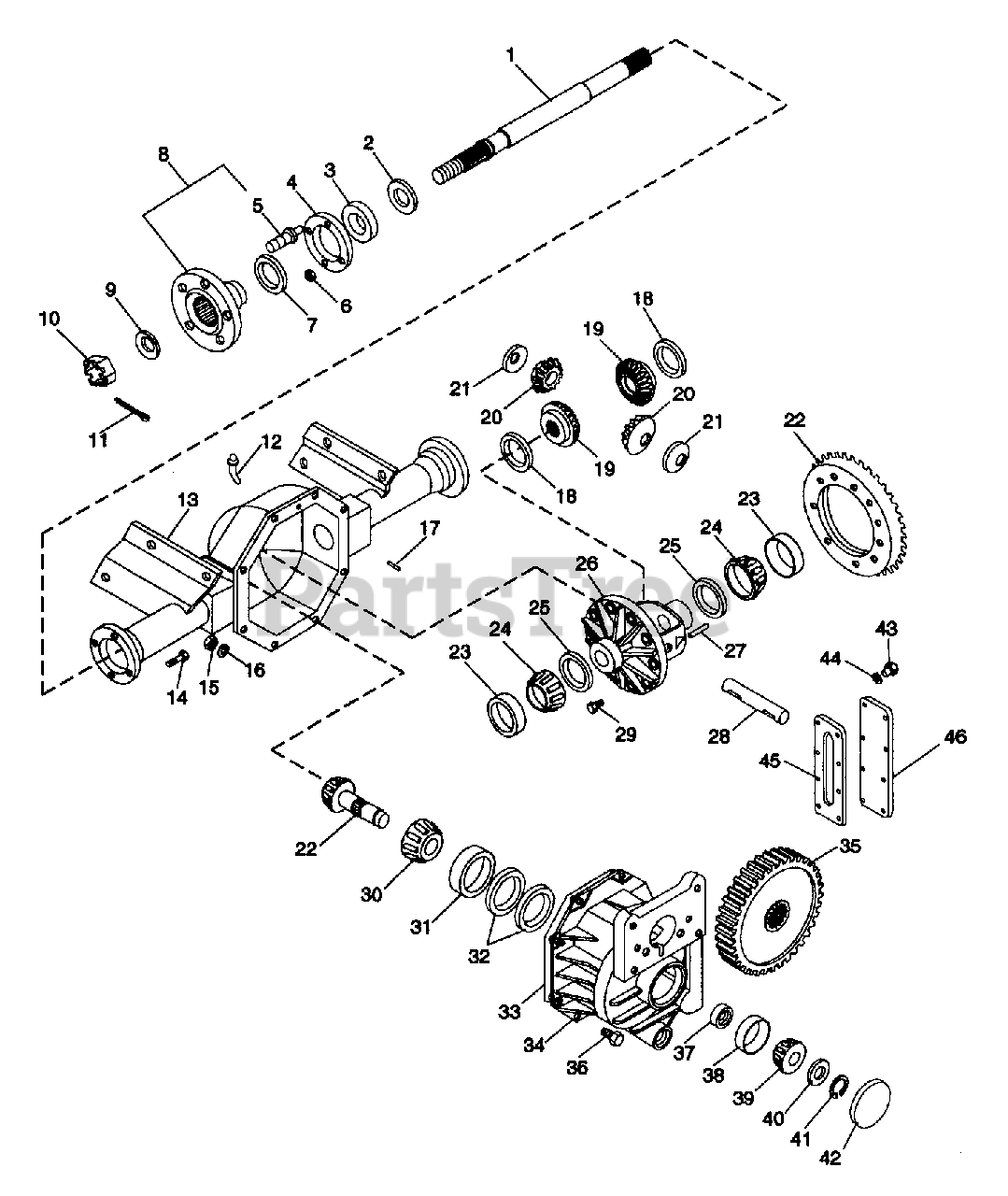

Rear Axle Parts Diagram

  • Title

1

Ariens 03045500

AXLE SHAFT LH

Note: (Used Only On Model(s): 805146,A20AA100).

$

$

Not available

1

Ariens 03045600

AXLE SHAFT RH

Note: (Used Only On Model(s): 805146,A20AA100).

$

$

Not available

2

Ariens 05609300

SEAL 1.183X1.183X.265

$34.99

$

Usually ships in 4-12 days

0

3

Ariens 05412900

BRG-CONE 46MMX17MM

$180.99

$

Usually ships in 4-12 days

0

4

Ariens 03164200

GASKET-SEE LETTER L-307

$

$

Not available

5

Ariens 03006600

CARRIER LUG BOLT

$

$

Not available

6

Ariens 06513600

NUT-LK-FLG .312-24 GR C
(Superseded to 06542200)

$2.49

$

In Stock, only 2 left!

0

7

Ariens 03164100

FELT SEAL

$

$

Not available

8

Ariens 53121800

AXLE FLANGE ASSEMBLY

Note: (Used Only On Model(s): 805146,A20AA100).

$

$

Not available

9

Ariens 06416300

WSHR-FL-STL .875X1.500X.1196
(Superseded to 06444700)

$3.99

$

In Stock, Qty 20+

0

10

Ariens 06511800

NUT-SL .875-14
(Superseded to 06538200)

$

$

Not available

11

Ariens 06700500

PIN-COTR .15X1.50
(Superseded to 06713800)

$3.99

$

In Stock, Qty 5

0

12

Ariens 03074300

VENT

$

$

Not available

13

Ariens 03043100

LOWER HOUSING

$

$

Not available

14

Ariens 05919300

BLT-HEX .31-24X1.25 GR8

$

$

Not available

15

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

16

Ariens 06301800

WSHR-LK-INT .313X.030 PL
(Superseded to 06310500)

$0.99

$

In Stock, only 3 left!

0

17

Ariens 03163700

DOWEL PIN

$

$

Not available

18

Ariens 06415400

WSHR-FL-STL 1.578X2.375X.031

$

$

Not available

19

Ariens 03045400

SIDE GEAR

Note: (Used Only On Model(s): 805146).

$

$

Not available

20

Ariens 03165200

BEVEL GEAR

$44.99

$

Usually ships in 4-12 days

0

21

Ariens 06415500

WSHR-BLVL .703X1.593X.031

$

$

Not available

22

Ariens 53115800

PINION & GEAR

Note: (Used Only On Model(s): 805146,A20AA100).

$

$

Not available

23

Ariens 05413100

BRG-CUP 2.892X.580

$

$

Not available

24

Ariens 05413000

BRG-CONE 1.63X.78

$

$

Not available

25

Ariens 03164500

SHIM

$

$

Not available

25

Ariens 03164600

SHIM

$

$

Not available

25

Ariens 03164700

SHIM

$

$

Not available

25

Ariens 03164800

SHIM

$

$

Not available

26

Ariens 03164900

DIFFERENTIAL CASE

$

$

Not available

27

Ariens 03165400

LOCK PIN

$

$

Not available

28

Ariens 03165300

PINION SHAFT

$

$

Not available

29

Ariens 07004300

BLT .38-24X.812 DANA

$

$

Not available

30

Ariens 05415600

BRG-CONE 1.188X.84

Note: (Used Only On Model(s): 805146,A20AA100).

$

$

Not available

31

Ariens 05415700

BRG-CUP 2.532X.656

Note: (Used Only On Model(s): 805146,A20AA100).

$9.49

$

Usually ships in 4-12 days

0

32

Ariens 03043500

SHIM

Note: (Used Only On Model(s): 805146,A20AA100).

$

$

Not available

32

Ariens 03043600

SHIM

Note: (Used Only On Model(s): 805146,A20AA100).

$

$

Not available

32

Ariens 03043700

SHIM

Note: (Used Only On Model(s): 805146,A20AA100).

$

$

Not available

32

Ariens 03043800

SHIM

Note: (Used Only On Model(s): 805146,A20AA100).

$3.49

$

Usually ships in 4-12 days

0

33

Ariens 03163800

GASKET

Note: (Used Only On Model(s): 805146,A20AA100).

$

$

Not available

34

Ariens 53115700

FRONT HOUSING W/BRG CAP & SCRE

Note: (Used Only On Model(s): 805146).

$

$

Not available

34

Ariens 53122100

FRONT HOUSING W/BEARING CAP &

Note: (A20AA100)

$

$

Not available

35

Ariens 03165700

SPUR GEAR

$274.99

$

Usually ships in 4-12 days

0

36

Ariens 05918100

BLT-HEX .31-18X1.00 PL GR5
(Superseded to 05946900)

$1.49

$

In Stock, Qty 20+

0

37

Ariens 03165800

FRONT PINION BEARING SPACER

$

$

Not available

38

Ariens 05413400

BRG-CUP 1.968X.550

$17.99

$

Usually ships in 4-12 days

0

39

Ariens 05415800

BRG-CONE .844X.72

Note: (Used Only On Model(s): 805146,A20A100).

$

$

Not available

40

Ariens 53115900

SHIM ASSEMBLY

Note: (Used Only On Model(s): 805146,A20AA100).

$

$

Not available

41

Ariens 05701300

RG-RTNG-EXT .813X.042
(Superseded to 05716400)

$

$

Not available

42

Ariens 03167300

CUP PLUG

$

$

Not available

43

Ariens 07407500

TAPTITE M5-0.8X16MM H-FL-PL
(Superseded to 07415100)

$3.49

$

Usually ships in 4-12 days

0

44

Ariens 06302400

WSHR-LK-EXT 12X.025 PL

$

$

Not available

45

Ariens 03116700

GASKET

$14.99

$

Usually ships in 4-12 days

0

46

Ariens 03087100

SIDE COVER

$

$

Not available
