931032 (7173-H) - Gravely 18-H Lawn Tractor, 18hp Kohler, Hydro Drive (SN: 000101 & Above) STEERING Parts Diagram

18-H Lawn Tractor, 18hp Kohler, Hydro Drive

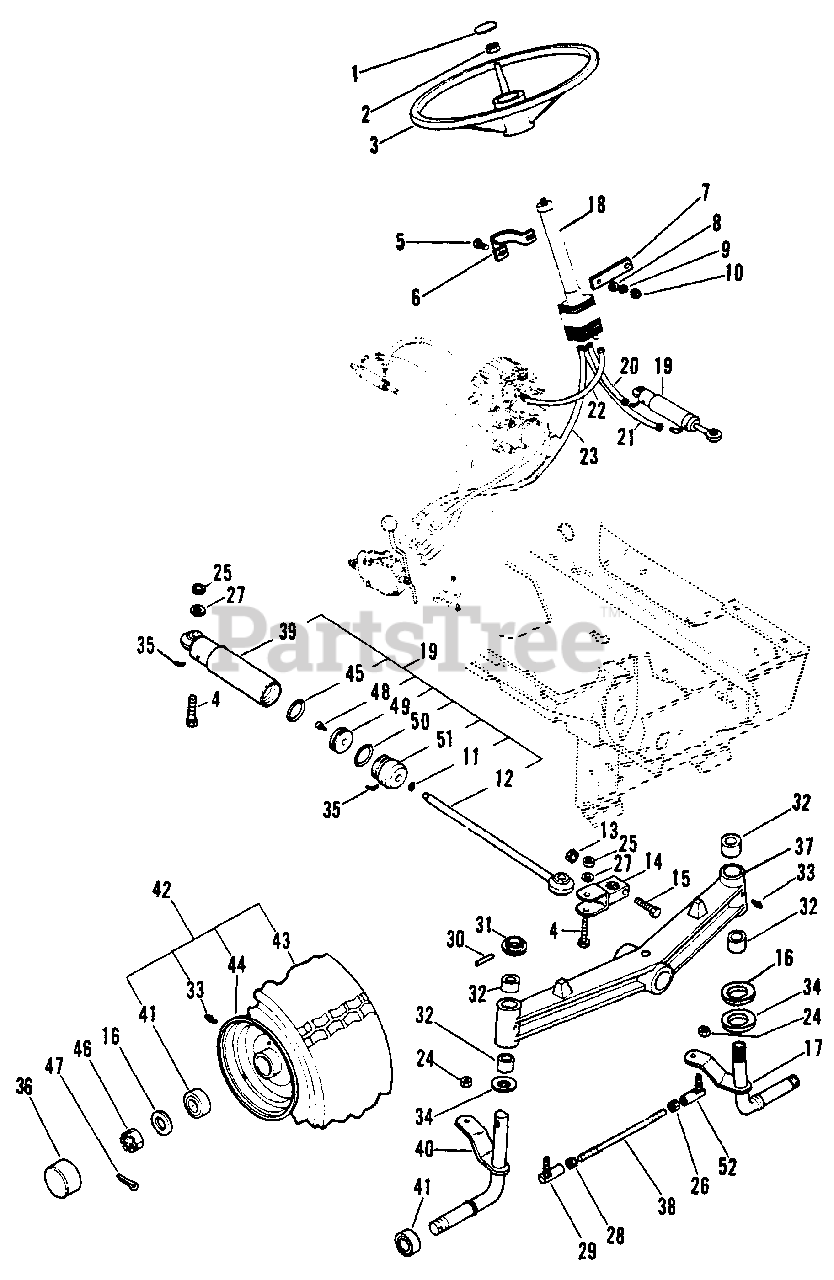

STEERING Parts Diagram

  • Title

1

Gravely 031426

Cap, Lens
(Superseded to 03489800)

$

$

Not available

2

Gravely 039643

Nut, Hex Jam Lock 5/8-18
(Superseded to 06530300)

$3.99

$

In Stock, only 2 left!

0

3

Gravely 031281

Steering Wheel
(Superseded to 03066600)

$

$

Not available

4

Gravely 180087

Bolt, Hex 5/16-18 x 2.00
(Superseded to 05901805)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 126358

Bolt, Carriage 5/16-18 x 1.0
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 039644

Steering Column Clamp
(Superseded to 03103800)

$

$

Not available

7

Gravely 039645

Pad
(Superseded to 03104900)

$

$

Not available

8

Gravely 120394

Washer, Flat .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 120379

Washer, Lock 5/16 SP
(Superseded to 06304800)

$

$

Not available

10

Gravely 120376

Nut, Hex 5/16-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

11

Gravely 044825

O-Ring, .625 I.D.
(Superseded to 05611900)

$3.99

$

Usually ships in 4-12 days

0

12

Gravely 044826

Rod
(Superseded to 03056500)

$

$

Not available

13

Gravely 416464

Nut, Lock 1/2-13
(Superseded to 06528200)

$3.99

$

In Stock, only 3 left!

0

14

Gravely 044827

Steering Arm
(Superseded to 03058400)

$

$

Not available

15

Gravely 044828

Lock Bolt
(Superseded to 03058500)

$

$

Not available

16

Gravely 039022

Washer, 1.000/1.031 x 1.500 x .125
(Superseded to 06400025)

$5.99

$

Usually ships in 4-12 days

0

17

Gravely 044829

Spindle, L.H.
(Superseded to 03083100)

$265.99

$

In Stock, only 1 left!

0

18

Gravely 044830

Unit, Power Steering
(Superseded to 03064700)

$

$

Not available

19

Gravely 044831

Cylinder Assembly Power Steering
(Superseded to 03094400)

$

$

Not available

20

Gravely 044832

Hose, Hydraulic
(Superseded to 03057300)

$56.99

$

In Stock, only 1 left!

0

21

Gravely 044833

Hose, Hydraulic
(Superseded to 03057400)

$56.99

$

In Stock, only 1 left!

0

22

Gravely 044834

Hose, Hydraulic
(Superseded to 03057200)

$91.99

$

Usually ships in 4-12 days

0

23

Gravely 044835

Hose, Hydraulic
(Superseded to 03057100)

$154.99

$

Usually ships in 4-12 days

0

24

Gravely 415993

Nut, Lock 1/2-20
(Superseded to 21067600)

$

$

Not available

25

Gravely 416310

Nut, Lock 5/8-18
(Superseded to 06530300)

$3.99

$

In Stock, only 2 left!

0

26

Gravely 039647

Nut, Hex Jam L.H. Thd. 1/2-20

$

$

Not available

27

Gravely 038821

Washer, Flat .640 x 1.005 x .062
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 120371

Nut, Hex 1/2-20
(Superseded to 21050100)

$

$

Not available

29

Gravely 036162

Ball Joint
(Superseded to 03112900)

$32.99

$

Usually ships in 4-12 days

0

30

Gravely 455313

Pin, Spring .250 x 1.750
(Superseded to 05803700)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 039471

Spindle Cap
(Superseded to 03008800)

$

$

Not available

32

Gravely 039648

Bushing, Sleeve 1 x 1-1/8 x 7/8
(Superseded to 05509100)

$13.99

$

In Stock, only 2 left!

0

33

Gravely 411027

Fitting, Lube 1/4-28
(Superseded to 07012600)

$

$

Not available

34

Gravely 039649

Plastic Washer
(Superseded to 07506700)

$

$

Not available

35

Gravely 039682

Adaptor, 9/16 to 1/4
(Superseded to 03106800)

$

$

Not available

36

Gravely 039516

Front Hub Cap
(Superseded to 07508900)

$18.99

$

Usually ships in 4-12 days

0

37

Gravely 042707

Axle, Front
(Superseded to 53123200)

$

$

Not available

38

Gravely 039497

Tie Rod
(Superseded to 03116900)

$75.99

$

Usually ships in 4-12 days

0

39

Gravely 044821

Cylinder
(Superseded to 20811800)

$

$

Not available

40

Gravely 044820

R.H. Spindle
(Superseded to 03083000)

$

$

Not available

41

Gravely 039651

Radial Bearing 1 I.D. x 2 O.D.
(Superseded to 05412100)

$

$

Not available

42

Gravely 039652

Front Tire Assembly
(Superseded to 07115300)

$

$

Not available

43

Gravely 039653

Tire, Turf Saver 8 x 6.5
(Superseded to 07102100)

$79.99

$

Usually ships in 4-12 days

0

44

Gravely 039654

Rim Assembly Tire Size 8 x 6.5
(Superseded to 07111000)

$

$

Not available

45

Gravely 044822

O-Ring, 1.625 I.D.
(Superseded to 53112500)

$19.99

$

Usually ships in 4-12 days

0

46

Gravely 039655

Nut, Slotted Hex 1-14
(Superseded to 06513100)

$5.99

$

Usually ships in 4-12 days

0

47

Gravely 187988

Pin, Cotter .187 x 1.25
(Superseded to 06712700)

$1.99

$

In Stock, only 3 left!

0

48

Gravely 039676

Screw, Cap 3/8-24 x 1.0 SH
(Superseded to 06114100)

$3.99

$

Usually ships in 4-12 days

0

49

Gravely 039677

Piston
(Superseded to 03028900)

$

$

Not available

50

Gravely 044823

O-Ring, 2.125 I.D.
(Superseded to 53112500)

$19.99

$

Usually ships in 4-12 days

0

51

Gravely 044824

Cap, Rod
(Superseded to 03094400)

$

$

Not available

52

Gravely 039495

Joint, Ball
(Superseded to 03113000)

$59.99

$

Usually ships in 4-12 days

0
