931032 (7173-H) - Gravely 18-H Lawn Tractor, 18hp Kohler, Hydro Drive (SN: 000101 & Above) HYDROSTATIC TRANSMISSION Parts Diagram

18-H Lawn Tractor, 18hp Kohler, Hydro Drive

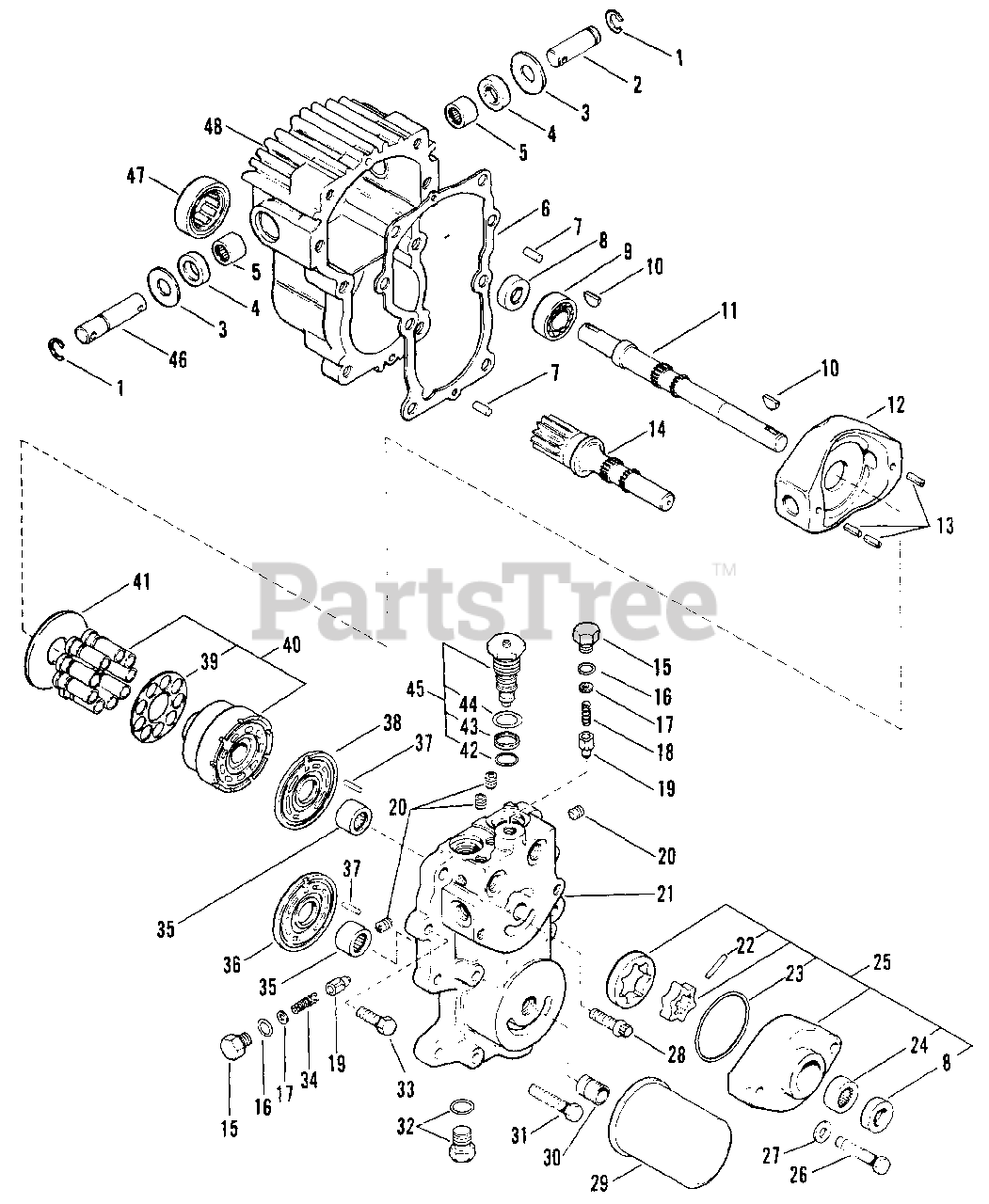

HYDROSTATIC TRANSMISSION Parts Diagram

  • Title

1

Gravely 039279

Snap Ring, Ext. 11/16 SFT x .042
(Superseded to 05706900)

$

$

Not available

2

Gravely 039280

Trunnion Shaft
(Superseded to 03161400)

$61.99

$

Usually ships in 4-12 days

0

3

Gravely 039281

Washer, .694/.704 x 1.375 x .059
(Superseded to 06415100)

$

$

Not available

4

Gravely 039282

Lip Seal
(Superseded to 05608900)

$25.99

$

In Stock, only 1 left!

0

5

Gravely 039283

Needle Brg, 11/16 I.D. x 7/8 O.D.
(Superseded to 05412600)

$

$

Not available

6

Gravely 039284

Gasket
(Superseded to 03162900)

$

$

Not available

7

Gravely 039285

Dowel Pin
(Superseded to 03163200)

$3.49

$

Usually ships in 4-12 days

0

8

Gravely 039286

Seal, 5/8 Nom. I.D.
(Superseded to 05609100)

$21.99

$

Usually ships in 4-12 days

0

9

Gravely 039287

Ball Bearing, 17 MM I.D. x 40 MM O.D.
(Superseded to 05418800)

$9.49

$

In Stock, Qty 20+

0

10

Gravely 106751

Key, Woodruff .187 x .75 #9
(Superseded to 06600300)

$1.49

$

In Stock, Qty 12

0

11

Gravely 039288

Pump Shaft
(Superseded to 03013800)

$

$

Not available

12

Gravely 039289

Swashplate Variable
(Superseded to 03054400)

$

$

Not available

13

Gravely 039290

Pin, Spring 3/16 x 5/8
(Superseded to 05806200)

$5.99

$

Usually ships in 4-12 days

0

14

Gravely 039291

Motor Shaft
(Superseded to 03162300)

$239.99

$

Usually ships in 4-12 days

0

15

Gravely 039292

Plug, Hex Head
(Superseded to 03161100)

$

$

Not available

16

Gravely 039293

O-Ring, 7/16 Nom. I.D.
(Superseded to 05608800)

$

$

Not available

17

Gravely 039294

Shim Package
(Superseded to 03161300)

$81.99

$

Usually ships in 4-12 days

0

18

Gravely 039295

Spring, Compression
(Superseded to 08322200)

$

$

Not available

19

Gravely 039296

Relief Valve Cone
(Superseded to 03160900)

$34.99

$

Usually ships in 4-12 days

0

20

Gravely 039297

Pipe Plug
(Superseded to 03163000)

$

$

Not available

21

Gravely 039298

Center Section
(Superseded to 03074800)

$

$

Not available

22

Gravely 039299

Dowel Pin
(Superseded to 03074900)

$

$

Not available

23

Gravely 039300

O-Ring, 2-3/8 Nom. I.D.
(Superseded to 05609200)

$

$

Not available

24

Gravely 039301

Needle Brg, 5/8 I.D. x 7/8 O.D.
(Superseded to 05405400)

$25.99

$

Usually ships in 4-12 days

0

25

Gravely 039302

Charge Pump Kit
(Superseded to 53119200)

$

$

Not available

26

Gravely 039303

Screw, Cap 7/16-14 x 2 Gr. 2
(Superseded to 05912600)

$

$

Not available

27

Gravely 039304

Washer, .463/.473 x .390 x .108
(Superseded to 06415300)

$

$

Not available

28

Gravely 039305

Screw, Cap 3/8-16 x 1.25 Gr. 5
(Superseded to 05917900)

$

$

Not available

29

Gravely 039306

Oil Filter
(Superseded to 03192800)

$27.99

$

In Stock, only 1 left!

0

30

Gravely 039307

Union
(Superseded to 03161800)

$

$

Not available

31

Gravely 180130

Bolt, Hex 3/8-16 x 2.00
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

32

Gravely 039308

Threaded Plug
(Superseded to 03160800)

$

$

Not available

33

Gravely 180126

Bolt, Hex 3/8-16 x 1.50
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

34

Gravely 039309

Spring, Charge Relief Valve
(Superseded to 08315700)

$

$

Not available

35

Gravely 039310

Roller Bearing, 17 MM I.D. x 15/16 O.D.
(Superseded to 05412700)

$

$

Not available

36

Gravely 039311

Motor Valve Plate
(Superseded to 03162100)

$

$

Not available

37

Gravely 039312

Dowel Pin
(Superseded to 03163300)

$

$

Not available

38

Gravely 039313

Pump Valve Plate
(Superseded to 03083600)

$

$

Not available

39

Gravely 039314

Slipper Retainer
(Superseded to 03020500)

$52.99

$

Usually ships in 4-12 days

0

40

Gravely 039315

Cylinder Block Kit
(Superseded to 53103500)

$

$

Not available

41

Gravely 039316

Thrust Plate
(Superseded to 03054200)

$51.99

$

Usually ships in 4-12 days

0

42

Gravely 039317

O-Ring
(Superseded to 05609700)

$

$

Not available

43

Gravely 039318

Back Up Ring
(Superseded to 05609800)

$21.99

$

Usually ships in 4-12 days

0

44

Gravely 039319

O-Ring
(Superseded to 05609600)

$5.99

$

Usually ships in 4-12 days

0

45

Gravely 039320

Check Valve Assembly
(Superseded to 58901300)

$

$

Not available

46

Gravely 039321

Trunnion Shaft
(Superseded to 03161500)

$92.99

$

Usually ships in 4-12 days

0

47

Gravely 039322

Roller Brg, 1-17/64 I.D. x 2-3/64 O.D.
(Superseded to 05412800)

$

$

Not available

48

Gravely 039323

Housing
(Superseded to 53123500)

$

$

Not available
