931031 (7173-H) - Gravely Lawn Tractor, 17hp Kohler, Hydro Drive (SN: 000101 & Above) HOOD AND REAR DECK Parts Diagram

Lawn Tractor, 17hp Kohler, Hydro Drive

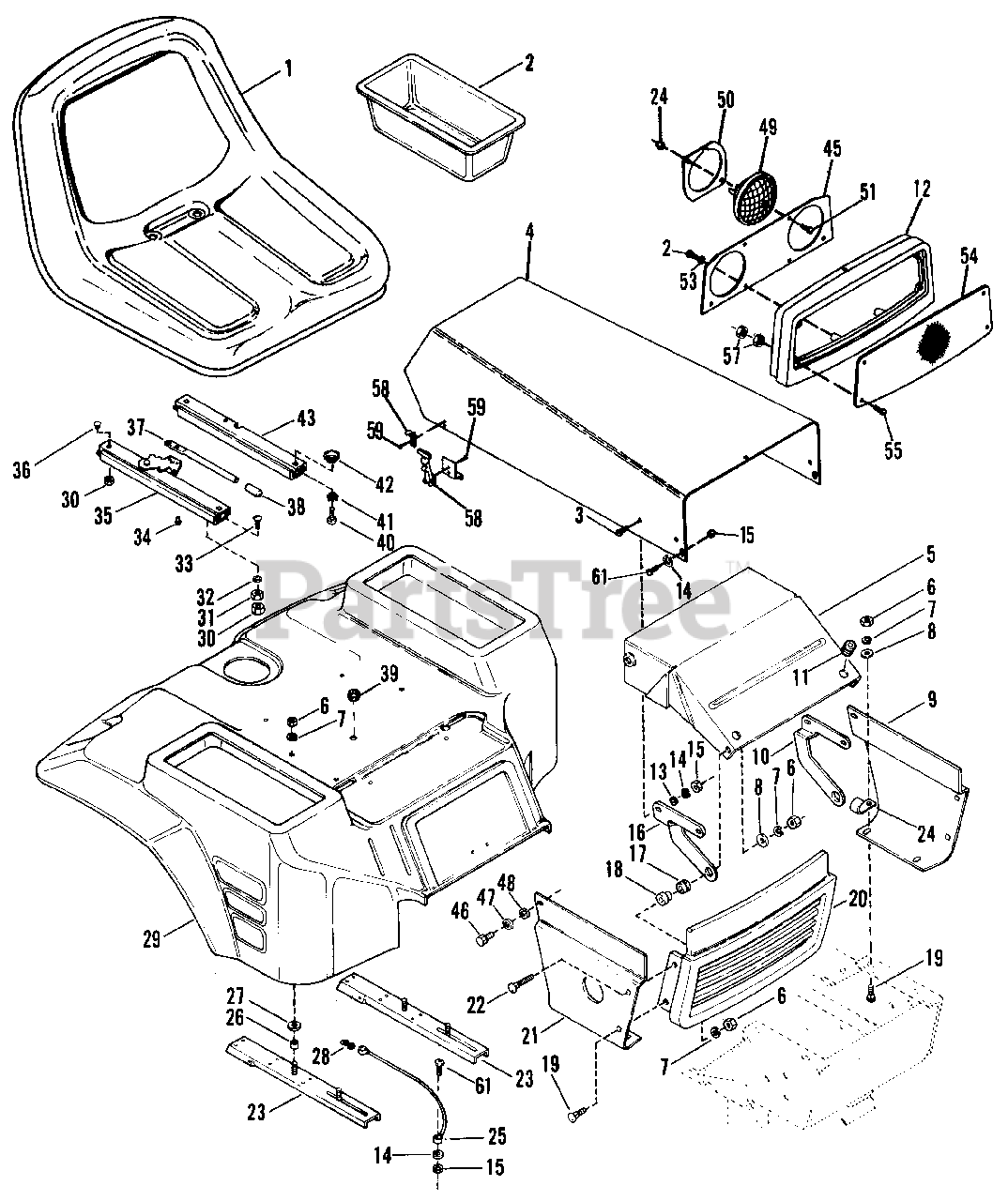

HOOD AND REAR DECK Parts Diagram

  • Title

1

Gravely 038940

Seat, High Back
(Superseded to 59100200)

$

$

Not available

2

Gravely 039044

Tray
(Superseded to 03009300)

$

$

Not available

3

Gravely 120518

Bolt, 1/4-20 x .75 Rd Hd Sq Nk
(Superseded to 06200307)

$0.99

$

In Stock, Qty 13

0

4

Gravely 038674

Hood, Tractor
(Superseded to 08658600)

$

$

Not available

5

Gravely 039045

Muffler Shield
(Superseded to 03053000)

$

$

Not available

6

Gravely 120377

Nut, Hex 3/8-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 120382

Washer, Lock 3/8 Reg.
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 120388

Washer, Flat .438 x 1.000 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 039836

Panel, Side L.H.
(Superseded to 08745000)

$13.99

$

Usually ships in 4-12 days

0

10

Gravely 039047

L.H. Hood Hinge
(Superseded to 03118600)

$

$

Not available

11

Gravely 039048

Grommet
(Superseded to 07506600)

$3.99

$

Usually ships in 4-12 days

0

12

Gravely 038673

Bezel, Headlight
(Superseded to 03066800)

$

$

Not available

13

Gravely 422845

Washer, Flat .281 x .625 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 120380

Washer, Lock 1/4 Reg.
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 120375

Nut, Hex 1/4-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

16

Gravely 039049

R.H. Hood Hinge
(Superseded to 03118500)

$5.99

$

Usually ships in 4-12 days

0

17

Gravely 039050

Grommet
(Superseded to 07506400)

$5.99

$

Usually ships in 4-12 days

0

18

Gravely 036849

Spacer
(Superseded to 03114500)

$9.99

$

In Stock, only 1 left!

0

19

Gravely 120915

Bolt, 3/8-16 x 1.00 Rd Hd Sq Nk

$

$

Not available

20

Gravely 040465

Casting, Grille
(Superseded to 21254200)

$

$

Not available

21

Gravely 040680

Panel, Side R.H.
(Superseded to 21255100)

$

$

Not available

22

Gravely 126419

Bolt, 3/8-16 x 2.00 Rd Hd Sq Nk
(Superseded to 06200314)

$3.99

$

In Stock, only 3 left!

0

23

Gravely 039053

Seat Support
(Superseded to 03009100)

$5.99

$

Usually ships in 4-12 days

0

24

Gravely 419454

Nut, Lock 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

25

Gravely 039054

Cable
(Superseded to 06910200)

$37.99

$

Usually ships in 4-12 days

0

26

Gravely 039055

Spacer
(Superseded to 03009200)

$3.99

$

Usually ships in 4-12 days

0

27

Gravely 039056

Washer, .380/.390 x .750 x .125
(Superseded to 06444300)

$7.99

$

In Stock, Qty 8

0

28

Gravely 039057

"S" Hook
(Superseded to 03029300)

$

$

Not available

29

Gravely 039058

Rear Deck

$

$

Not available

30

Gravely 413447

Nut, Lock 5/16-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 120376

Nut, Hex 5/16-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

32

Gravely 120379

Washer, Lock 5/16 SP
(Superseded to 06304800)

$

$

Not available

33

Gravely 039059

Screw, Cap BTHD 5/16-18 x .875
(Superseded to 07008600)

$

$

Not available

34

Gravely 039060

Pop Rivet
(Superseded to 06806500)

$

$

Not available

35

Gravely 039061

Seat Slide, R.H.
(Superseded to 03416600)

$

$

Not available

36

Gravely 039062

Screw, Cap BTHD 5/16-18 x .50
(Superseded to 07008100)

$

$

Not available

37

Gravely 039063

Seat Slide Handle
(Superseded to 03416500)

$

$

Not available

38

Gravely 039064

Grip
(Superseded to 07512000)

$

$

Not available

39

Gravely 039065

Grommet
(Superseded to 07504400)

$

$

Not available

40

Gravely 039066

Screw, Mach. 5/16-18 x 1.00 Rd Hd
(Superseded to 06117700)

$

$

Not available

41

Gravely 138485

Washer, Lock 5/16 Ext.
(Superseded to 06303200)

$2.49

$

Usually ships in 4-12 days

0

42

Gravely 039067

Spacer
(Superseded to 03418300)

$4.49

$

Usually ships in 4-12 days

0

43

Gravely 039068

Seat Slide, L.H.
(Superseded to 03416700)

$

$

Not available

44

Gravely 036518

Clip
(Superseded to 06909400)

$3.49

$

In Stock, Qty 5

0

45

Gravely 038672

Panel, Headlight Reflector
(Superseded to 03067000)

$28.99

$

Usually ships in 4-12 days

0

46

Gravely 038334

Screw, Machine 5/16-18 x .75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

47

Gravely 446548

Washer, Flat .375 x .734 x .065
(Superseded to 06431100)

$

$

Not available

48

Gravely 138538

Washer, Lock 5/16 Int. Tooth
(Superseded to 06310500)

$0.99

$

In Stock, only 3 left!

0

49

Gravely 039069

Headlight
(Superseded to 03114900)

$20.99

$

Usually ships in 4-12 days

0

50

Gravely 039070

Headlight Retainer Ring
(Superseded to 03115900)

$

$

Not available

51

Gravely 180024

Bolt, Hex 1/4-20 x 1.25
(Superseded to 05901738)

$1.99

$

In Stock, Qty 5

0

52

Gravely 411890

Screw, Tapping 1/4-20 x .625
(Superseded to 21071400)

$

$

Not available

53

Gravely 121753

Washer, Lock 1/4 Ext.
(Superseded to 21051100)

$

$

Not available

54

Gravely 038671

Panel, Headlight Lens
(Superseded to 03066900)

$78.99

$

Usually ships in 4-12 days

0

55

Gravely 159947

Screw, Mach. 10-24 x .75 PHD
(Superseded to 06111200)

$2.49

$

Usually ships in 4-12 days

0

57

Gravely 120361

Nut, Hex 10-24
(Superseded to 06536600)

$0.99

$

In Stock, Qty 5

0

58

Gravely 035294

Latch, Flexible
(Superseded to 08704700)

$25.99

$

Usually ships in 4-12 days

0

59

Gravely 039071

Rivet, Pop Domed 1/8 x .294
(Superseded to 20657300)

$

$

Not available

61

Gravely 041169

Screw, 1/4-20 x .75 Torx Slotted Ph Pl
(Superseded to 05967300)

$

$

Not available

NS

Gravely 038773

Decal, Side Stripe R.H. and L.H.
(Superseded to 20651800)

$

$

Not available

NS

Gravely 038742

Decal, 7173-H
(Superseded to 03067300)

$

$

Not available

NS

Gravely 024608

Decal, Gravely Logo
(Superseded to 02460800)

$28.99

$

Usually ships in 4-12 days

0

NS

Gravely 040072

Decal, Maintenance Instructions

$

$

Not available
