931026 - Ariens Grand Sierra Garden Tractor, 19hp Kohler, Hydro (SN: 000101 & Above) Sunstrand Transmission Parts Diagram

Grand Sierra Garden Tractor, 19hp Kohler, Hydro

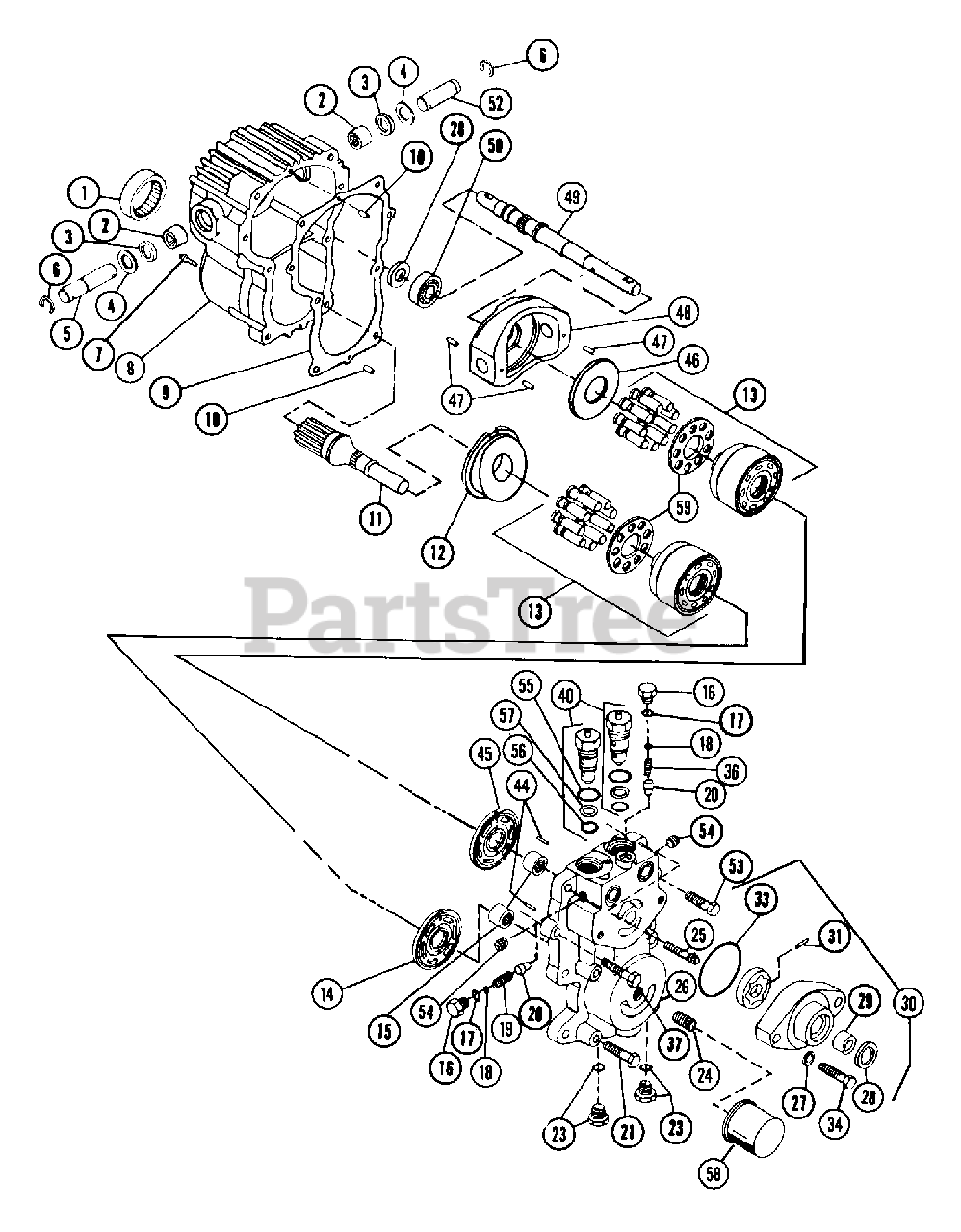

Sunstrand Transmission Parts Diagram

  • Title

1

Ariens 05412800

BRG-ROLLER 1.27X2.05X15MM

$

$

Not available

2

Ariens 05412600

BRG-NEEDLE .688X.876X.63

$

$

Not available

3

Ariens 05608900

SEAL .625X1.187X.187

$25.99

$

In Stock, only 1 left!

0

4

Ariens 06415700

WSHR-FL-STL .469X1.380X.125

$

$

Not available

5

Ariens 03161500

TRUNNION SHAFT

$92.99

$

Usually ships in 4-12 days

0

6

Ariens 05706900

RG-RTNG-EXT .688X.042

$

$

Not available

7

Ariens 05918000

SCR-12PNT .25-20X.88 GR5

$

$

Not available

8

Ariens 03162400

HOUSING

$

$

Not available

9

Ariens 03162900

GASKET

$

$

Not available

10

Ariens 03163200

DOWEL PIN

$3.49

$

Usually ships in 4-12 days

0

11

Ariens 03162300

MOTOR SHAFT

$239.99

$

Usually ships in 4-12 days

0

12

Ariens 03162200

SWASH PLATE

$

$

Not available

13

Ariens 53103500

CYLINDER BLOCK KIT

$

$

Not available

14

Ariens 03162100

MOTOR VALVE PLATE

$

$

Not available

15

Ariens 05412700

BRG-NEEDLE 17MMX.938X.62

$

$

Not available

16

Ariens 03161100

PLUG-HEX HEAD

$

$

Not available

17

Ariens 05608800

O-RING .414X.562X.072

$

$

Not available

18

Ariens 03161300

SHIM PACKAGE

$81.99

$

Usually ships in 4-12 days

0

19

Ariens 08315700

SG-COMP ??X??X?? SUNSTRAND

$

$

Not available

20

Ariens 03160900

RELIEF VALVE CONE

$34.99

$

Usually ships in 4-12 days

0

21

Ariens 05914700

BLT-HEX .38-16X2.00 PL GR5
(Superseded to 05963300)

$2.99

$

In Stock, only 1 left!

0

23

Ariens 03160800

THREADED PLUG

$

$

Not available

24

Ariens 03161800

UNION

$

$

Not available

25

Ariens 05912600

BLT-HEX .44-14X2.00 GR5

$

$

Not available

26

Ariens 03161900

CENTER SECTION

$

$

Not available

27

Ariens 06415300

WSHR-FL-STL .469X.719X.108

$

$

Not available

28

Ariens 05609100

SEAL .625X1.128X.250

$21.99

$

Usually ships in 4-12 days

0

29

Ariens 05405400

BRG-NEEDLE .625X.875X.50

$25.99

$

Usually ships in 4-12 days

0

30

Ariens 53111100

CHARGE PUMP KIT
(Superseded to 53119200)

$

$

Not available

31

Ariens 03163100

DOWEL PIN
(Superseded to 03074900)

$

$

Not available

33

Ariens 05609200

O-RING 2.364X2.504X.072

$

$

Not available

34

Ariens 05917900

SCR-12PNT .38-16X1.25 GR5

$

$

Not available

36

Ariens 08315900

SG-COMP SUNSTRAND

$

$

Not available

37

Ariens 05913300

BLT-HEX .38-16X1.25 PL GR5
(Superseded to 05958000)

$1.49

$

In Stock, Qty 20+

0

40

Ariens 53107600

CHECK VALVE ASSEMBLY
(Superseded to 58901300)

$

$

Not available

44

Ariens 03163300

DOWEL PIN

$

$

Not available

45

Ariens 03162800

PUMP VALVE PLATE
(Superseded to 03083600)

$

$

Not available

46

Ariens 03162700

THRUST PLATE

$

$

Not available

47

Ariens 05806200

PIN-ROLL .188X.63

$5.99

$

Usually ships in 4-12 days

0

48

Ariens 03162600

SWASH PLATE

$

$

Not available

49

Ariens 03103800

STEERING COLUMN CLAMP

$

$

Not available

50

Ariens 05407100

BRG-BALL 17MMX40MMX12MM
(Superseded to 05418800)

$9.49

$

In Stock, Qty 20+

0

52

Ariens 03161400

TRUNNION SHAFT

$61.99

$

Usually ships in 4-12 days

0

53

Ariens 05915100

BLT-HEX .38-16X1.50 PL GR5
(Superseded to 05957900)

$1.49

$

In Stock, Qty 14

0

54

Ariens 03163000

PIPE PLUG

$

$

Not available

55

Ariens 05609600

O-RING .770X.968X.097

$5.99

$

Usually ships in 4-12 days

0

56

Ariens 05609700

O-RING .614X.750X.070

$

$

Not available

57

Ariens 05609800

O-RING .614X.750X.046

$21.99

$

Usually ships in 4-12 days

0

58

Ariens 03192800

OIL FILTER

$27.99

$

In Stock, only 1 left!

0

59

Ariens 03020500

SLIPPER RETAINER

$52.99

$

Usually ships in 4-12 days

0
