931023 - Ariens Grand Sierra Garden Tractor, 16hp Kohler, Hydro (SN: 000101 & Above) Front PTO And Electrical Clutch Late Models Parts Diagram

Grand Sierra Garden Tractor, 16hp Kohler, Hydro

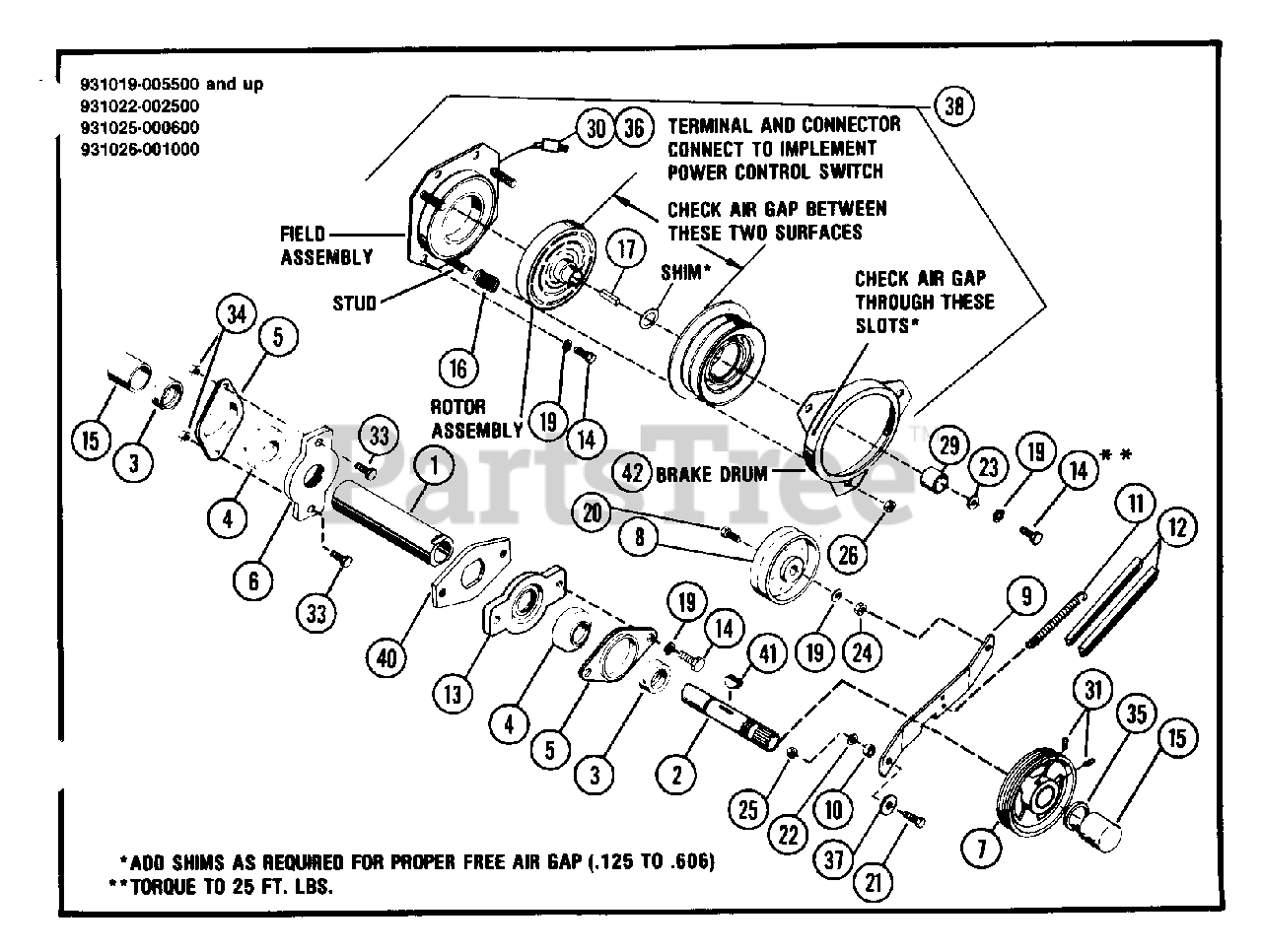

Front PTO And Electrical Clutch Late Models Parts Diagram

  • Title

931019 S/N 005500 AND UP

Note: (Used Only On Model(s): 931026).

$

$

Not available

1

Ariens 03040800

PTO TUBE

$86.99

$

Usually ships in 4-12 days

0

2

Ariens 03040500

FRONT PTO SHAFT

$224.99

$

Usually ships in 4-12 days

0

3

Ariens 03131500

BEARING COLLAR
(Superseded to 05426200)

$45.99

$

Usually ships in 4-12 days

0

4

Ariens 05411000

BRG/W COLLAR 1.0 X 2.047 X.844
(Superseded to 05426200)

$45.99

$

Usually ships in 4-12 days

0

5

Ariens 03008200

FLANGE

$17.99

$

In Stock, only 2 left!

0

6

Ariens 03040600

BEARING MOUNTING FLANGE

$85.99

$

In Stock, only 1 left!

0

7

Ariens 03040400

SHEAVE

$

$

Not available

8

Ariens 07305500

IDLER-FLAT 3.218X.38
(Superseded to 07308800)

$39.99

$

In Stock, Qty 8

0

9

Ariens 03114800

IDLER ARM
(Superseded to 03063100)

$129.99

$

Usually ships in 4-12 days

0

10

Ariens 03115700

SPACER .512X.747X.208

$26.99

$

In Stock, only 1 left!

0

11

Ariens 08320300

SG-TENS .135X.98X6.0 WLD 62

$17.99

$

In Stock, Qty 20+

0

12

Ariens 07211100

V-BELT, 4L-WRAPPED (SET)

$40.99

$

In Stock, Qty 7

0

13

Ariens 03040700

BEARING MOUNTING FLANGE

$

$

Not available

14

Ariens 05920500

BLT-HEX .44-20X1.50 PL GR5
(Superseded to 05902004)

$5.99

$

In Stock, Qty 5

0

15

Ariens 07506000

SHAFT COVER

$4.49

$

In Stock, only 2 left!

0

16

Ariens 08314800

SG-COMP WARNER ELEC.

$

$

Not available

17

Ariens 06602700

KEY-SQ .25X.625X.25 SAE 8630

$3.99

$

In Stock, only 3 left!

0

19

Ariens 06300500

WSHR-LK .438X.133 HVY
(Superseded to 06310700)

$2.99

$

Usually ships in 4-12 days

0

20

Ariens 05906800

BLT-HEX .38-16X2.00 PL GR2
(Superseded to 05963300)

$2.99

$

In Stock, Qty 6

0

21

Ariens 05904200

BLT-HEX .50-13X1.25 PL GR2
(Superseded to 05958900)

$3.49

$

In Stock, only 1 left!

0

22

Ariens 03115800

SHIM SPACER

$9.99

$

In Stock, only 1 left!

0

23

Ariens 06419800

WSHR-FL-STL .515X1.625X.250

$

$

Not available

24

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 06509700

NUT-LK .50-13 PL
(Superseded to 06536300)

$3.99

$

In Stock, only 2 left!

0

26

Ariens 06511600

NUT-LK WARNER

$

$

Not available

29

Ariens 03030000

SPACER 1.129X1.375X.855

Note: (Used Only On Model(s): 931025,22).

$19.99

$

Usually ships in 4-12 days

0

30

Ariens 03005600

MALE TERMINAL

$

$

Not available

31

Ariens 06001200

SCR-SET .32-18X.38 SKHCUPNL OH
(Superseded to 06005500)

$2.99

$

In Stock, Qty 13

0

33

Ariens 06205600

BLT-RDHDSQNK .38-16X1.50 PL
(Superseded to 06224200)

$3.99

$

In Stock, only 2 left!

0

34

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

35

Ariens 05706200

RG-RTNG-EXT 1.00X.042

$2.49

$

In Stock, only 1 left!

0

36

Ariens 03005400

CONNECTOR BODY

$

$

Not available

37

Ariens 06416900

WSHR-FL-STL .518X2.000X.105
(Superseded to 06441800)

$3.99

$

Usually ships in 4-12 days

0

38

Ariens 63124100

CLUTCH ASSEMBLY - 1-1/4 BORE
(Superseded to 03064800)

Note: (Used Only On Model(s): 931026).

$

$

Not available

38

Ariens 53114100

CLUTCH ASSEMBLY 1-1/8 BORE

Note: (Used Only On Model(s): 931025,22,19).

$

$

Not available

40

Ariens 03040900

ANTI PIVOT PLATE

$20.99

$

Usually ships in 4-12 days

0

41

Ariens 06604500

KEY-FTHR .25X1.25X.25 SAE

$5.99

$

In Stock, Qty 7

0

42

Ariens 03030300

BRAKE DRUM

$

$

Not available
