931023 - Ariens Grand Sierra Garden Tractor, 16hp Kohler, Hydro (SN: 000101 & Above) Center Rock Shaft Parts Diagram

Grand Sierra Garden Tractor, 16hp Kohler, Hydro

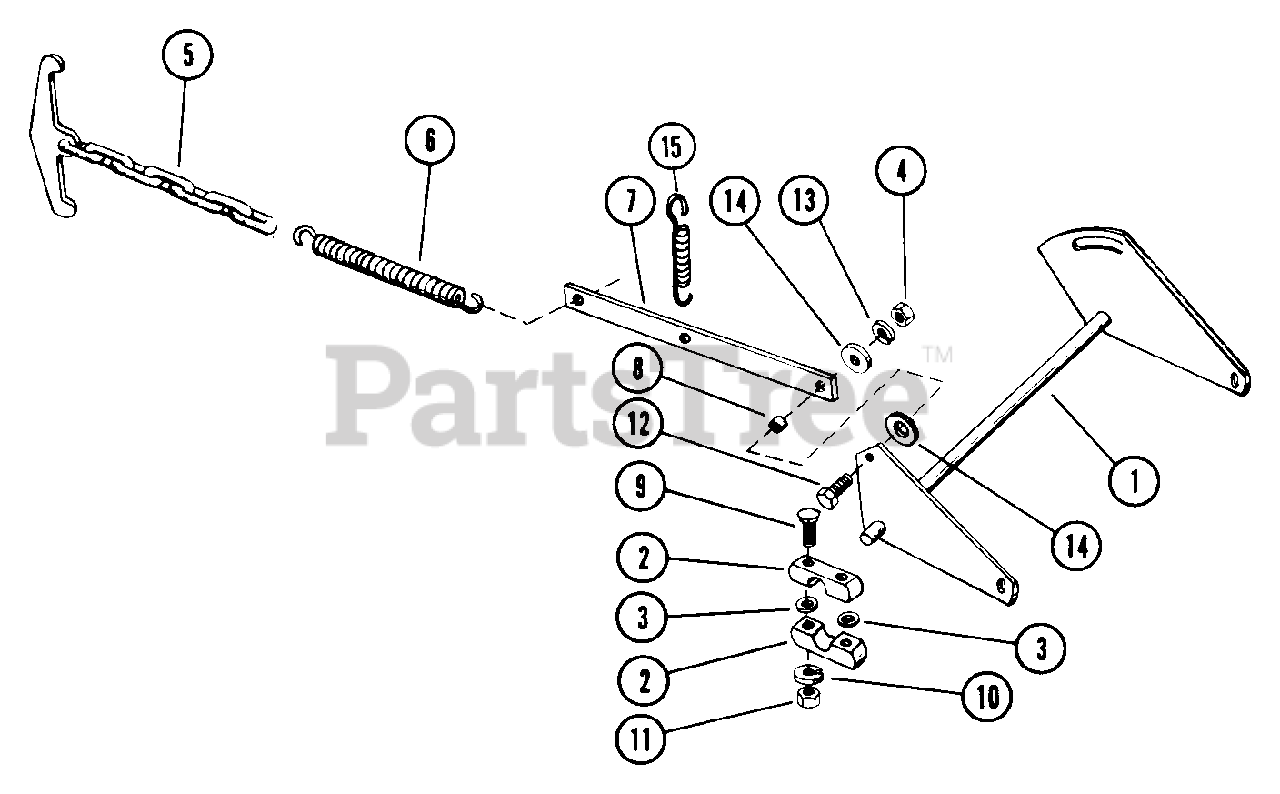

Center Rock Shaft Parts Diagram

  • Title

1

Ariens 03105000

CENTER ROCKSHAFT

$

$

Not available

2

Ariens 02901100

BLOCK

$

$

Not available

3

Ariens 06411500

WSHR-FL-STL .406X.750X.005
(Superseded to 06444600)

$

$

Not available

4

Ariens 06503200

NUT-HEX .250-20 PL
(Superseded to 06533200)

$0.99

$

In Stock, Qty 13

0

5

Ariens 03101700

CHAIN

$22.99

$

Usually ships in 4-12 days

0

6

Ariens 08310700

SG-TENS .156X1.062X8.68 WLD ??

$39.99

$

Usually ships in 4-12 days

0

7

Ariens 03118100

LINK

$

$

Not available

8

Ariens 03102100

SPACER .269X.375X.343

$5.99

$

Usually ships in 4-12 days

0

9

Ariens 06200500

BLT-RDHDSQNK .38-16X2.25 SHTPL
(Superseded to 06213400)

$3.99

$

In Stock, only 2 left!

0

10

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 05913200

BLT-HEX .25-20X1.00 GR2
(Superseded to 05947700)

$1.49

$

In Stock, Qty 9

0

13

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$

$

Not available

14

Ariens 06412700

WSHR-FL-STL.281X.62X.065 PL
(Superseded to 06437300)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 08314900

SG-TENS .035X.45X2.75 WLD 3.5

$13.99

$

Usually ships in 4-12 days

0
