931019 - Ariens Grand Sierra Garden Tractor, 17hp Kohler, Hydro (SN: 006501 & Above) Steering - Gear Parts Diagram

Grand Sierra Garden Tractor, 17hp Kohler, Hydro

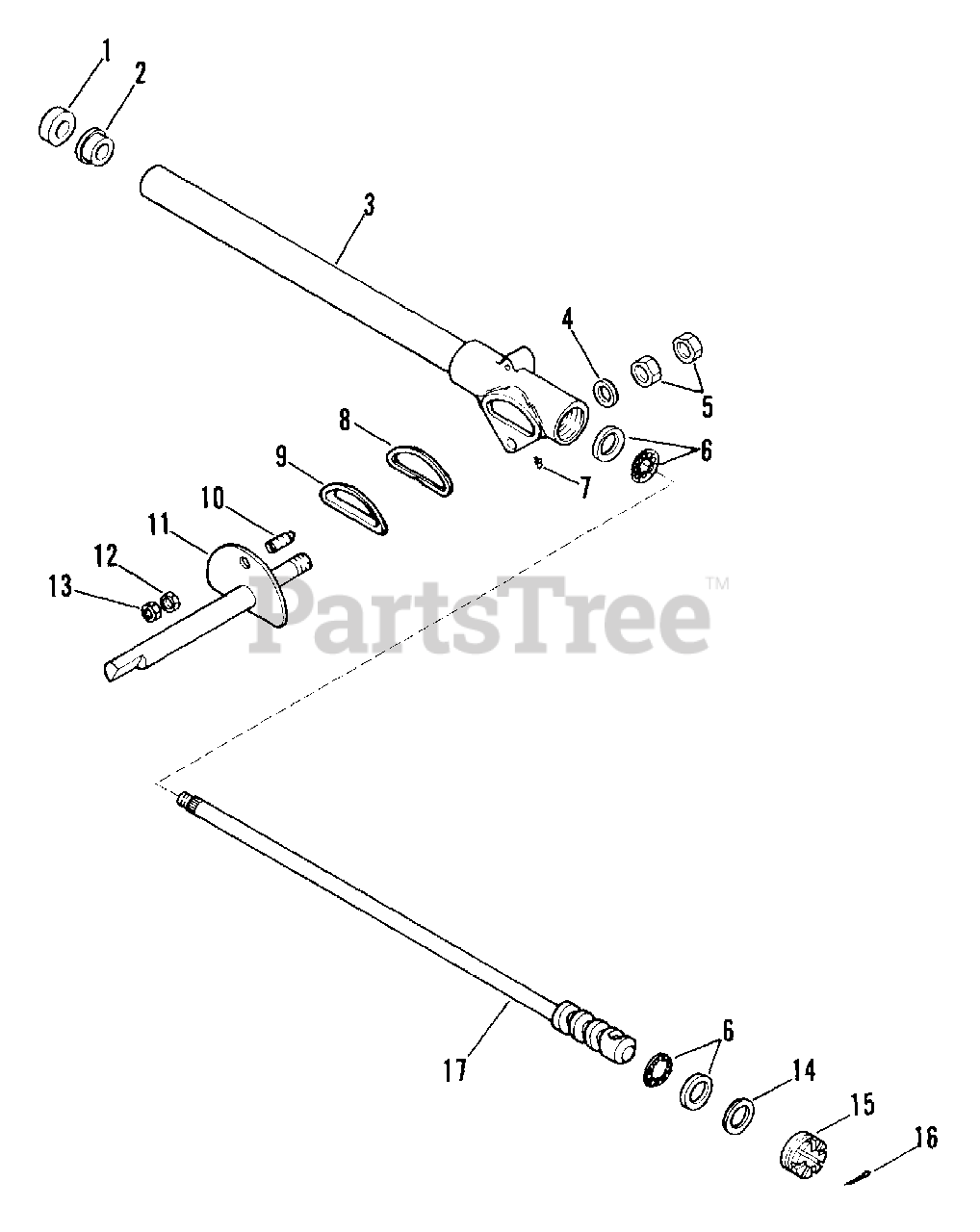

Steering - Gear Parts Diagram

  • Title
1

Ariens 07507800

DUST COVER

$

$

Not available

2

Ariens 05509900

BSHG ROSS G#061013

$18.99

$

In Stock, only 1 left!

0

3

Ariens 03169400

HOUSING ASSEMBLY
(Superseded to 03080500)

$

$

Not available

4

Ariens 06415800

WSHR-FL-STL .760X1.250X.060 PL

$

$

Not available

5

Ariens 06501600

NUT-JAM .75-16 PL
(Superseded to 06539900)

$3.49

$

In Stock, only 2 left!

0

6

Ariens 53104200

BEARING KIT

$

$

Not available

7

Ariens 03169600

HYDRAULIC DRIVE FITTING

$

$

Not available

$5.99

$

Usually ships in 4-12 days

0

9

Ariens 03169800

RETAINER - SEAL

$

$

Not available

10

Ariens 03169700

STUD LEVER

$

$

Not available

11

Ariens 03004000

STEERING SHAFT

$

$

Not available

12

Ariens 06515100

NUT .562-18

$

$

Not available

13

Ariens 06509600

NUT- .562-18

$

$

Not available

14

Ariens 06415900

WSHR-BLVL 1.015X1.470X.044

$

$

Not available

15

$

$

Not available

16

Ariens 06701800

PIN-COTR .12X.50 PL
(Superseded to 06711800)

$

$

Not available

17

Ariens 03080100

STEERING GEAR ASS'Y

$

$

Not available
