931015 - Ariens Grand Sierra Garden Tractor, 18hp Kohler, Hydro (SN: 000101 & Above) Rear PTO Parts Diagram

Grand Sierra Garden Tractor, 18hp Kohler, Hydro

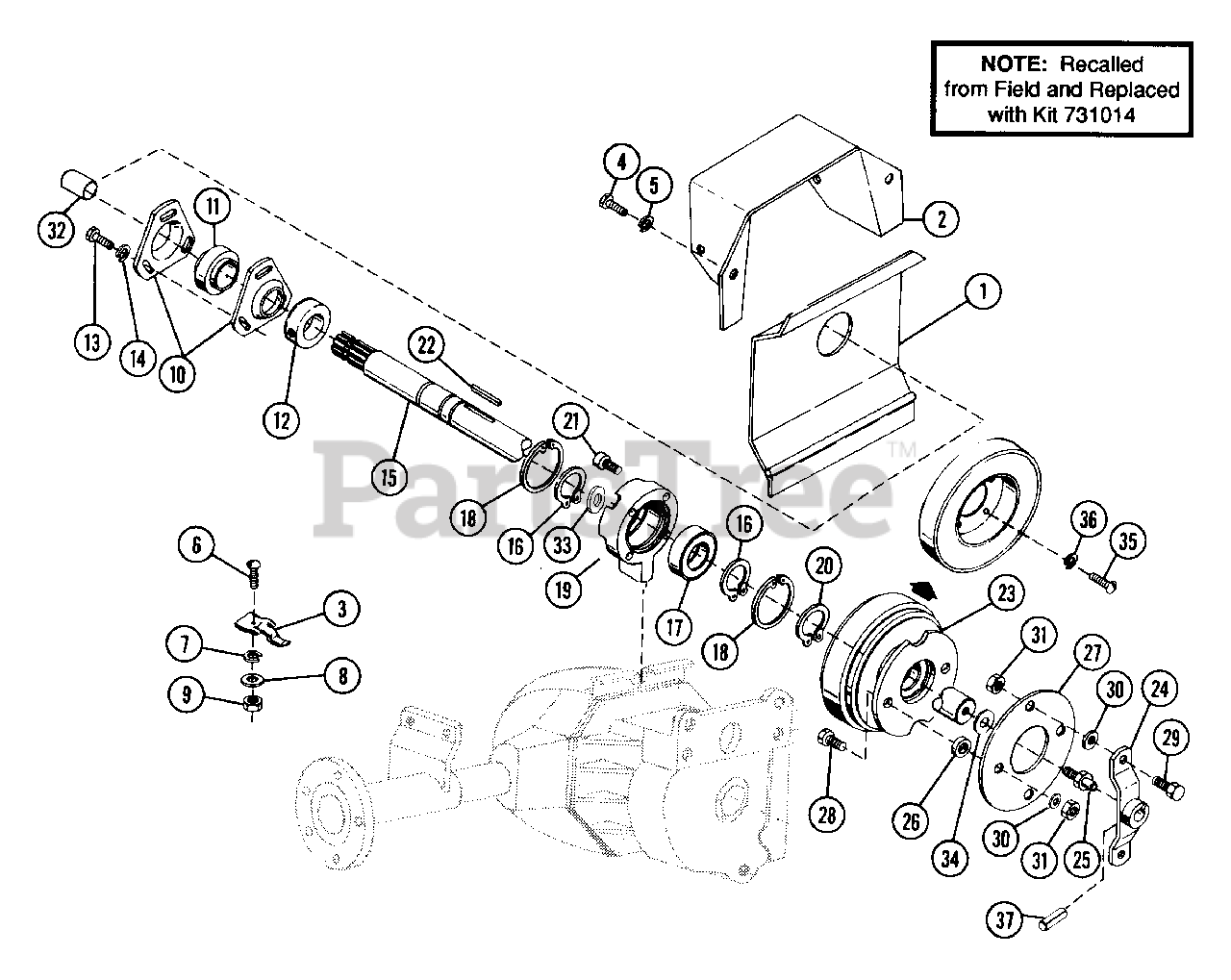

Rear PTO Parts Diagram

  • Title

1

Ariens 03153000

REAR PTO COVER
(Superseded to 03016300)

$

$

Not available

2

Ariens 03157100

PTO SHIELD

$

$

Not available

3

Ariens 03130500

SNAP FASTENER

$

$

Not available

4

Ariens 07401700

SCR-TAP .312-18X.75 HWH PL TR
(Superseded to 07414400)

$1.49

$

In Stock, Qty 11

0

5

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 06105000

SCR-MCH 10-24X1.00 SLRH PL

$

$

Not available

7

Ariens 06302600

WSHR-LK-EXT #10 ID X .022
(Superseded to 06310400)

$1.99

$

In Stock, only 1 left!

0

8

Ariens 06414100

WSHR-FL-STL .219X.500X.049 PL
(Superseded to 06442700)

$0.99

$

Usually ships in 4-12 days

0

9

Ariens 06505500

NUT-HEX 10-24 PL

$

$

Not available

10

Ariens 03102000

BEARING FLANGE

$21.99

$

Usually ships in 4-12 days

0

11

Ariens 05411000

BRG/W COLLAR 1.0 X 2.047 X.844
(Superseded to 05426200)

$45.99

$

Usually ships in 4-12 days

0

12

Ariens 03131500

BEARING COLLAR
(Superseded to 05426200)

$45.99

$

Usually ships in 4-12 days

0

13

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 03199100

SHAFT

$

$

Not available

16

Ariens 05706200

RG-RTNG-EXT 1.00X.042

$2.49

$

In Stock, only 1 left!

0

17

Ariens 05405200

BRG-BALL 1.0X2.0X.56
(Superseded to 05416000)

$14.99

$

In Stock, only 3 left!

0

18

Ariens 05702400

RG-RTNG INT 2.000X.062

$

$

Not available

19

Ariens 03198900

BEARING MOUNT

$

$

Not available

20

Ariens 05707300

RG-RTNG-EXT 1.00X.078

$2.99

$

In Stock, Qty 9

0

21

Ariens 07405400

SCR-TAP 10-24X.375 HWH PL TR
(Superseded to 07412100)

$0.99

$

Usually ships in 4-12 days

0

22

Ariens 06602200

KEY-SQ .25X1.0X.25 SAE 8630

$3.99

$

In Stock, only 2 left!

0

23

Ariens 03199000

ELECTRIC CLUTCH

$

$

Not available

24

Ariens 03198800

COUPLING

$

$

Not available

25

Ariens 03199200

STUD
(Superseded to 05918700)

$

$

Not available

26

Ariens 02506200

SPACER .380X.750X.236

$3.99

$

Usually ships in 4-12 days

0

27

Ariens 03199300

SPACER COUPLING

$41.99

$

Usually ships in 4-12 days

0

28

Ariens 05918100

BLT-HEX .31-18X1.00 PL GR5
(Superseded to 05946900)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 05913500

BLT-HEX .31-18X.75 PL GR5
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 06412300

WSHR-FL-STL.344X.688X.065PL
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

31

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

32

Ariens 07506000

SHAFT COVER

$4.49

$

In Stock, only 2 left!

0

33

Ariens 06402900

WSHR-FL-STL 1.015X1.500X.125
(Superseded to 06400025)

$5.99

$

Usually ships in 4-12 days

0

34

Ariens 06407500

WSHR-FL-STL .390X1.500X.125
(Superseded to 06441700)

$3.99

$

In Stock, only 1 left!

0

35

Ariens 06101700

SCR-MCH 10-24X.62 SLRH PL

$

$

Not available

36

Ariens 06301100

WSHR-LK 10X.047 MED PL
(Superseded to 06308100)

$1.49

$

Usually ships in 4-12 days

0

37

Ariens 05800700

PIN-ROLL .250X1.25

$0.99

$

In Stock, Qty 20+

0
