931013 - Ariens Grand Sierra Garden Tractor, 14hp Kohler, Gear (SN: 000101 & Above) Hydraulic Lift And Front Rock Shaft Parts Diagram

Grand Sierra Garden Tractor, 14hp Kohler, Gear

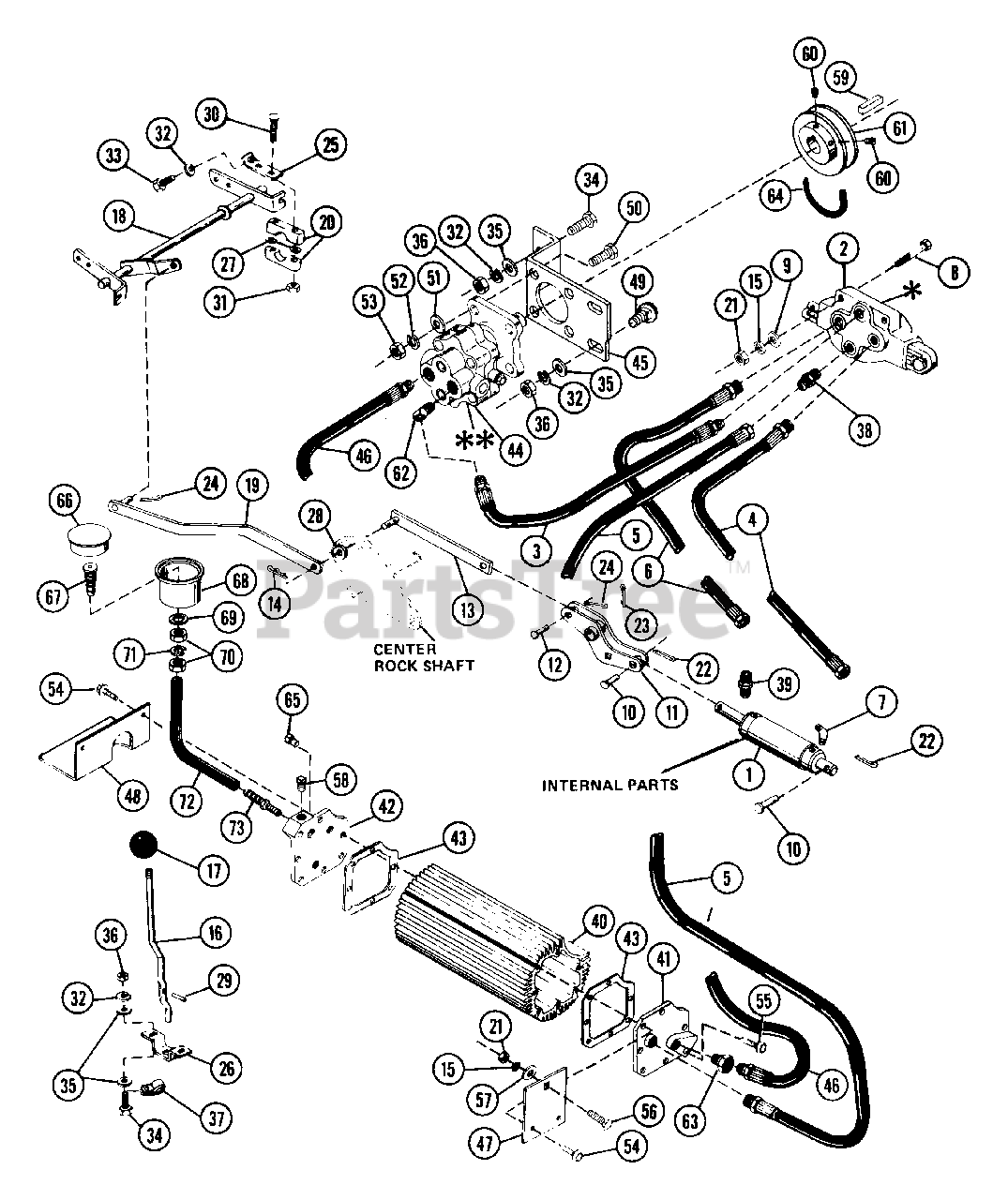

Hydraulic Lift And Front Rock Shaft Parts Diagram

  • Title

1

Ariens 53106700

CYLINDER ASSEMBLY
(Superseded to 03077100)

Note: (INCLUDES ADAPTERS)

$

$

Not available

2

Ariens 03117000

CONTROL VALVE
(Superseded to 53118600)

$

$

Not available

3

Ariens 03177900

HYDRAULIC HOSE

$

$

Not available

4

Ariens 03169200

HYDRAULIC HOSE
(Superseded to 53126200)

$135.99

$

Usually ships in 4-12 days

0

5

Ariens 03177800

HYDRAULIC HOSE

$

$

Not available

6

Ariens 03105800

HYDRAULIC HOSE

$

$

Not available

7

Ariens 03178000

ADAPTER 9/16 TO 1/4

$

$

Not available

8

Ariens 05905000

BLT-HEX .25-20X1.50 PL GR5
(Superseded to 05952500)

$1.49

$

In Stock, Qty 17

0

9

Ariens 06412700

WSHR-FL-STL.281X.62X.065 PL
(Superseded to 06437300)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 03105100

PIN-CLEV .494X1.94 YWZC

$

$

Not available

11

Ariens 03106300

BELLCRANK

$

$

Not available

12

Ariens 06806100

RVT-BTN .62X1.50 SPL

$

$

Not available

13

Ariens 03150000

LINK

$

$

Not available

14

Ariens 06702900

PIN-HAIR INT .09X.188 PL

$2.49

$

Usually ships in 4-12 days

0

15

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$

$

Not available

16

Ariens 03118900

CONTROL ROD

$153.99

$

Usually ships in 4-12 days

0

17

Ariens 07505200

KNOB-STEERING LOCK

$20.99

$

In Stock, only 1 left!

0

18

Ariens 53100500

FRONT ROCK SHAFT SERVICE ASSEM

$

$

Not available

19

Ariens 03101500

FRONT ROCK SHAFT CONNECTOR LIN

$

$

Not available

20

Ariens 02901100

BLOCK

$

$

Not available

21

Ariens 06503200

NUT-HEX .250-20 PL
(Superseded to 06533200)

$0.99

$

In Stock, Qty 13

0

22

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

23

Ariens 06700600

PIN-COTR .18X1.25 PL
(Superseded to 06712700)

$1.99

$

In Stock, only 3 left!

0

24

Ariens 06702600

PIN-COTR .18X1.0 PL
(Superseded to 06712000)

$1.99

$

In Stock, only 2 left!

0

25

Ariens 03101400

BRACE

$

$

Not available

26

Ariens 03107600

BRACKET

$

$

Not available

27

Ariens 06411500

WSHR-FL-STL .406X.750X.005
(Superseded to 06444600)

$

$

Not available

28

Ariens 06400900

WSHR-FL-STL.812X1.500X.139
(Superseded to 06439000)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 05805300

PIN-GRV .250X.75 TP B PL

$1.99

$

Usually ships in 4-12 days

0

30

Ariens 06200500

BLT-RDHDSQNK .38-16X2.25 SHTPL
(Superseded to 06213400)

$3.99

$

In Stock, only 2 left!

0

31

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

32

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

33

Ariens 05913400

BLT-HEX .31-18X1.25 PL GR5
(Superseded to 05947500)

$2.49

$

In Stock, Qty 11

0

34

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

35

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

36

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

37

Ariens 06909400

J-CLAMP

$3.49

$

In Stock, Qty 5

0

38

Ariens 03149500

CONNECTOR
(Superseded to 07017500)

$11.99

$

In Stock, only 2 left!

0

39

Ariens 03163400

ADAPTER

$

$

Not available

40

Ariens 03178500

OIL RESERVOIR

$

$

Not available

41

Ariens 03178700

CIRCULATION COVER

$

$

Not available

42

Ariens 03000900

FILLER COVER

Note: (Used Only On Model(s): 931013,21).

$

$

Not available

42

Ariens 03178600

FILLER COVER

Note: (Used Only On Model(s): 931012).

$

$

Not available

43

Ariens 03178900

GASKET

$

$

Not available

44

Ariens 03172700

PUMP HYDRAULIC

$

$

Not available

45

Ariens 03179400

PUMP BRACKET

$

$

Not available

46

Ariens 03178100

HYDRAULIC HOSE

$

$

Not available

47

Ariens 03178300

BRACKET

$

$

Not available

48

Ariens 03178200

MOUNTING BRACKET

$

$

Not available

49

Ariens 06201100

BLT-RDHDSQNK .31-18X.75 GR5 PL
(Superseded to 06215700)

$2.49

$

In Stock, Qty 20+

0

50

Ariens 05900400

BLT-HEX .38-16X1.00 PL
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

51

Ariens 06407800

WSHR-FL-STL .380X.626X.033

$

$

Not available

52

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$0.99

$

In Stock, Qty 20+

0

53

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

54

Ariens 07402700

SCR-TAP 10-24X.75 HWH PL TR
(Superseded to 07413000)

$3.99

$

In Stock, Qty 8

0

55

Ariens 07405900

SCR-TAP 10-24X1.75 HWH PL TR

$

$

Not available

56

Ariens 06201200

BLT-RDHDSQNK .25-20X.75
(Superseded to 06219900)

$0.99

$

In Stock, Qty 13

0

57

Ariens 06400700

WSHR-FL-STL.312X.734X.065PL
(Superseded to 06435800)

$0.99

$

In Stock, Qty 20+

0

58

Ariens 00113800

PIPE PLUG

Note: (Used Only On Model(s): 931013,21).

$5.99

$

Usually ships in 4-12 days

0

58

Ariens 03180700

PIPE PLUG ASSEMBLY

Note: (Used Only On Model(s): 931012).

$

$

Not available

59

Ariens 06603200

KEY-SQ .125X1.00X.125 SAE 1035
(Superseded to 06600211)

$2.49

$

Usually ships in 4-12 days

0

60

Ariens 06000800

SCR-SET .25-20X.38 SKHCUP OH

$

$

Not available

61

Ariens 03179500

SHEAVE

$

$

Not available

62

Ariens 03179700

ADAPTER 3/8 TO 9/16

$

$

Not available

63

Ariens 03178800

ADAPTER 9/16 TO 3/8

$

$

Not available

64

Ariens 07208800

V-BELT, 3L-RAW EDGE

Note: (Used Only On Model(s): 931021).

$22.99

$

Usually ships in 4-12 days

0

65

Ariens 00422600

PIPE PLUG

Note: (Used Only On Model(s): 931013).

$

$

Not available

66

Ariens 03001300

PLASTIC COVER

Note: (Used Only On Model(s): 931013).

$

$

Not available

67

Ariens 03001100

FITTING

Note: (Used Only On Model(s): 931013).

$

$

Not available

68

Ariens 03001200

OIL EXPANSION CUP

Note: (Used Only On Model(s): 931013).

$

$

Not available

69

Ariens 03001400

FIBER WASHER

Note: (Used Only On Model(s): 931013).

$

$

Not available

70

Ariens 06507500

NUT .625-32 ALUM
(Superseded to 06517300)

Note: (Used Only On Model(s): 931013).

$7.99

$

Usually ships in 4-12 days

0

71

Ariens 06301900

WSHR-LK-INT .625X.045 PL
(Superseded to 06306900)

Note: (Used Only On Model(s): 931013).

$3.99

$

Usually ships in 4-12 days

0

72

Ariens 03000800

HOSE

Note: (Used Only On Model(s): 931013).

$

$

Not available

73

Ariens 03001000

CONNECTOR

Note: (Used Only On Model(s): 931013).

$

$

Not available
