931010 - Ariens Grand Sierra Garden Tractor, 16hp Kohler, Hydro (SN: 000101 & Above) Rear Rock Shaft Parts Diagram

Grand Sierra Garden Tractor, 16hp Kohler, Hydro

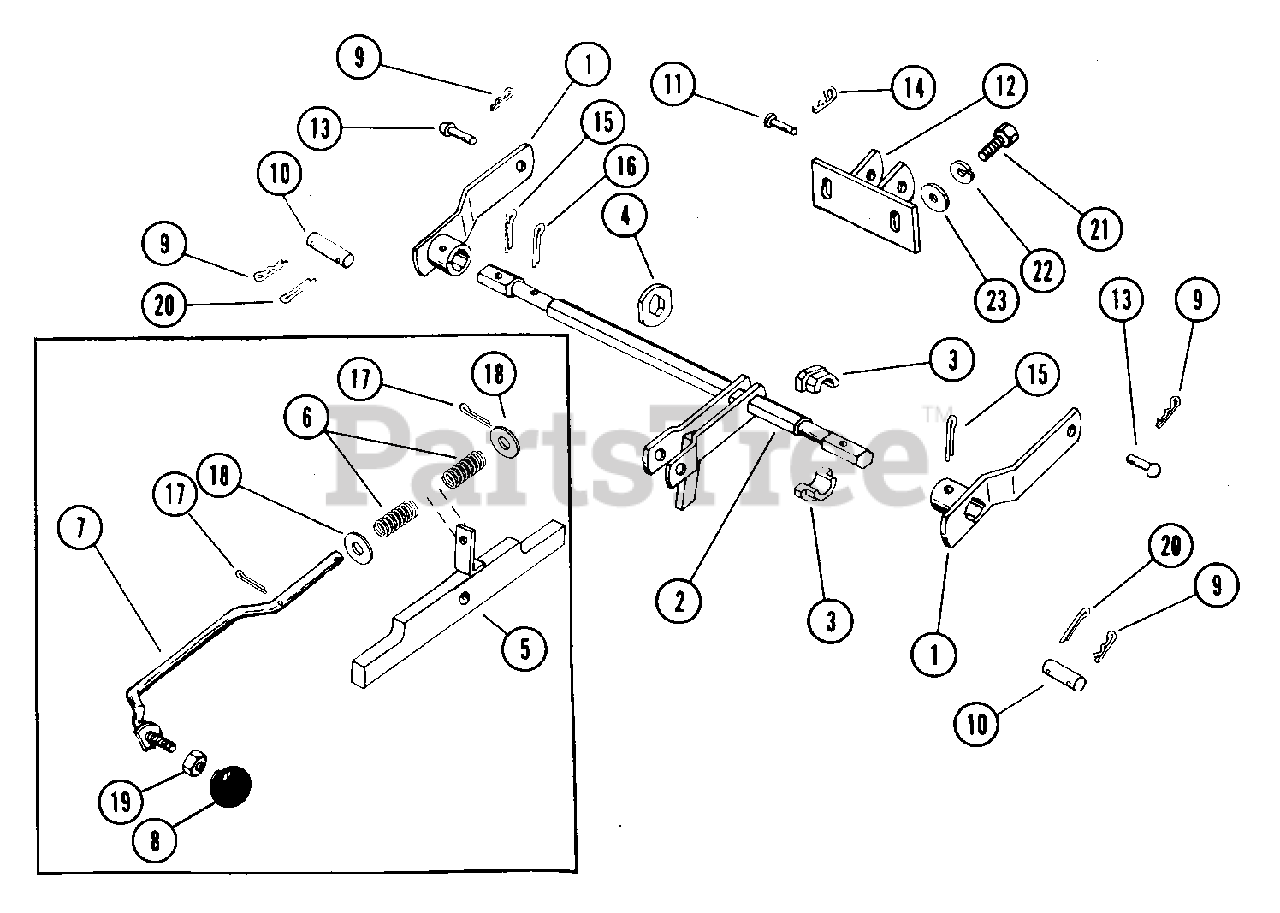

Rear Rock Shaft Parts Diagram

  • Title

1

Ariens 03153400

ARM

$

$

Not available

2

Ariens 03149700

REAR ROCK SHAFT
(Superseded to 53116900)

$

$

Not available

3

Ariens 05508500

BSHG-FLG 1.000X1.750X1.000

$30.99

$

Usually ships in 4-12 days

0

4

Ariens 03169300

WASHER

$

$

Not available

5

Ariens 03149800

LATCH

$11.99

$

Usually ships in 4-12 days

0

6

Ariens 08310500

SG-COMP .65X.56X1.50

$

$

Not available

7

Ariens 03149900

LATCH ROD
(Superseded to 03017500)

$86.99

$

Usually ships in 4-12 days

0

8

Ariens 07505200

KNOB-STEERING LOCK

$20.99

$

In Stock, only 1 left!

0

9

Ariens 06702200

PIN-HAIR INT .14X.4X2.75
(Superseded to 06714000)

$2.99

$

In Stock, Qty 6

0

10

Ariens 03101200

PIN

$23.99

$

Usually ships in 4-12 days

0

11

Ariens 03100800

PIN-CLEV .619X2.0 YWZC

$

$

Not available

12

Ariens 03100700

PLATE

$

$

Not available

13

Ariens 06805500

PIN-CLEV .50X1.25 RH ST PL

$

$

Not available

14

Ariens 06702900

PIN-HAIR INT .09X.188 PL

$2.49

$

Usually ships in 4-12 days

0

15

Ariens 06702500

PIN-COTR .18X2.0 ZCC
(Superseded to 06713600)

$

$

Not available

16

Ariens 06701200

PIN-COTR .18X1.50 PL
(Superseded to 06712800)

$1.99

$

In Stock, only 2 left!

0

17

Ariens 06702400

PIN-COTR .12X.75 PL
(Superseded to 06707300)

$0.99

$

In Stock, Qty 5

0

18

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 06500100

NUT-JAM .375-16 PL
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

21

Ariens 05902300

BLT-HEX .38-16X.75 PL GR2
(Superseded to 05959400)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$0.99

$

In Stock, Qty 20+

0

23

Ariens 06400800

WSHR-FL-STL .438X1.0X.083 PL
(Superseded to 06435900)

$1.49

$

In Stock, Qty 20+

0
