931009 - Ariens Grand Sierra Garden Tractor, 14hp Kohler, Hydro (SN: 000101 & Above) Electrical Wiring Diagram Parts Diagram

Grand Sierra Garden Tractor, 14hp Kohler, Hydro

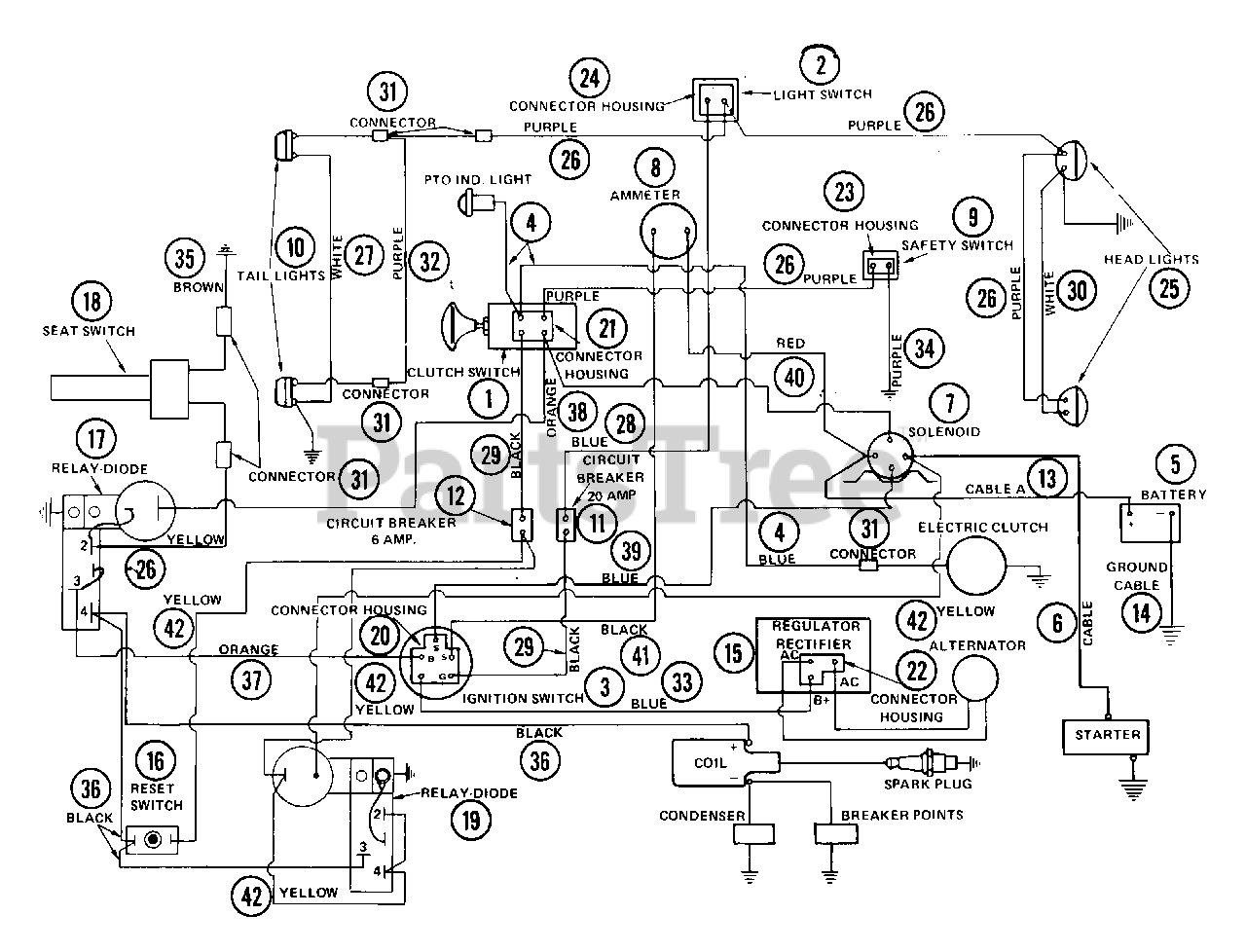

Electrical Wiring Diagram Parts Diagram

  • Title

1

Ariens 03115000

CLUTCH SWITCH
(Superseded to 00355900)

$82.99

$

Usually ships in 4-12 days

0

2

Ariens 03115100

LIGHT SWITCH
(Superseded to 51513800)

$

$

Not available

3

Ariens 03115200

IGNITION SWITCH
(Superseded to 59211800)

$68.99

$

In Stock, Qty 13

0

4

Ariens 03117900

P.T.O. INDICATOR & WIRE

$

$

Not available

5

Ariens 03108500

BATTERY
(Superseded to 53123300)

$

$

Not available

6

Ariens 03111100

GROUND CABLE .31X22.00X.31
(Superseded to 03111101)

$20.99

$

In Stock, only 1 left!

0

7

Ariens 03172000

SOLENOID
(Superseded to 53504000)

$73.99

$

In Stock, only 1 left!

0

8

Ariens 03111700

AMMETER

$

$

Not available

9

Ariens 02913100

SWITCH-NEUTRAL START N.O.

$45.99

$

In Stock, Qty 7

0

10

Ariens 63100600

TAIL LIGHT
(Superseded to 53128400)

$119.99

$

Usually ships in 4-12 days

0

11

Ariens 03110200

CIRCUIT BREAKER

$29.99

$

Usually ships in 4-12 days

0

12

Ariens 03110800

CIRCUIT BREAKER

$

$

Not available

13

Ariens 03111000

CABLE

$

$

Not available

14

Ariens 03110300

GROUND CABLE
(Superseded to 03013600)

$

$

Not available

15

Ariens 03110900

REGULATOR RECTIFIER

$284.99

$

Usually ships in 4-12 days

0

16

Ariens 02517200

SWITCH

$41.99

$

Usually ships in 4-12 days

0

17

Ariens 03170800

RELAY - DIODE
(Superseded to 53109900)

$

$

Not available

18

Ariens 03171600

SWITCH SEAT

$

$

Not available

19

Ariens 03183900

CLUTCH CONTROL RELAY
(Superseded to 53109900)

$

$

Not available

20

Ariens 02347800

CONNECTOR HOUSING
(Superseded to 20645101)

$7.99

$

In Stock, Qty 7

0

21

Ariens 02359500

CONNECTOR

$

$

Not available

22

Ariens 03110600

CONNECTOR

$

$

Not available

23

Ariens 02917000

CONNECTOR

$

$

Not available

24

Ariens 03110500

CONNECTOR

$

$

Not available

25

Ariens 03114900

HEAD LIGHT

$20.99

$

Usually ships in 4-12 days

0

26

Ariens 03172200

WIRE HARNESS

$

$

Not available

27

Ariens 03114700

WIRE
(Superseded to 03000100)

Note: (WHITE)

$

$

Not available

27

GROUND FOR TAIL LITES

$

$

Not available

28

Ariens 03111400

WIRE
(Superseded to 03000100)

Note: (BLUE)

$

$

Not available

28

BRAKE TO LITE SWITCH

$

$

Not available

29

Ariens 03111300

WIRE

Note: (BLACK)

$

$

Not available

30

Ariens 03110400

WIRE

Note: (WHITE) GROUND FOR HEAD LITE

$

$

Not available

31

Ariens 03110100

WIRE CONNECTOR

$

$

Not available

32

Ariens 03116800

WIRE
(Superseded to 03000100)

$

$

Not available

33

Ariens 03111900

WIRE
(Superseded to 03000300)

Note: (BLUE)

$

$

Not available

34

Ariens 03172100

WIRE
(Superseded to 03000100)

Note: (PURPLE)

$

$

Not available

35

Ariens 03171200

WIRE GROUND
(Superseded to 03000100)

$

$

Not available

36

Ariens 03171700

WIRE

Note: (BLACK) RELAY-DIODE TO

$

$

Not available

36

6A C.B. AND COIL

$

$

Not available

37

Ariens 03171800

WIRE

Note: (ORANGE) RELAY - DIODE TO SWITCH

$

$

Not available

38

Ariens 03171900

WIRE

Note: (ORANGE) RELAY - DIODE TO IMP. SWITCH

$

$

Not available

39

Ariens 03171500

WIRE
(Superseded to 03000300)

Note: (BLUE) SWITCH TO SOLENOID

$

$

Not available

40

Ariens 03182300

WIRE
(Superseded to 03000300)

Note: (RED)

$

$

Not available

41

Ariens 03182400

WIRE
(Superseded to 03000300)

Note: (BLACK) AMMETER TO SWITCH

$

$

Not available

42

Ariens 03183700

RELAY WIRE

$

$

Not available
