931008 - Ariens Grand Sierra Garden Tractor, 12hp Kohler, Hydro (SN: 000101 & Above) Rear Deck, Seat, Dash Support, Running Board Parts Diagram

Grand Sierra Garden Tractor, 12hp Kohler, Hydro

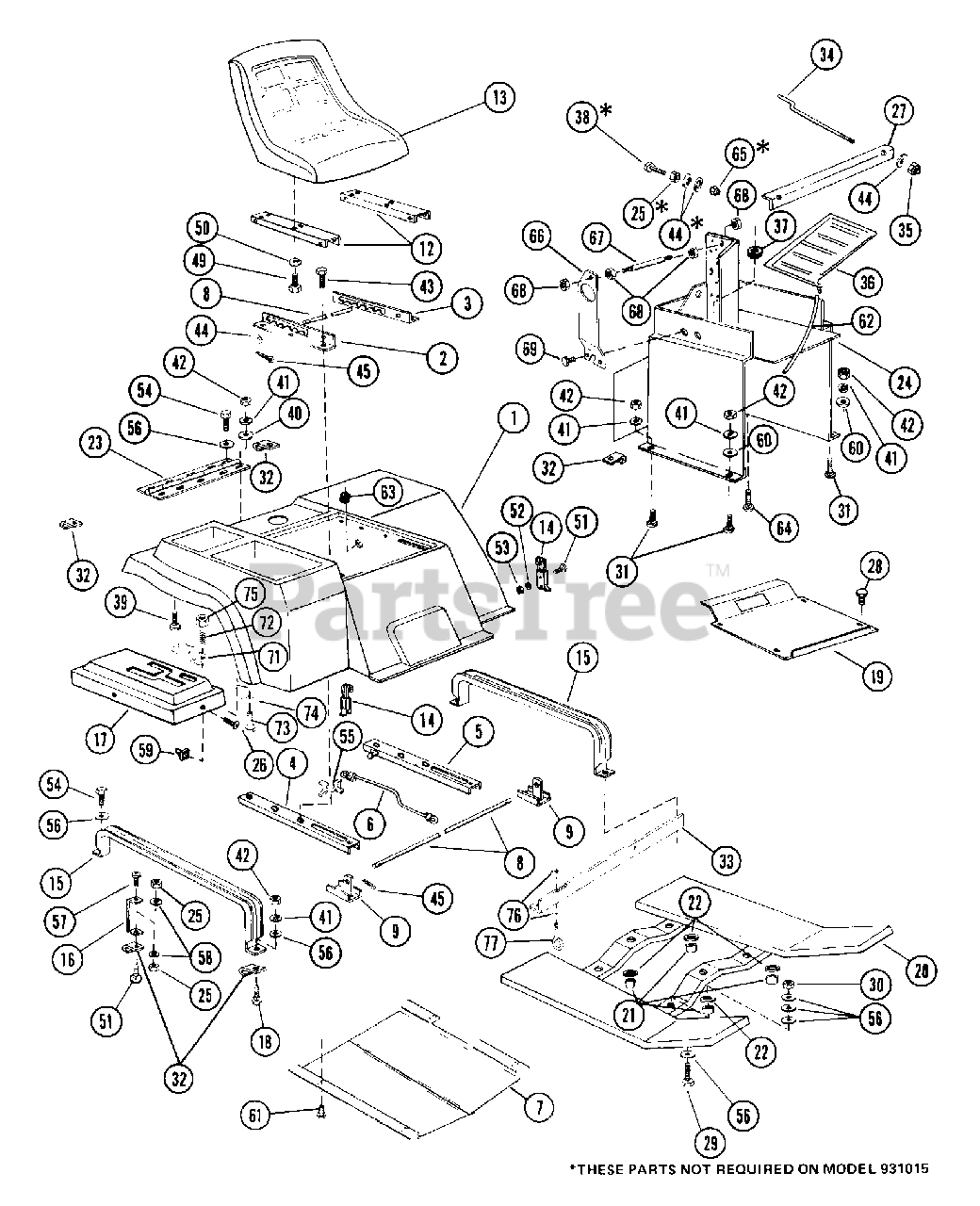

Rear Deck, Seat, Dash Support, Running Board Parts Diagram

  • Title

1

Ariens 03171300

REAR DECK

Note: (Used Only On Model(s): 931008,9,10,11,12,13,14,15,16,07,17,18).

$

$

Not available

1

Ariens 03100900

REAR DECK
(Superseded to 03171300)

Note: (Used Only On Model(s): 931004,5,6).

$

$

Not available

2

Ariens 03113200

SEAT BRACKET R.H.

$

$

Not available

3

Ariens 03113300

SEAT BRACKET L.H.

$

$

Not available

4

Ariens 03119700

SEAT SUPPORT
(Superseded to 03002800)

$

$

Not available

5

Ariens 03113400

SEAT SUPPORT
(Superseded to 03002800)

$

$

Not available

6

Ariens 06910200

CABLE

$37.99

$

Usually ships in 4-12 days

0

7

Ariens 03179800

BOTTOM COVER

$

$

Not available

8

Ariens 03113500

ROD

$

$

Not available

9

Ariens 03113100

SEAT CHANNEL BRACKET

$

$

Not available

12

Ariens 03171100

CHANNEL SEAT MOUNTING

Note: (Used Only On Model(s): 931008,9,10,11,12,13,14,15,16,17,18).

$

$

Not available

12

Ariens 03113600

SEAT MOUNTING CHANNEL
(Superseded to 03171100)

Note: (Used Only On Model(s): 931004,5,6,7).

$

$

Not available

13

Ariens 03171000

SEAT

Note: (Used Only On Model(s): 931007,8,9,10,11,12,13,14,15,16,17,18).

$

$

Not available

13

Ariens 03115300

SEAT

Note: (Used Only On Model(s): 931004,5,6).

$

$

Not available

14

Ariens 03109400

CLAMP

$

$

Not available

15

Ariens 03151700

CHANNEL

$

$

Not available

16

Ariens 03105500

SUPPORT

$

$

Not available

17

Ariens 63111800

CONSOLE ASSEMBLY
(Superseded to 03182500)

Note: (Used Only On Model(s): 931008,9,10,15,16,17,18).

$

$

Not available

17

Ariens 03108100

CONSOLE
(Superseded to 03182600)

Note: (Used Only On Model(s): 931005,6).

$

$

Not available

17

Ariens 03133800

CONSOLE
(Superseded to 03182600)

Note: (Used Only On Model(s): 931004).

$

$

Not available

17

Ariens 53107000

CONTROL CONSOLE ASSEMBLY

Note: (Used Only On Model(s): 931011,14).

$

$

Not available

17

Ariens 53107100

CONTROL CONSOLE ASSEMBLY

Note: (Used Only On Model(s): 931012,13).

$

$

Not available

18

Ariens 06203400

BLT-RDHDSQNK .31-18X.75 SHT PL
(Superseded to 06214100)

$2.49

$

In Stock, Qty 20+

0

19

Ariens 53110000

FLOOR PLATE ASSEMBLY - HYDRO

Note: (Used Only On Model(s): 931015,16,17,18).

$

$

Not available

19

Ariens 53104800

FLOOR PLATE ASSEMBLY - HYDRO

Note: (Used Only On Model(s): 931004,5,6,7,8,9,10).

$

$

Not available

19

Ariens 53107200

FLOOR PLATE ASSEMBLY - 10 HP G

Note: (Used Only On Model(s): 931011,14).

$

$

Not available

19

Ariens 53107300

FLOOR PLATE ASSEMBLY - 14 HP G

Note: (Used Only On Model(s): 931012,13).

$

$

Not available

20

Ariens 03156900

RUNNING BOARD

$

$

Not available

21

Ariens 03101900

SPACER .318X.430X.375

$

$

Not available

22

Ariens 07506600

GROMMET .438ID X .688 OD

$3.99

$

Usually ships in 4-12 days

0

23

Ariens 03102800

HINGE-2" X 12.88 YWZC

$

$

Not available

24

Ariens 53106800

DASH SUPPORT ASSEMBLY
(Superseded to 53122900)

Note: (Used Only On Model(s): 931011,14,15,16,17,18).

$

$

Not available

24

Ariens 53104700

DASH SUPPORT SERVICE ASSEMBLY

Note: (Used Only On Model(s): 931011,14,15,16,17,18).

$

$

Not available

24

Ariens 53106900

DASH SUPPORT ASSEMBLY
(Superseded to 53112600)

Note: (Used Only On Model(s): 931012,13).

$

$

Not available

25

Ariens 06503200

NUT-HEX .250-20 PL
(Superseded to 06533200)

Note: (Used Only On Model(s): 931004,05,06,07,08,09,10,11,12,13,14,16,17,18).

$0.99

$

In Stock, Qty 13

0

26

Ariens 07400100

SCR-TAP 10-12X.50 CRPH PL A

$

$

Not available

27

Ariens 03108600

BATTERY TIE DOWN

$

$

Not available

28

Ariens 07001500

BLT-SERHFWH .25-20X.50 PL
(Superseded to 07049300)

$2.49

$

Usually ships in 4-12 days

0

29

Ariens 05906900

BLT-HEX .31-18X1.25 PL GR2
(Superseded to 05947500)

$2.49

$

In Stock, Qty 11

0

30

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

31

Ariens 06201100

BLT-RDHDSQNK .31-18X.75 GR5 PL
(Superseded to 06215700)

$2.49

$

In Stock, Qty 20+

0

32

Ariens 06909400

J-CLAMP

$3.49

$

In Stock, Qty 5

0

33

Ariens 03178400

BRACE

Note: (Used Only On Model(s): 931011,12,13,14).

$

$

Not available

34

Ariens 03108900

TIE DOWN ROD
(Superseded to 03013400)

$

$

Not available

35

Ariens 06507000

NUT-LK TOP .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

36

Ariens 03170100

TRAY - BATTERY
(Superseded to 03199900)

Note: (Used Only On Model(s): 931008,9,10,11,12,13,14,16,17,18).

$

$

Not available

36

Ariens 03109200

PAD

Note: (Used Only On Model(s): 931004,5,6).

$

$

Not available

36

Ariens 03199900

BATTERY TRAY

Note: (Used Only On Model(s): 931015).

$

$

Not available

37

Ariens 07506500

GROMMET 1.0ID X 1.38 OD

$3.49

$

In Stock, only 1 left!

0

38

Ariens 05915000

BLT-HEX .25-20X1.50 GR5

Note: (Used Only On Model(s): 931004,05,06,07,08,09,10,11,12,13,14,16,17,18).

$

$

Not available

39

Ariens 06104200

SCR-MCH .31-18X.75 TSKBHD PL
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

40

Ariens 06412300

WSHR-FL-STL.344X.688X.065PL
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

41

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

42

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

43

Ariens 07404300

SCR-TAP 10-16X.50 HWH PL AB

$

$

Not available

44

Ariens 06412700

WSHR-FL-STL.281X.62X.065 PL
(Superseded to 06437300)

Note: (Used Only On Model(s): 931004,05,06,07,08,09,10,11,12,13,14,16,17,18).

$0.99

$

In Stock, Qty 20+

0

45

Ariens 06700300

PIN-COTR .06X.50
(Superseded to 06712400)

$3.99

$

Usually ships in 4-12 days

0

49

Ariens 05902300

BLT-HEX .38-16X.75 PL GR2
(Superseded to 05959400)

$1.49

$

In Stock, Qty 20+

0

50

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$0.99

$

In Stock, Qty 20+

0

51

Ariens 06101200

SCR-MCH 10-24X.50 SLRH PL
(Superseded to 06117600)

$2.99

$

Usually ships in 4-12 days

0

52

Ariens 06302600

WSHR-LK-EXT #10 ID X .022
(Superseded to 06310400)

$1.99

$

In Stock, only 1 left!

0

53

Ariens 06502600

NUT 10-32 PL

$

$

Not available

54

Ariens 07401700

SCR-TAP .312-18X.75 HWH PL TR
(Superseded to 07414400)

$1.49

$

In Stock, Qty 11

0

55

Ariens 03155600

X WASHER

$

$

Not available

56

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

57

Ariens 06103900

SCR-MCH .25-20X.75 SLTR PL
(Superseded to 05967300)

$

$

Not available

58

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$

$

Not available

59

Ariens 07507600

PLASTIC GROMMET

Note: (Used Only On Model(s): 931013,14,15,16,17,18).

$0.99

$

In Stock, Qty 10

0

59

Ariens 06508900

NUT-SPEED U TYPE 10A

Note: (Used Only On Model(s): 931008,9,10,11,12).

$

$

Not available

60

Ariens 06412300

WSHR-FL-STL.344X.688X.065PL
(Superseded to 06437200)

Note: (Used Only On Model(s): 931008,9,10,11,12,13,14,15,16,17,18).

$0.99

$

In Stock, Qty 20+

0

61

Ariens 07001500

BLT-SERHFWH .25-20X.50 PL
(Superseded to 07049300)

Note: (Used Only On Model(s): 931008,9,10,11,12,13,14,15,16,17,18).

$2.49

$

Usually ships in 4-12 days

0

62

Ariens 03170900

1 IN OF 00910000 HOSE
(Superseded to 03442000)

Note: (Used Only On Model(s): 931008,9,10,11,12,13,14,15,16,17,18).

$

$

Not available

63

Ariens 07504400

GROMMET

Note: (Used Only On Model(s): 931008,9,10,11,12,13,14,15,16,17,18).

$

$

Not available

64

Ariens 06201500

BLT-RDHDSQNK .31-18X1.00 PL
(Superseded to 06216100)

Note: (Used Only On Model(s): 931008,9,10,11,12,13,14,15,16,17,18).

$1.49

$

In Stock, Qty 20+

0

65

Ariens 06509900

NUT-HEX JAM .25-20 YWZC
(Superseded to 06500908)

Note: (Used Only On Model(s): 931008,9,10,11,12,13,14,16,17,18).

$0.99

$

Usually ships in 4-12 days

0

66

Ariens 03196100

HOUR METER MOUNTING PLATE
(Superseded to 03089700)

Note: (Used Only On Model(s): 931015).

$

$

Not available

67

Ariens 03196500

BRACE ROD

Note: (Used Only On Model(s): 931015).

$

$

Not available

68

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

Note: (Used Only On Model(s): 931015).

$0.99

$

In Stock, Qty 20+

0

69

Ariens 07405200

SCR-TAP .250-20X.50 HXSLHDPL
(Superseded to 07400122)

Note: (Used Only On Model(s): 931015).

$0.99

$

In Stock, Qty 20+

0

71

Ariens 03175200

LOCKOUT STOP

Note: (Used Only On Model(s): 931011,12,13,14).

$

$

Not available

72

Ariens 08300600

SG-COMP .045X.50X1.187
(Superseded to 08300028)

Note: (Used Only On Model(s): 931011,12,13,14).

$4.99

$

In Stock, Qty 6

0

73

Ariens 05900600

BLT-HEX .38-16X1.50 PL GR2
(Superseded to 05957900)

Note: (Used Only On Model(s): 931011,12,13,14).

$1.49

$

In Stock, Qty 15

0

74

Ariens 06400800

WSHR-FL-STL .438X1.0X.083 PL
(Superseded to 06435900)

Note: (Used Only On Model(s): 931011,12,13,14).

$1.49

$

In Stock, Qty 20+

0

75

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

Note: (Used Only On Model(s): 931011,12,13,14).

$0.99

$

In Stock, Qty 20+

0

76

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

Note: (Used Only On Model(s): 931011,12,13,14).

$0.99

$

In Stock, Qty 20+

0

77

Ariens 01028900

ROD HANGER EYEBOLT
(Superseded to 00247500)

Note: (Used Only On Model(s): 931011,12,13,14).

$9.99

$

Usually ships in 4-12 days

0
