931008 - Ariens Grand Sierra Garden Tractor, 12hp Kohler, Hydro (SN: 000101 & Above) Frame, Steering, Front Wheel Parts Diagram

Grand Sierra Garden Tractor, 12hp Kohler, Hydro

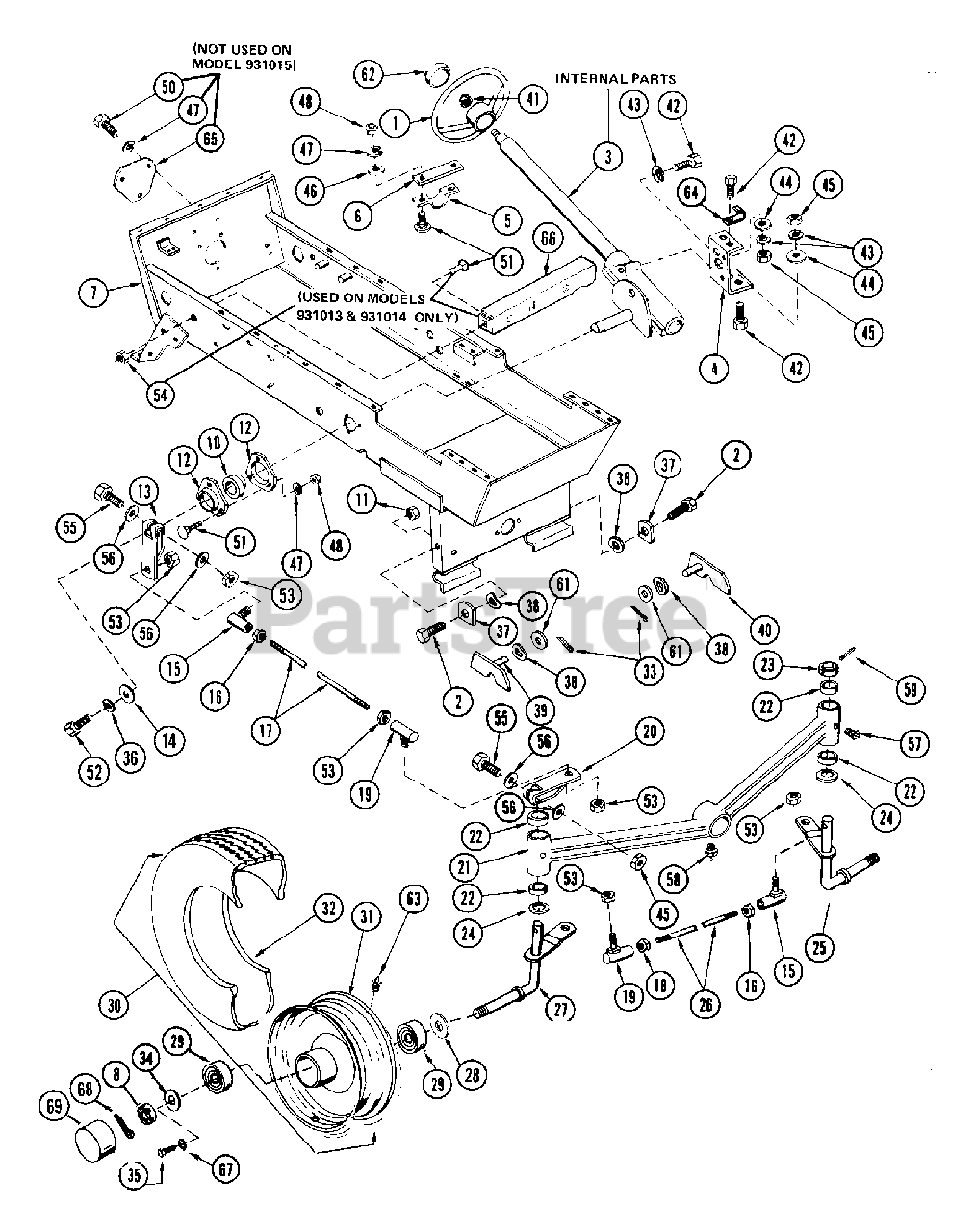

Frame, Steering, Front Wheel Parts Diagram

  • Title

1

Ariens 03108400

STEERING WHEEL
(Superseded to 03048900)

$197.99

$

In Stock, only 1 left!

0

2

Ariens 05900400

BLT-HEX .38-16X1.00 PL
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 63113100

STEERING GEAR ASSEMBLY
(Superseded to 03080100)

Note: (Used Only On Model(s): 931013,14,15,16,17,18).

$

$

Not available

3

Ariens 63100700

STEERING GEAR

Note: (Used Only On Model(s): 931004,5,6,7,8,9,10,11,12).

$

$

Not available

4

Ariens 03117300

MOUNTING BRACKET
(Superseded to 03019700)

$

$

Not available

5

Ariens 03103800

STEERING COLUMN CLAMP

$

$

Not available

6

Ariens 03104900

PAD

$

$

Not available

7

Ariens 53109200

MAIN FRAME ASSEMBLY
(Superseded to 53113100)

Note: (Used Only On Model(s): 931015,16,17,18).

$

$

Not available

7

Ariens 53109000

MAIN FRAME ASSEMBLY
(Superseded to 53112900)

Note: (Used Only On Model(s): 931014).

$

$

Not available

7

Ariens 53109100

MAIN FRAME ASSEMBLY
(Superseded to 53113000)

Note: (Used Only On Model(s): 931013).

$

$

Not available

7

Ariens 53104400

FRAME ASSEMBLY SERVICE 12 HP

Note: (Used Only On Model(s): 931004).

$

$

Not available

7

Ariens 53104500

FRAME ASSEMBLY SERVICE 14 AND

Note: (Used Only On Model(s): 931005,6,8,9,10).

$

$

Not available

7

Ariens 53106500

MAIN FRAME ASSEMBLY

Note: (Used Only On Model(s): 931011).

$

$

Not available

7

Ariens 53106600

MAIN FRAME ASSEMBLY
(Superseded to 53113000)

Note: (Used Only On Model(s): 931012).

$

$

Not available

8

Ariens 06513100

NUT-SL 1.0-14

$5.99

$

Usually ships in 4-12 days

0

10

Ariens 05410100

BRG-BALL 1.0X2.047X1.20

$

$

Not available

11

Ariens 06509800

NUT-LK .375-16 PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 03102000

BEARING FLANGE

$21.99

$

Usually ships in 4-12 days

0

13

Ariens 03126200

STEERING ARM

Note: (Used Only On Model(s): 931013,14,15,16,17,18).

$

$

Not available

13

Ariens 03103900

STEERING ARM
(Superseded to 53125000)

Note: (Used Only On Model(s): 931004,5,6,7,8,9,10,11,12).

$

$

Not available

14

Ariens 06412600

WSHR-FL-STL .563X2.000X.135 PL
(Superseded to 06440900)

$

$

Not available

15

Ariens 03113000

BALL JOINT L.H.

$59.99

$

Usually ships in 4-12 days

0

16

Ariens 06510500

NUT-JAM .50-20 LH THD PL
(Superseded to 06538300)

Note: (L.H.)

$

$

Not available

17

Ariens 03192900

DRAG LINK

$

$

Not available

18

Ariens 06504400

NUT-JAM .50-20 PL
(Superseded to 06539500)

Note: (R.H.)

$2.49

$

Usually ships in 4-12 days

0

19

Ariens 03112900

BALL JOINT R.H.

$32.99

$

Usually ships in 4-12 days

0

20

Ariens 03117500

STEERING ARM
(Superseded to 03013100)

$

$

Not available

21

Ariens 53101100

FRT AXLE

$

$

Not available

22

Ariens 05509100

BSHG-SLV 1.000X1.125X.875

$13.99

$

In Stock, only 2 left!

0

23

Ariens 03114000

SPINDLE COLLAR L.H.
(Superseded to 03008800)

$

$

Not available

24

Ariens 07506700

PLASTIC WASHER

$

$

Not available

25

Ariens 03155200

LH SPINDLE

Note: (CAP SCREW STYLE)

$

$

Not available

25

Ariens 03004600

L.H. SPINDLE

Note: (HEX NUT STYLE)

$

$

Not available

26

Ariens 03116900

TIE ROD

$75.99

$

Usually ships in 4-12 days

0

27

Ariens 03155100

RH SPINDLE

Note: (CAP SCREW STYLE)

$

$

Not available

27

Ariens 03004700

R.H. SPINDLE

Note: (HEX NUT STYLE)

$

$

Not available

28

Ariens 06402900

WSHR-FL-STL 1.015X1.500X.125
(Superseded to 06400025)

$5.99

$

Usually ships in 4-12 days

0

29

Ariens 05412100

BRG-BALL 1.0X2.0X.55

Note: (MAY REQUIRE 54140 WITH1 7/8 O.D.)

$

$

Not available

30

Ariens 63108400

FRONT TIRE ASSEMBLY 16 X 6.50
(Superseded to 07115300)

$

$

Not available

31

Ariens 07111000

WHL

$

$

Not available

32

Ariens 07110300

TIRE
(Superseded to 07102100)

$79.99

$

Usually ships in 4-12 days

0

33

Ariens 06702400

PIN-COTR .12X.75 PL
(Superseded to 06707300)

$0.99

$

In Stock, Qty 5

0

34

Ariens 03156800

SPINDLE WASHER

$38.99

$

Usually ships in 4-12 days

0

35

Ariens 05915400

BLT-HEX .38-16X.75 PL GR5
(Superseded to 05959400)

$1.49

$

In Stock, Qty 20+

0

36

Ariens 06300600

WSHR-LK .500X.151 HVY PL
(Superseded to 06306600)

$2.99

$

In Stock, only 1 left!

0

37

Ariens 02901300

LOCK STOP

$

$

Not available

38

Ariens 02902400

SPRING WASHER

$18.99

$

Usually ships in 4-12 days

0

39

Ariens 02901400

LATCH R. H.

$

$

Not available

40

Ariens 02901500

LATCH L. H.

$

$

Not available

41

Ariens 06511700

NUT-LK-JAM .625-18 YWZC
(Superseded to 06530300)

$3.99

$

In Stock, only 2 left!

0

42

Ariens 05914500

BLT-HEX .38-16X1.00 PL GR5
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

43

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$0.99

$

In Stock, Qty 20+

0

44

Ariens 06400800

WSHR-FL-STL .438X1.0X.083 PL
(Superseded to 06435900)

$1.49

$

In Stock, Qty 20+

0

45

Ariens 06512200

NUT-LK TOP .375-16 GR C YWZC

$2.49

$

Usually ships in 4-12 days

0

46

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

47

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

48

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

50

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

51

Ariens 06201500

BLT-RDHDSQNK .31-18X1.00 PL
(Superseded to 06216100)

$1.49

$

In Stock, Qty 20+

0

52

Ariens 05914600

BLT-HEX .50-13X1.25 PL GR5
(Superseded to 05958900)

$3.49

$

In Stock, only 1 left!

0

53

Ariens 06512700

NUT-LK-CROWN .50-13 GR C PL
(Superseded to 06528200)

$3.99

$

In Stock, only 3 left!

0

54

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

55

Ariens 05914400

BLT-HEX .50-13X2.50 PL GR5
(Superseded to 05966600)

$3.99

$

In Stock, only 3 left!

0

56

Ariens 06403800

WSHR-FL-STL .505X.875X.024 PL

$2.49

$

In Stock, only 2 left!

0

57

Ariens 02209300

SPIN DRIVE ZERK FITTING
(Superseded to 07012600)

$

$

Not available

58

Ariens 03112100

ZERK FITTING
(Superseded to 07012800)

$4.99

$

In Stock, Qty 5

0

59

Ariens 05803700

PIN-ROLL .250X1.75

$0.99

$

In Stock, Qty 20+

0

60

Ariens 05800400

PIN-ROLL .250X1.50

$

$

Not available

61

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

62

Ariens 03108300

STEERING WHEEL CAP

$

$

Not available

63

Ariens 01035300

ZERK FITTING

$

$

Not available

64

Ariens 06909400

J-CLAMP

$3.49

$

In Stock, Qty 5

0

65

Ariens 03103100

COVER

$

$

Not available

66

Ariens 03173400

BRACE

Note: (Used Only On Model(s): 931008,9,10,11,12,13,14,15,16,17,18).

$

$

Not available

67

Ariens 06303000

WSHR-LK-EXT .375X.050

$

$

Not available

68

Ariens 06700600

PIN-COTR .18X1.25 PL
(Superseded to 06712700)

$1.99

$

In Stock, only 3 left!

0

69

Ariens 07508900

FRONT HUB CAP

$18.99

$

Usually ships in 4-12 days

0
