930 SWE (31AH9ZSU710) - Cub Cadet 30" Snow Thrower (2008) Engine Assembly 930SWE 3 Parts Diagram

30" Snow Thrower

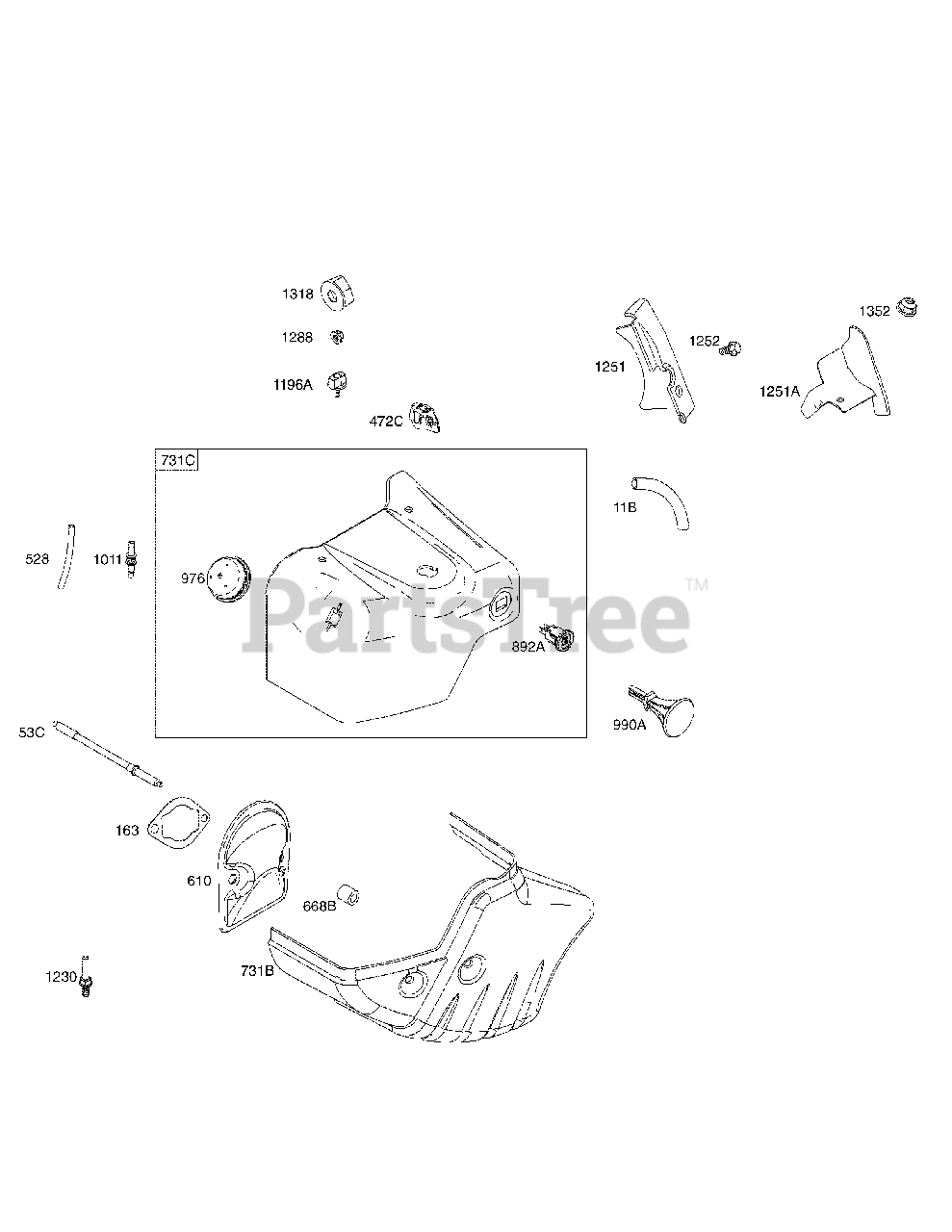

Engine Assembly 930SWE 3 Parts Diagram

  • Title

1

Cub Cadet BS-794849

Cylinder Assembly

$328.99

$

Usually ships in 2-12 days

0

2

Cub Cadet BS-698340

Kit-Bushing/Seal (Magneto Side)

$22.99

$

In Stock, Qty 5

0

3

Cub Cadet BS-391086S

Seal-Oil (Magneto Side)

Note: Incl. in Ref No. 358

$6.49

$

In Stock, Qty 20+

0

5

Cub Cadet BS-794871

Head-Cylinder
(Superseded to BS-799858)

$166.99

$

Usually ships in 2-12 days

0

7

Cub Cadet BS-694872

Gasket-Cylinder Head

Note: Incl. in Ref No. 358, 1095

$20.99

$

In Stock, only 3 left!

0

11B

Cub Cadet BS-696750

Tube-Breather

$10.99

$

Usually ships in 2-12 days

0

12

Cub Cadet BS-694953

Gasket-Crankcase

Note: Incl. in Ref No. 358

$9.99

$

In Stock, only 2 left!

0

13

Cub Cadet BS-794829

Screw (Cylinder Head)

$3.99

$

In Stock, only 3 left!

0

15

Cub Cadet BS-691686

Plug-Oil Drain

$5.49

$

In Stock, only 2 left!

0

15B

Cub Cadet BS-695757

Plug-Oil Drain

$6.99

$

Usually ships in 2-12 days

0

16

Cub Cadet BS-794720

Crankshaft

$272.99

$

Usually ships in 2-12 days

0

18

Cub Cadet BS-791965

Cover-Crankcase

$199.99

$

Usually ships in 2-12 days

0

19

Cub Cadet BS-698340

Kit-Bushing/Seal (PTO Side)

$22.99

$

In Stock, Qty 5

0

20

Cub Cadet BS-391086S

Seal-Oil (PTO Side)

Note: Incl. in Ref No. 358

$6.49

$

In Stock, Qty 20+

0

21

Cub Cadet BS-281658S

Cap-Oil Fill

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet BS-794825

Screw(Crankcase Cover/Sump)

$4.99

$

Usually ships in 2-12 days

0

23

Cub Cadet BS-794812

Flywheel

$

$

Not available

24

Cub Cadet BS-222698S

Key-Flywheel

$2.99

$

In Stock, Qty 20+

0

25

Cub Cadet BS-792117

Piston Assembly (Standard)

$152.99

$

Usually ships in 2-12 days

0

27

Cub Cadet BS-690975

Lock-Piston Pin

$3.99

$

In Stock, Qty 10

0

28

Cub Cadet BS-696581

Pin-Piston

$17.99

$

In Stock, only 2 left!

0

29

Cub Cadet BS-694691

Rod-Connecting

$60.99

$

Usually ships in 2-12 days

0

30

Cub Cadet BS-694692

Dipper-Connecting Rod

$6.99

$

Usually ships in 2-12 days

0

32

Cub Cadet BS-690976

Screw (Connecting Rod)

$4.49

$

In Stock, Qty 19

0

33

Cub Cadet BS-499596

Valve-Exhaust
(Superseded to BS-697576)

$43.99

$

In Stock, only 1 left!

0

34

Cub Cadet BS-795199

Valve-Intake

$35.99

$

In Stock, only 1 left!

0

35

Cub Cadet BS-694865

Spring-Valve (Intake)

$5.49

$

In Stock, only 2 left!

0

36

Cub Cadet BS-694865

Spring-Valve (Exhaust)

$5.49

$

In Stock, only 2 left!

0

42

Cub Cadet BS-499586

Keeper-Valve

$7.49

$

In Stock, Qty 20+

0

45

Cub Cadet BS-690977

Tappet-Valve

$7.99

$

Usually ships in 2-12 days

0

46

Cub Cadet BS-795697

Camshaft

$

$

Not available

51

Cub Cadet BS-694874

Gasket-Intake

Note: Incl. in Ref No. 358, 121A

$4.99

$

In Stock, only 1 left!

0

51A

Cub Cadet BS-694875

Gasket-Intake

Note: Incl. in Ref No. 358, 121A

$4.49

$

In Stock, only 1 left!

0

53C

Cub Cadet BS-795017

Stud (Carburetor)

$8.49

$

Usually ships in 2-12 days

0

55A

Cub Cadet BS-696710

Housing-Rewind Starter

$45.99

$

Usually ships in 2-12 days

0

58

Cub Cadet BS-693389

Rope-Starter (Cut To Required Length)

$9.49

$

In Stock, only 2 left!

0

60A

Cub Cadet BS-699334

Grip-Starter Rope

$13.99

$

In Stock, only 1 left!

0

65

Cub Cadet BS-699851

Screw (Rewind Starter)

$3.99

$

In Stock, Qty 13

0

95A

Cub Cadet BS-690718

Screw (Throttle Valve)

$5.99

$

Usually ships in 2-12 days

0

97A

Cub Cadet BS-696387

Shaft-Throttle

$41.99

$

Usually ships in 2-12 days

0

98A

Cub Cadet BS-695408

Kit-Idle Speed

Note: Incl. in Ref No. 121A

$13.99

$

In Stock, only 1 left!

0

104A

Cub Cadet BS-694918

Pin-Float Hinge

Note: Incl. in Ref No. 121A

$7.49

$

In Stock, only 2 left!

0

105A

Cub Cadet BS-696136

Valve-Float Needle

Note: Incl. in Ref No. 121A

$15.99

$

In Stock, Qty 20+

0

108C

Cub Cadet BS-696736

Valve-Choke

$9.49

$

Usually ships in 2-12 days

0

109G

Cub Cadet BS-793520

Shaft-Choke

$30.99

$

Usually ships in 2-12 days

0

117

Cub Cadet BS-696134

Jet-Main (Standard)

Note: Incl. in Ref No. 121A

$18.99

$

In Stock, Qty 7

0

118

Cub Cadet BS-696135

Jet-Main (High Altitude)

$17.99

$

Usually ships in 2-12 days

0

121A

Cub Cadet BS-696146

Kit-Carburetor Overhaul (Nikki Carburetor)

$50.99

$

In Stock, Qty 11

0

122

Cub Cadet BS-694876

Spacer-Carburetor

Note: Incl. in Ref No. 121A

$

$

Not available

125B

Cub Cadet BS-794593

Carburetor
(Superseded to BS-796122)

$136.99

$

In Stock, Qty 9

0

127A

Cub Cadet BS-690727

Plug-Welch

Note: Incl. in Ref No. 121A

$4.49

$

In Stock, only 2 left!

0

130A

Cub Cadet BS-696139

Valve-Throttle

$10.99

$

In Stock, only 2 left!

0

133A

Cub Cadet BS-694914

Float-Carburetor

$28.99

$

In Stock, Qty 8

0

135

Cub Cadet BS-696142

Tube-Fuel Transfer

$41.99

$

In Stock, Qty 7

0

137A

Cub Cadet BS-695426

Gasket-Float Bowl

Note: Incl. in Ref No. 121A

$9.49

$

In Stock, Qty 20+

0

146

Cub Cadet BS-690979

Key-Timing

$3.49

$

In Stock, Qty 8

0

163

Cub Cadet BS-692277

Gasket-Air Cleaner

Note: Incl. in Ref No. 358, 121A

$6.99

$

In Stock, only 2 left!

0

170

Cub Cadet BS-794833

Stud (Crankcase Cover/Sump)

$9.99

$

Usually ships in 2-12 days

0

187

Cub Cadet BS-791766

Line-Fuel (15 Inches Long)
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

187A

Cub Cadet BS-791869

Line-Fuel

$

$

Not available

187D

Cub Cadet BS-791879

Line-Fuel

$17.99

$

Usually ships in 2-12 days

0

188

Cub Cadet BS-699479

Screw (Control Bracket)

$3.99

$

Usually ships in 2-12 days

0

190

Cub Cadet BS-699220

Screw (Fuel Tank)
(Superseded to BS-597133)

$4.99

$

In Stock, Qty 9

0

192

Cub Cadet BS-690083

Adjuster-Rocker Arm

$11.99

$

In Stock, only 1 left!

0

209

Cub Cadet BS-695491

Spring-Governor

$

$

Not available

219

Cub Cadet BS-693578

Gear-Governor

$26.99

$

In Stock, only 2 left!

0

220

Cub Cadet BS-691724

Washer (Governor Gear)

$5.49

$

In Stock, only 2 left!

0

222A

Cub Cadet BS-794801

Bracket-Control

$40.99

$

Usually ships in 2-12 days

0

227

Cub Cadet BS-694864

Lever-Governor Control

$16.99

$

Usually ships in 2-12 days

0

268

Cub Cadet BS-691025

Casing-Control Wire (Cut To Required Length)

$

$

Not available

269

Cub Cadet BS-691026

Wire-Control (Cut To Required Length)

$16.99

$

Usually ships in 2-12 days

0

270

Cub Cadet BS-691027

Nut

$13.99

$

In Stock, only 2 left!

0

271

Cub Cadet BS-691028

Lever-Control

$45.99

$

Usually ships in 2-12 days

0

278

Cub Cadet BS-792008

Washer (Governor Control Lever)

$8.49

$

Usually ships in 2-12 days

0

281

Cub Cadet BS-697268

Panel-Control

$35.99

$

Usually ships in 2-12 days

0

287

Cub Cadet BS-699629

Screw (Dipstick Tube)
(Superseded to BS-699234)

$3.99

$

In Stock, only 2 left!

0

300B

Cub Cadet BS-794948

Muffler

$122.99

$

Usually ships in 2-12 days

0

300C

Cub Cadet BS-793701

Muffler

$

$

Currently unavailable

304

Cub Cadet BS-795699

Housing-Blower

$90.99

$

Usually ships in 2-12 days

0

305

Cub Cadet BS-699481

Screw (Blower Housing)

$3.99

$

In Stock, only 3 left!

0

306

Cub Cadet BS-697240

Shield-Cylinder

$22.99

$

Usually ships in 2-12 days

0

307

Cub Cadet BS-794822

Screw

$3.99

$

Usually ships in 2-12 days

0

309A

Cub Cadet BS-793524

Motor-Starter
(Superseded to BS-795909)

$274.99

$

Usually ships in 2-12 days

0

332

Cub Cadet BS-794824

Nut (Flywheel)

$5.49

$

Usually ships in 2-12 days

0

333

Cub Cadet BS-492341

Armature-Magneto
(Superseded to BS-591459)

$53.99

$

In Stock, Qty 20+

0

334

Cub Cadet BS-699477

Screw (Magneto Armature)

$3.99

$

Usually ships in 2-12 days

0

337

Cub Cadet 759-3336

Plug-Spark
(Superseded to RC12YC)

$3.49

$

In Stock, Qty 20+

0

356

Cub Cadet BS-692603

Wire-Stop

$

$

Not available

358

Cub Cadet BS-795201

Gasket Set-Engine

$70.99

$

In Stock, only 3 left!

0

363

Cub Cadet BS-19203

Puller-Flywheel

$23.99

$

In Stock, only 1 left!

0

369

Cub Cadet BS-695422

Spring-Float Bowl

$8.49

$

In Stock, Qty 10

0

383

Cub Cadet BS-19374S

Wrench-Spark Plug
(Superseded to BS-19576S)

$5.99

$

In Stock, only 1 left!

0

404

Cub Cadet BS-795759

Washer (Governor Crank)

$5.49

$

In Stock, only 1 left!

0

415

Cub Cadet BS-691363

Plug

$10.99

$

Usually ships in 2-12 days

0

436C

Cub Cadet BS-792374

Manifold-Exhaust

$45.99

$

Usually ships in 2-12 days

0

437

Cub Cadet BS-794844

Screw (Exhaust Manifold)

$4.99

$

In Stock, only 2 left!

0

455

Cub Cadet BS-795011

Cup-Flywheel

$11.99

$

Usually ships in 2-12 days

0

456

Cub Cadet BS-692299

Plate-Pawl Friction

$4.99

$

In Stock, only 2 left!

0

459

Cub Cadet BS-281505S

Pawl-Ratchet

$3.49

$

In Stock, Qty 13

0

472C

Cub Cadet BS-791948

Knob-Choke Shaft

$7.99

$

In Stock, only 1 left!

0

474B

Cub Cadet BS-696742

Alternator

Note: 930SWE

$81.99

$

Usually ships in 2-12 days

0

474F

Cub Cadet BS-793640

Alternator

$67.99

$

Usually ships in 2-12 days

0

474H

Cub Cadet BS-698230

Alternator

$

$

Currently unavailable

505

Cub Cadet BS-691251

Nut

$3.49

$

In Stock, Qty 9

0

523

Cub Cadet BS-790477

Dipstick

$17.99

$

Usually ships in 2-12 days

0

524

Cub Cadet BS-691876

Seal-Dipstick Tube

$5.49

$

In Stock, Qty 11

0

525

Cub Cadet BS-792041

Tube-Dipstick

$13.99

$

Usually ships in 2-12 days

0

528

Cub Cadet BS-793006

Hose-Primer (Cut to Required Length)

$8.49

$

Usually ships in 2-12 days

0

529

Cub Cadet BS-791822

Grommet

$7.99

$

In Stock, only 1 left!

0

552

Cub Cadet BS-694674

Bushing-Governor Crank

$9.49

$

Usually ships in 2-12 days

0

562

Cub Cadet BS-793216

Bolt (Governor Control Lever)

$6.49

$

Usually ships in 2-12 days

0

564

Cub Cadet BS-699854

Screw (Control Cover)

$3.99

$

In Stock, Qty 9

0

578A

Cub Cadet BS-792576

Wire Assembly

$8.49

$

Usually ships in 2-12 days

0

597

Cub Cadet BS-691696

Screw (Pawl Friction Plate)

$11.99

$

In Stock, Qty 5

0

601

Cub Cadet BS-791850

Clamp-Hose

$3.49

$

In Stock, Qty 20+

0

604A

Cub Cadet BS-696758

Cover-Control

$24.99

$

Usually ships in 2-12 days

0

604B

Cub Cadet BS-790473

Cover-Control

$6.99

$

In Stock, only 1 left!

0

608A

Cub Cadet BS-699335

Starter-Rewind

$87.99

$

In Stock, Qty 7

0

610

Cub Cadet BS-794541

Arrester-Intake

$49.99

$

Usually ships in 2-12 days

0

613

Cub Cadet BS-794846

Screw (Muffler)

$4.99

$

Usually ships in 2-12 days

0

613B

Cub Cadet BS-794844

Screw (Muffler)

$4.99

$

In Stock, only 2 left!

0

614

Cub Cadet BS-691620

Pin-Cotter (Governor Crank)
(Superseded to BS-93306)

$

$

Not available

615

Cub Cadet BS-694676

Retainer-Governor Shaft (Governor Gear)

$4.99

$

Usually ships in 2-12 days

0

616

Cub Cadet BS-694675

Crank-Governor
(Superseded to BS-795758)

$15.99

$

In Stock, only 1 left!

0

616A

Cub Cadet BS-795758

Crank-Governor

$15.99

$

In Stock, only 1 left!

0

632

Cub Cadet BS-695917

Spring/Link-Mechanical Governor

$

$

Not available

633B

Cub Cadet BS-690998

Seal-Choke/Throttle Shaft

Note: Incl. in Ref No. 121A

$7.99

$

Usually ships in 2-12 days

0

635

Cub Cadet BS-691909

Boot-Spark Plug (Alternator)

$4.99

$

In Stock, Qty 5

0

668B

Cub Cadet BS-794539

Spacer (Snow Hood)

$8.49

$

In Stock, Qty 5

0

676D

Cub Cadet BS-794213

Deflector-Muffler

$15.99

$

Usually ships in 2-12 days

0

677A

Cub Cadet BS-699776

Screw (Muffler Deflector)

$3.99

$

In Stock, only 4 left!

0

689

Cub Cadet BS-691855

Spring-Friction

$4.49

$

In Stock, only 2 left!

0

695

Cub Cadet BS-698807

Screw (Ring Gear)

$3.99

$

In Stock, only 4 left!

0

697

Cub Cadet BS-795012

Screw (Drive Cap)

$5.49

$

In Stock, only 3 left!

0

718

Cub Cadet BS-690959

Pin-Locating (Cylinder)

$6.99

$

In Stock, only 1 left!

0

718A

Cub Cadet BS-695178

Pin-Locating (Head)

$6.99

$

Usually ships in 2-12 days

0

725

Cub Cadet BS-696756

Shield-Heat

$28.99

$

Usually ships in 2-12 days

0

727A

Cub Cadet BS-697465

Cover-Starter Drive

$7.99

$

Usually ships in 2-12 days

0

731B

Cub Cadet BS-794540

Hood-Snow

$69.99

$

Usually ships in 2-12 days

0

731C

Cub Cadet BS-793621

Hood-Snow

$61.99

$

Usually ships in 2-12 days

0

732

Cub Cadet BS-699200

Screw (Starter Drive Cover)

$3.99

$

Usually ships in 2-12 days

0

740A

Cub Cadet BS-794843

Nut (Muffler Bracket)

$

$

Currently unavailable

741

Cub Cadet BS-691288

Gear-Timing

$21.99

$

Usually ships in 2-12 days

0

742

Cub Cadet BS-692564

Retainer-E Ring

$4.49

$

In Stock, only 2 left!

0

746

Cub Cadet BS-694679

Gear-Idler

$18.99

$

Usually ships in 2-12 days

0

798

Cub Cadet BS-697890

Screw (Rocker Arm)

$3.49

$

In Stock, Qty 7

0

819

Cub Cadet BS-794832

Screw (Muffler Bracket)

$

$

Currently unavailable

832

Cub Cadet BS-795078

Guard Muffler

$

$

Not available

832C

Cub Cadet BS-792380

Guard-Muffler

$

$

Currently unavailable

836

Cub Cadet BS-699234

Screw (Muffler Guard)

$3.99

$

In Stock, only 2 left!

0

836C

Cub Cadet BS-710023

Screw (Muffler Guard)

$3.99

$

In Stock, Qty 14

0

842

Cub Cadet BS-691031

Seal-O Ring (Dipstick Tube)

$5.49

$

In Stock, Qty 20+

0

847

Cub Cadet BS-790476

Dipstick/Tube Assembly

$

$

Currently unavailable

851

Cub Cadet BS-692424

Terminal-Spark Plug

$5.99

$

In Stock, Qty 13

0

863C

Cub Cadet BS-793700

Bracket-Muffler

$75.99

$

Usually ships in 2-12 days

0

868

Cub Cadet BS-794086

Seal-Valve

Note: Incl. in Ref No. 358, 1095

$11.99

$

In Stock, only 1 left!

0

878

Cub Cadet BS-398661

Wire/Connector-Alternator

Note: 930SWE

$34.99

$

Usually ships in 2-12 days

0

883

Cub Cadet BS-695398

Gasket-Exhaust

Note: Incl. in Ref No. 358, 1095

$7.99

$

In Stock, Qty 8

0

883C

Cub Cadet BS-710250

Gasket-Exhaust

$

$

Currently unavailable

892A

Cub Cadet BS-791944

Switch-Key

$14.99

$

In Stock, only 1 left!

0

914

Cub Cadet BS-794827

Screw (Rocker Cover)

$4.99

$

In Stock, only 1 left!

0

930

Cub Cadet BS-696709

Guard-Rewind

$

$

Not available

957

Cub Cadet BS-795027

Cap-Fuel Tank (Plastic)

$10.99

$

In Stock, Qty 20+

0

957A

Cub Cadet BS-792647

Cap-Fuel Tank (Plastic, Fresh Start)

$

$

Not available

957B

Cub Cadet BS-698109

Cap-Fuel Tank (Plastic)

$

$

Not available

958

Cub Cadet BS-698180

Valve-Fuel Shut Off (Plastic)

Note: If equipped

$11.99

$

In Stock, Qty 20+

0

972A

Cub Cadet BS-694260

Tank-Fuel (Plastic)
(Superseded to BS-799863)

$89.99

$

In Stock, Qty 10

0

975A

Cub Cadet BS-696138

Bowl-Float

$45.99

$

Usually ships in 2-12 days

0

976

Cub Cadet BS-793382

Primer-Carburetor

$10.99

$

In Stock, Qty 9

0

990A

Cub Cadet BS-794696

Key Set

$7.49

$

In Stock, Qty 19

0

998A

Cub Cadet BS-696683

Pipe-Oil

$

$

Not available

1005

Cub Cadet BS-794815

Fan-Flywheel

$17.99

$

In Stock, only 2 left!

0

1011

Cub Cadet BS-794544

Tube-Vent

$9.49

$

Usually ships in 2-12 days

0

1022

Cub Cadet BS-690971

Gasket-Rocker Cover

Note: Incl. in Ref No. 358, 1095

$7.49

$

In Stock, Qty 20+

0

1023A

Cub Cadet BS-698042

Cover-Rocker

$26.99

$

Usually ships in 2-12 days

0

1026

Cub Cadet BS-695177

Rod-Push
(Superseded to BS-592673)

$8.99

$

In Stock, Qty 20+

0

1029

Cub Cadet BS-690972

Arm-Rocker

$12.99

$

In Stock, Qty 13

0

1036

Label-Emissions

Note: (Available From A Briggs & Stratton )

$

$

Not available

1058

Cub Cadet N/A

Operator’s Manual

$

$

Currently unavailable

1070

Cub Cadet BS-794821

Screw (Flywheel Fan)

$4.49

$

Usually ships in 2-12 days

0

1095

Cub Cadet BS-795200

Gasket Set-Valve

$74.99

$

Usually ships in 2-12 days

0

1100

Cub Cadet BS-791959

Pivot-Rocker Arm

$6.99

$

In Stock, only 2 left!

0

1119

Cub Cadet BS-699772

Screw (Alternator)

$3.99

$

Usually ships in 2-12 days

0

1127A

Cub Cadet BS-695407

Screw (Float Bowl)

$4.49

$

In Stock, Qty 20+

0

1171

Cub Cadet BS-794828

Stud (Rocker Cover)

$5.99

$

In Stock, only 1 left!

0

1177

Cub Cadet BS-710090

Nut (Muffler)

$3.99

$

Usually ships in 2-12 days

0

1194

Cub Cadet BS-691876

Seal-O Ring (Plug)

$5.49

$

In Stock, Qty 11

0

1196A

Cub Cadet BS-696692

Screw (Snow Hood)
(Superseded to BS-798785)

$3.99

$

In Stock, Qty 20+

0

1210

Cub Cadet BS-498144

Pulley/Spring Assembly (Pulley)

$19.99

$

In Stock, Qty 20+

0

1211

Cub Cadet BS-498144

Pulley/Spring Assembly (Spring)

$19.99

$

In Stock, Qty 20+

0

1230

Cub Cadet BS-699847

Stud (Control Bracket)

$5.99

$

In Stock, only 1 left!

0

1251

Cub Cadet BS-696762

Shield-Snow

$9.99

$

Usually ships in 2-12 days

0

1251A

Cub Cadet BS-790471

Shield-Snow

$9.49

$

Usually ships in 2-12 days

0

1252

Cub Cadet BS-699481

Screw (Snow Shield)

$3.99

$

In Stock, only 3 left!

0

1288

Cub Cadet BS-794838

Nut (Snow Hood)

$3.99

$

In Stock, Qty 10

0

1318

Cub Cadet BS-698111

Knob-Snow Hood

$8.49

$

Usually ships in 2-12 days

0

1319

Cub Cadet BS-794467

Label-Warning

$20.99

$

Usually ships in 2-12 days

0

1351

Cub Cadet BS-794847

Stud (Cylinder Shield)

$3.99

$

Usually ships in 2-12 days

0

1352

Cub Cadet BS-795016

Nut (Spark Plug Shield)

$3.49

$

Usually ships in 2-12 days

0
