93-8040 - Toro Electric Start Kit for 12 VDC, Tecumseh Power Shift Snow Thrower STARTER MOTOR, BATTERY WIRE ASSEMBLY Parts Diagram

Electric Start Kit for 12 VDC, Tecumseh Power Shift Snow Thrower

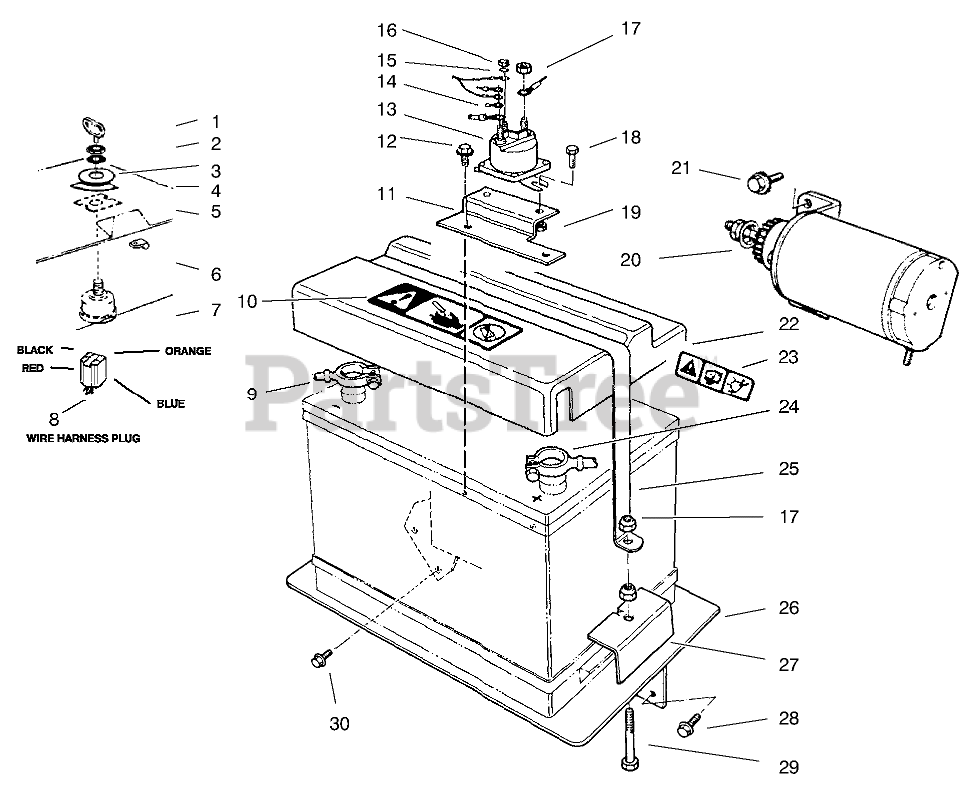

STARTER MOTOR, BATTERY WIRE ASSEMBLY Parts Diagram

  • Title
1

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

2

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

3

Toro 66-7690

WASHER

$

$

Not available

4

Toro 94-2588

DECAL - KEY SWITCH

$

$

Not available

5

Toro 66-7680

ADAPTER

$

$

Not available

6

Toro 2412-101

R CLAMP

$

$

Not available

7

Toro 23-0660

Switch-Starter (Incl. Ref.# 1 & 2)

$22.99

$

In Stock, only 1 left!

0

8

Toro 93-8037

HARNESS - IGNITION WIRE

$

$

Not available

9

Toro 22-9330

BATT-GROUND CABLE

$

$

Not available

10

Toro 94-2589

DECAL - CAUTION

$

$

Not available

11

Toro 66-7630

BRACKET

$

$

Not available

12

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 9

0

13

Toro 6-1600

SOLENOID

$72.99

$

Usually ships in 3-6 days

0

14

Toro 218-575

RING TONGUE TERMINAL

$

$

Not available

15

Toro 3254-1

WASHER-LOCK, INT

$0.99

$

Usually ships in 3-6 days

0

16

Toro 3219-14

NUT-HEX

$0.99

$

In Stock, only 1 left!

0

17

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

18

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

19

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

20

Toro 1A173-102

Motor-Starter, Tecumseh

Note: Purchase From Tecumseh

$

$

Currently unavailable

21

Toro 42-817

Screw-HHF, Tecumseh

Note: Purchase From Tecumseh

$

$

Currently unavailable

22

Toro 22-8900

BATTERY COVER

$

$

Not available

23

Toro 94-2575

DECAL-ADJUSTMENT

$

$

Not available

24

Toro 22-9320

BATT-SOLENOID CABLE

$241.99

$

Usually ships in 3-6 days

0

25

Toro 22-8850

Strap Battery
(Superseded to 22-8850-03)

$101.99

$

Usually ships in 3-6 days

0

26

Toro 66-7600

Plate-Battery

$

$

Not available

27

Toro 22-8870

BATTERY CLAMP

$

$

Not available

28

Toro 3234-17

SCREW-HHF

$2.49

$

In Stock, only 2 left!

0

29

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

30

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 16

0

Toro 3290-378

TIE-CABLE

Note: Not illustrated

$0.99

$

In Stock, Qty 8

0
