93-6642 - Toro CE Update Kit for Groundsmaster 300 72" Rear-Discharge Mower CE KIT COMPONENT ASSEMBLY Parts Diagram

CE Update Kit for Groundsmaster 300 72" Rear-Discharge Mower

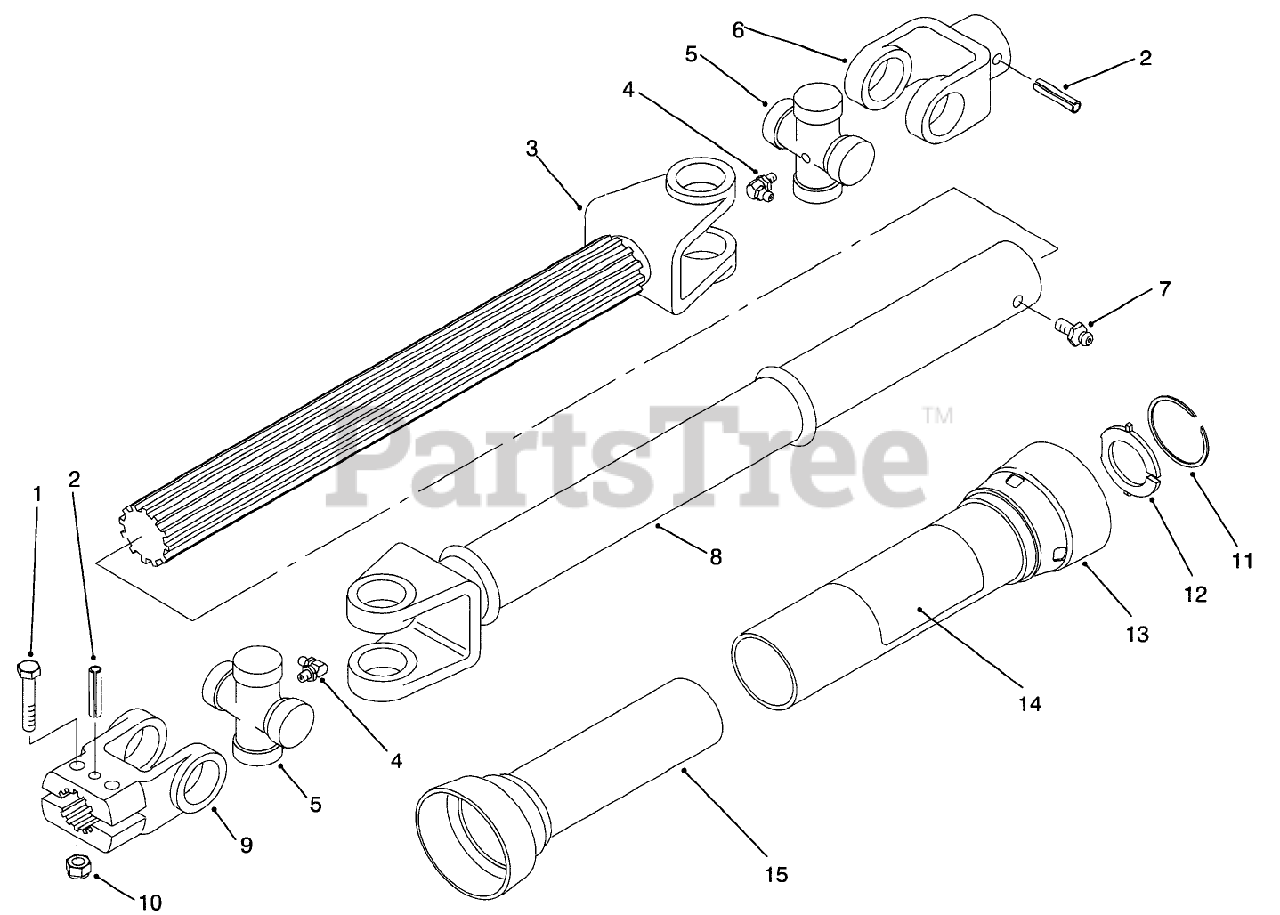

CE KIT COMPONENT ASSEMBLY Parts Diagram

  • Title

1

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

2

Toro 32121-34

PIN-ROLL

$3.99

$

In Stock, Qty 14

0

3

Toro 93-9963

SHAFT-YOKE, SLIP

$516.99

$

Usually ships in 3-6 days

0

4

Toro 62-3820

FITTING-GREASE

$10.99

$

Usually ships in 3-6 days

0

5

Toro 54-9180

U-JOINT KIT

$65.99

$

Usually ships in 3-6 days

0

6

Toro 62-3800

YOKE-END

$288.99

$

Usually ships in 3-6 days

0

7

Toro 302-58

FITTING-STRAIGHT

$1.99

$

Usually ships in 3-6 days

0

8

Toro 93-9966

TUBE-SLIP YOKE

$610.99

$

Usually ships in 3-6 days

0

9

Toro 54-9040

YOKE-END

$262.99

$

Usually ships in 3-6 days

0

10

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Bushing-Nylon

$

$

Not available

13

Toro 93-9985

Assembly-Guard, Outer (Incl. Ref. #11-12 & 14)

$297.99

$

Usually ships in 3-6 days

0

14

Toro 93-7283

DECAL-DANGER

$

$

Not available

15

Toro 93-9965

Assembly-Guard, Inner (Incl. Ref. #11-12)

$

$

Not available

Toro 93-9958

Kit-Repair, Nylon (Incl. 2 Each Ref. #11-12)

Note: Not illustrated

$

$

Not available

Toro 93-9986

Assembly-Drive Shaft (Incl. Ref. #3-9 & 13-15)

Note: Not illustrated

$

$

Not available
