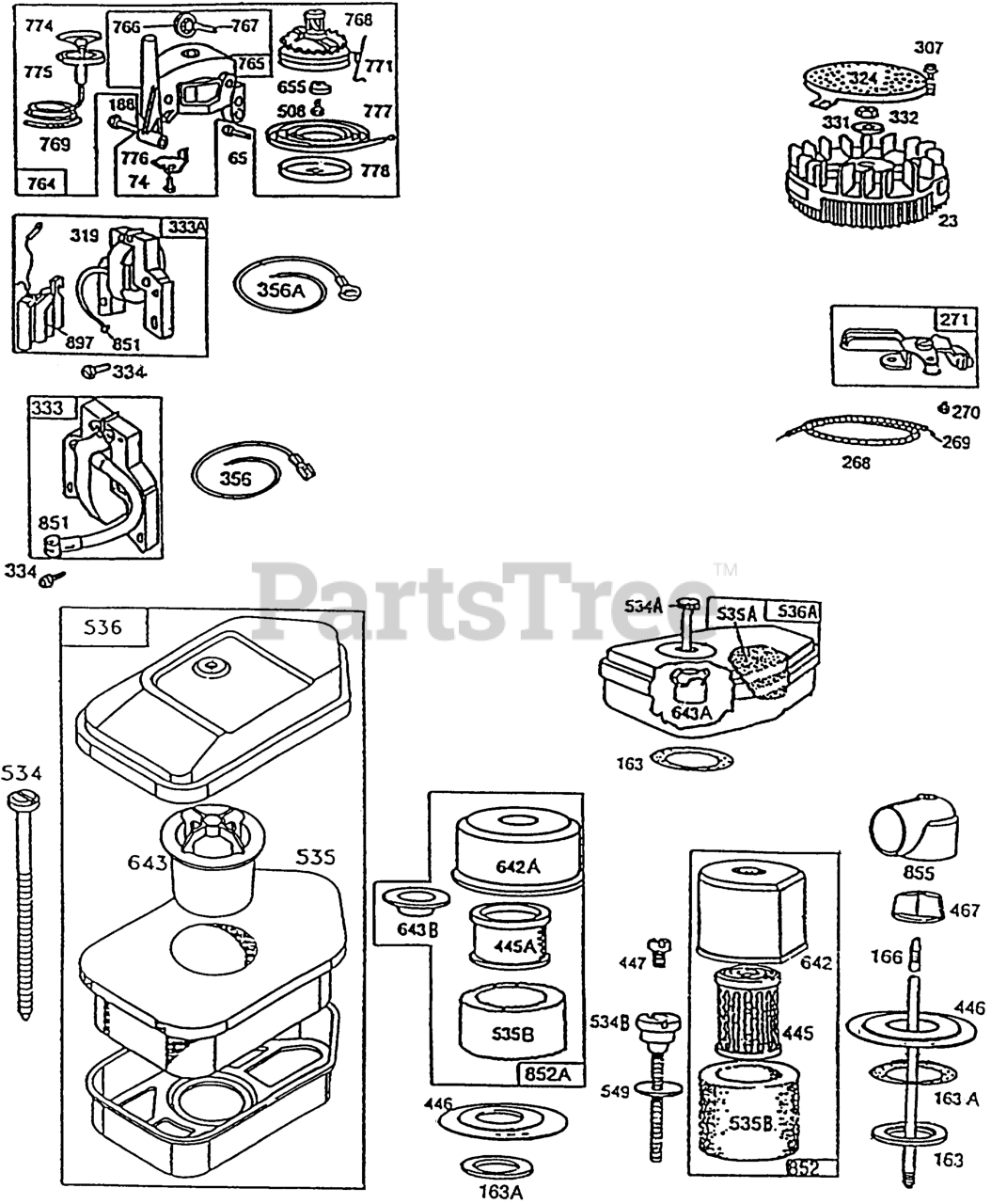

92988-5082-XX - Briggs & Stratton Vertical Engine Air Cleaners, Vertical Pull Parts Diagram

Vertical Engine

Air Cleaners, Vertical Pull Parts Diagram

  • Title

23

Briggs & Stratton 394848

Flywheel Used On Vertical Pull

$46.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 93587

Screw, Sem Hex Head (1/4-20 X 1")
(Superseded to 691083)

$5.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 93758

Screw, Hex Wash Hd
(Superseded to 690345)

$4.99

$

Usually ships in 2-12 days

0

163A

Briggs & Stratton 271077

Spacer-Air Cleaner
(Superseded to 270055)

$

$

Not available

163

Briggs & Stratton 271139

Gasket, Air Cleaner (Above Spacer)
(Superseded to 271139S)

Note: Included in Gasket Set-Part No. 298989. Included in Carburetor Kit-Part No. 494623

$3.99

$

In Stock, Qty 20+

0

166

Briggs & Stratton 231332

Stud-Air Cleaner (Used With Rotary Choke Carburetors)

$13.99

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 93585

Screw, Sem Hex Head
(Superseded to 691103)

$3.99

$

In Stock, only 4 left!

0

268

Briggs & Stratton 66986

Casing, Wire (48" Cut To Required Length)
(Superseded to 691025)

Note: If Longer Casing is Needed, Specify Length in Inches; If a Shorter Casing is Needed, Order Part and Cut to Required Length.

$

$

Not available

269

Briggs & Stratton 26099

Wire, Control (54" Cut To Required Length)
(Superseded to 691026)

Note: If Longer Wire is Needed, Specify Length in Inches; If Shorter Wire is Needed, Order Part and Cut to Required Length.

$

$

Not available

270

Briggs & Stratton 63426

Nut, Hex
(Superseded to 691027)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 290568

Lever-Control
(Superseded to 691028)

$45.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 93490

Screw-Hex
(Superseded to 691660)

$3.99

$

In Stock, Qty 8

0

319

Briggs & Stratton 298502

Armature-Mag (For Points And Condenser)
(Superseded to 591420)

$53.99

$

In Stock, only 2 left!

0

324

Briggs & Stratton 223006

Screen-Rotating

$10.99

$

Usually ships in 2-12 days

0

331

Briggs & Stratton 223047

Washer, Flywheel
(Superseded to 691736)

$5.99

$

Usually ships in 2-12 days

0

332

Briggs & Stratton 92284

Nut, Jam (Flywheel)
(Superseded to 690662)

$5.99

$

In Stock, only 1 left!

0

333A

Briggs & Stratton 398593

Ignition Kit (For Magnetron)
(Superseded to 591420)

$53.99

$

In Stock, only 2 left!

0

333

Briggs & Stratton 398593

Ignition Kit (For Magnetron)
(Superseded to 591420)

$53.99

$

In Stock, only 2 left!

0

334

Briggs & Stratton 93381

Screw, Machine Hex
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

356A

Briggs & Stratton 398808

WIRE, Stop (30" Cut To Required Length)

$11.99

$

In Stock, only 1 left!

0

356

Briggs & Stratton 398808

WIRE, Stop (30" Cut To Required Length)

$11.99

$

In Stock, only 1 left!

0

445A

Briggs & Stratton 392308

Filter-Air
(Superseded to 392308S)

$16.99

$

Usually ships in 2-12 days

0

445

Briggs & Stratton 396424

Filter-Pre Cleaner
(Superseded to 396424S)

$13.99

$

In Stock, only 3 left!

0

446

Briggs & Stratton 222844

Base-Air Cleaner
(Superseded to 691735)

$17.99

$

Usually ships in 2-12 days

0

447

Briggs & Stratton 93913

Screw-Slotted

$3.99

$

In Stock, only 1 left!

0

467

Briggs & Stratton 493903

Knob-Air Cleaner
(Superseded to 691668)

$5.49

$

In Stock, only 1 left!

0

508

Briggs & Stratton 93158

Screw, Sem Hex Head (1/4-20 X 5/8")
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

534B

Briggs & Stratton 94005

Screw-Air Cleaner (Internal)

$16.99

$

Usually ships in 2-12 days

0

534A

Briggs & Stratton 93374

Screw-Air Cleaner

$5.99

$

In Stock, only 1 left!

0

534

Briggs & Stratton 93865

Screw, Air Cleaner
(Superseded to 691417)

$5.99

$

In Stock, only 3 left!

0

535A

Briggs & Stratton 270579

Element, Air Cleane (2-slanted Sides)
(Superseded to 270579S)

$5.99

$

In Stock, Qty 20+

0

535B

Briggs & Stratton 271466

Filter-Air

$4.49

$

In Stock, Qty 20+

0

535

Briggs & Stratton 272235

Filter-Air
(Superseded to 272235S)

$5.99

$

In Stock, Qty 5

0

536A

Briggs & Stratton 390055

Cleaner-Air (2-slanted Sides)

$16.99

$

Usually ships in 2-12 days

0

536

Briggs & Stratton 493492

Cleaner-Air
(Superseded to 698472)

$

$

Not available

549

Briggs & Stratton 270978

Washer

Note: (Below Internal Screw Head)

$5.49

$

In Stock, only 1 left!

0

642A

Briggs & Stratton 222626

Cover-Air Cleaner

$

$

Not available

642

Briggs & Stratton 223306

Cover-Air Cleaner
(Superseded to 493822)

$

$

Not available

643B

Briggs & Stratton 222594

Support-Foam Elemen (1/4" Deep)

$4.49

$

In Stock, only 1 left!

0

643A

Briggs & Stratton 280374

Retainer-Air Filter

$7.49

$

Usually ships in 2-12 days

0

643

Briggs & Stratton 280972

Retainer-Air Filter
(Superseded to 691911)

$9.99

$

Usually ships in 2-12 days

0

655

Briggs & Stratton 222057

Anchor-Spring

$6.99

$

Usually ships in 2-12 days

0

764

Briggs & Stratton 396082

Str-Vertical Rewind (48-5/8" Rope)

$50.99

$

Usually ships in 2-12 days

0

765

Briggs & Stratton 395914

Housing-Vert Str (For Band Brake)

$55.99

$

Usually ships in 2-12 days

0

766

Briggs & Stratton 280022

Pulley-Rope Guide

$11.99

$

Usually ships in 2-12 days

0

767

Briggs & Stratton 231048

Pin-Rope Pulley (7/16" Long)

$3.49

$

Usually ships in 2-12 days

0

768

Briggs & Stratton 299948

Pulley-Vert Str

$22.99

$

Usually ships in 2-12 days

0

769

Briggs & Stratton 280399

Rope, Starter (99" Cut To Required Length)
(Superseded to 280399S)

Note: If Longer Rope is Needed, Order Part and Cut to Required Length.

$5.99

$

In Stock, Qty 7

0

769

Briggs & Stratton 66734

Rope-Starter (48-5/8")

$6.49

$

In Stock, Qty 11

0

771

Briggs & Stratton 299961

Clip-Vertical Pull Str.

$6.49

$

Usually ships in 2-12 days

0

774

Briggs & Stratton 491288

Insert-Starter Handle
(Superseded to 393152)

$4.99

$

Usually ships in 2-12 days

0

775

Briggs & Stratton 491288

Insert-Starter Handle
(Superseded to 393152)

$4.99

$

Usually ships in 2-12 days

0

776

Briggs & Stratton 222049

Guide-Rope

$3.99

$

Usually ships in 2-12 days

0

777

Briggs & Stratton 390066

Spring-Vertical Pull Starter

$20.99

$

In Stock, only 1 left!

0

778

Briggs & Stratton 280021

Cover-Vertical Starter

$

$

Not available

851

Briggs & Stratton 221798

Terminal-Spark Plug
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

852A

Briggs & Stratton 392368

Cleaner-Air

$50.99

$

Usually ships in 2-12 days

0

852

Briggs & Stratton 396397

Cleaner-Air
(Superseded to 493822)

$

$

Not available

855

Briggs & Stratton 211982

Elbow-Air Cleaner Adaptor

$22.99

$

Usually ships in 2-12 days

0

897

Briggs & Stratton 394970

Magnetron Ign Kit

$

$

Not available
