929 (190-929-000) - Yard-Man Sleeve Hitch Sleeve Hitch Parts Diagram

Sleeve Hitch

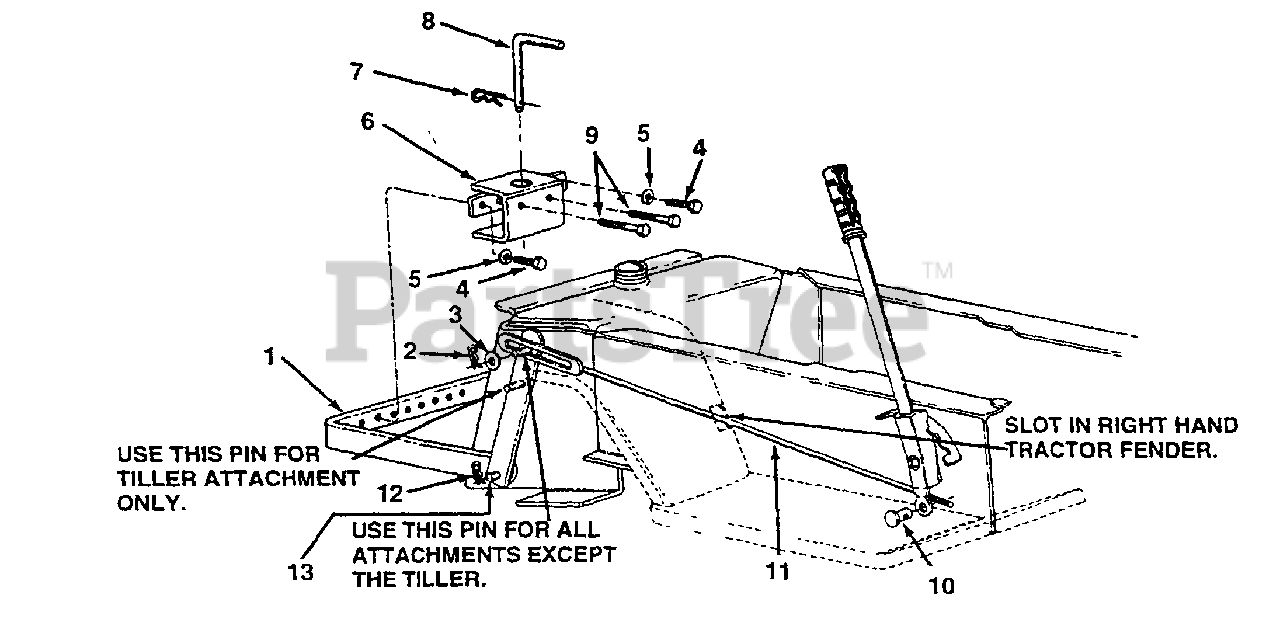

Sleeve Hitch Parts Diagram

  • Title

1

Cub Cadet 13914

Hitch Bar Ass'y.

Variations

Cub Cadet 13914-0637

BAR ASSEMBLY-H - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 714-0101

Internal Cotter Pin 1/2" Dia.

$4.99

$

In Stock, only 1 left!

0

3

Cub Cadet 736-0100

Fl-Wash. 1/2" I.D.

$6.99

$

In Stock, Qty 7

0

4

Cub Cadet 710-0493

Hex Bolt 1/2-13 x 1.0" Lg.
(Superseded to 710-3131)

$5.49

$

In Stock, only 1 left!

0

5

Cub Cadet 736-0921

L-Wash. 1/2" l.D.

$4.49

$

In Stock, only 2 left!

0

6

Cub Cadet 13269

Hitch Brkt. Ass'y.
(Superseded to 13269-0637)

Variations

Cub Cadet 13269-0637

BRACKET ASSY-HITCH - POWDER BLACK (0637)

$

$

Not available

$

$

7

Cub Cadet 714-0117

Internal Cotter Pin 5/8" Dia.

$4.49

$

In Stock, Qty 16

0

8

Cub Cadet 711-0282

Hitch Pin

$72.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-0182

Hex Bolt 1/2-13 x 3.0" Lg."
(Superseded to 710-0182A)

$7.99

$

In Stock, only 2 left!

0

10

Cub Cadet 711-0700

Adjustment Ferrule

$

$

Not available

11

Cub Cadet 13916

Link Rod Ass'y.

Variations

Cub Cadet 13916-0637

ROD ASSEMBLY-L - POWDER BLACK (0637)

$

$

Not available

$

$

12

Cub Cadet 714-0101

Internal Cotter Pin 1/2" Dia.

$4.99

$

In Stock, only 1 left!

0

13

Cub Cadet 738-0482

Hitch Rod

$

$

Not available
