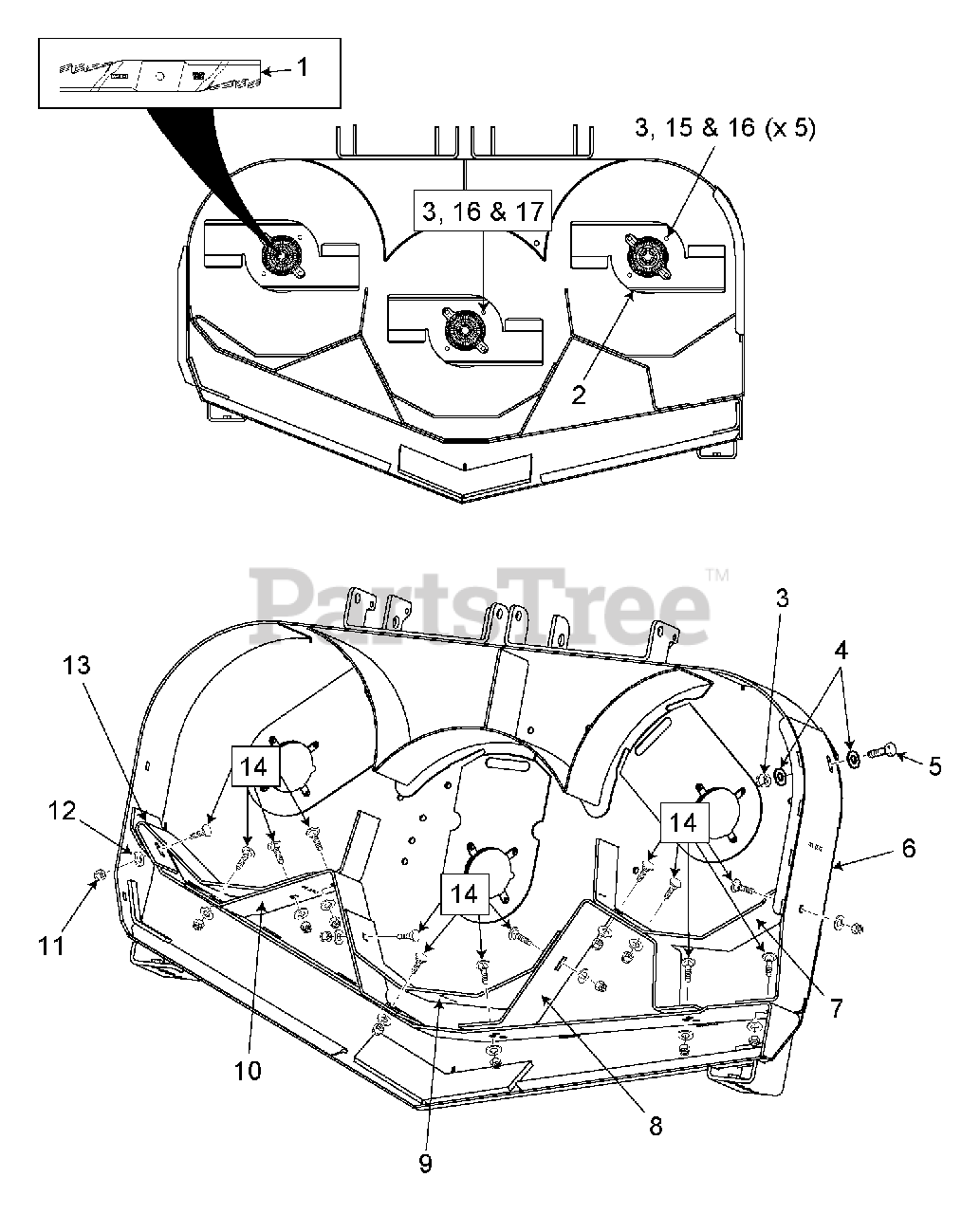

9283 - Scag Hurricane Mulch System for 48" Velocity Plus Deck Cutter Decks (Underside View) Parts Diagram

Hurricane Mulch System for 48" Velocity Plus Deck

Cutter Decks (Underside View) Parts Diagram

  • Title

1

Scag 482960

Eliminator Mulch Blades
(Superseded to 483316)

$37.99

$

In Stock, Qty 20+

0

2

Scag 423980

Hurricane Plate, 48

$31.99

$

In Stock, only 3 left!

0

3

Scag 04021-22

Elastic Stop Nut 5/16-18

$0.99

$

In Stock, Qty 20+

0

4

Scag 04040-15

Flatwasher 5/16"

$0.99

$

In Stock, Qty 20+

0

5

Scag 04001-09

H.H. Bolt 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

6

Scag 451792

Mulch Plate

$137.99

$

Usually ships in 2-12 days

0

7

Scag 424245

R.H. Baffle, Mulch Divider

$98.99

$

Usually ships in 2-12 days

0

8

Scag 424243

R.H. Mulch Baffle

$45.99

$

Usually ships in 2-12 days

0

9

Scag 424242

Center Mulch Baffle

$45.99

$

Usually ships in 2-12 days

0

10

Scag 424241

L.H. Mulch Baffle

$45.99

$

Usually ships in 2-12 days

0

11

Scag 04021-09

Elastic Stop Nut 3/8-16

$0.99

$

In Stock, Qty 20+

0

12

Scag 04041-07

Flatwasher 3/8"

$0.99

$

In Stock, Qty 20+

0

13

Scag 424244

L.H. Baffle, Mulch Divider

$45.99

$

Usually ships in 2-12 days

0

14

Scag 4003-23

Carriage Bolt 3/8-16 x 1"

$

$

Currently unavailable

15

Scag 001-176

H.H. Bolt 5/16-18 x 1-3/4"

$

$

Currently unavailable

16

Scag 04030-03

Lockwasher 5/16"

$0.99

$

In Stock, Qty 20+

0

17

Scag 04001-177

H.H. Bolt 5/16-18 x 2"

$0.99

$

In Stock, only 1 left!

0
