928 SWE (31AH9M7G710) - Cub Cadet 28" Snow Thrower (2005-2) Engine 928 Parts Diagram

28" Snow Thrower

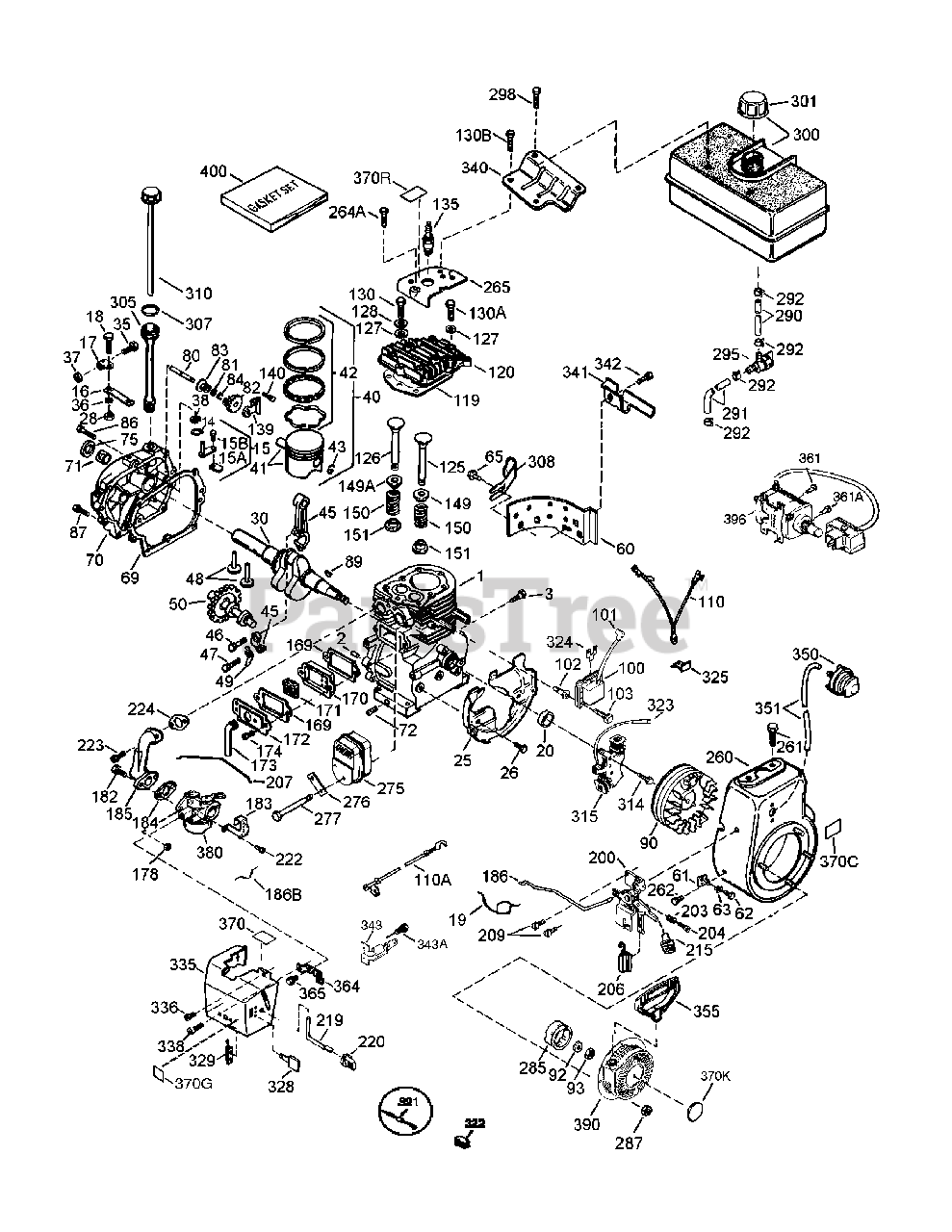

Engine 928 Parts Diagram

  • Title

1

Cub Cadet TC-35371

Cylinder

$311.99

$

Usually ships in 3-12 days

0

2

Cub Cadet TC-27652

Dowel Pin

$2.49

$

Usually ships in 3-12 days

0

3

Cub Cadet TC-650820

Screw (1/4-20x1/2")

$3.99

$

In Stock, Qty 15

0

4

PURCHASE LOCALLY

$

$

Not available

5

Cub Cadet TC-30969

Extension Cap

$5.49

$

Usually ships in 3-12 days

0

14

Cub Cadet TC-28277

Washer

$1.99

$

In Stock, only 4 left!

0

15

Cub Cadet TC-30699C

Governor Rod

$17.99

$

In Stock, only 1 left!

0

15A

Cub Cadet TC-30700

Governor Yoke

$1.99

$

In Stock, only 2 left!

0

15B

Cub Cadet TC-650494

Screw (6-40x5/16")

$1.99

$

Usually ships in 3-12 days

0

16

Cub Cadet TC-33454A

Governor Lever

$10.99

$

In Stock, only 1 left!

0

17

Cub Cadet TC-29916

Governor Lever Clamp

$1.99

$

In Stock, only 2 left!

0

18

Cub Cadet TC-651028

Screw (T-15)

$1.99

$

In Stock, only 4 left!

0

19

Cub Cadet TC-34663

Speed Control Spring

$1.99

$

In Stock, only 3 left!

0

20

Cub Cadet TC-35319

Oil Seal

$4.99

$

In Stock, only 2 left!

0

25

Cub Cadet TC-37853

Blower Housing Baffle

$11.99

$

In Stock, only 1 left!

0

26

Cub Cadet TC-650561

Screw (1/4-20x19/32")

$1.99

$

In Stock, only 2 left!

0

28

Cub Cadet TC-30322

Lock Nut (8-32)

$1.99

$

Usually ships in 3-12 days

0

30

Cub Cadet TC-35372A

Crankshaft
(Superseded to TC-35571A)

$166.99

$

Usually ships in 3-12 days

0

35

Cub Cadet TC-29826

Screw (10-32x3/4")

$1.99

$

In Stock, only 4 left!

0

36

Cub Cadet TC-29918

Lock Washer

$1.99

$

In Stock, Qty 5

0

37

Cub Cadet TC-29216

Lock Nut (10-32)

$1.99

$

In Stock, only 3 left!

0

38

Cub Cadet TC-29642

Retaining Ring

$100.99

$

In Stock, only 2 left!

0

40

Cub Cadet TC-35776A

Piston, Pin & Ring Set (Std.)

$

$

Not available

40

Cub Cadet TC-35777A

Piston, Pin & Ring Set (.010)

$

$

Not available

40

Cub Cadet TC-35778A

Piston, Pin & Ring Set (.020)

$

$

Not available

41

Cub Cadet TC-35773A

Piston & Pin Assy. (Std.)

$

$

Not available

41

Cub Cadet TC-35774A

Piston & Pin Assy. (.010)

$

$

Not available

41

Cub Cadet TC-35775A

Piston & Pin Assy. (.020)

$

$

Not available

42

Cub Cadet TC-35779

Ring Set (Std.)

$44.99

$

In Stock, only 1 left!

0

42

Cub Cadet TC-35780

Ring Set (.010)

$

$

Not available

42

Cub Cadet TC-35781

Ring Set (.020)

$

$

Not available

43

Cub Cadet TC-35772

Piston Pin Retaing Ring

$1.99

$

In Stock, only 4 left!

0

45

Cub Cadet TC-36898

Connecting Rod Assy.
(Superseded to TC-36898A)

$52.99

$

In Stock, only 2 left!

0

47

Cub Cadet TC-651033

Connecting Rod Bolt

$

$

Not available

48

Cub Cadet TC-34034

Valve Lifter
(Superseded to TC-34034A)

$10.99

$

In Stock, only 3 left!

0

49

Cub Cadet TC-36896

Oil Dipper

$1.99

$

Usually ships in 3-12 days

0

50

Cub Cadet TC-35375

Camshaft

$

$

Not available

60

Cub Cadet TC-33273A

Blower Housing Extension

$7.49

$

Usually ships in 3-12 days

0

65

Cub Cadet TC-650128

Screw (10-24x1/2")

$5.49

$

In Stock, only 2 left!

0

69

Cub Cadet TC-37342

Cylinder Cover Gasket

$11.99

$

In Stock, only 1 left!

0

70

Cub Cadet TC-35376A

Cylinder Cover

$

$

Not available

71

Cub Cadet TC-35377

Bearing Cover

$11.99

$

In Stock, only 3 left!

0

75

Cub Cadet TC-35319

Oil Seal

$4.99

$

In Stock, only 2 left!

0

80

Cub Cadet TC-37587

Governor Shaft

$

$

Not available

81

Cub Cadet TC-651080

Washer

$1.99

$

In Stock, Qty 8

0

82

Cub Cadet TC-37588

Governor Gear Assy.

$9.49

$

In Stock, only 1 left!

0

83

Cub Cadet TC-30588A

Governor Spool

$1.99

$

In Stock, only 4 left!

0

84

Cub Cadet TC-29193

Retaining Ring

$1.99

$

In Stock, only 4 left!

0

86

Cub Cadet TC-650833

Screw (1/4-20x1-3/16")

$1.99

$

Usually ships in 3-12 days

0

87

Cub Cadet TC-650832

Screw (1/4-20x1-11/16")

$

$

Not available

89

Cub Cadet TC-32589

Flywheel Key

$1.49

$

In Stock, Qty 6

0

90

Cub Cadet TC-611094

Flywheel

$

$

Not available

92

Cub Cadet TC-650880

Belleville Washer

$1.99

$

In Stock, only 3 left!

0

93

Cub Cadet TC-650881

Flywheel Nut

$1.99

$

Usually ships in 3-12 days

0

100

Cub Cadet TC-35135A

Solid State Ignition
(Superseded to TC-35135B)

$62.99

$

In Stock, only 2 left!

0

101

Cub Cadet TC-610118

Spark Plug Cover

$6.49

$

In Stock, only 4 left!

0

102

Cub Cadet TC-651024

Mounting Stud

$3.99

$

In Stock, only 2 left!

0

103

Cub Cadet TC-651007

Screw (T-15)

$1.99

$

In Stock, only 4 left!

0

110

Cub Cadet TC-35187

Wire Assy.

$

$

Not available

110A

Cub Cadet TC-37047

Ground Wire

$1.99

$

In Stock, Qty 5

0

119

Cub Cadet TC-36451

Cylinder Head Gasket

$9.99

$

Usually ships in 3-12 days

0

120

Cub Cadet TC-36449

Cylinder Head

$

$

Not available

125

Cub Cadet TC-27878A

Exhaust Valve (Std.)

$23.99

$

In Stock, only 1 left!

0

125

Cub Cadet TC-27880A

Exhaust Valve (1/32" OS)

$

$

Not available

126

Cub Cadet TC-34035

Intake Valve

$15.99

$

In Stock, only 1 left!

0

127

Cub Cadet TC-650691

Washer

$1.99

$

Usually ships in 3-12 days

0

128

Cub Cadet TC-650690

Belleville Washer
(Superseded to TC-730324)

$9.99

$

In Stock, only 1 left!

0

130

Cub Cadet TC-6021A

Screw (5/16-18x1-1/2")

$1.99

$

In Stock, only 3 left!

0

130A

Cub Cadet TC-650727

Screw (5/16-18x1-25/32")

$3.99

$

In Stock, only 1 left!

0

135

Cub Cadet 759-3338

Spark Plug

$3.49

$

In Stock, Qty 20+

0

139

Cub Cadet TC-33369

Governor Gear bracket

$8.49

$

In Stock, only 1 left!

0

140

Cub Cadet TC-650836

Screw (10-24x1/2")

$

$

Not available

149

Cub Cadet TC-27882

Valve Spring Cap

$1.99

$

In Stock, only 4 left!

0

149A

Cub Cadet TC-35862

Valve Spring Cap

$9.49

$

In Stock, only 1 left!

0

150

Cub Cadet TC-27881

Valve Spring

$3.99

$

In Stock, only 2 left!

0

151

Cub Cadet TC-32581

Valve Spring Keeper

$6.49

$

In Stock, Qty 10

0

169

Cub Cadet TC-27896A

Valve Cover Gasket

$1.49

$

In Stock, Qty 16

0

170

Cub Cadet TC-28423

Breather Body

$13.99

$

In Stock, only 1 left!

0

171

Cub Cadet TC-28424

Breather Element

$3.99

$

In Stock, Qty 7

0

172

Cub Cadet TC-28425

Valve Cover

$7.49

$

In Stock, only 1 left!

0

173

Cub Cadet TC-35350

Breather Tube

$6.49

$

In Stock, only 1 left!

0

174

Cub Cadet TC-650128

Screw (10-24x1/2")

$5.49

$

In Stock, only 2 left!

0

178

Cub Cadet TC-29752

Nut & Lock Washer (1/4-28)

$1.99

$

In Stock, Qty 5

0

182

Cub Cadet TC-30088A

Screw (1/4-20x1")

$1.99

$

Usually ships in 3-12 days

0

183

Cub Cadet TC-34587A

Choke Bracket

$9.49

$

Usually ships in 3-12 days

0

184

Cub Cadet TC-33263

Carb Intake Pipe Gasket

$1.49

$

In Stock, Qty 20+

0

185

Cub Cadet TC-33877

Intake Pipe

$48.99

$

Usually ships in 3-12 days

0

186

Cub Cadet TC-34667

Governor Link

$1.99

$

Usually ships in 3-12 days

0

186B

Cub Cadet TC-36652

Choke Spring

$7.49

$

In Stock, Qty 5

0

200

Cub Cadet TC-34677

Control Bracket

$54.99

$

In Stock, only 1 left!

0

203

Cub Cadet TC-31342

Compression Spring

$5.99

$

In Stock, only 1 left!

0

204

Cub Cadet TC-651029

Screw (T-10)

$1.99

$

In Stock, only 2 left!

0

206

Cub Cadet TC-610973

Terminal

$3.99

$

In Stock, only 1 left!

0

207

Cub Cadet TC-33878

Throttle Link

$6.99

$

In Stock, only 1 left!

0

209

Cub Cadet TC-650821

Screw (10-32x1/2")

$1.99

$

Usually ships in 3-12 days

0

215

Cub Cadet TC-35440

Control Knob

$3.99

$

In Stock, only 1 left!

0

219

Cub Cadet TC-34586

Choke Rod

$5.49

$

Usually ships in 3-12 days

0

220

Cub Cadet TC-35438

Choke Knob

$3.99

$

In Stock, only 1 left!

0

222

Cub Cadet TC-28820

Screw (10-32x1/2")
(Superseded to TC-651081)

$4.49

$

Usually ships in 3-12 days

0

223

Cub Cadet TC-650378

Screw (T-30)

$1.99

$

In Stock, only 3 left!

0

224

Cub Cadet TC-27915A

Intake Pipe Gasket

$5.99

$

In Stock, Qty 20+

0

260

Cub Cadet TC-35447A

Blower Housing
(Superseded to TC-37961)

$

$

Not available

261

Cub Cadet TC-650788

Screw (5/16-18x3/4")

$1.99

$

In Stock, only 1 left!

0

262

Cub Cadet TC-651084

Screw (5/16-18x9/16")

$1.99

$

Usually ships in 3-12 days

0

264A

Cub Cadet TC-650802

Screw (1/4-20x5/8"

$1.99

$

In Stock, Qty 5

0

265

Cub Cadet TC-33272D

Cylinder Head Cover

$7.49

$

Usually ships in 3-12 days

0

275

Cub Cadet TC-35056

Muffler

$62.99

$

In Stock, only 2 left!

0

276

Cub Cadet TC-31588

Locking Plate

$4.99

$

In Stock, Qty 20+

0

277

Cub Cadet TC-651002

Screw (5/16-18x4-3/16")

$4.49

$

In Stock, Qty 12

0

285

Cub Cadet TC-35985C

Starter Cup

$13.99

$

In Stock, only 1 left!

0

287

Cub Cadet TC-29752

Nut & Lock Washer (1/4-28)

$1.99

$

In Stock, Qty 5

0

291

Cub Cadet TC-30962

Fuel Line

$30.99

$

In Stock, Qty 6

0

292

Cub Cadet TC-26460

Fuel Line Clamp

$1.49

$

In Stock, Qty 10

0

298

Cub Cadet TC-650665

Screw (1/4-15x3/4")

$1.99

$

Usually ships in 3-12 days

0

300

Cub Cadet TC-34186A

Fuel Tank

$53.99

$

In Stock, only 1 left!

0

301

Cub Cadet TC-37845

Fuel Cap

$8.99

$

In Stock, Qty 11

0

305

Cub Cadet TC-35554

Oil Fill Tube

$19.99

$

In Stock, only 1 left!

0

307

Cub Cadet TC-35499

O-Ring

$1.49

$

In Stock, only 3 left!

0

308

Cub Cadet TC-35540

Fill Tube Clip

$1.99

$

In Stock, only 2 left!

0

310

Cub Cadet TC-36205

Dipstick

$10.99

$

Usually ships in 3-12 days

0

314

Cub Cadet TC-650873

Screw (1/4-20x3/4")

$1.99

$

Usually ships in 3-12 days

0

315

Cub Cadet TC-611104

Alternator Coil

$146.99

$

Usually ships in 3-12 days

0

321

Cub Cadet TC-611161

Diode

$17.99

$

Usually ships in 3-12 days

0

322

Cub Cadet TC-611142

Connector Body

$3.99

$

Usually ships in 3-12 days

0

323

Cub Cadet TC-611118

Terminal

$1.99

$

Usually ships in 3-12 days

0

325

Cub Cadet TC-29443

Wire Clip

$1.99

$

In Stock, Qty 5

0

328

Cub Cadet TC-35062

Ignition Keys

$3.99

$

In Stock, only 2 left!

0

329

Cub Cadet TC-610973

Terminal

$3.99

$

In Stock, only 1 left!

0

335

Cub Cadet TC-36547

Carburetor Cover
(Superseded to TC-36547A)

$70.99

$

In Stock, only 1 left!

0

336

Cub Cadet TC-650765

Screw (10-32x1/2")

$1.49

$

In Stock, only 1 left!

0

338

Cub Cadet TC-28942

Screw (10-32x3/8")

$1.49

$

In Stock, only 1 left!

0

340

Cub Cadet TC-34154

Fuel Tank Bracket

$

$

Not available

341

Cub Cadet TC-34155

Fuel Tank Bracket

$

$

Not available

342

Cub Cadet TC-650561

Screw (1/4-20x19/32")

$1.99

$

In Stock, only 2 left!

0

343

Cub Cadet TC-35079A

Key Switch Bracket

$16.99

$

Usually ships in 3-12 days

0

343A

Cub Cadet TC-651060

Screw (10-32x23/64")

$1.99

$

Usually ships in 3-12 days

0

350

Cub Cadet TC-570682A

Primer Assy.

$10.99

$

In Stock, Qty 7

0

351

Cub Cadet TC-32180C

Primer Line

$6.99

$

In Stock, Qty 9

0

355

Cub Cadet TC-590574

Starter Handle

$5.49

$

In Stock, only 1 left!

0

361

Cub Cadet TC-650990

Screw (T-30)

$3.99

$

In Stock, only 4 left!

0

364

Cub Cadet TC-37659

Carburetor Cover Bracket

$

$

Not available

365

Cub Cadet TC-650767

Screw (8-32x27/64")

$1.49

$

Usually ships in 3-12 days

0

370B

Cub Cadet TC-35077

Instruction Decal

$

$

Not available

370C

Cub Cadet TC-36501

Primer Decal

$2.49

$

In Stock, only 2 left!

0

370D

Cub Cadet TC-36534

Warning Decal

$

$

Not available

370K

Cub Cadet TC-36695

Starter Decal

$2.49

$

In Stock, only 2 left!

0

370R

Cub Cadet TC-37119

Warning Decal

$2.49

$

Usually ships in 3-12 days

0

380

Cub Cadet TC-640349

Carburetor

$109.99

$

Usually ships in 3-12 days

0

390

Cub Cadet TC-590749

Recoil Starter Assy.
(Superseded to TC-590789)

$87.99

$

In Stock, only 1 left!

0

396

Cub Cadet TC-33329E

Electric Starter Motor
(Superseded to TC-33329H)

$

$

Not available

400

Cub Cadet TC-36452B

Gasket Set

$21.99

$

In Stock, only 2 left!

0
