928 SWE (31AH9M7G710) - Cub Cadet 28" Snow Thrower (2005-2) Drive Assembly Parts Diagram

28" Snow Thrower

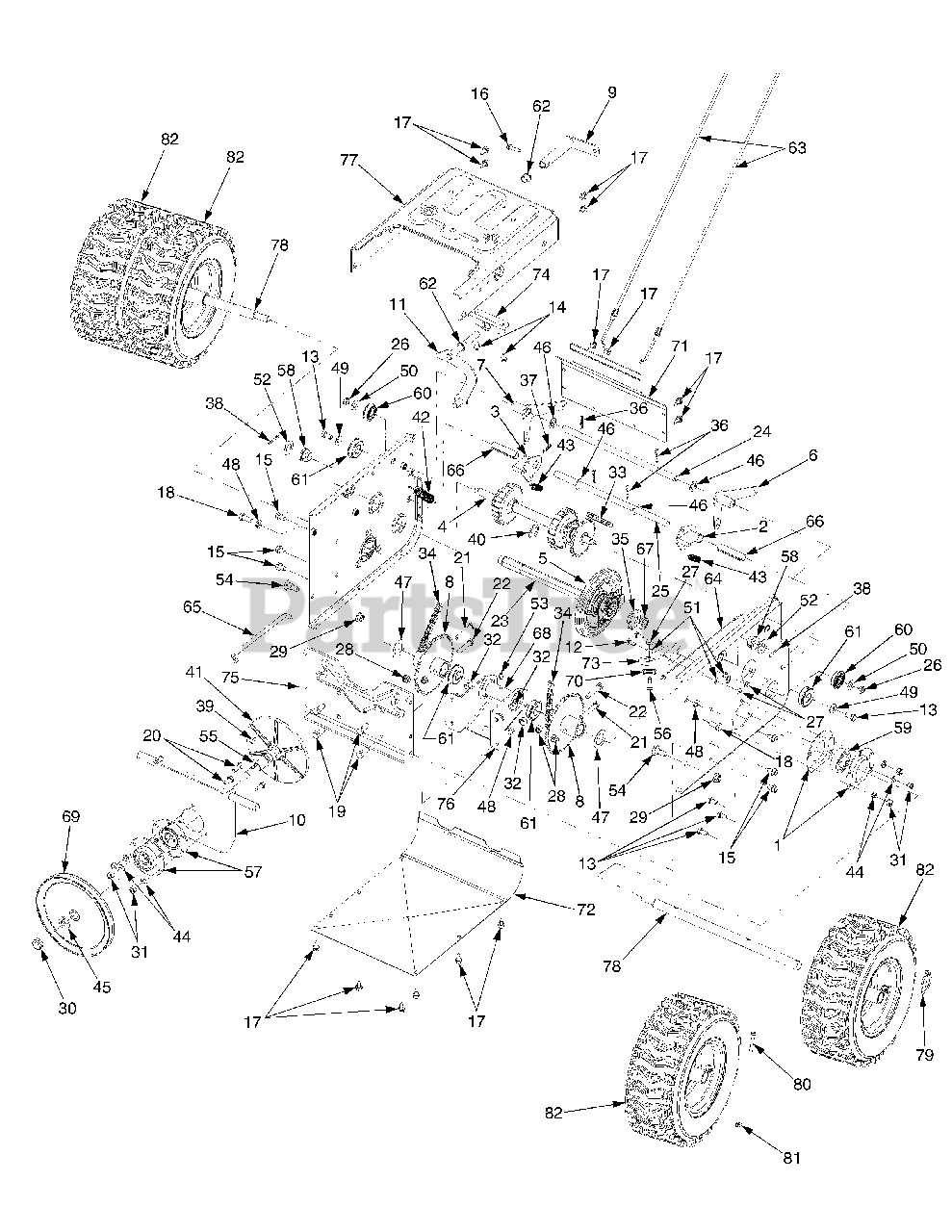

Drive Assembly Parts Diagram

  • Title

1

Cub Cadet 05244A

Housing, Bearing
(Superseded to 05244B)

$23.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 618-0279

Dogg, Steering Drive, LH
(Superseded to 918-0279A)

$42.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 618-0280

Dogg, Steering Drive, RH
(Superseded to 918-0280A)

$42.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 618-0282D

Shaft Assembly, Steering
(Superseded to 918-0282E)

$559.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 618-04178

Assembly, Friction Wheel
(Superseded to 918-07239)

$165.99

$

In Stock, Qty 6

0

5

Cub Cadet 718-04034

Wheel, Friction

$

$

Not available

5

Cub Cadet 710-1652

Screw, Hex Wash Hd Tapp

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 684-0118

Bracket, Auger Actuator
(Superseded to 684-0118B-0637)

$

$

Not available

7

Cub Cadet 684-0119

Bracket, Drive Actuator
(Superseded to 684-0119B-0637)

Variations

Cub Cadet 684-0119-0637

USE 684-0119B-0637 BRACKET AU - POWDER BLACK (0637)

$

$

Not available

$

$

8

Cub Cadet 684-0122

Sprocket, 32T

$238.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 684-0161

Arm, Shift
(Superseded to 684-0161-0637)

Variations

Cub Cadet 684-0161-0637

ARM ASM-SHIFT - POWDER BLACK (0637)

$70.99

$

Usually ships in 3-6 days

0

$70.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 684-0162

Bracket, Friction Drive Support

$

$

Not available

11

Cub Cadet 684-04103

Rod Assembly, Shift
(Superseded to 984-04103)

$74.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-0195

Screw, Hex Cap, 1/4-28 x .625 GR5
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

13

Cub Cadet 710-0538

Screw, Hex Cap Lock, 5/16-18 x .625 GR5

$4.49

$

In Stock, Qty 7

0

14

Cub Cadet 710-0599

Screw, Hex Wash. Hd. Tapp 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 710-0604A

Screw, Hex Wash. Hd. Tapp 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 710-0788

Screw, Hex Wash. Hd. Tapp 1/4-20 x 1.0

$7.49

$

In Stock, only 2 left!

0

17

Cub Cadet 710-1652

Screw, Hex Wash. Hd. Tapp 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 710-1879

Screw, Hex Patch Lock, 3/8-16 x .88 GR5

$6.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 710-3001

Screw, Hex Cap, 3/8-16 x .88 GR5

$7.49

$

In Stock, Qty 9

0

20

Cub Cadet 710-3008

Screw, Hex Cap, 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 710-3103

Screw, Hex Cap, 5/16-18 x 2.0 GR5

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 710-3180

Screw, Hx Cap, 5/16-18 x 1.75 GR5

$5.49

$

In Stock, Qty 20+

0

23

Cub Cadet 711-04279

Shaft, Hex Drive
(Superseded to 911-04279)

$

$

Not available

24

Cub Cadet 711-1193

Shaft, Actuator

$

$

Not available

25

Cub Cadet 711-1194

Shaft, Steering Actuator

$

$

Not available

26

Cub Cadet 712-0116

Nut, Hex Insert Jam Lock, 3/8-24 GR5

$4.99

$

In Stock, Qty 6

0

27

Cub Cadet 712-0138

Nut, Hex, 1/4-28 GR5

$6.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 712-04063

Nut, Hx Flnge Insert Lk, 5/16-18 GrF

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet 712-04065

Nut, Hx Flnge Insert Lk, 3/8-16 GrF

$3.99

$

In Stock, Qty 20+

0

30

Cub Cadet 712-0413

Nut, Hx Insert Jam Lk, 5/8-18 GR5

$6.49

$

In Stock, only 1 left!

0

31

Cub Cadet 712-3010

Nut, Hex, 5/16-18 GR5

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 712-3017

Nut, Hex, 3/8-16 GR5

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 713-0284

Chain, Endless, #41 x 36L

$24.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 713-0286

Chain, #420 x 40L

$66.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 713-04015

Sprocket, #41 x 10T
(Superseded to 913-04015)

$12.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 714-0101

Pin, Internal Cotter

$4.99

$

In Stock, only 1 left!

0

37

Cub Cadet 714-0104

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

38

Cub Cadet 714-0115

Pin, Cotter, 1/8 x 1.0

$3.99

$

In Stock, only 2 left!

0

39

Cub Cadet 714-0388

Key, Hi-Pro, 3/16 x 5/8
(Superseded to 914-0388)

$7.99

$

In Stock, Qty 20+

0

40

Cub Cadet 716-0136

Ring, Retaining

$8.99

$

In Stock, Qty 18

0

41

Cub Cadet 717-0302

Plate, Drive
(Superseded to 917-0302)

$82.99

$

In Stock, only 1 left!

0

42

Cub Cadet 732-0121

Spring, Extension
(Superseded to 932-0121)

$14.99

$

In Stock, only 1 left!

0

43

Cub Cadet 732-0209

Spring, Extension
(Superseded to 932-0209)

$7.99

$

In Stock, only 2 left!

0

44

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

45

Cub Cadet 736-0158

Washer, Lock, 5/8

$4.49

$

In Stock, Qty 11

0

46

Cub Cadet 736-0160

Washer, Flat, .53 x .93 x .05

$4.49

$

In Stock, only 2 left!

0

47

Cub Cadet 736-0163

Washer, Flat, Hdn, 1.03 x 1.62 x .03

$4.49

$

In Stock, Qty 20+

0

48

Cub Cadet 736-0217

Washer, Lock, 3/8

$4.49

$

In Stock, Qty 6

0

49

Cub Cadet 736-0242

Washer, Belleville, .34 x .872 x .06

$4.49

$

In Stock, Qty 20+

0

50

Cub Cadet 736-0300

Washer, Flat, .406 x .875 x .059 .

$4.49

$

In Stock, Qty 20+

0

51

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

52

Cub Cadet 736-0623

Washer, Flat, .64 x 1.24 x .06
(Superseded to 736-0187)

$4.49

$

In Stock, Qty 20+

0

53

Cub Cadet 737-3000

Fitting, Lube, 3/16 Drive
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

54

Cub Cadet 738-0143

Screw, Shoulder, .498 x .34:3/8-16

$4.49

$

In Stock, Qty 20+

0

55

Cub Cadet 738-0279

Spindle, Drive Plate

$57.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 738-0924

Screw, Hex Shoulder, 1/4-28:.375
(Superseded to 738-0924A)

$6.99

$

In Stock, Qty 5

0

57

Cub Cadet 741-0163A

Assembly, Bearing/Housing

$48.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 741-0225

Bearing, Hex Flange
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 19

0

59

Cub Cadet 741-04025

Bearing, Self Aligning
(Superseded to 941-04025)

$36.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 741-04076

Bearing, Ball

$14.99

$

In Stock, Qty 16

0

61

Cub Cadet 741-0563

Bearing, Ball
(Superseded to 941-0563)

$36.99

$

In Stock, Qty 7

0

62

Cub Cadet 741-0748

Bushing, Flange, .5 ID x .627 OD

$11.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 746-0949A

Cable, Steering

$52.99

$

Usually ships in 3-6 days

0

64

Cub Cadet 746-0951

Cable, Auger Idler
(Superseded to 946-0951A)

$45.99

$

In Stock, only 3 left!

0

65

Cub Cadet 747-0973

Rod, Drive Clutch

$48.99

$

Usually ships in 3-6 days

0

66

Cub Cadet 750-0903

Spacer, Split, .514 x .632 x 2.44 .
(Superseded to 750-0903B)

$10.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 750-0997

Spacer, .675 x 1.0 x .23
(Superseded to 950-0997)

$6.99

$

In Stock, only 4 left!

0

68

Cub Cadet 750-1302A

Spacer, .6725 x 1.125 x 2.485
(Superseded to 750-1302B)

$47.99

$

Usually ships in 3-6 days

0

69

Cub Cadet 756-0344

Pulley, Drive

$81.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 756-0625

Roller, Cable

$9.49

$

In Stock, Qty 14

0

71

Cub Cadet 784-0379

Cover, Upper Frame

Variations

Cub Cadet 784-0379-0498

USE 790-00257-0716 COVER:UPPE - OLD CUB YELLOW (0498)

$15.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-0379-0638

USE 790-00257-0638 COVER:UPPE - MTD/TROY-BILT RED (0638)

$12.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-0379-0716

USE 790-00257-0716 COVER:UPPE - CUB YELLOW-99 (0716)

$15.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-0379-0650

USE 790-00257-0650 COVER:UPPE - RED METALLIC (0650)

$

$

Not available

Cub Cadet 784-0379-0662

UPPER FRAME COVER - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 784-0379-0665

UPPER FRAME COVER - YARDMAN GREEN (0665)

$

$

Not available

$13.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 784-0380

Cover, Lower Frame

Variations

Cub Cadet 784-0380-0498

USE 784-0380-0637 COVER-LOWER - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 784-0380-0637

COVER-LOWER FRAME - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 784-0380-0638

USE 784-0380-0637 COVER-LOWER - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 784-0380-0650

USE 784-0380-0637 COVER-LOWER - RED METALLIC (0650)

$

$

Not available

Cub Cadet 784-0380-0662

USE 784-0380-0637 COVER-LOWER - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 784-0380-0665

USE 784-0380-0637 COVER-LOWER - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 784-0380-0716

USE 784-0380-0637 COVER-LOWER - CUB YELLOW-99 (0716)

$

$

Not available

$

$

73

Cub Cadet 784-0384

Bracket, Auger Cable Guide
(Superseded to 784-0384-0637)

Variations

Cub Cadet 784-0384-0637

GUIDE-AUGER CABLE - POWDER BLACK (0637)

$

$

Not available

$

$

74

Cub Cadet 784-0403

Bracket, Shift Shaft
(Superseded to 784-0403-0637)

Variations

Cub Cadet 784-0403-0637

Shift Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

75

Cub Cadet 784-0406

Bracket, Frame Support
(Superseded to 784-0406A-0637)

Variations

Cub Cadet 784-0406-0637

USE 784-0406A-0637 BRACKET-SU - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

$37.99

$

Usually ships in 3-6 days

0

76

Cub Cadet 784-0407

Bracket, Axle Support
(Superseded to 784-0407-0637)

Variations

Cub Cadet 784-0407-0637

BRACKET-SUPPORT AXLE - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

$37.99

$

Usually ships in 3-6 days

0

77

Cub Cadet 790-00162

Frame, Transmission

Variations

Cub Cadet 790-00162-0662

FRAME:TRANS:900 - OYSTER GRAY

$

$

Not available

Cub Cadet 790-00162-0665

FRAME:TRANS:900 - YARDMAN GREEN

$

$

Not available

Cub Cadet 790-00162-0709

FRAME:TRANS:900 - MASTERCRAFT GREEN

$

$

Not available

$

$

78

Cub Cadet 738-1165A

Axle, Wheel 28" S.T.
(Superseded to 711-04608A)

$110.99

$

In Stock, only 1 left!

0

Cub Cadet 738-1164A

Axle, Wheel 33" S.T.

$74.99

$

Usually ships in 3-6 days

0

Cub Cadet 738-1166A

Axle, Wheel 45" S.T.

$160.99

$

Usually ships in 3-6 days

0

79

Cub Cadet 714-0151A

Pin, Klik

$41.99

$

Usually ships in 3-6 days

0

80

Cub Cadet 710-3103

Screw, Hex Cap, 45" S.T. ONLY 5/16-18 x 2.0 GR5

$4.49

$

In Stock, Qty 20+

0

81

Cub Cadet 712-04063

Nut, Hx Flnge Insert Lk, 45" S.T. ONLY 5/16-18 GrF

$3.99

$

In Stock, Qty 20+

0

82

Cub Cadet 634-04179

Wheel Assembly - 16 x 4.8 x 8 X-Trac - LH 28" S.T. - 928 SWE

Variations

Cub Cadet 634-04179-0911

WHEEL ASSEMBLY (4.8 x 8 x 16) (LH)(OYSTER-CARLISLE) - Carlisle Gray (0911)

$

$

Not available

$

$

82

Cub Cadet 634-04180

Wheel Assembly - 16 x 4.8 x 8 X-Trac - RH 28" S.T. - 928 SWE

Variations

Cub Cadet 634-04180-0911

WHEEL ASM COMPLETE - Carlisle Gray (0911)

$

$

Not available

Cub Cadet 634-04180-0931

WHEEL ASSEMBLY (4.8 x 8 x 16) (RH)(BEIGE-CARLISLE) - Carlisle Beige (0931)

$

$

Not available

$

$

82

Cub Cadet 634-0225

Wheel Assembly - 16 x 6.5 x 8 X-Trac - LH 33" S.T. - 933 SWE
(Superseded to 634-0225A)

$254.99

$

Usually ships in 3-6 days

0

82

Cub Cadet 634-0226

Wheel Assembly - 16 x 6.5 x 8 X-Trac - RH 33" S.T. - 933 SWE
(Superseded to 634-0226A)

Variations

Cub Cadet 634-0226-0911

USE 634-0226A-0911 WHEEL ASM- - Carlisle Gray (0911)

$308.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-0226-0931

USE 634-0226A-0931 WHEEL ASM- - Carlisle Beige (0931)

$233.99

$

Usually ships in 3-6 days

0

$250.99

$

Usually ships in 3-6 days

0

82

Cub Cadet 634-0225

Wheel Assembly - (2) 16 x 6.5 x 8 X-Trac - RH 33" S.T. - 945 SWE
(Superseded to 634-0225A)

$254.99

$

Usually ships in 3-6 days

0

82

Cub Cadet 634-0226

Wheel Assembly - (2) 16 x 6.5 x 8 X-Trac - RH 33" S.T. - 945 SWE
(Superseded to 634-0226A)

Variations

Cub Cadet 634-0226-0911

USE 634-0226A-0911 WHEEL ASM- - Carlisle Gray (0911)

$308.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-0226-0931

USE 634-0226A-0931 WHEEL ASM- - Carlisle Beige (0931)

$233.99

$

Usually ships in 3-6 days

0

$250.99

$

Usually ships in 3-6 days

0

82

Cub Cadet 734-2038

Tire - 16 x 4.8 x 8 X-Trac - RH 28" S.T. - 928 SWE
(Superseded to 734-2038-0901)

Variations

Cub Cadet 734-2038-0901

TIRE-16X4.8X8XTRAC - Carlisle (0901)

$96.99

$

Usually ships in 3-6 days

0

$96.99

$

Usually ships in 3-6 days

0

82

Cub Cadet 734-2031

Tire - 16 x 6.5 x 8 X-Trac - LH 33" S.T. - 933 SWE & 945 SWE

$166.99

$

Usually ships in 3-6 days

0

82

Cub Cadet 734-1532

Rim - 16 x 4.8 x 8 X-Trac - RH 28" S.T. - 928 SWE

$

$

Not available

82

Cub Cadet 734-1124

Rim - 16 x 6.5 x 8 X-Trac - LH 33" S.T. - 933 SWE & 945 SWE
(Superseded to 734-1124A)

Variations

Cub Cadet 734-1124-0499

RIM-WHEEL 8" - CUB BEIGE (0499)

$132.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1124-0662

USE 734-1124A-0662 RIM ASM-WH - OYSTER GRAY (0662)

$132.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1124-0674

USE 734-1124A-0674 RIM ASM-WH - YARDMAN YELLOW (0674)

$115.99

$

Usually ships in 3-6 days

0

$115.99

$

Usually ships in 3-6 days

0

82

Cub Cadet 734-0255

Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

82

Cub Cadet 741-0246A

Bearing

$14.99

$

Usually ships in 3-6 days

0
