928 SWE (31AH9M7G710) - Cub Cadet 28" Snow Thrower (2005-2) Chute & Control Parts Diagram

28" Snow Thrower

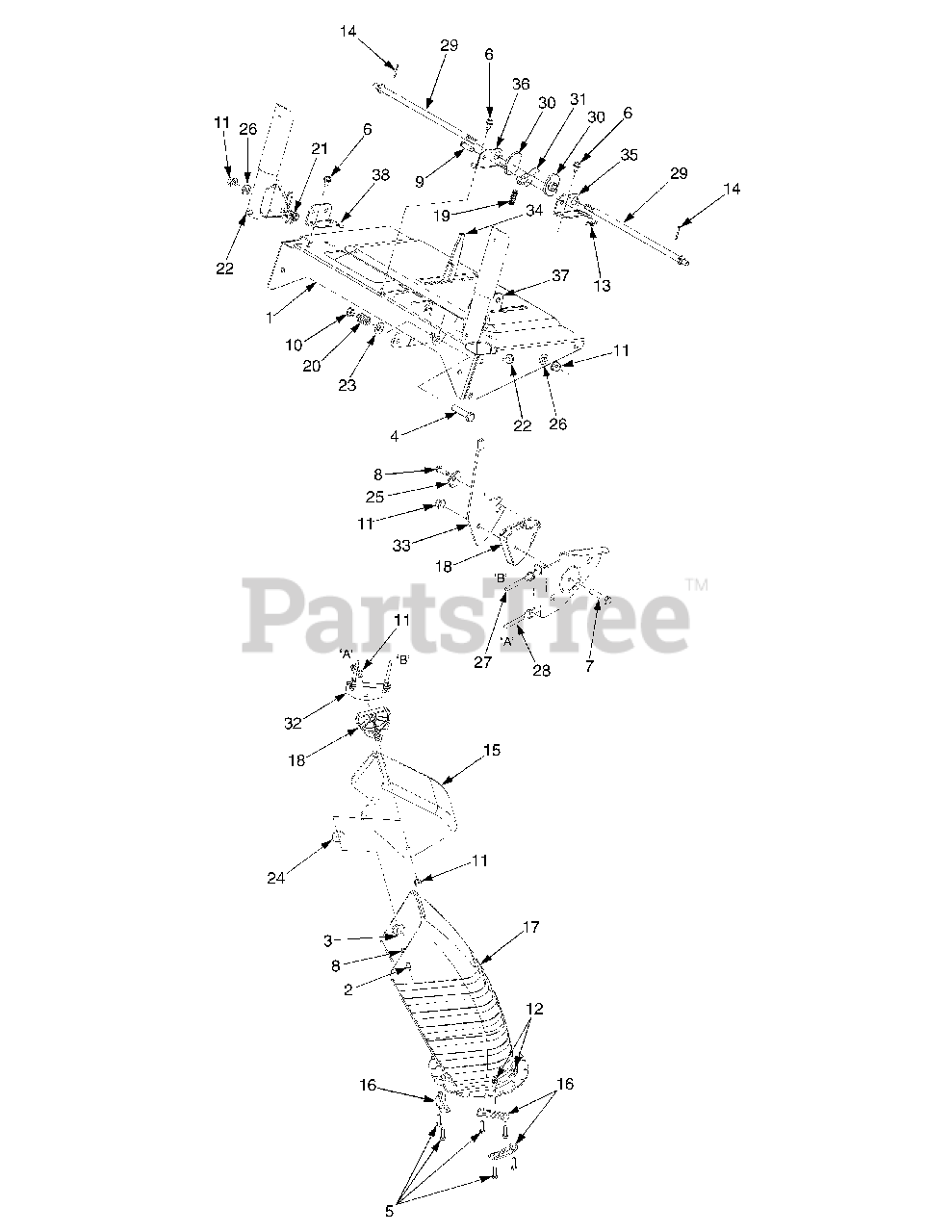

Chute & Control Parts Diagram

  • Title

1

Cub Cadet 684-0102

Panel, Handle
(Superseded to 684-0102A)

Variations

Cub Cadet 684-0102-0498

USE 684-0102A-0498 PANEL ASM: - OLD CUB YELLOW (0498)

$153.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0102-0638

USE 684-0102A-0638 PANEL ASM: - MTD/TROY-BILT RED (0638)

$143.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0102-0650

USE 684-0102A-0650 PANEL ASM: - RED METALLIC (0650)

$124.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0102-0662

USE 684-0102A-0662 PANEL ASM: - OYSTER GRAY (0662)

$143.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0102-0665

USE 684-0102A-0665 PANEL ASM: - YARDMAN GREEN (0665)

$143.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0102-0689

USE 684-0102A-0689 PANEL ASM: - POLO GREEN (0689)

$124.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0102-0716

USE 684-0102A-0716 PANEL ASM: - CUB YELLOW-99 (0716)

$153.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0102-0721

USE 684-0102A-4044 PANEL ASM: - SEARS RED (0721)

$133.99

$

Usually ships in 3-6 days

0

$133.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-0276

Screw, Carriage, 5/16-18 x 1.0

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0458

Screw, Carriage, 5/16-18 x 1.75

$4.49

$

In Stock, only 4 left!

0

4

Cub Cadet 710-0459A

Screw, Hex Cap, 3/8-24 x 1.5 GR5

$6.99

$

In Stock, Qty 8

0

5

Cub Cadet 710-0597

Screw, Hex Cap, 1/4-20 x 1.0 GR5

$3.99

$

In Stock, Qty 13

0

6

Cub Cadet 710-0599

Screw, Hx Wash Hd Tapp 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0805

Screw, Hex Cap, 5/16-18 x 1.5 GR5
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0895

Screw, Hx Wash Hd Tapp 1/4-15 x .75

$6.49

$

In Stock, Qty 10

0

9

Cub Cadet 711-0653

Pin, Clevis, .312 x 1.0

$3.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 712-0116

Nut, Insert Jam Lk, 3/8-24 GR5

$4.99

$

In Stock, Qty 6

0

11

Cub Cadet 712-04063

Nut, Hx Insert Flnge Lk, 5/16-18 GrF

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-04064

Nut, Hx Insert Flnge Lk, 1/4-20 GrF

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 714-0104

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 714-0507

Pin, Cotter, 3/32 x .75

$4.49

$

In Stock, Qty 12

0

15

Cub Cadet 731-0846C

Chute, Upper, 6.0

$52.99

$

In Stock, only 3 left!

0

16

Cub Cadet 731-0851A

Flange Keeper, Chute

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 731-0903D

Chute, Lower
(Superseded to 731-0903E)

$43.99

$

In Stock, Qty 17

0

18

Cub Cadet 731-1313C

Cable Guide, Chute Tilt

$11.99

$

In Stock, Qty 20+

0

19

Cub Cadet 732-0145

Spring, Compression

$4.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 732-0193

Spring, Compression

$4.99

$

In Stock, Qty 6

0

21

Cub Cadet 732-0746

Spring, Torsion

$4.49

$

In Stock, Qty 13

0

22

Cub Cadet 735-0199A

Bumper, Rubber

$7.99

$

In Stock, only 1 left!

0

23

Cub Cadet 736-0105

Washer, Belleville, .375 x .87 x .063

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 736-0231

Washer, Flat, .344 x 1.125 x .12

$4.99

$

In Stock, Qty 20+

0

25

Cub Cadet 736-0506A

Washer, Special, .286 x 1.25 x .06

$

$

Not available

26

Cub Cadet 736-0509

Washer, Flat, .35 Sq x .72 x .134

$6.99

$

In Stock, only 1 left!

0

27

Cub Cadet 746-0902

Cable, Chute Control, 66"
(Superseded to 946-0902)

$49.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 746-0903

Cable, Chute Control w/Clip, 66"
(Superseded to 946-0903)

$53.99

$

In Stock, only 1 left!

0

29

Cub Cadet 747-0877

Rod, Cam

$22.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 748-0362

Cam, Handle Lock

$7.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 748-0363

Pawl, Handle Lock
(Superseded to 948-0363)

$16.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 784-5594

Bracket, Cable

Variations

Cub Cadet 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$11.99

$

In Stock, only 3 left!

0

Cub Cadet 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$11.99

$

In Stock, only 3 left!

0

Cub Cadet 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$11.99

$

In Stock, only 3 left!

0

$10.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 784-5604

Handle, Chute Tilt
(Superseded to 784-5604A-0637)

Variations

Cub Cadet 784-5604-0637

Chute Handle Bracket - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 784-5619A

Handle, Shift
(Superseded to 753-05395)

Variations

Cub Cadet 784-5619A-0637

USE 753-05395 KIT-SHIFT HANDL - POWDER BLACK (0637)

$

$

Not available

$

$

35

Cub Cadet 784-5679

Bracket, Handle Support, 5/8 LH ...
(Superseded to 784-5679-0637)

Variations

Cub Cadet 784-5679-0637

BRACKET-HANDLE-LH - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 784-5680

Bracket, Handle Support, 5/8 RH ..
(Superseded to 784-5680-0637)

Variations

Cub Cadet 784-5680-0637

BRACKET-HDL SUP-RH - POWDER BLACK (0637)

$12.99

$

Usually ships in 3-6 days

0

$12.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 784-5681

Bracket, Handle Support, 3/8 LH ...

Variations

Cub Cadet 784-5681-0637

USE 784-5681 BRACKET-HANDLE S - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0

38

Cub Cadet 784-5682

Bracket, Handle Support, 3/8 RH ..
(Superseded to 784-5682-0637)

Variations

Cub Cadet 784-5682-0637

Handle Support Bracket - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0
