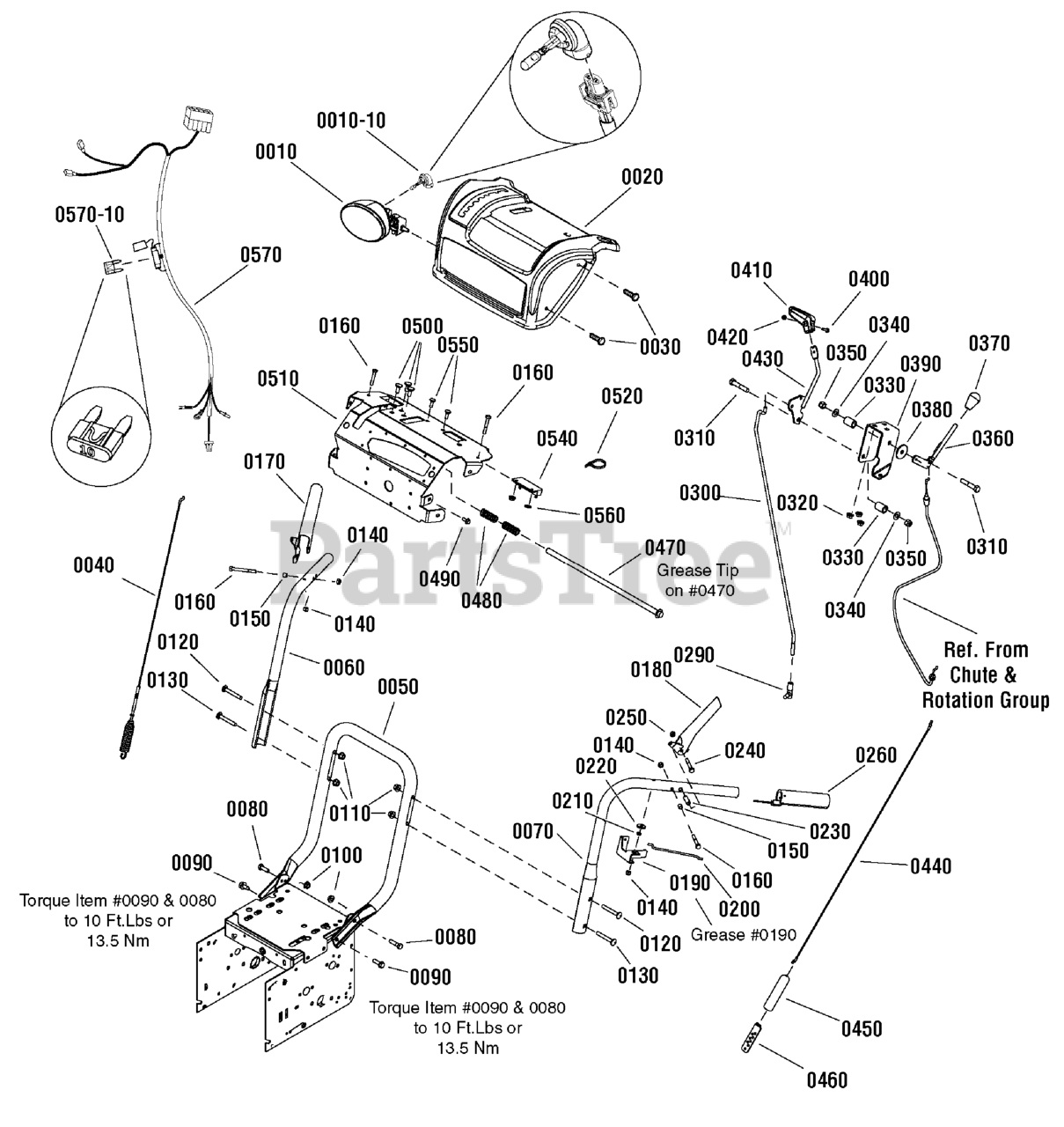

928 E (1695622) - John Deere 28" Snow Thrower (2009) Handles & Controls Group Parts Diagram

28" Snow Thrower

Handles & Controls Group Parts Diagram

  • Title

0010

Murray 1732322SM

HEADLIGHT, Oval, Clear
(Superseded to 1737966YP)

$97.99

$

Usually ships in 2-12 days

0

0010-10

* BULB, Headlight, Halogen, 881-12V 27W

Note: (Included with Ref. No. 0010)

$

$

Not available

0020

Murray 1738110FYP

COVER, Panel

$142.99

$

Usually ships in 2-12 days

0

0030

Murray 1960715SM

SCREW, Truss-Head, 1/4-20 x 3/4
(Superseded to 770135)

$3.99

$

In Stock, Qty 15

0

0040

Murray 1732471SM

CABLE & SPRING ASSEMBLY, Auger Drive, RH

$

$

Not available

0050

Murray 1737759AYP

HANDLE, Lower

$176.99

$

Usually ships in 2-12 days

0

0060

Murray 1734587ASM

HANDLE, Upper, RH

$51.99

$

Usually ships in 2-12 days

0

0070

Murray 1734586ASM

HANDLE, Upper

$55.99

$

In Stock, only 1 left!

0

0080

Murray 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

0090

Murray 1664847SM

CAPSCREW, Hex Washer head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0100

Murray 1935048SM

NUT, Hex Flange, Two Way Locking, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

0110

Murray 1960686SM

NUT, Hex Flange, 5/16-18, ESNA
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0120

Murray 1960273SM

BOLT, Carriage, 5/16-18 x 2-1/4, G5
(Superseded to 704421)

$5.49

$

In Stock, only 1 left!

0

0130

Murray 1931338SM

BOLT, Carriage, 5/16-18 x 1-3/4, G5
(Superseded to 703175)

$3.99

$

In Stock, only 2 left!

0

0140

Murray 1920397SM

NUT, Hex Lock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0150

Murray 1678392SM

SPACER, 1/4 ID x 3/8 OD x 5/16
(Superseded to 703137)

$6.99

$

Usually ships in 2-12 days

0

0160

Murray 1921962SM

CAPSCREW, Hex Head, 1/4-20 x 1-3/4, G5
(Superseded to 703586)

$4.99

$

Usually ships in 2-12 days

0

0170

Murray 1736323YP

LEVER, Clutch, RH

$20.99

$

Usually ships in 2-12 days

0

0180

Murray 1737690YP

LEVER, Clutch, LH

$37.99

$

Usually ships in 2-12 days

0

0190

Murray 1733505BMYP

BRACKET, Pivot, Free Hand

$14.99

$

Usually ships in 2-12 days

0

0200

Murray 1736360YP

ROD, 5-5/8

$11.99

$

Usually ships in 2-12 days

0

0210

Murray 1733095SM

SPACER, 1/4 ID x 3/8 OD x 1/8

$4.49

$

Usually ships in 2-12 days

0

0220

Murray 1960353SM

WASHER, 1/4
(Superseded to 703229)

$4.49

$

In Stock, Qty 7

0

0230

Murray 1736542YP

SPACER, Stepped

$4.49

$

Usually ships in 2-12 days

0

0240

Murray 1922837SM

CAPSCREW, Hex Head, 1/4-20 x 1-1/2, G5
(Superseded to 703234)

$4.49

$

In Stock, only 4 left!

0

0250

Murray 1923358SM

NUT, Hex, Centerlock, 1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

0260

Murray 1723965SM

HAND GRIP, Heated, 1" Dia. x 5-1/4

$86.99

$

Usually ships in 2-12 days

0

0290

Murray 50782MA

BALLJOINT

$21.99

$

In Stock, Qty 6

0

0300

Murray 1734354SM

ROD, 25-3/8
(Superseded to 704085)

$22.99

$

Usually ships in 2-12 days

0

0310

Murray 1923701SM

CAPSCREW, Hex Head, 3/8-16X2.000 G5
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

0320

Murray 1931277SM

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0330

Murray 50786MA

SPRING, 1/2 Dia. x 3/4

$5.49

$

Usually ships in 2-12 days

0

0340

Murray 1918266SM

WASHER, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 19

0

0350

Murray 1919439SM

NUT, Hex Lock, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

0360

Murray 1732427SM

ROD, 3/8 x 5"

$14.99

$

Usually ships in 2-12 days

0

0370

Murray 306689MA

GRIP, Lever, 3/8-16

$14.99

$

Usually ships in 2-12 days

0

0380

Murray 1924356SM

WASHER, 3/8
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

0390

Murray 1737684YP

BRACKET, Controls

$16.99

$

Usually ships in 2-12 days

0

0400

Murray 1960589SM

SCREW, Round Head, Phillips, #10-24 x 3/4

$3.99

$

Usually ships in 2-12 days

0

0410

Murray 1733192SM

KNOB, Slot Speed

$8.49

$

Usually ships in 2-12 days

0

0420

Murray 1933896SM

NUT, Hex NyLock, 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0430

Murray 1736836YP

SPEED LEVER ASSEMBLY
(Superseded to 703047)

$56.99

$

Usually ships in 2-12 days

0

0440

Murray 1502113MA

CABLE, Front Drive

$22.99

$

In Stock, Qty 20+

0

0450

Murray 308146MA

BOOT, Clutch Spring, 4-1/16

$6.49

$

Usually ships in 2-12 days

0

0460

Murray 313441MA

BRACKET, Cable Adjust

$

$

Not available

0470

Murray 1733509SM

ROD & SPRING ASSEMBLY

$81.99

$

Usually ships in 2-12 days

0

0480

Murray 2108360SM

SPRING, Compression, 2-1/4

$5.49

$

In Stock, only 1 left!

0

0490

Murray 1927429SM

CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

0500

Murray 1931333SM

BOLT, Carriage, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

0510

Murray 1732064BMYP

COVER, Dash

$136.99

$

Usually ships in 2-12 days

0

0520

Murray 1704351SM

FASTENER, Panel

$4.99

$

In Stock, only 4 left!

0

0540

Murray 1724037SM

RESISTOR BLOCK, Hand Warmers

$39.99

$

Usually ships in 2-12 days

0

0550

Murray 1931317SM

BOLT, Carriage, 1/4-20 x 3/4, G5
(Superseded to 703101)

$3.99

$

In Stock, only 1 left!

0

0560

Murray 1960685SM

NUT, Hex, KEPS, 1/4-20
(Superseded to 703061)

$3.49

$

In Stock, Qty 11

0

0570

Murray 1737548YP

WIRING HARNESS

$87.99

$

Usually ships in 2-12 days

0

0570-10

** FUSE, Mini, 10 Amp

Note: (Included with Ref. No. 0570)

$

$

Not available
