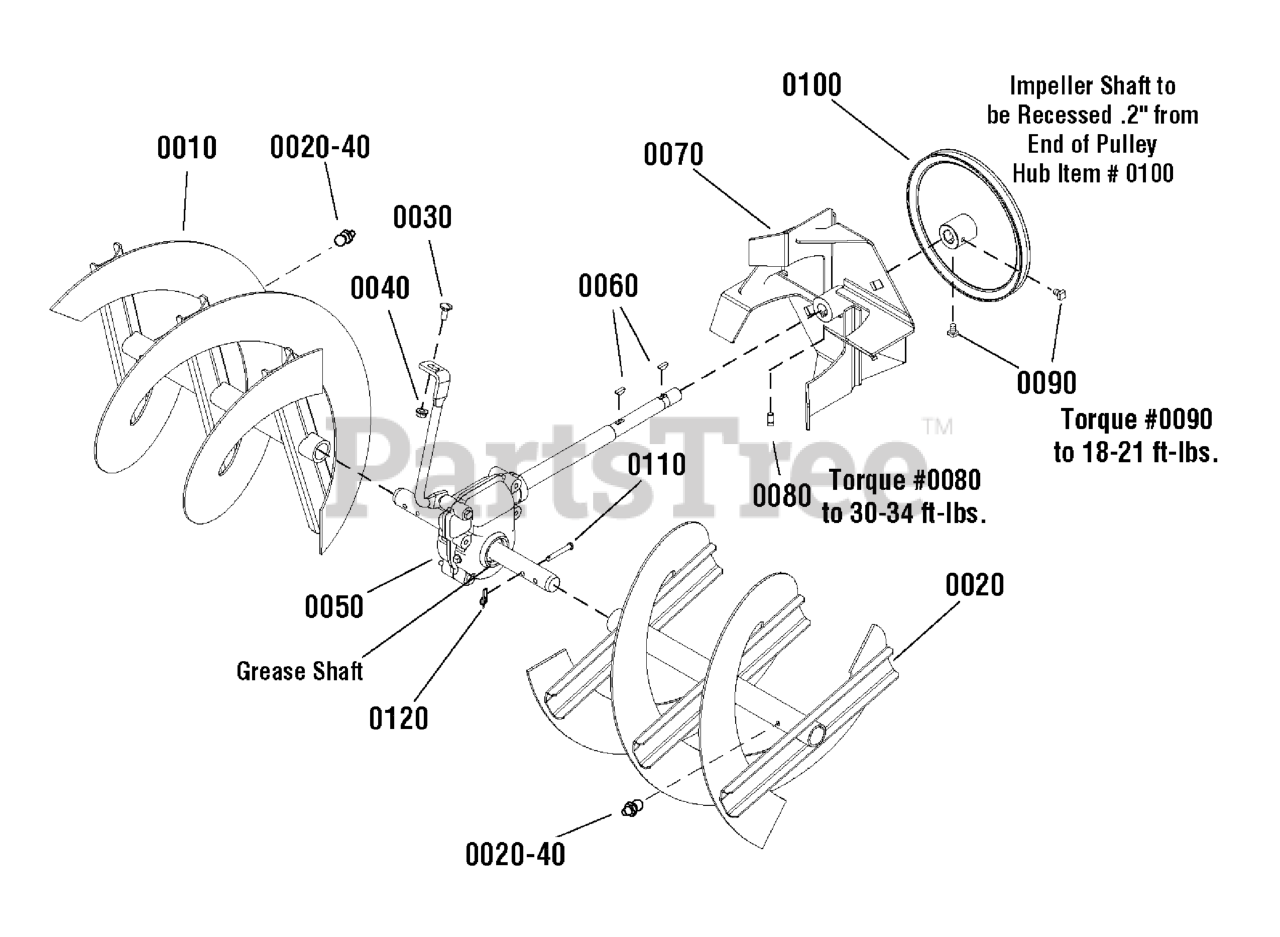

928 E (1695622) - John Deere 28" Snow Thrower (2009) Auger Drive Group Parts Diagram

28" Snow Thrower

Auger Drive Group Parts Diagram

  • Title

0010

Murray 1737078BCYP

AUGER ASSEMBLY, R.H.

$129.99

$

Usually ships in 2-12 days

0

0020

Murray 1737079BCYP

AUGER ASSEMBLY, L.H.

$

$

Not available

0020-40

Murray 2821133SM

FITTING, Lube, 1/4 Drive, No Check Ball
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0030

Murray 1931333SM

BOLT, Carriage, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

0040

Murray 1931277SM

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0050

Murray 1732303SM

GEAR BOX ASSEMBLY

$512.99

$

Usually ships in 2-12 days

0

0060

Murray 2818312SM

KEY, Woodruff, 3/16 x 5/8
(Superseded to 703891)

$4.99

$

In Stock, Qty 18

0

0070

Murray 1612187BCYP

IMPELLER ASSEMBLY
(Superseded to 1612187BMYP)

$201.99

$

In Stock, only 1 left!

0

0080

Murray 1960474SM

SETSCREW, Square Head, 3/8-16 x 1/2, G8

$5.99

$

In Stock, Qty 5

0

0090

Murray 1928721SM

SETSCREW, Square Head, 5/16-18 x 1/2, G8

$4.99

$

In Stock, only 2 left!

0

0100

Murray 1732185SM

PULLEY, 8.4 OD x 3/4 ID
(Superseded to 1752220YP)

$87.99

$

In Stock, only 4 left!

0

0110

Murray 1668344SM

PIN, Shear, 1-3/4
(Superseded to 703063)

$4.49

$

In Stock, Qty 20+

0

0120

Murray 7023590SM

PIN, Cotter, Self Locking, 1/4"

$3.99

$

In Stock, Qty 20+

0

0200

Murray 1738456YP

KIT, Shear Pin
(Superseded to 1686806YP)

Note: (Includes Ref. Nos. 0110 & 0120)

$8.99

$

In Stock, Qty 6

0
