927308 (RM 1332) - Ariens 32" Rear-Engine Rider, 13hp Briggs & Stratton (SN: 000101 & Above) Rear Axle Parts Diagram

32" Rear-Engine Rider, 13hp Briggs & Stratton

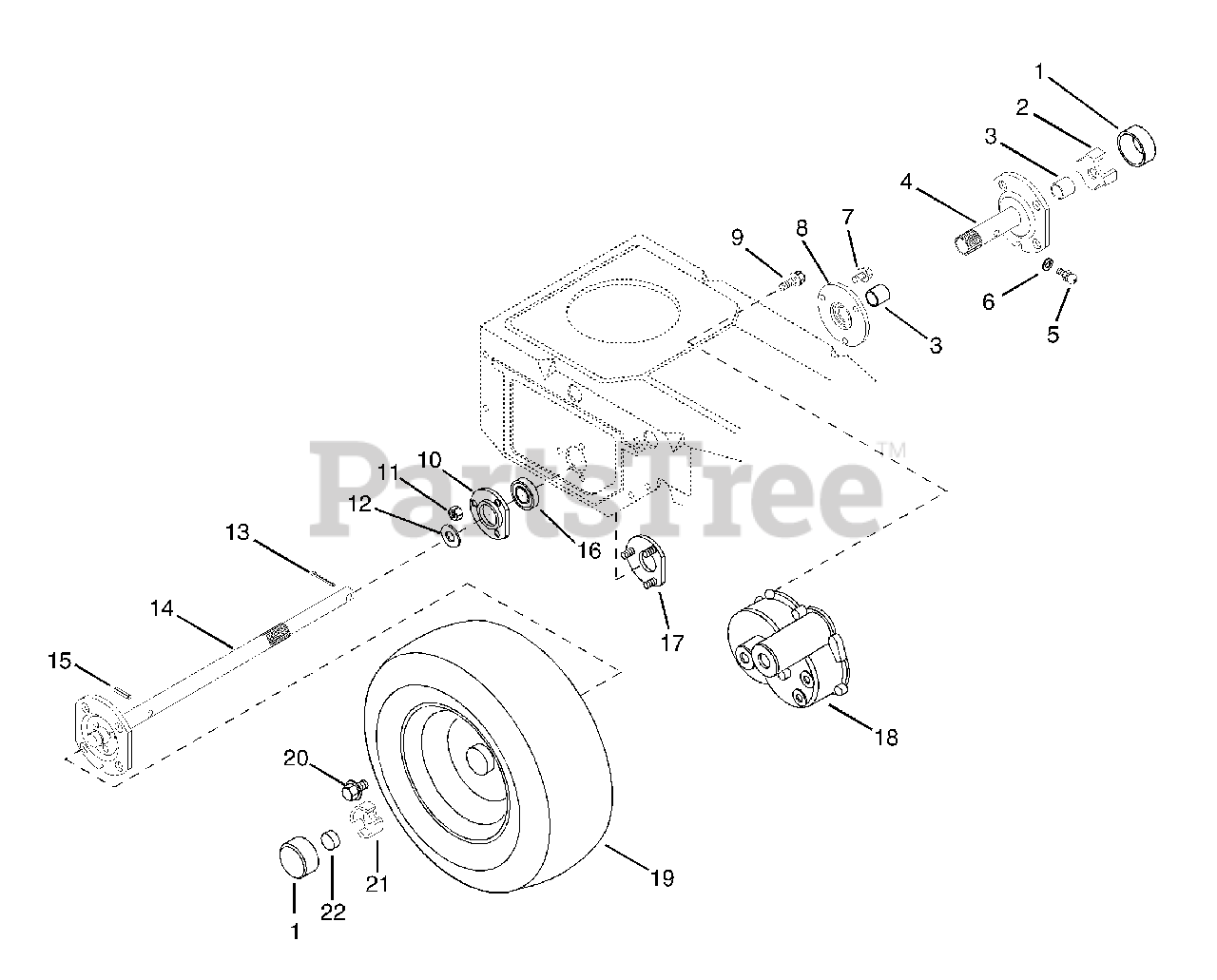

Rear Axle Parts Diagram

  • Title

1

Ariens 00337700

HUB CAP

$2.99

$

In Stock, Qty 20+

0

2

Ariens 03516900

SPINDLE CUP

$19.99

$

In Stock, only 1 left!

0

3

Ariens 05511900

BSHG-SLV .690X.814X1.000 BR

$

$

Not available

4

Ariens 52709200

L.H. AXLE ASSEMBLY

$219.99

$

In Stock, only 1 left!

0

5

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

6

Ariens 06307000

WSHR-LK .250X.047 LT YWZC

$2.49

$

Usually ships in 4-12 days

0

7

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 05607100

SEAL 1.125X2.496X.380

$35.99

$

Usually ships in 4-12 days

0

9

Ariens 07415300

@SCR-TAP .31-18X1.50 HWH TR YZ

$

$

Not available

10

Ariens 01014200

BEARING FLANGE

$5.99

$

In Stock, Qty 20+

0

11

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06403600

WSHR-FL-STL .880X1.380X.062

$6.99

$

Usually ships in 4-12 days

0

13

Ariens 06707100

@PIN-CTR .12X1.00 EXTPRSQCT YZ

$0.99

$

In Stock, Qty 10

0

14

Ariens 02718100

RH AXLE
(Superseded to 02757800)

$232.99

$

Usually ships in 4-12 days

0

15

Ariens 05800300

PIN-ROLL .188X1.25

$0.99

$

In Stock, Qty 20+

0

16

Ariens 05409300

BRG-BALL .876 X 1.750 X .50

$34.99

$

Usually ships in 4-12 days

0

17

Ariens 00301700

BEARING FLANGE

$17.99

$

In Stock, Qty 17

0

18

Ariens 52708600

GEAR CASE ASSEMBLY

Note: (See "Gear Case" illustration and parts list)

$

$

Not available

19

Ariens 07115200

T/WHL ASSY 6.50-8 X 16

$

$

Not available

Ariens 07102100

TIRE 16X6.50-8 2 PLY

$79.99

$

Usually ships in 4-12 days

0

Ariens 07107700

WHL

$82.99

$

Usually ships in 4-12 days

0

20

Ariens 07412200

SCR-TAP .500-20X.62 HH YWZC
(Superseded to 07416900)

$13.99

$

In Stock, only 3 left!

0

21

Ariens 01238200

SPINDLE CUP

$

$

Not available

22

Ariens 01036600

PUSHNUT

$5.99

$

Usually ships in 4-12 days

0
