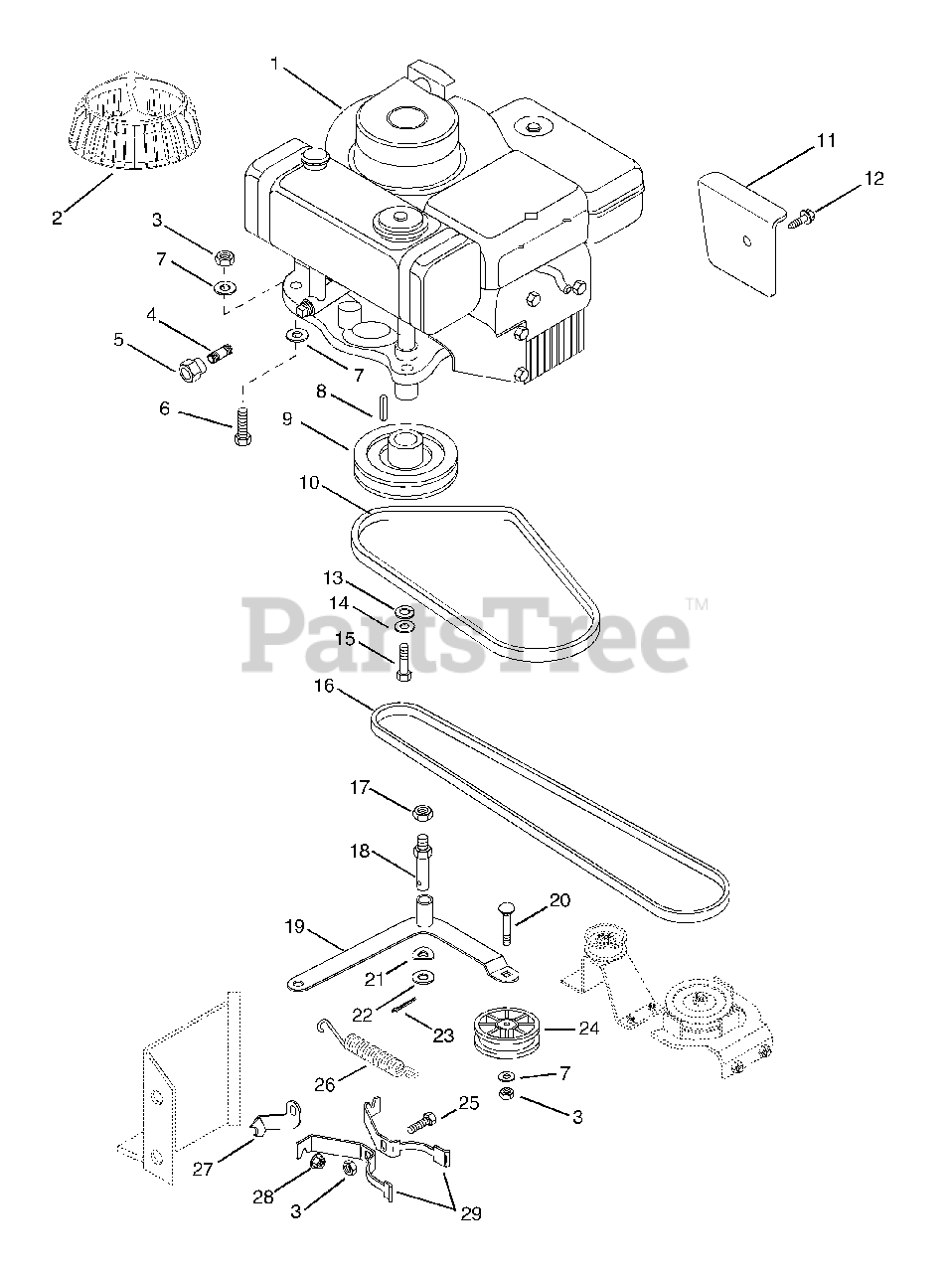

927308 (RM 1332) - Ariens 32" Rear-Engine Rider, 13hp Briggs & Stratton (SN: 000101 & Above) Engine And Belts Parts Diagram

32" Rear-Engine Rider, 13hp Briggs & Stratton

Engine And Belts Parts Diagram

  • Title

1

Ariens 08251600

ENGINE BRIGGS 9.0HP I/C

Note: (For models 053, 054, 306)

$

$

Not available

Ariens 08251700

ENGINE BRIGGS 13 HP I/C

Note: (For models 055, 056, 307, 308)

$

$

Not available

Ariens 08260300

ENGINE, 10 HP B&S NON I/C

Note: (For models 046, 310)

$

$

Not available

2

Ariens 02755400

PRE-GUARD- REWIND (B&S#280685)

Note: (For models 306, 307, 308, 310)

$

$

Not available

3

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 02749600

NIPPLE

$9.49

$

Usually ships in 4-12 days

0

5

Ariens 03563600

PIPE CAP

$

$

Not available

6

Ariens 05952400

@BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.49

$

In Stock, Qty 13

0

7

Ariens 06439400

WSHR-FL-STL .328X.875X.062YWZC

$3.99

$

Usually ships in 4-12 days

0

8

Ariens 06602100

KEY-STR .25X2.0X.25

$4.99

$

Usually ships in 4-12 days

0

9

Ariens 02701000

ENGINE SHEAVE

$193.99

$

Usually ships in 4-12 days

0

10

Ariens 07211200

V-BELT, 3L-RAW EDGE

$18.99

$

In Stock, Qty 20+

0

11

Ariens 02755700

GUARD

Note: (For models 306, 310)

$

$

Not available

12

Ariens 07412100

@SCR-TAP 10-24X.375 HWH YZ TR

Note: (For models 306, 310)

$0.99

$

Usually ships in 4-12 days

0

13

Ariens 06408300

WSHR-FL-STL .505X1.140X.250

$6.99

$

Usually ships in 4-12 days

0

14

Ariens 06310700

WSHR-LK .438X.133 HVY YWZC

$2.99

$

Usually ships in 4-12 days

0

15

Ariens 05964800

BLT-HEX .44-20X1.25 GR5 YWZC

$2.99

$

Usually ships in 4-12 days

0

16

Ariens 07216900

V-BELT, HA-RAW EDGE

Note: (For models 046, 053, 054, 056, 306, 307, 310)

$46.99

$

Usually ships in 4-12 days

0

Ariens 07215500

V-BELT, 4L-RAW EDGE

Note: (For models 055, 308)

$39.99

$

In Stock, only 1 left!

0

17

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 02714000

SHOULDER STUD

$87.99

$

Usually ships in 4-12 days

0

19

Ariens 02700600

IDLER ARM

$117.99

$

Usually ships in 4-12 days

0

20

Ariens 06212100

@BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 00325400

WAVE WASHER .531X.781X.125FH

$0.99

$

In Stock, Qty 20+

0

22

Ariens 06436000

WSHR-FL-STL .505X.875X.024 YWZ

$2.49

$

In Stock, only 4 left!

0

23

Ariens 06706900

@PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 10

0

24

Ariens 07321600

IDLER-FLAT 2.75X.31 DAYCO
(Superseded to 52707500)

$86.99

$

Usually ships in 4-12 days

0

25

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 08319200

SG-TENS .062X.72X6.65 WLD 7

$

$

Not available

27

Ariens 02509200

BELT FINGER BRACE

$32.99

$

Usually ships in 4-12 days

0

28

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 02504400

BELT FINGER

$17.99

$

Usually ships in 4-12 days

0
