927303 (RM 1232 E) - Ariens 32" Rear-Engine Rider, 12hp Briggs & Stratton (SN: 000101 & Above) Mower Engagement Linkage Parts Diagram

32" Rear-Engine Rider, 12hp Briggs & Stratton

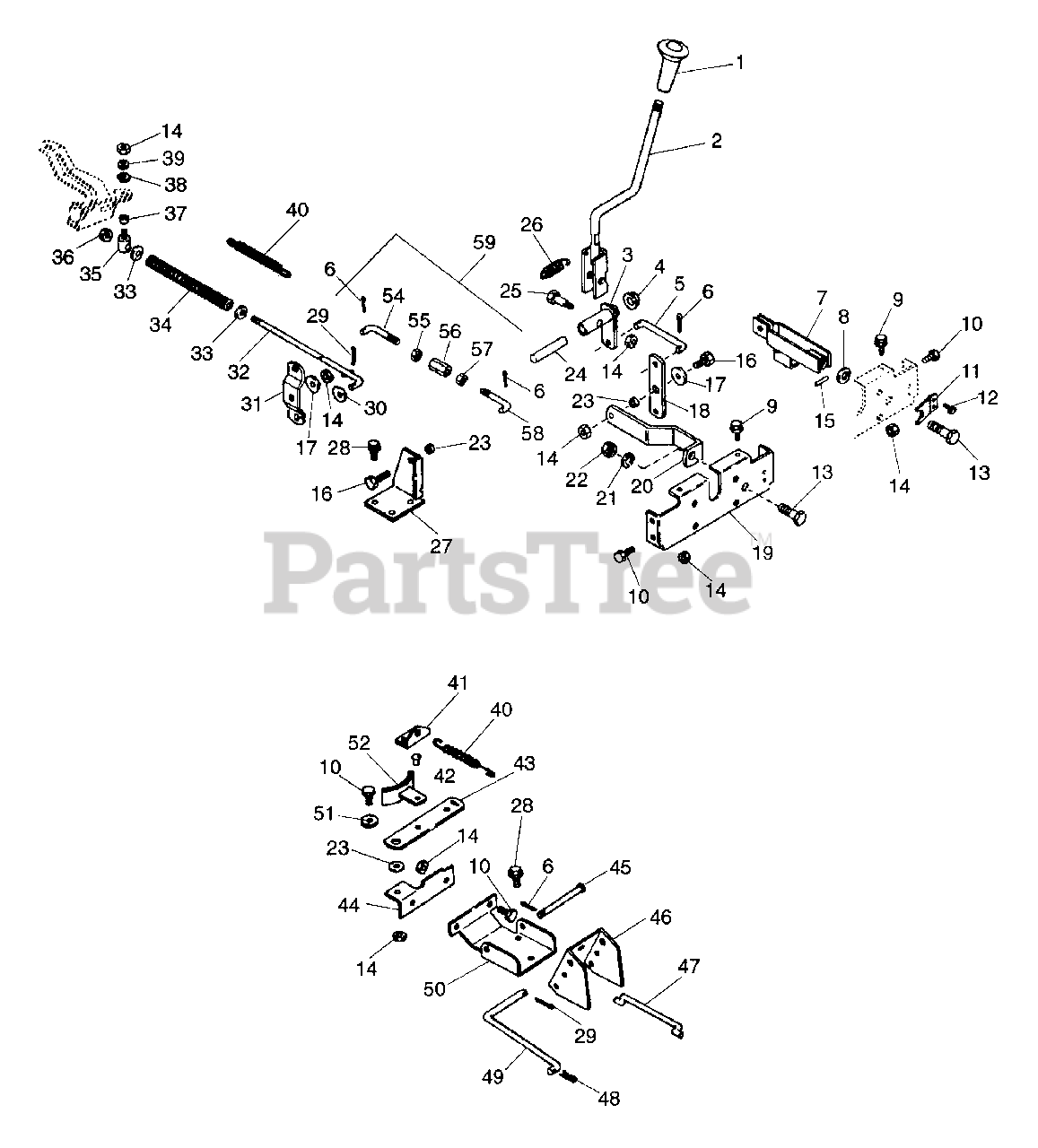

Mower Engagement Linkage Parts Diagram

  • Title

1

Ariens 07514500

KNOB

$23.99

$

Usually ships in 4-12 days

0

2

Ariens 02738900

MOWER CLUTCH LEVER
(Superseded to 02758351)

$

$

Not available

3

Ariens 02704400

CLUTCH ARM

$

$

Not available

4

Ariens 01212800

FLANGE BUSHING

$6.49

$

Usually ships in 4-12 days

0

5

Ariens 02706800

LINK
(Superseded to 52705000)

$

$

Not available

6

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

7

Ariens 02716300

ADJUSTMENT YOKE

Note: (Models 037,043,045,048,049,301,302)

$

$

Not available

8

Ariens 06405800

WSHR-FL-STL .505X1.000X.062
(Superseded to 06439200)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 07405200

SCR-TAP .250-20X.50 HXSLHDPL
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 05900200

BLT-HEX .31-18X.63 PL GR 2
(Superseded to 05952200)

$

$

Not available

11

Ariens 02507200

LOCK SPRING

Note: (Models 037,043,045,048,049,301,302)

$

$

Not available

12

Ariens 07402100

SCR-TAP 10-24X.25 CRSLPH PL 1A
(Superseded to 07415500)

$

$

Not available

13

Ariens 02507400

CAP SCREW

Note: (Models 037,043,045,048,301,302)

$

$

Not available

13

Ariens 05904200

BLT-HEX .50-13X1.25 PL GR2
(Superseded to 05958900)

Note: (Models 047,050,303)

$3.49

$

In Stock, only 1 left!

0

14

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 05801600

PIN-ROLL .188X1.00
(Superseded to 02470401)

$2.49

$

In Stock, only 2 left!

0

16

Ariens 05903400

BLT-HEX .31-18X.88 PL GR2
(Superseded to 05947800)

$2.49

$

In Stock, only 2 left!

0

17

Ariens 06407900

WSHR-FL-STL .344X1.125X.063PL
(Superseded to 06425500)

$2.49

$

In Stock, only 2 left!

0

18

Ariens 02705700

CLUTCH LINK

Note: (Models 037,043,045,048,049,301,302)

$22.99

$

Usually ships in 4-12 days

0

18

Ariens 02719600

CLUTCH LINK

Note: (Models 047,050,303)

$5.99

$

Usually ships in 4-12 days

0

19

Ariens 02709700

MOWER ADJUSTMENT BRACKET

$

$

Not available

20

Ariens 02719500

FRONT ANCHOR

Note: (Models 047,050,303)

$5.99

$

Usually ships in 4-12 days

0

21

Ariens 06300600

WSHR-LK .500X.151 HVY PL
(Superseded to 06306600)

$2.99

$

In Stock, only 1 left!

0

22

Ariens 06502100

NUT .50-13 PL
(Superseded to 06537300)

$3.99

$

Usually ships in 4-12 days

0

23

Ariens 01035800

SPACER BUSHING .5 X .32 X .163

$5.99

$

Usually ships in 4-12 days

0

24

Ariens 02715700

SHAFT

$

$

Not available

25

Ariens 02712900

SHOULDER BOLT .436 X .912

$9.49

$

In Stock, only 1 left!

0

26

Ariens 08309900

SG-TENS .092X.69X1.75 WLD 54

$

$

Not available

27

Ariens 02720400

DECK PIVOT BRACKET

$5.99

$

Usually ships in 4-12 days

0

28

Ariens 07401400

SCR-TAP .312-18X.50 HWH PL TR
(Superseded to 07411500)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 06702400

PIN-COTR .12X.75 PL
(Superseded to 06707300)

$0.99

$

In Stock, Qty 5

0

30

Ariens 06412300

WSHR-FL-STL.344X.688X.065PL
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

31

Ariens 02721000

ARM

Note: (Models 047,050,303)

$

$

Not available

32

Ariens 02727100

CLUTCH ROD

Note: (Models 047,050,303)

$

$

Not available

33

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

34

Ariens 08319100

SG-COMP .148X.68X6.5 WLD 90

Note: (Models 047,050,303)

$20.99

$

Usually ships in 4-12 days

0

35

Ariens 02720600

ROD PIVOT

Note: (Models 047,050,303)

$

$

Not available

36

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

37

Ariens 00607100

SPACER BUSHING .5 X .32 X .21

$14.99

$

Usually ships in 4-12 days

0

38

Ariens 00325400

WAVE WASHER .531X.781X.125FH

Note: (Models 047,05,0303)

$0.99

$

In Stock, Qty 20+

0

39

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.49

$

In Stock, only 2 left!

0

40

Ariens 08301000

SG-TENS .072X.51X5.31 WLD 25

$9.49

$

Usually ships in 4-12 days

0

41

Ariens 02509400

BRAKE CLIP

Note: (Models 037,043,049)

$38.99

$

Usually ships in 4-12 days

0

42

Ariens 06801600

RVT .25X.50 RH ST

Note: (Models 037,043,045,048,049,301,302)

$

$

Not available

43

Ariens 02708900

MOWER BRAKE LEVER

Note: (Models 037,043,045,048,049,301,302)

$19.99

$

Usually ships in 4-12 days

0

44

Ariens 02708800

BRAKE BRACKET

Note: (Models 037,043,045,048,049,301,302)

$

$

Not available

45

Ariens 02709300

PIN-CLEV .309X3.50 SP

Note: (Models 037,043,045,048,049,301,302)

$

$

Not available

46

Ariens 02709200

MOWER ENGAGING ARM

Note: (Models 037,043,045,048,049,301,302)

$16.99

$

Usually ships in 4-12 days

0

47

Ariens 02709100

MOWER BRAKE LINK

Note: (Models 037,043,045,048,049,301,302)

$

$

Not available

47

Ariens 52706500

MOWER BRAKE LINK SERVICE ASSY
(Superseded to 52708900)

Note: (Models 037,043,045,048,049,301,302)

$

$

Not available

48

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.49

$

Usually ships in 4-12 days

0

49

Ariens 02709400

MOWER ENGAGEMENT LINK

Note: (Models 037,043,045,048,049,301,302)

$20.99

$

Usually ships in 4-12 days

0

50

Ariens 02705500

PIVOT BRACKET

Note: (Models 037,043,049)

$

$

Not available

51

Ariens 06408200

WSHR-FL-STL .328X1.0X.094
(Superseded to 06437500)

$3.99

$

In Stock, only 3 left!

0

52

Ariens 01206300

BLADE BRAKE

$

$

Not available

53

Ariens 07401500

SCR-TAP .250-20X.37 HWH PL TR
(Superseded to 07411600)

$0.99

$

In Stock, Qty 20+

0

54

Ariens 02751100

CLUTCH ROD RH

Note: (Models 047,050,303)

$

$

Not available

55

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

56

Ariens 06515500

NUT-CUPLG RH & LH THD .37-16PL

Note: (Models 047,050,303)

$5.99

$

Usually ships in 4-12 days

0

57

Ariens 06517100

NUT LH THD .375-16 GR 2 PL
(Superseded to 06539000)

Note: (Models 047,050,303)

$3.99

$

In Stock, only 1 left!

0

58

Ariens 02751200

CLUTCH ROD LH

Note: (Models 047,050,303)

$

$

Not available

59

Ariens 52706700

CLUTCH ROD SERVICE ASSY

Note: (Models 047,050,303)

$

$

Not available
