927069 (14532 RER) - Ariens 32" Rear-Engine Rider, 14.5hp Briggs & Stratton, Hydro (SN: 000101 & Above) Frame, Hood And Seat Parts Diagram

32" Rear-Engine Rider, 14.5hp Briggs & Stratton, Hydro

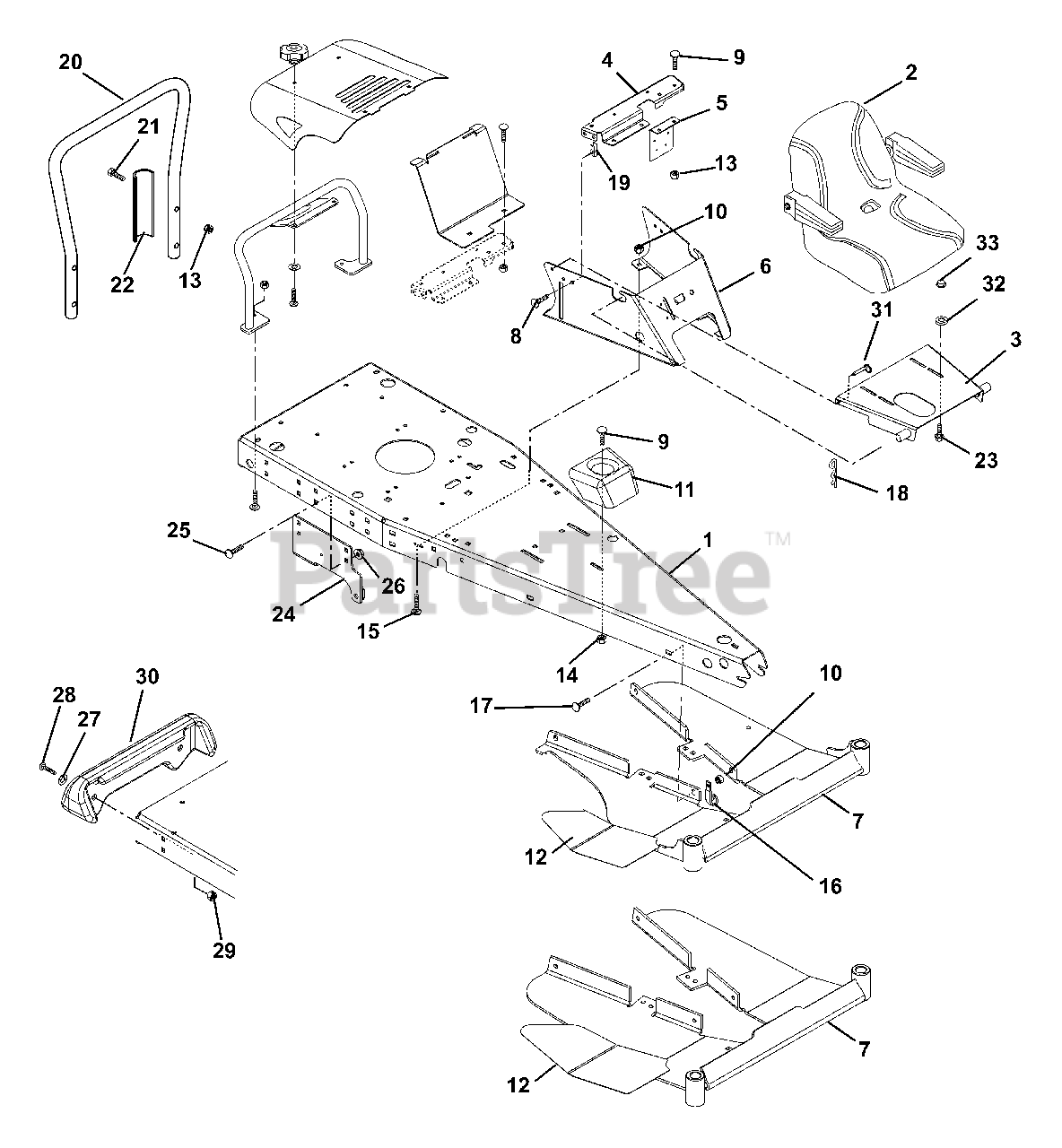

Frame, Hood And Seat Parts Diagram

  • Title

1

Ariens 02780151

FRAME,RER/SPORT-ZOOM

$

$

Not available

2

Ariens 01599200

SEAT, TS2500 MICHIGAN W/ARM.
(Superseded to 00366300)

$

$

Not available

3

Ariens 01611151

WLDM'T, SEAT PLATE

$79.99

$

Usually ships in 4-12 days

0

4

Ariens 02764451

REINFORCEMENT, SEAT SUPPORT

$22.99

$

In Stock, only 1 left!

0

5

Ariens 02766151

PANEL-SOLENOID MOUNTING

$

$

Not available

6

Ariens 01610959

SEAT SUPPORT

$

$

Not available

7

Ariens 02765559

REST, RER/SZ FOOT

Note: (067)

$

$

Not available

7

Ariens 02760259

WLDMT-FOOTREST RER/MINI-Z-

Note: (069)

$

$

Not available

8

Ariens 07049400

BLT-SERHFWH .25-20X.75 YWZC

$2.99

$

Usually ships in 4-12 days

0

9

Ariens 06226700

BLT-RDHDSQNK .31-18X.75 G5BZ
(Superseded to 06215700)

$2.49

$

In Stock, Qty 20+

0

10

Ariens 06544500

NUT-LK-TOP-FLG .38-16 BLKZC
(Superseded to 06545500)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 02768500

CUP HOLDER RER

$20.99

$

Usually ships in 4-12 days

0

12

Ariens 02763000

GRIP, LEFT FOOT REST

Note: (067)

$

$

Not available

12

Ariens 02771700

GRIP, RER FOOTREST (LH)

Note: (069)

$9.49

$

Usually ships in 4-12 days

0

12

Ariens 02763001

GRIP, RH FOOT REST

Note: (067)

$

$

Not available

13

Ariens 02771800

GRIP, RER FOOTREST (RH)

Note: (069)

$9.49

$

Usually ships in 4-12 days

0

14

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06544400

NUT-LK-TOP-FLG .31-18 BLKZC
(Superseded to 06545400)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06227000

BLT-RDHDSQNK .38-16X.75 G5BZ
(Superseded to 06223900)

$1.49

$

In Stock, only 4 left!

0

16

Ariens 06909400

J-CLAMP

$3.49

$

In Stock, Qty 7

0

17

Ariens 06226600

BLT-RDHDSQNK .38-16X1.00 G5BZ
(Superseded to 06223600)

$2.49

$

In Stock, Qty 10

0

18

Ariens 06711900

PIN-HAIR-EXT .12X.31X2.37 YWZC

$2.99

$

In Stock, only 2 left!

0

19

Ariens 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

20

Ariens 02701251

TUBE

Note: (067, 069)

$41.99

$

Usually ships in 4-12 days

0

21

Ariens 05952400

@BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

Note: (067, 069)

$1.49

$

In Stock, Qty 13

0

22

Ariens 02722700

BRACE
(Superseded to 02722751)

Note: (067, 069)

$14.99

$

Usually ships in 4-12 days

0

23

Ariens 00591400

BLT-SERHFWH .31-18 X 1 YWZC

$

$

Not available

24

Ariens 02774900

BRKT, TRANS (RH-WLDMNT)

$

$

Not available

24

Ariens 02775000

BRKT, TRANS (LH-WLDMNT)

$

$

Not available

25

Ariens 06227000

BLT-RDHDSQNK .38-16X.75 G5BZ
(Superseded to 06223900)

$1.49

$

In Stock, only 4 left!

0

26

Ariens 06544500

NUT-LK-TOP-FLG .38-16 BLKZC
(Superseded to 06545500)

$1.49

$

In Stock, Qty 20+

0

27

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

Note: (Optional)

$1.49

$

In Stock, Qty 20+

0

28

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

Note: (Optional)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 06544500

NUT-LK-TOP-FLG .38-16 BLKZC
(Superseded to 06545500)

Note: (Optional)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 01595251

WEIGHT, SPORT-Z

Note: (Optional)

$

$

Not available

31

Ariens 07003300

PIN-DET W/RING .25X1.00

$9.49

$

Usually ships in 4-12 days

0

32

Ariens 01612700

SPACER, .344X1.00X.410

$3.49

$

Usually ships in 4-12 days

0

33

Ariens 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 20+

0
