927069 (14532 RER) - Ariens 32" Rear-Engine Rider, 14.5hp Briggs & Stratton, Hydro (SN: 000101 & Above) Deck, Idlers And Blades 28" And 32" Parts Diagram

32" Rear-Engine Rider, 14.5hp Briggs & Stratton, Hydro

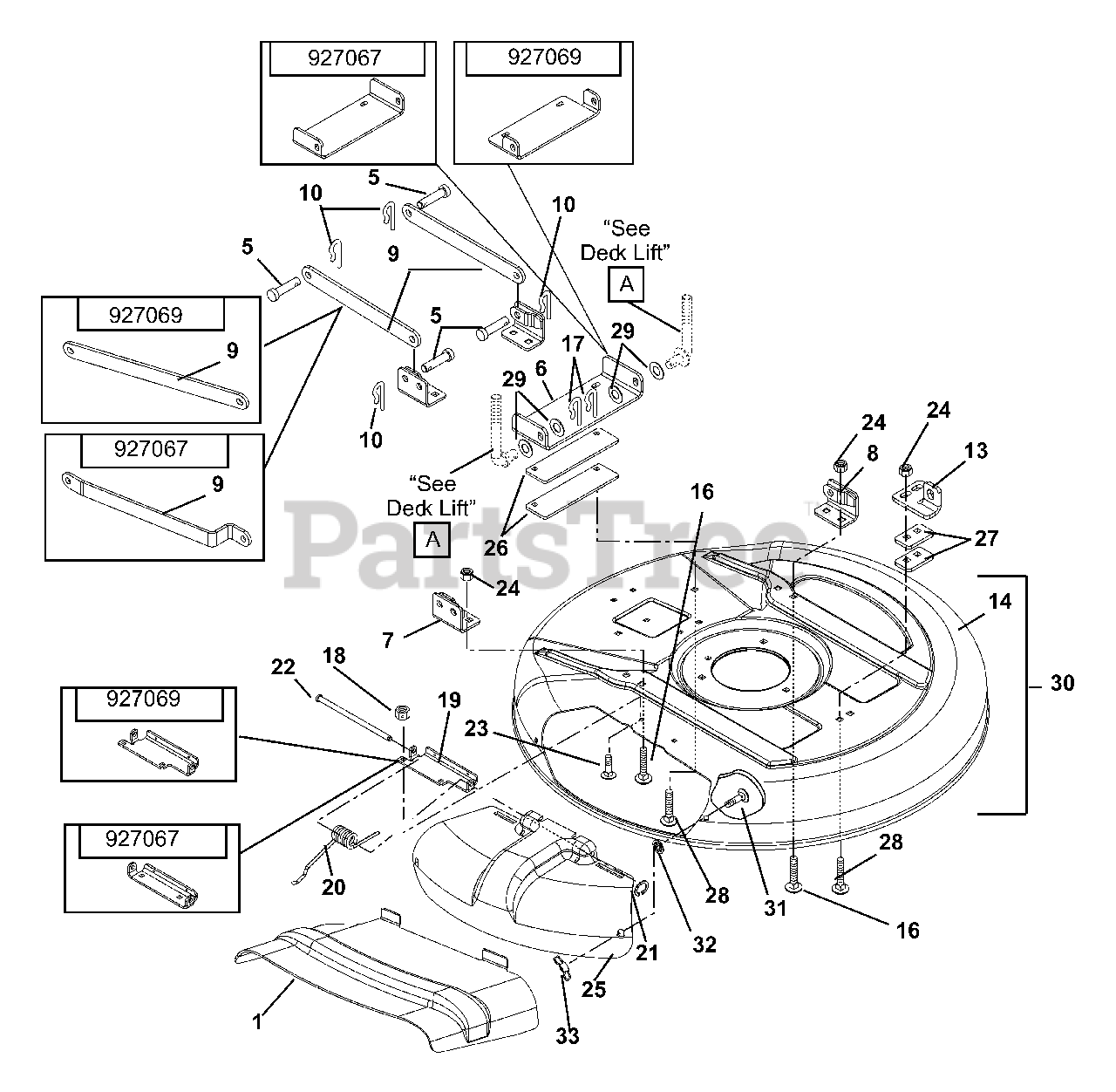

Deck, Idlers And Blades 28" And 32" Parts Diagram

  • Title

1

Ariens 01608500

DISCHARGE CHUTE

$

$

Not available

2

Ariens 06611100

KEY, SQ .25 X .38 X .25

$1.49

$

In Stock, Qty 20+

0

3

Ariens 01572700

BEARING SLINGER

$8.99

$

In Stock, only 1 left!

0

4

Ariens 05416000

BRG-BALL 1.0X2.0X.56 (1641)

$14.99

$

In Stock, Qty 7

0

5

Ariens 06817400

PIN-CLEV .494X1.00 BLKZC

$3.99

$

Usually ships in 4-12 days

0

6

Ariens 02780651

BRKT, REAR HANGER (28" DECK)

Note: (067)

$

$

Not available

6

Ariens 02780351

BRKT, FRONT LIFT (32" DECK)

Note: (069)

$

$

Not available

7

Ariens 02770351

BRKT, 28" DECK STABILIZER

Note: (067)

$

$

Not available

7

Ariens 02763751

WLDMT-DECK LINK (RH)

Note: (069)

$

$

Not available

8

Ariens 02763751

WLDMT-DECK LINK (RH)

Note: (067)

$

$

Not available

8

Ariens 02763851

WLDMT-DECK LINK (LH)

Note: (069)

$

$

Not available

9

Ariens 02770451

STABILIZER, 28" DECK (RH)

Note: (Right Hand Only) (067)

$

$

Not available

9

Ariens 02764351

LINK STABILIZER 32"

Note: (067)

$

$

Not available

9

Ariens 02764351

LINK STABILIZER 32"

Note: (069)

$

$

Not available

10

Ariens 06944800

CLIP, SPRING

$0.99

$

In Stock, Qty 20+

0

11

Ariens 62727400

ASSY-SPINDLE HSG

$179.99

$

Usually ships in 4-12 days

0

12

Ariens 01590500

SPACER, 1.001 X 1.25 X 1.76

$6.99

$

Usually ships in 4-12 days

0

13

Ariens 02780751

BRKT, FRONT HANGER (28" DECK)

Note: (067)

$

$

Not available

13

Ariens 02780351

BRKT, FRONT LIFT (32" DECK)

Note: (069)

$

$

Not available

14

Ariens 02770651

DECK, 28" RER

Note: (067)

$

$

Not available

14

Ariens 02770551

DECK, RER/SZ 32"

Note: (069)

$

$

Not available

15

Ariens 02774300

SHAFT, 28" AND 32" INPUT

$155.99

$

Usually ships in 4-12 days

0

16

Ariens 06227000

BLT-RDHDSQNK .38-16X.75 G5BZ
(Superseded to 06223900)

$1.49

$

In Stock, only 4 left!

0

17

Ariens 06714900

PIN, HAIR, EXT - #16 YWZC

$0.99

$

In Stock, Qty 20+

0

18

Ariens 06527600

NUT-LK-FLG .250-20 PL BLK

$0.99

$

In Stock, Qty 20+

0

19

Ariens 01612000

BRKT, 28" MULCH COVER HINGE
(Superseded to 01612051)

$

$

Not available

19

Ariens 01608200

BKT, HINGE

$

$

Not available

20

Ariens 08310001

SPRING, TORSION

$

$

Not available

20

Ariens 08310002

SPRING, TORSION

$9.49

$

Usually ships in 4-12 days

0

21

Ariens 05706300

RG-RTNG-EXT .312X.025

$0.99

$

Usually ships in 4-12 days

0

22

Ariens 01608300

PIN, HINGE

$34.99

$

Usually ships in 4-12 days

0

23

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 18

0

24

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 01611900

COVER, 28" DECK MULCH

$86.99

$

Usually ships in 4-12 days

0

25

Ariens 01608400

MULCH COVER, 32" DECK

$

$

Not available

26

Ariens 02780851

PLATE, 32" REAR HANGER SPACER

$

$

Not available

27

Ariens 02780951

PLATE, 32" FRONT HANGER SPCR

$

$

Not available

28

Ariens 06227700

@BLT-RDHDSQNK .38-16X1.25 BKZC
(Superseded to 06224100)

$2.49

$

In Stock, only 3 left!

0

29

Ariens 06441800

WSHR-FL-STL .518X2.0X.105 YWZC
(Superseded to 06401127)

$3.99

$

Usually ships in 4-12 days

0

30

Ariens 52711600

KIT, 28" DECK SERVICE ASSY

Note: (067)

$

$

Not available

30

Ariens 52711500

KIT, 32" DECK SERVICE ASSY

Note: (069)

$

$

Not available

31

Ariens 06214100

BLT-RDHDSQSHK.31-18X.75 GR2 YW
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

32

Ariens 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 20+

0

33

Ariens 06537100

NUT-NYLK WING .312-18 YWZC

$5.99

$

In Stock, only 1 left!

0
