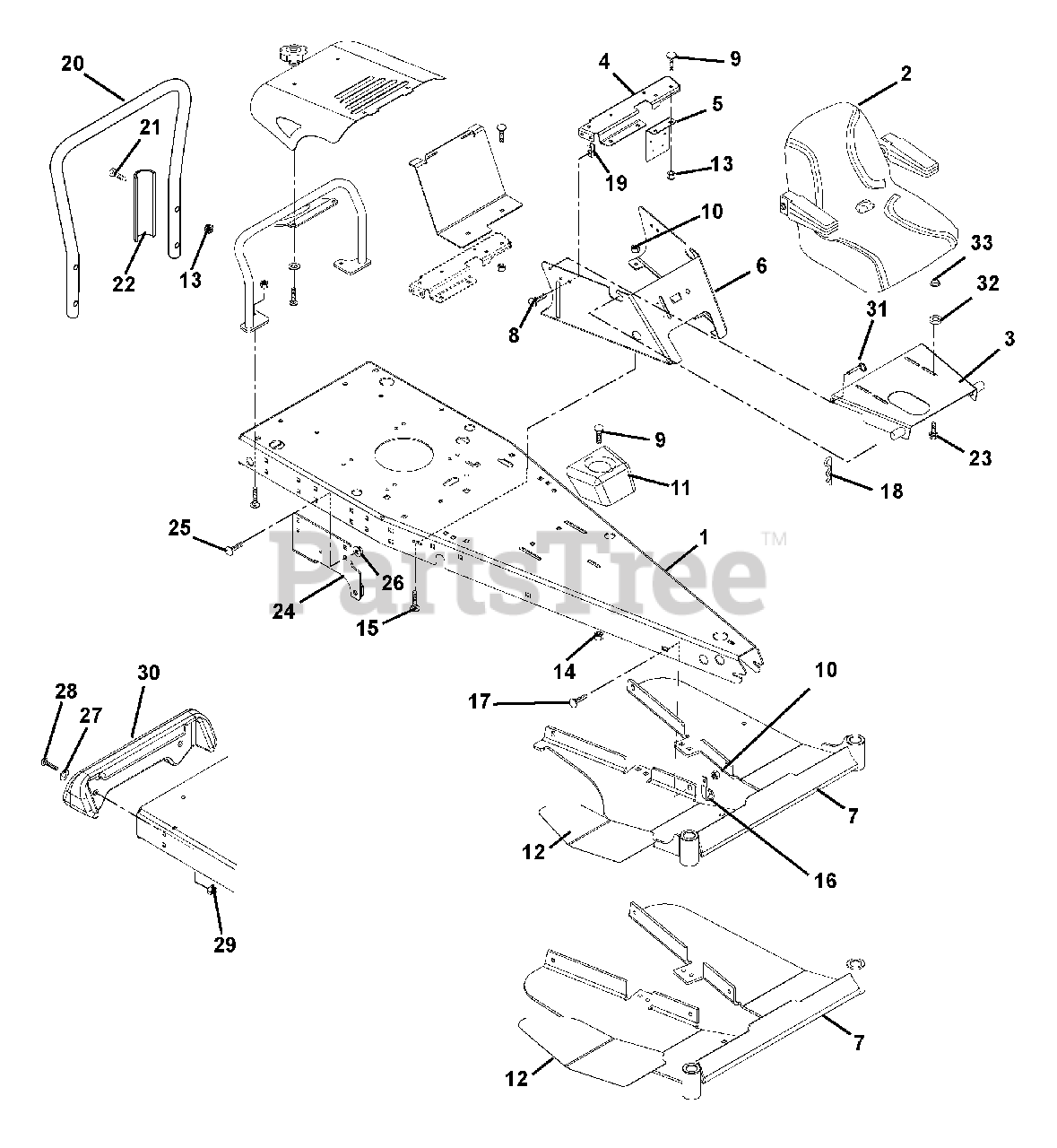

927068 (14532) - Gravely 32" Rear-Engine Riding Mower, 14.5hp Briggs & Stratton, Hydro (SN: 000101 & Above) Frame, Hood And Seat Parts Diagram

32" Rear-Engine Riding Mower, 14.5hp Briggs & Stratton, Hydro

Frame, Hood And Seat Parts Diagram

  • Title

1

Gravely 02780151

Frame

$

$

Not available

2

Gravely 01599200

Seat, TS2500 Michigan with Arms
(Superseded to 00366300)

$

$

Not available

3

Gravely 01611151

Weldment, Seat Plate

$79.99

$

Usually ships in 4-12 days

0

4

Gravely 02764451

Reforcement, Seat Support

$22.99

$

In Stock, only 1 left!

0

5

Gravely 02766151

Panel, Solenoid Mounting

$

$

Not available

6

Gravely 01610953

Seat Support

$131.99

$

Usually ships in 4-12 days

0

7

Gravely 02765553

Weldment, Footrest (066)

Note: (066)

$

$

Not available

7

Gravely 02760253

Weldment, Footrest (068)

Note: (068)

$216.99

$

Usually ships in 4-12 days

0

8

Gravely 07049400

Bolt-Serrated Hex Flange Washer Head .25-20 x .75

$2.99

$

Usually ships in 4-12 days

0

9

Gravely 06226700

Bolt, Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06215700)

$2.49

$

In Stock, Qty 20+

0

10

Gravely 06544500

Nut, Locking Top Flange .38-16
(Superseded to 06545500)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 02768500

Cupholder

$20.99

$

Usually ships in 4-12 days

0

12

Gravely 02763000

Grip, Footrest Left Hand (066)

Note: (066)

$

$

Not available

12

Gravely 02771700

Grip, Footrest Left Hand (068)

Note: (068)

$9.49

$

Usually ships in 4-12 days

0

12

Gravely 02763001

Grip, Footrest Right Hand (066)

Note: (066)

$

$

Not available

12

Gravely 02771800

Grip, Footrest Right Hand (068)

Note: (068)

$9.49

$

Usually ships in 4-12 days

0

13

Gravely 06544400

Nut-Locking-Top-Flange .31-18
(Superseded to 06545400)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06530400

Nut-Spin Lock-Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06227000

Bolt-Round Head Square Neck .38-16 x .75 Grade 5
(Superseded to 06223900)

$1.49

$

In Stock, only 4 left!

0

16

Gravely 036518

J-Clamp
(Superseded to 06909400)

$3.49

$

In Stock, Qty 5

0

17

Gravely 06226600

Bolt-Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06223600)

$2.49

$

In Stock, Qty 10

0

18

Gravely 06711900

Pin-Hair-External .12 x .31 x 2.37

$2.99

$

In Stock, only 2 left!

0

19

Gravely 032369

Nut-Retainer .25-20 x .56
(Superseded to 07009000)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 02701251

Tube (066, 068)

Note: (066, 068)

$41.99

$

Usually ships in 4-12 days

0

21

Gravely 05952400

Bolt, Hex .31-18 x 1.50 Grade 5 (066, 068)
(Superseded to 05901710)

Note: (066, 068)

$1.49

$

In Stock, Qty 12

0

22

Gravely 02722700

Brace (066, 068)
(Superseded to 02722751)

Note: (066, 068)

$14.99

$

Usually ships in 4-12 days

0

23

Gravely 00591400

Bolt-Serrated Hex Flange Washer Head .31-18 x 1

$

$

Not available

24

Gravely 02774900

Bracket, Transmission - Right Hand

$

$

Not available

24

Gravely 02775000

Bracket, Transmission - Left Hand

$

$

Not available

25

Gravely 06227000

Bolt, Round Head Square Neck .38-16 x .75 Grade 5
(Superseded to 06223900)

$1.49

$

In Stock, only 4 left!

0

26

Gravely 06544500

Nut, Locking Top Flange .38-16
(Superseded to 06545500)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 06435900

Washer-Flat-Steel .438 x 1.00 x .083
(Superseded to 06401008)

Note: (Optional)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 05958500

Bolt-Hex .38-16 x 1.75 Grade 5
(Superseded to 05901809)

Note: (Optional)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 06544500

Nut-Locking-Top-Flange .38-16
(Superseded to 06545500)

Note: (Optional)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 01595251

Weight

Note: (Optional)

$

$

Not available

31

Gravely 07003300

Pin, Detent with Ring .25 x 1.00

$9.49

$

Usually ships in 4-12 days

0

32

Gravely 01612700

Spacer

$3.49

$

Usually ships in 4-12 days

0

33

Gravely 06514900

Nut, Push .312

$0.99

$

In Stock, Qty 20+

0
