927068 (14532) - Gravely 32" Rear-Engine Riding Mower, 14.5hp Briggs & Stratton, Hydro (SN: 000101 & Above) Deck 28" And 32" Parts Diagram

32" Rear-Engine Riding Mower, 14.5hp Briggs & Stratton, Hydro

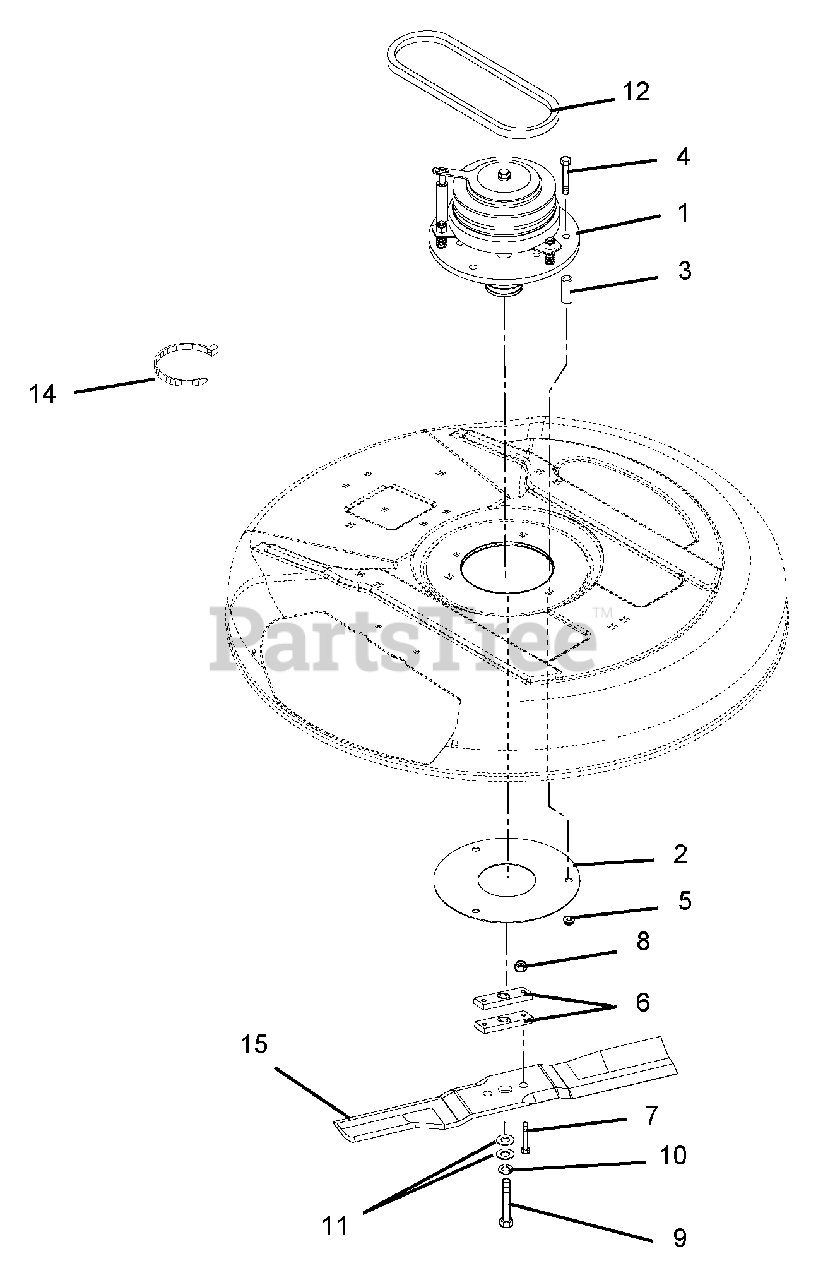

Deck 28" And 32" Parts Diagram

  • Title

1

Gravely 62728600

Clutch/Spindle Assembly

$

$

Not available

2

Gravely 00467651

Clutch Shield

$28.99

$

In Stock, only 1 left!

0

3

Gravely 09054100

Spacer .380 x .625 x 1.500

$

$

Not available

4

Gravely 05961400

Bolt, Hex .38-16 x 2.75 Grade 5
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

5

Gravely 06542000

Nut, Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 00467751

Spacer, 28/32 Blade

$34.99

$

In Stock, only 3 left!

0

7

Gravely 05976600

Bolt, Hex .38-24 x 2.00 Grade 8

$2.99

$

In Stock, only 4 left!

0

8

Gravely 06538800

Nut, Locking, Nylon .375-24 With Insert

$1.99

$

In Stock, only 4 left!

0

9

Gravely 05900024

Bolt, Hex 5/8-18 x 2-.50 Grade 8

$11.99

$

Usually ships in 4-12 days

0

10

Gravely 06309500

Washer, Locking .62 x .156 Regular

$2.49

$

Usually ships in 4-12 days

0

11

Gravely 06442800

Washer, Flat-Steel .656 x 1.31 x .095
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

12

Gravely 07221000

V-Belt A-Section 25.1 x .495 (28-inch mower decks)

Note: (28-inch mower decks)

$33.99

$

Usually ships in 4-12 days

0

12

Gravely 07241400

V-Belt HA 64.25 x .531 (32-inch mower decks)

Note: (32-inch mower decks)

$52.99

$

In Stock, only 1 left!

0

13

Gravely 06909400

J-Clamp

$3.49

$

In Stock, Qty 5

0

14

Gravely 07517300

Cable Tie

$

$

Not available

15

Gravely 01600600

Blade, 28-Inch Mower

$27.99

$

In Stock, only 2 left!

0

15

Gravely 02774500

Blade, 32-Inch Mower

$43.99

$

In Stock, only 3 left!

0
