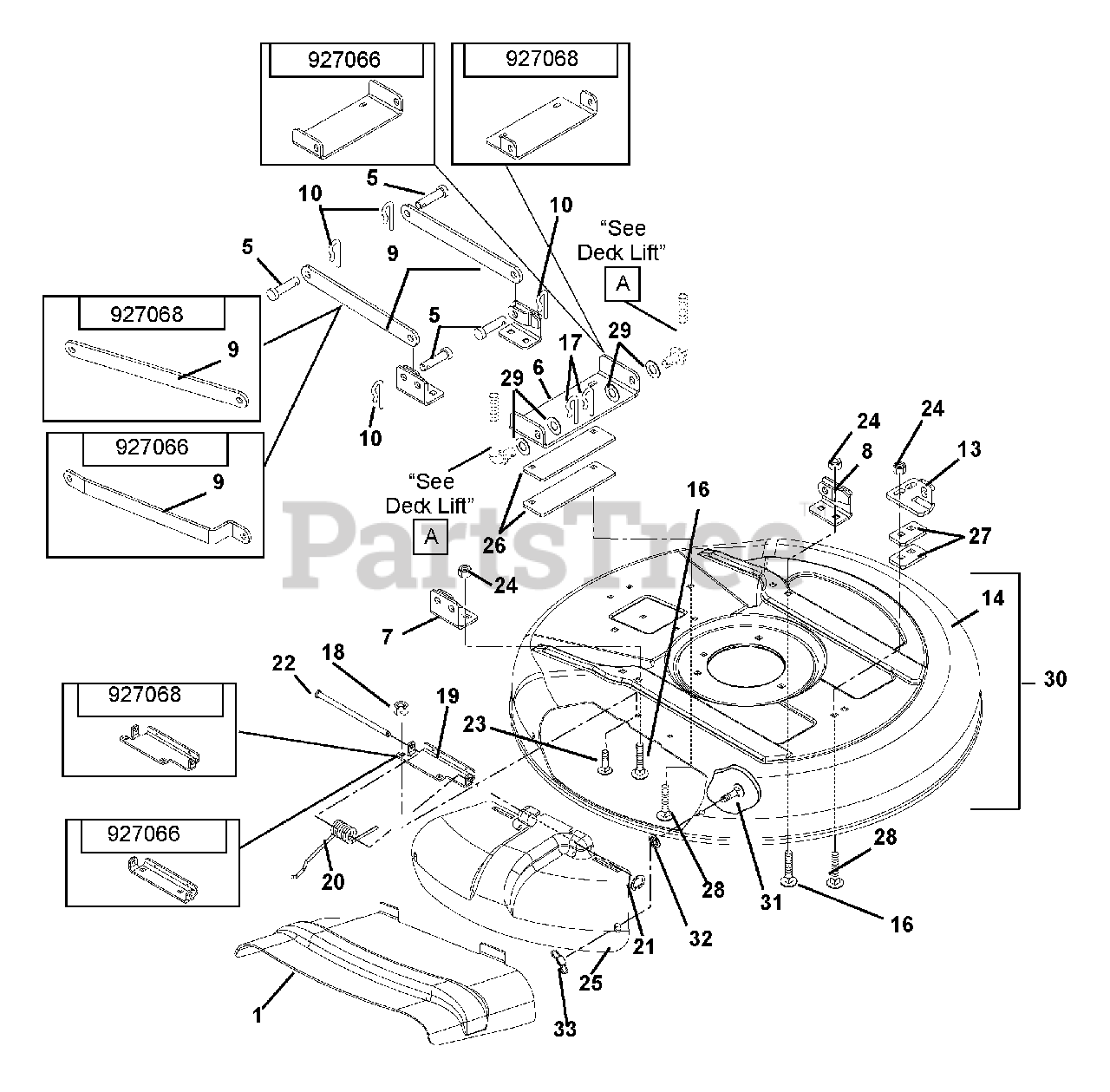

927068 (14532) - Gravely 32" Rear-Engine Riding Mower, 14.5hp Briggs & Stratton, Hydro (SN: 000101 & Above) 28" And 32" Deck, Idlers And Blades Parts Diagram

32" Rear-Engine Riding Mower, 14.5hp Briggs & Stratton, Hydro

28" And 32" Deck, Idlers And Blades Parts Diagram

  • Title

1

01608551

Discharge Chute

$

$

Not available

2

Gravely 06611100

Key, Square .25 x .38 x .25

$1.49

$

In Stock, Qty 20+

0

3

Gravely 01572700

Bearing, Slinger

$8.99

$

In Stock, only 1 left!

0

4

Gravely 032050

Bearing, Ball 1.00 x 2.00 x .56
(Superseded to 05416000)

$14.99

$

In Stock, only 3 left!

0

5

Gravely 06817400

Pin, Clevis .494 x 1.00

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 02780651

Bracket, Rear Hanger 28" (066)

Note: (066)

$

$

Not available

6

Gravely 02780351

Bracket, Rear Hanger 32" (068)

Note: (068)

$

$

Not available

7

Gravely 02770351

Bracket, Deck Link Right Hand (066)

Note: (066)

$

$

Not available

7

Gravely 02763751

Bracket, Deck Link Right Hand (068)

Note: (068)

$

$

Not available

8

Gravely 02763751

Weldment, Deck Link Right Hand (066)

Note: (066)

$

$

Not available

8

Gravely 02763851

Weldment, Deck Link Left Hand (068)

Note: (068)

$

$

Not available

9

Gravely 02770451

Stabilizer , 28" Deck (Right Hand Only)(066)

Note: (Right Hand Only)(066)

$

$

Not available

9

Gravely 02764351

Link Stabilizer (066)

Note: (066)

$

$

Not available

9

Gravely 02764351

Link Stabilizer (068

$

$

Not available

10

Gravely 06944800

Clip, Spring

$0.99

$

In Stock, Qty 20+

0

11

Gravely 62727400

Assembly, Spindle Housing

$179.99

$

Usually ships in 4-12 days

0

12

Gravely 01590500

Spacer, 1.00 x 1.25 x 1.60

$6.99

$

Usually ships in 4-12 days

0

13

Gravely 02780751

Bracket, Front Lift Hanger (066)

Note: (066)

$

$

Not available

13

Gravely 02780351

Bracket, Front Lift Hanger (068)

Note: (068)

$

$

Not available

14

Gravely 02770651

Deck, 28" (066)

Note: (066)

$

$

Not available

14

Gravely 02770551

Deck, 32" (068)

Note: (068)

$

$

Not available

15

Gravely 02774300

Shaft, 32" Input

$155.99

$

Usually ships in 4-12 days

0

16

Gravely 06227000

Bolt, Round Head Square Neck .38-16 x .75 Grade 5
(Superseded to 06223900)

$1.49

$

In Stock, only 4 left!

0

17

Gravely 06714900

Pin, Hair External- #11

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06527600

Nut, Locking Center .25-20

$0.99

$

In Stock, Qty 20+

0

19

Gravely 01612000

Bracket, 28" Mulch Cover Hinge
(Superseded to 01612051)

$

$

Not available

19

Gravely 01608200

Bracket, 32" Mulch Cover Hinge

$

$

Not available

20

Gravely 08310001

Spring, Torsion

$

$

Not available

20

Gravely 08310002

Spring, Torsion

$9.49

$

Usually ships in 4-12 days

0

21

Gravely 05706300

Ring, Retaining External .312 x .025

$0.99

$

Usually ships in 4-12 days

0

22

Gravely 01608300

Rod, Hinge

$34.99

$

Usually ships in 4-12 days

0

23

Gravely 06219900

Bolt, Round Head Square Neck .25-20 x .75 Grade 5
(Superseded to 06200307)

$0.99

$

In Stock, Qty 13

0

24

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 01611900

Cover, 28" Deck Mulch

$86.99

$

Usually ships in 4-12 days

0

25

Gravely 01608400

Cover, 32" Deck Mulch

$

$

Not available

26

Gravely 02780851

Plate, 32" Deck Spacer

$

$

Not available

27

Gravely 02780951

Plate, 32 Deck Front Hanger

$

$

Not available

28

Gravely 06227700

Bolt, Round Head Square Neck .38-16 x 1.25
(Superseded to 06224100)

$2.49

$

In Stock, only 3 left!

0

29

Gravely 06441800

Washer, Flat Steel .518 x 2.00 x .105
(Superseded to 06401127)

$3.99

$

Usually ships in 4-12 days

0

30

Gravely 52711600

Kit, 28" Deck Assembly Service (066)

Note: (066)

$

$

Not available

30

Gravely 52711500

Kit, 32" Deck Assembly Service (068)

Note: (068)

$

$

Not available

31

Gravely 06214100

Bolt, Round Head Square Neck .31-18 x .75 Grade 2
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

32

Gravely 06514900

Nut, Push .312

$0.99

$

In Stock, Qty 20+

0

33

Gravely 06537100

Nut, Nylock Wing .312-18

$5.99

$

In Stock, only 1 left!

0
