927067 (10528 RER) - Ariens 28" Rear-Engine Rider, 10.5hp Briggs & Stratton, Hydro (SN: 000101 & Above) Rear Wheel And Hydro Drive Parts Diagram

28" Rear-Engine Rider, 10.5hp Briggs & Stratton, Hydro

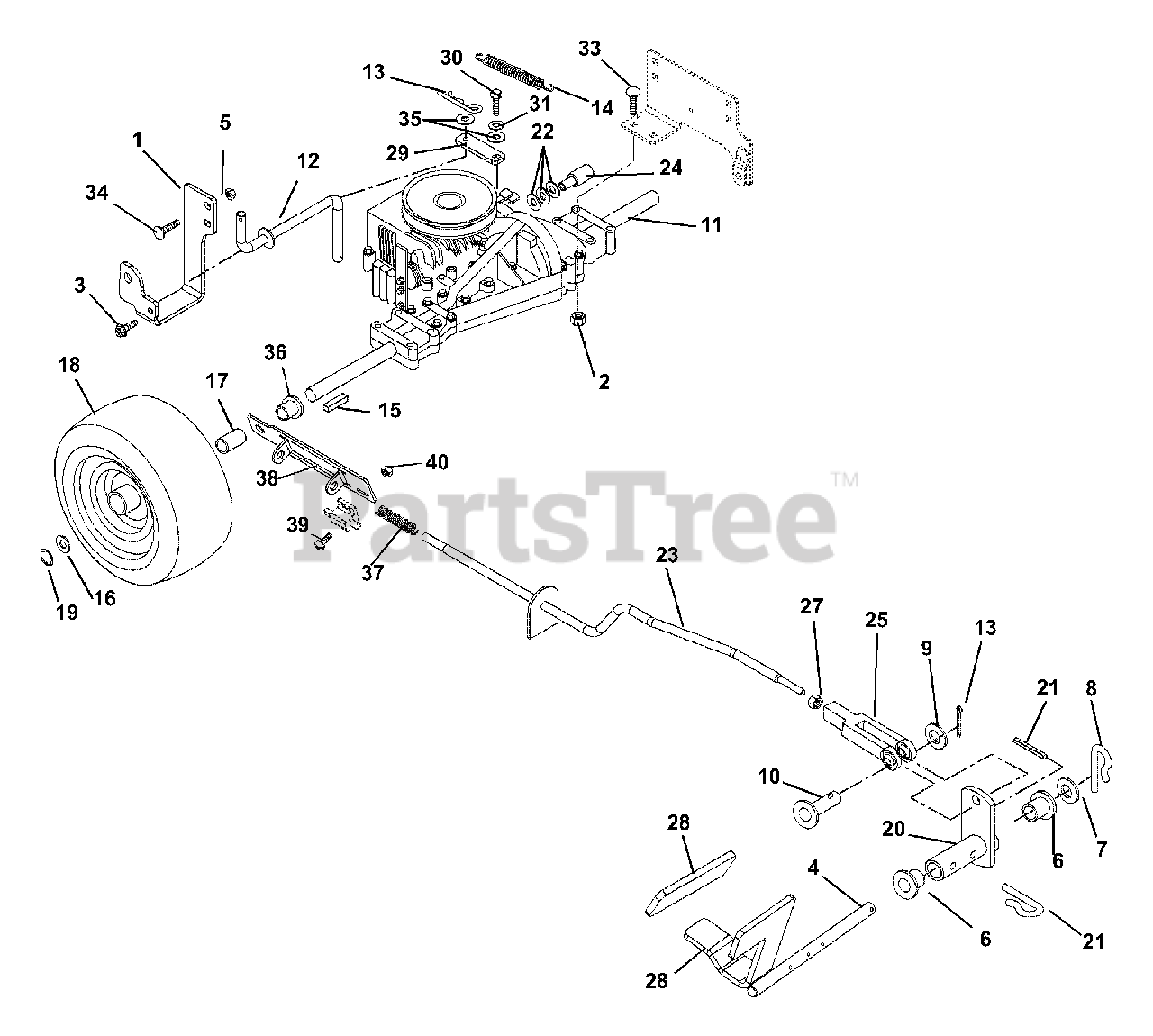

Rear Wheel And Hydro Drive Parts Diagram

  • Title

1

Ariens 02775100

SUPPORT, TRANS

$

$

Not available

2

Ariens 06514400

NUT-FLG .50-13 PL

$

$

Not available

3

Ariens 07414400

@SCR-TAP .31-18X.75 HWH TR YWZ
(Superseded to 07400127)

$1.49

$

In Stock, Qty 11

0

4

Ariens 02792000

WELDM'T,NMIR SHIFT PEDAL

$

$

Not available

5

Ariens 06544500

NUT-LK-TOP-FLG .38-16 BLKZC
(Superseded to 06545500)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 05521100

BSHG-FLG .515X.750X.745X1.00NY

$2.49

$

In Stock, only 3 left!

0

7

Ariens 06439200

WSHR-FL-STL .505X1.00X.062YWZC
(Superseded to 06401112)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 06944800

CLIP, SPRING

$0.99

$

In Stock, Qty 20+

0

9

Ariens 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.49

$

In Stock, only 2 left!

0

10

Ariens 06811800

PIN-CLEV .312X.822 HDND PL
(Superseded to 06814000)

$3.99

$

In Stock, only 1 left!

0

11

Ariens 02776800

TRANS. PEERLESS LTH-2000-020

$

$

Not available

12

Ariens 02775300

ROD, TRANS DISCONNECT

$

$

Not available

13

Ariens 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 08321100

SG-TENS .043X.44X3.31 WLD 5.8

$6.49

$

In Stock, Qty 6

0

15

Ariens 06601900

KEY-SQ .188X2.0X.188 SAE 8630

$

$

Not available

16

Ariens 06444200

WSHR-FL-STL .755X1.25X.125 YZ
(Superseded to 06441500)

$3.99

$

In Stock, only 4 left!

0

17

Ariens 02765400

SPACER WHEEL .75X1.0X1.25
(Superseded to 05510400)

$

$

Not available

18

Ariens 02765300

ASSY-TIRE&WHEEL 16 X 6.5 X8

Note: (067, 069)

$

$

Not available

18

Ariens 07102100

TIRE 16X6.50-8 2 PLY

$79.99

$

Usually ships in 4-12 days

0

19

Ariens 05707400

RG-RTNG-EXT .750X.050

$2.49

$

Usually ships in 4-12 days

0

20

Ariens 02761700

WLMDT-SHIFT ROD & HUB

$

$

Not available

21

Ariens 06707000

@PIN-CTR .09X1.00 EXTPRSQCT YZ
(Superseded to 121224)

$0.99

$

Usually ships in 4-12 days

0

22

Ariens 06439200

WSHR-FL-STL .505X1.00X.062YWZC
(Superseded to 06401112)

$0.99

$

In Stock, Qty 20+

0

23

Ariens 02791900

ROD, NMIR SHIFT

$6.99

$

Usually ships in 4-12 days

0

24

Ariens 01582300

TRUNNION

$

$

Not available

25

Ariens 07014700

YOKE, .312-24 X 2.25

$14.99

$

In Stock, only 1 left!

0

26

Ariens 06444300

WSHR-FL-STL .390X.75X.125 YWZC

$7.99

$

In Stock, Qty 8

0

27

Ariens 06538800

NUT-LK-NYL .375-24 W/INSR YWZC

$1.99

$

In Stock, only 4 left!

0

28

Ariens 02773900

GRIP, PEDAL

$12.99

$

In Stock, only 1 left!

0

29

Ariens 02781600

TAB, TRANS DISCONNECT

$

$

Not available

30

Ariens 05952300

BLT-HEX .25-28X.75 GR5 YWZC

$1.99

$

Usually ships in 4-12 days

0

31

Ariens 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

32

Ariens 06437500

WSHR-FL-STL .328X1.0X.094 YWZC
(Superseded to 06401027)

$3.99

$

In Stock, only 3 left!

0

33

Ariens 06219400

@BLT-RDHDSQNK .31-18X2.50 G5YZ
(Superseded to 06200409)

$3.49

$

Usually ships in 4-12 days

0

34

Ariens 06227000

BLT-RDHDSQNK .38-16X.75 G5BZ
(Superseded to 06223900)

$1.49

$

In Stock, only 4 left!

0

35

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

36

Ariens 05515800

BSHG-FLG .406X.88X.270X.140

$9.49

$

In Stock, only 4 left!

0

37

Ariens 08335500

SG-COMP .081X.720X2.75 PL

$

$

Not available

38

Ariens 02791800

BRKT, NMIR SHIFT

$

$

Not available

39

Ariens 06116900

@SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

40

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0
